Dish Network ViP 722 Manual de usuario

About Your Satellite Receiver

Receiver and Remote Controls

What you’ll find in this chapter:

•SATELLITE RECEIVER OVERVIEW

•DUAL AND SINGLE MODES

•REMOTE CONTROL

•SATELLITE RECEIVER FRONT PANEL

•SATELLITE RECEIVER BACK PANEL

•USING THE MENUS

•USING TEXT FIELDS

Chapter 2

Satellite Receiver Overview

This section gives you an overview of your DISH Network satellite TV receiver system.

Satellite Receiver

The ViP622 DVR and ViP722 DVR are dual-tuner satellite receivers with digital video recorders.

With either receiver you can view/record standard-definition (SD) and high-definition (HD)

DISH Network programming on two TVs or view/record over-the-air digital/HD broadcasts on the

nearby HDTV.

•Nearby TV (TV1)—Connect to an HDTV to view SD and HD DISH Network programming and

over-the-air digital/HD broadcasts. Programming from the receiver is delivered to the nearby

TV using short audio/video cables.

•Remote TV(s) (TV2)—Connect to an SDTV to view SD and down-converted HD broadcasts.

Programming from the receiver is usually delivered to the remote TV(s) using existing in-home

coaxial cable.

Remote Controls

Two remote controls come with your receiver:

•Remote Control 1 - An Infrared (IR) remote to control programming for the nearby TV (TV1).

This remote control is labeled with a green number 1, which matches similar markings on the

receiver output connections and the menus for the nearby TV.

•Remote Control 2 - An Ultra-High Frequency Pro (UHF Pro) remote to control programming at

a remote TV (TV2). This remote control is labeled with a blue number 2, which matches similar

markings on the receiver output connections and the menus for the remote TV. Be sure to set

up the remote control to operate the receiver (see page 72).

Dual and Single Modes

Your satellite receiver includes two modes of operation: Dual and Single. These modes increase

your entertainment options because you’ll be able to choose how you watch and record your favor-

ite programs.

Dual Mode

While in Dual Mode, you can use this dual-tuner satellite receiver to watch different programming

in two separate locations:

•Nearby TV—Programming from the receiver is delivered to the TV near the receiver using

short audio/video cables and is controlled using Remote Control 1. The nearby TV is also

referred to as “TV1.”

•Remote TV—Programming from the receiver is delivered to a TV located in another room

using existing in-home coaxial cable and is controlled using Remote Control 2. The video

displayed on the remote TV is always in standard definition (SD). High-definition stellite

Satellite Receiver

Dual and Single Modes

programming can be viewed on the remote TV; however, it is down-converted for viewing on

the remote TV. The remote TV is also referred to as “TV2.”

You can tell your receiver is in Dual Mode because the front panel mode indicator will light and the

menu and other screens will display Dual Mode (as shown below).

Single Mode

TUE 3/19

6:25 pm

Dual Mode

TUE 3/19

6:25 pm

Dual Mode

Chapter 2

Dual and Single Modes

Single Mode provides dual-tuner receiver features—like Picture-in-Picture (PIP) and the ability to

watch one live program while recording another—to all connected TVs.

Single Mode delivers the same programming to all of the TVs connected to the satellite receiver

and allows control by either remote control. The format of the programming shown on the remote

TV(s) is standard-definition (SD); high-definition (HD) is shown only on the nearby TV. High-defini-

tion programming can be viewed at either TV location; however, it is down-converted for viewing

on the remote TV. You can tell you are in Single Mode because the front panel mode indicator will

light and the menus and other screens will display Single Mode (as shown below).

TUE 3/19

6:25 pm

Single Mode

Satellite Receiver

Remote Control

Switching Between Dual and Single Mode

Put the satellite receiver in Single or Dual Mode by pressing the front panel MODE button. Keep

the following items in mind when switching the satellite receiver between Dual and Single Mode:

Note: If someone is viewing the remote TVs while the receiver is in Dual Mode, you will see a

popup on the nearby TV warning you that you are about to disrupt the use of the TV2 outputs.

Remote Control

The two remote controls give you access to all the features of your satellite receiver. You can set

up each remote to control the satellite receiver and up to three other devices (see page 75). These

devices can be a TV, a VCR or DVD player, and a third device.

This section describes how to use the various features on the two types of remote controls

included with your satellite TV system.

Dual Mode Single Mode

Indications Dual Mode front panel

indicator lights. Single Mode front panel

indicator lights.

Recording The Recording front panel

indicator lights to show

whether TV1, TV2, or both

are currently recording.

The TV1 Recording front

panel indicator lights when

you are recording from one

or both tuners.

Favorites

Lists Favorites Lists set up for

both outputs (TV1 and TV2)

are available.

Only Favorites Lists set up

for TV1 are available. The

lists for TV2 are not lost,

they are simply unavailable

in Single Mode.

Locks Locks set up for both outputs

(TV1 and TV2) are available. Locks set up for only TV1

are available. The locks for

TV2 are not lost, they are

simplyunavailableinSingle

Mode.

Closed

Captioning Closed Captioning (CC)

from SD and HD

programming is available on

TV1. CC from only SD

programming is available on

TV2 (CC must be enabled

on the TV).

Closed Captioning from the

receiver is available on

both outputs (TV1 and

TV2).

Chapter 2

Remote Control

Types of Remote Controls

Remote Control 1 uses infrared (IR)

signals to:

•Control TV1 menus for the nearby

TV in Dual Mode.

•Control the satellite receiver in

Single Mode.

IR signals travel only short distances

(60 feet or less), and cannot go

through walls or other solid objects.

You must point the remote control

directly at the receiver, with no objects

blocking the line of sight.

Remote Control 1 uses IR signals

to control the receiver and other

devices it is programmed to operate.

This remote control is identified by the

green number 1 at the bottom of the

remote control.

Remote Control 2 uses UHF Pro

signals to:

•Control TV2 menus for theremote

TVs in Dual Mode.

•Control the satellite receiver in

Single Mode.

UHF Pro signals travel long distances

and go through walls and other solid

objects.

To use Remote Control 2 to control

the receiver, you must attach the

remote control antenna to the receiver

back panel (see page 17).

Remote Control 2 uses IR signals to

operate other devices programmed

into the remote control. You must

point the remote control directly at

these devices, with no objects

blocking the line of sight.

This remote control is identified by the

blue number 2 at the bottom of the

remote control.

UHF

PRO

Satellite Receiver

Remote Control

Remote Control Batteries

The remote control comes with AAA batteries. When you replace old batteries, you

should replace all of the batteries. Use batteries of the same kind, for example,

alkaline or carbon zinc. Don’t mix batteries of different kinds. Alkaline batteries last

longer.

1. Press down on the top of the battery cover and slide the cover off.

2. Take out all of the old batteries.

3. Put the new batteries in. Make sure you match the plus (“+”) ends with

the plus markings on the battery case.

4. Slide the cover back into place.

Low Battery Warning

When you see a low battery warning message on your screen below the Program

Banner, the batteries in your remote control are weak and need to be replaced.

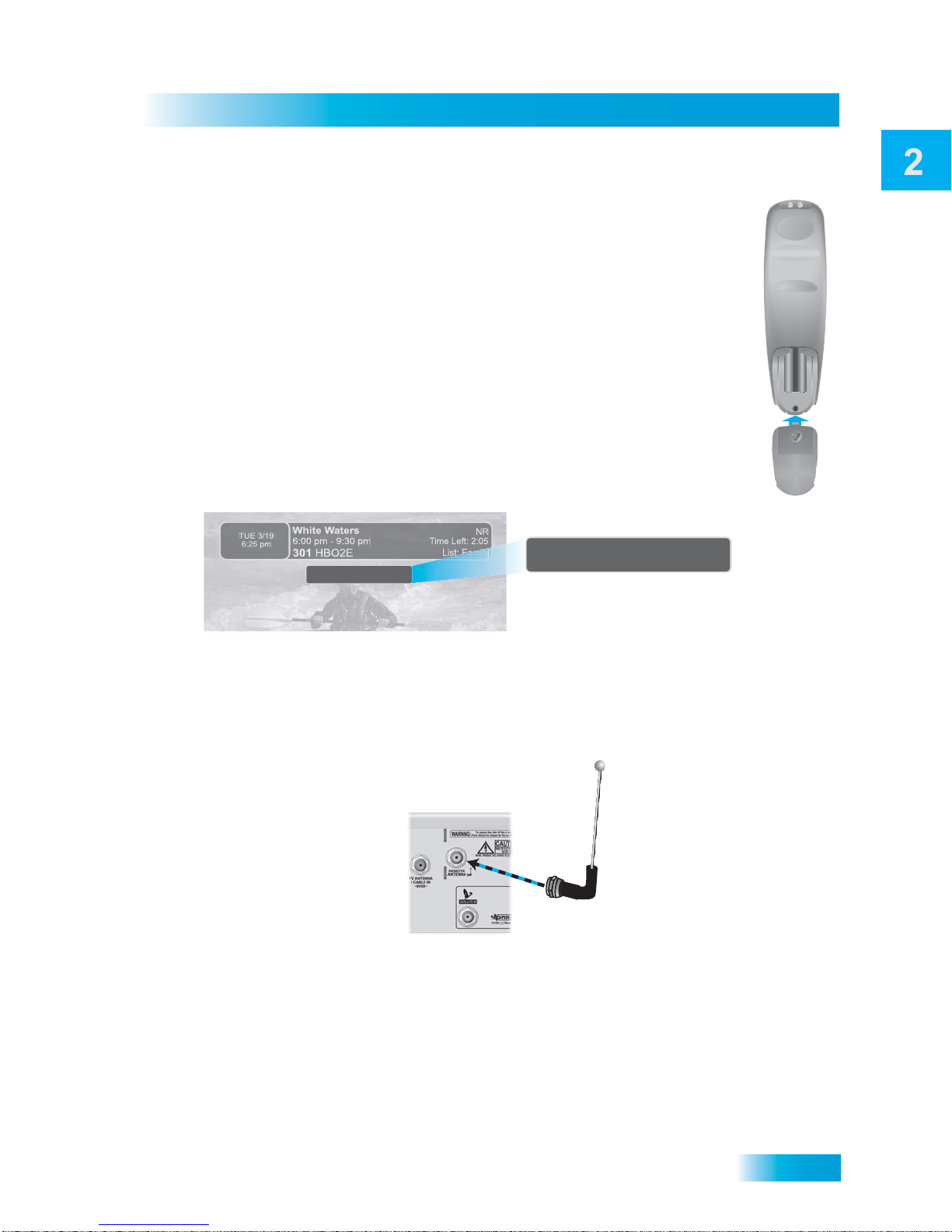

Attach the Remote Antenna

Attach the remote control antenna to the receiver's back panel REMOTE ANTENNA input so you can

use your UHF Pro Remote Control 2. Without the remote control antenna, you cannot use the

remote to control the receiver. See Adjusting the Remote Control Antenna on page 73 for more

detailed information about improving the performance of your UHF Pro Remote Control 2.

Remote Battery Low

Chapter 2

Remote Control

Remote Control Buttons

Receiver Power

& TV Power

Program Guide

Arrows/Select

Buttons

View Satellite

Programming

Digital Video

Recorder (DVR)

Buttons

Picture-In-Picture

(PIP) Buttons

Number Buttons

Top button turns

the receiver on/off,

bottom button

turns the TV on/off

Programming required

Channel up/down,

navigate through

menus/guides and

select adesired

option

Exit out ofany menu/

guide and go back to

viewinglive TV

DISH

Explore interactive

TV features

Browse

See what is on other

channels while

watchingTV

Enter adesired

channel number, or

select menu items

Search for aprogram

Watch two separate

programs at once

in single mode

Recover

Recovers satellite

programmingifyour TV

input or channel has changed

Format

Format the picture

to the desired width

to match the program

you are viewing

Display current and

future satellite program

listings

Page Buttons

Page up/down in menus

and display options

Control TV volume

Programming required

Access receiver

features and settings

Themes

Search for programs

usingThemes

Recall

Go back to last

channel viewed

Info

Display program

information

Pause live TV and

play or record

programming

Volume & Mute Buttons

To use the features described in this section, make

sure you are in SAT mode by pressingthe SAT Mode button.

SAT

Press this

button for

SAT Mode

Remote key may

be different than shown

here

SAT Mode

Satellite Receiver

Remote Control

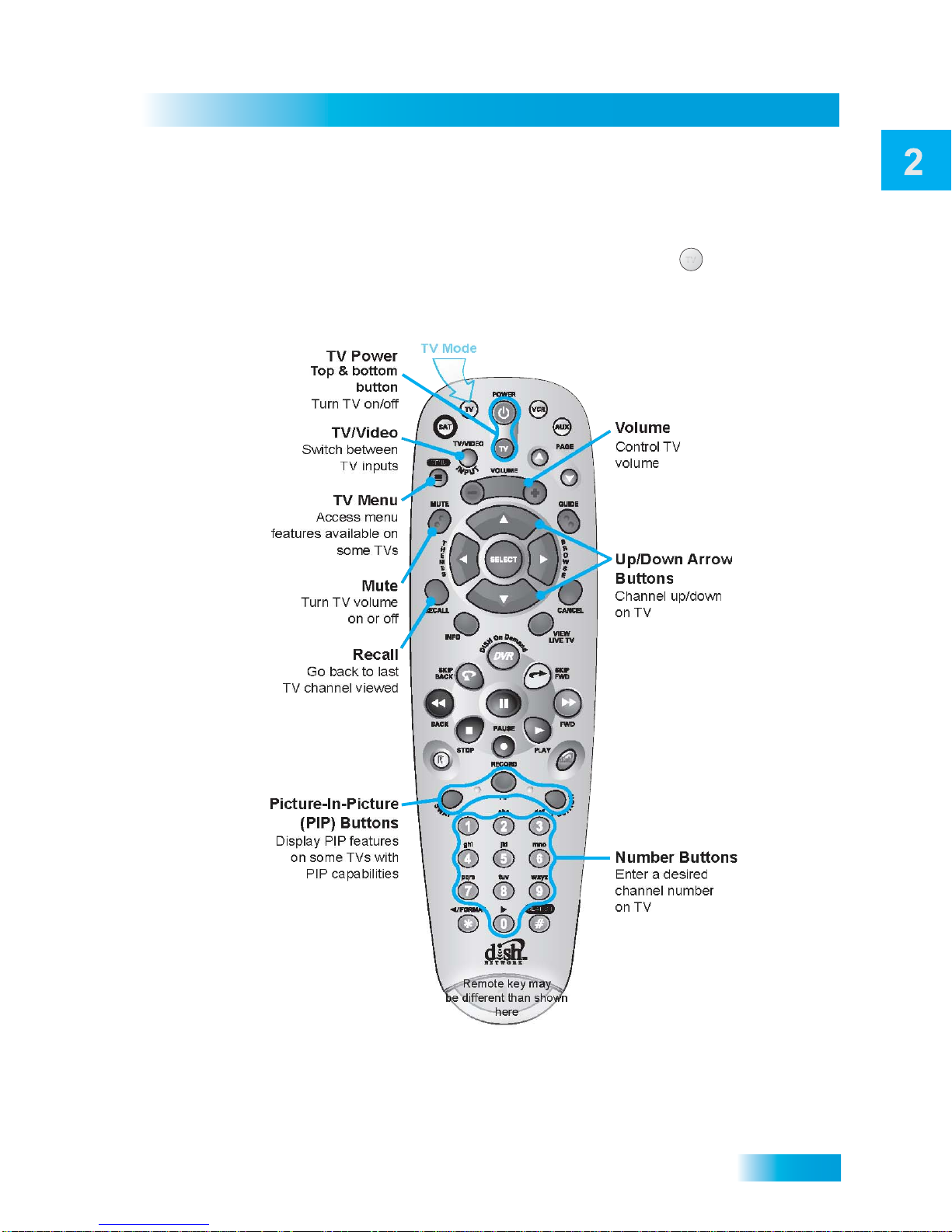

To use the features described in this section, make

sure you are in TVmode by pressing the TVMode button.

Remote programming is required.

TVTV

Press this

button for

Remote key may

be different than shown

here

TV Mode

Chapter 2

Remote Control

Top button

on/off,

button

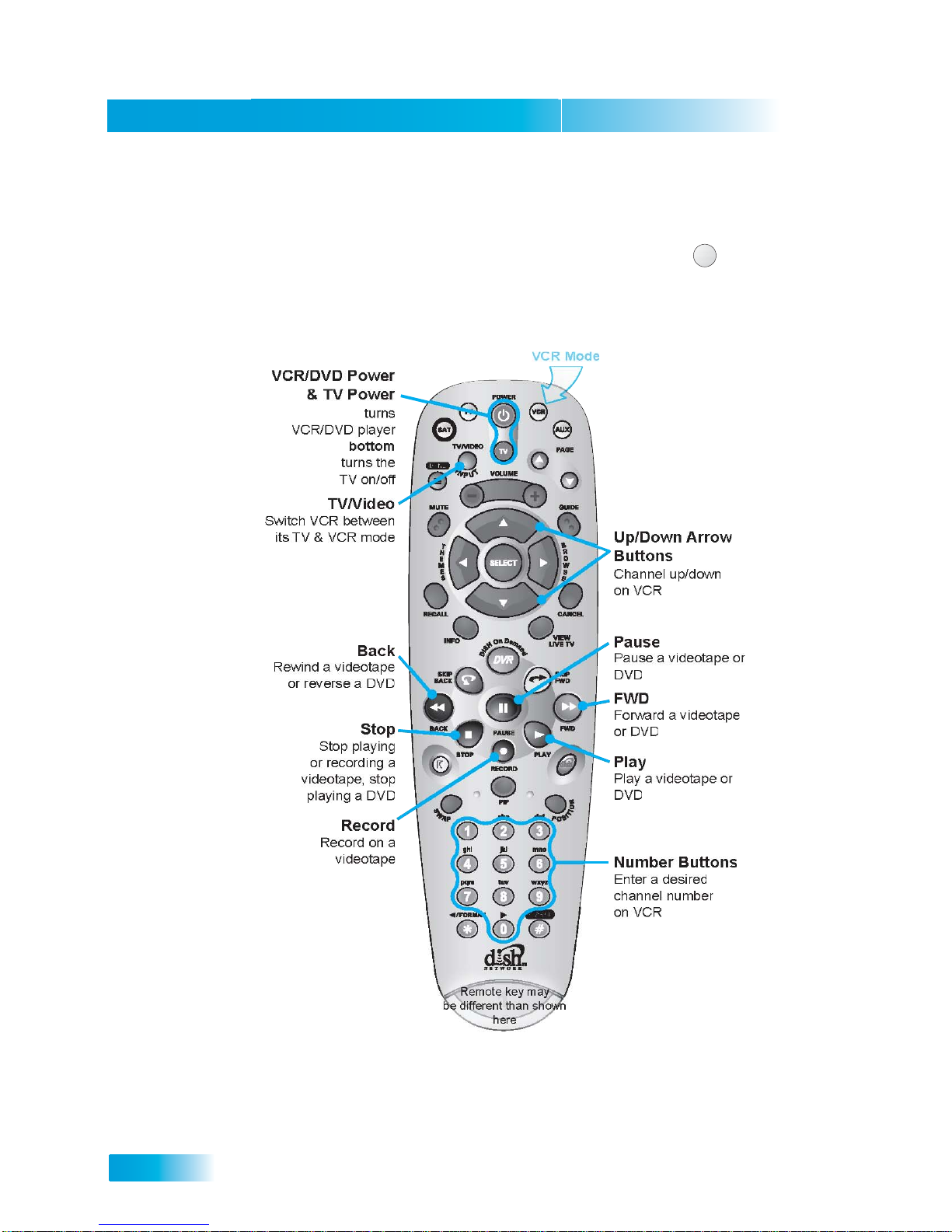

To use the features described in this section, make

sure you are in VCR mode by pressing the VCR Mode button.

You can use this mode to operate your DVD player instead of a VCR.

Remote programming is required.

VCR

Press this

button for

Remote key may

be different than shown

here

VCR Mode

Otros manuales para ViP 722

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de Dish Network

Dish Network

Dish Network 196812 Manual de usuario

Dish Network

Dish Network WALLY Manual de usuario

Dish Network

Dish Network Duo ViP 222 Manual de usuario

Dish Network

Dish Network DISH 311 Manual de usuario

Dish Network

Dish Network 138410 Manual de usuario

Dish Network

Dish Network Satellite Television Manual de usuario

Dish Network

Dish Network Hopper Manual de usuario

Dish Network

Dish Network DishPro 322 Manual de usuario

Dish Network

Dish Network 512 Manual de usuario

Dish Network

Dish Network Wireless Joey Manual de usuario

Dish Network

Dish Network Duo ViP 222 Manual de usuario

Dish Network

Dish Network DP111 Manual de usuario

Dish Network

Dish Network DishPro 322 Manual de usuario

Dish Network

Dish Network Solo 381 Manual de usuario

Dish Network

Dish Network ViP 222K Manual de usuario

Dish Network

Dish Network DVR 522 Manual de usuario

Dish Network

Dish Network WALLY Manual de usuario

Dish Network

Dish Network Satellite Television Manual de usuario

Dish Network

Dish Network DuoDVR ViP 922 Manual de usuario

Dish Network

Dish Network 123698 Manual de usuario

Dish Network

Dish Network Satellite Television Manual de usuario

Dish Network

Dish Network High-Definition ViP 22k Duo Receiver and... Manual de usuario

Dish Network

Dish Network HDE-8C-QAM Manual de usuario

Dish Network

Dish Network DuoDVR ViP 722_TOC Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
