Dish Network DISH 351 Instrucciones de funcionamiento e instalación

Page 9

Chapter 2

Receiver Description and Installation

The Receiver Front Panel

Smart Card Door

Behind this door is a slot for a future smart card. No smart card is included with

this receiver.

Up and Down Arrow Buttons

The UP and DOWN buttons change the channel on the receiver.

IR Sensor and IR Blaster

The IR SENSOR receives IR signals from the remote control. The IR

BLASTER transmits IR signals to control a VCR in order to perform automated

recordings.

Power Button and Light

The GREEN LIGHT on the front panel lights up when you press the receiver’s

POWER button ON and goes out when you press the POWER button OFF.

Page 10

Chapter 2

Receiver Description and Installation

The Receiver Back Panel Connections

Tighten the connections by hand only. If you use a wrench you

might over-tighten the connections and cause damage that

would not be covered by the Limited Warranty.

The back panel of the receiver provides the connections that you use to

connect the receiver to other electronic devices. It also provides the receiver

power cord and telephone jack. Depending on the setup that you have, you

may only use some of these connections.

Signal Input

The television signal enters your receiver through this

connection. Connect an RG-6 coaxial cable from your wall

outlet to the SIGNAL INPUT connection. The connector is

color coded black. Remember to tighten by hand only. Wrap the black label,

located inside the front cover, around the end of the cable to identify it.

TV Set

Use the TV SET connector as the primary means of

connecting your receiver to your TV. Use either an RG-6 or

an RG-59 coaxial cable. The connector is color coded white.

Remember to tighten by hand only. Wrap the white label, located inside the

front cover, around the end of the cable to identify it.

Channel 3/4 Switch

If you use the TV SET connection as described above, set the

CHANNEL 3/4 SWITCH to the channel for the signal output.

Select a channel that is not being used by a cable or local

television channel.

S-Video

The S-VIDEO connection provides high quality standard

definition video output. If you use this output for video, you

must connect the audio with the two RCA AUDIO OUTPUTS

(color coded Red and White).

Phono (RCA) Audio/Video Outputs

These color coded RCA A/V OUTPUT connectors

provide good quality standard definition video and

audio. Use a Phono RCA-type cable to connect these

outputs to your TV or other device.

Tip: Using cable

labels makes it

easy to tell which

cables connect to

the receiver ports.

Page 11

Remote Control

Telephone Jack

Connect a telephone cable with a standard RJ-11 telephone connector

to the receiver here, and then connect the cable to an active telephone

line.

Note: The receiver must be connected at all times to an active telephone line.

Remote Control

The remote control gives you easy access to the features of your satellite

receiver.

Basic remote control setup is explained here, using the SAT button on the

remote.

Complete instructions on how to use the remote, as well as the rest of the

system, are in Chapter 3.

Tip: If you have

the receiver

connected to a

DSL (Digital

Subscriber Line)

phone line and it

cannot dial out,

you may have to

install a DSL filter

between the

receiver and the

telephone jack

on the wall.

Page 12

Chapter 2

Receiver Description and Installation

Remote Control Batteries

The remote control comes with AAA batteries, which need to be

installed when you first receive your system. When you replace

old batteries, you should replace all of the batteries. Use

batteries of the same kind, for example, alkaline or carbon zinc;

and don’t mix batteries of different kinds. Alkaline batteries last

longer than carbon zinc.

1. Press down on the top of the battery cover and push in the

direction of the arrow. The cover will snap off.

2. Take out all of the old batteries.

3. Put the new batteries in. Make sure you match the plus (“+”)

ends with the plus markings on the battery case.

4. Fit the battery cover’s bottom tab back into the slot at the bottom of the

battery case, and slide the cover back into place.

On Screen Low Remote Battery Warning

When you see a low battery warning message below the Program

Banner,the batteries in your remote control are weak and need to be

replaced.

Page 13

Remote Control Settings

Change the Address

The remote control and receiver can operate on any one of 16 addresses;

however, they must both be on the same address for the remote to control the

receiver. This section explains how to change the address in both devices.

Note: Do not change the address of the remote unless absolutely necessary

because the remote cannot control the receiver if the two devices have different

addresses.

1. Press SYS INFO button on your remote control. The System

Information screen displays and shows the Remote Address.

Write down this address: _____________

2. Press and hold the SAT button on your remote control for about

three seconds, until all of the mode buttons light up, and then let

go of the SAT button.

3. Use the NUMBER PAD buttons to enter any num-

ber between 1 and 16, but not the one you wrote in

step 1.

Write down the number you entered:___________

4. Press the POUND (#) button. If you entered the

address correctly, the SAT mode will flash three times.

5. Press the RECORD button.

Note: Make sure the Remote Address you see on the

System Information screen is the same as the one you

entered in step 3. If it isn't, the remote cannot control the

receiver.

6. Press the SELECT button to close the System Information

screen.

Checking the Remote Control Address

1. Press and hold the SAT mode button for three seconds, until all

of the mode buttons light up, and then let go of the SAT button.

2. Press the POUND (#) button twice. The SAT mode button will

flash the same number of times as the address number (for

example: three flashes means address 3).

Page 14

Chapter 2

Receiver Description and Installation

Connecting Your Receiver

Connection Diagram Example

The diagram below is an example of how to connect your receiver, TV, and

VCR.

Typical Connection Procedure

Tighten all the coaxial cable connections only by hand. Using a

wrench may over-tighten the connections, causing damage. Such

damage is not covered by the Limited Warranty.

SIGNAL INPUT - Connect a coaxial cable between the wallplate

and SIGNAL INPUT on the back of the receiver. Peel off the black

sticker and affix it to the cable close to where it connect to the SIGNAL

INPUT connection on the back of the receiver.

TV SET to a TV - Connect a coaxial cable between the TV SET

output on the receiver and the TV’s tuner input. Be sure to tune the

TV to the channel you use to watch satellite TV (either Channel 3 or 4

as indicated on the CH 3/4 switch). Peel off the white sticker and affix

it to the cable close to where it connect to the TV SET connection on

the back of the receiver.

TV SET to a VCR (Optional) - Connect a coaxial cable between the

TV SET output on the receiver and the VCR’s tuner input. Connect

another cable between the VCR’s modulator output and the TV’s

tuner input. Be sure to set the CH 3/4 switch on the receiver and on the

VCR to the same channel (either 3 or 4) you use to watch satellite TV.

Tune your TV and VCR to the same channel you selected on the

CH 3/4 switch. Peel off the white sticker and affix it to the cable close

to where it connect to the TV SET connection on the back of the

receiver.

Tip: Using cable

labels makes it

easy to tell which

cables connect

to the receiver

ports. Inside the

front cover of

this guide are

stickers that are

color coded the

same way as the

coaxial

connections.

Page 15

Performing the QAM Frequency Scan

Note: When you turn your receiver on it may display the QAM Frequency

Scan and Signal Strength screen automatically. If it does, then skip down

to Step 5.

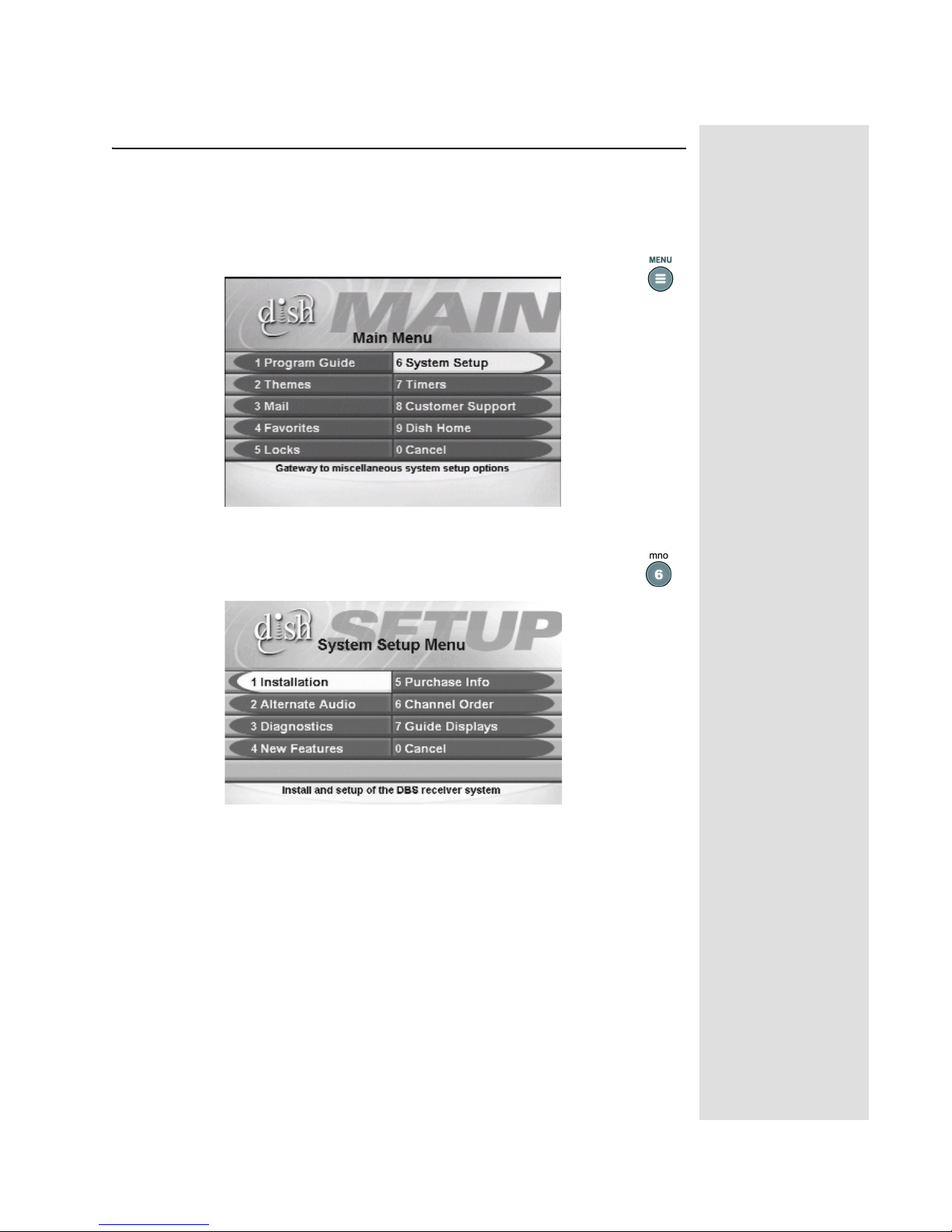

1. Press the MENU button to open the Main Menu.

2. Select the System Setup option on the Main Menu. The Sys-

tem Setup Menu screen is displayed.

Page 16

Chapter 2

Receiver Description and Installation

3. Select the Installation option on the System Setup Menu.

The Installation and Setup Menu screen is displayed.

4. Select the QAM Scan/Signal option. The QAM Fre-

quency Scan and Signal Strength screen is displayed.

Page 17

Performing the QAM Frequency Scan

5. Select the Scan option.

While scanning, the receiver displays the QAM Frequency

Scan Progress screen. The scan can take a few minutes.

Note: The receiver creates a table of available satellite

transponders with the corresponding QAM frequencies. This

table is required for correct operations.

The receiver will again display the QAM Frequency Scan and Signal

Strength screen.

Observe that the signal strength bar is now green and displays the word

Locked.

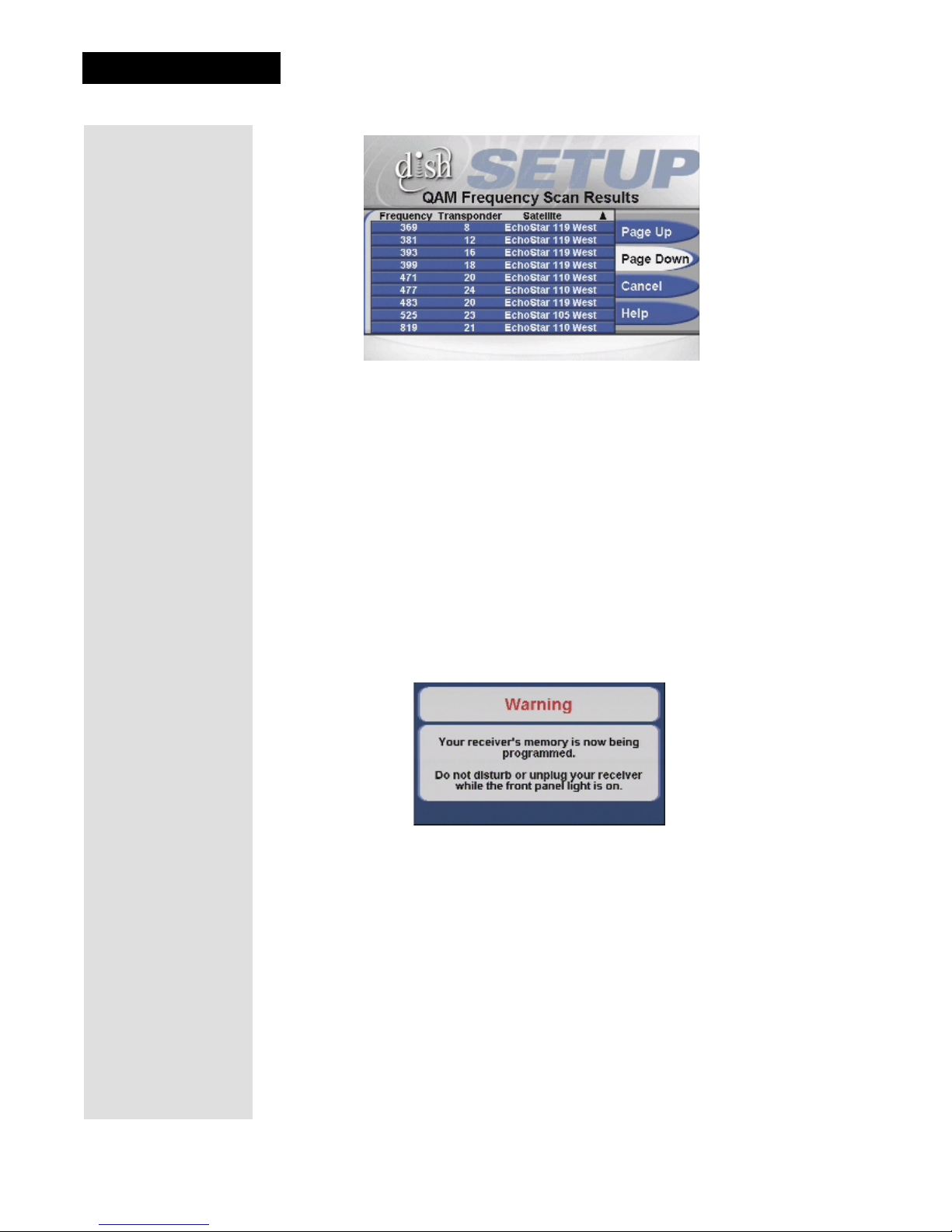

6. To see the completed scan, select the Scan Results button. The receiver

displays the QAM Frequency Scan Results screen.

Page 18

Chapter 2

Receiver Description and Installation

Note: If the Results menu displays No Transponders have been

found, check your cable connections and return to step 5 to repeat the

scan.

If the second scan does not find any transponders, ask your dwelling

complex owner for assistance or call the Commercial Customer Service

Center at 1-800-454-0843.

7. Select the Cancel option to exit the Results menu.

8. Select the Cancel option to exit the Scan and Signal Strength

screen.

9. The receiver will display an Attention message pop up asking you to

verify that the satellite signal is locked and the QAM frequency scan

has been completed successfully. Select the Yes option.

The receiver will begin accepting a transmission or, download, of the

latest software. You will see the message shown below:

A progress bar across the bottom of the screen will show the software

upgrade as it downloads. Once the download is complete, you will see a

second message that the receiver’s memory is now being programmed.

Note: This message may disappear and your screen may go blank for a

few minutes. This is normal and does not indicate a problem with the

receiver.

Your receiver will now display the Preview Channel, which tells you

about available programs, channels and services.

To activate your programming on your receiver you must call the

Commercial Customer Service Center at 1-800-454-0843. See the

Quick Start Guide in Chapter 1 for complete instructions.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Receptor de Dish Network

Dish Network

Dish Network Duo ViP 222 Manual de usuario

Dish Network

Dish Network DISH 625 Instrucciones de funcionamiento e instalación

Dish Network

Dish Network DuoDVR ViP 722_TOC Manual de usuario

Dish Network

Dish Network DISHPlayer 500 Manual de usuario

Dish Network

Dish Network DishPro 322 Manual de usuario

Dish Network

Dish Network Duo ViP 222 Manual de usuario

Dish Network

Dish Network ViP 222K Manual de usuario

Dish Network

Dish Network DishPro 322 Manual de usuario

Dish Network

Dish Network High-Definition ViP 22k Duo Receiver and... Manual de usuario

Dish Network

Dish Network SR200 Manual de usuario

Dish Network

Dish Network 118523 Manual de usuario

Dish Network

Dish Network DISH322 Manual de usuario

Dish Network

Dish Network Hopper Manual de usuario

Dish Network

Dish Network Hopper with Sling Manual

Dish Network

Dish Network Satellite Television Manual de usuario

Dish Network

Dish Network WALLY Manual de usuario

Dish Network

Dish Network DVR Satellite System Manual de usuario

Dish Network

Dish Network Solo 381 Manual de usuario

Dish Network

Dish Network 176779 Manual de usuario

Dish Network

Dish Network Satellite Television Manual de usuario

Dish Network

Dish Network WALLY Manual de usuario

Dish Network

Dish Network DISH 311 Manual de usuario

Dish Network

Dish Network 111 Series Manual de usuario

Dish Network

Dish Network WALLY Manual de usuario

Manuales populares de Receptor de otras marcas

Garmin

Garmin GA 23 Manual de usuario

Aiphone

Aiphone PS-12F Manual de usuario

IMES

IMES TCS-01CA-PMI Manual de usuario

BWI Eagle

BWI Eagle AIR-EAGLE SR Manual

AMIMON

AMIMON AMN12310 WHDI Manual de usuario

Dual

Dual DMCPA79BT Instrucciones de funcionamiento

Sound Associates

Sound Associates SA652P Manual de usuario

Sherwood

Sherwood NewCastle R-772 Manual de usuario

Audio

Audio A10-RX Series Manual de usuario

AllSee

AllSee PushShare PSRV1.1 Manual de usuario

DEMAG

DEMAG DRC-DR D2 Manual de usuario

Teleco

Teleco TVRCL868A02 Manual de usuario

Bosch

Bosch RF3222E Manual de usuario

Kramer

Kramer 631R Manual de usuario

Xpress

Xpress xmc10 Manual de usuario

JVC

JVC KD-MR1BTS Manual de usuario

Omega Engineering

Omega Engineering UWTC-REC3 Manual de usuario

e-survey

e-survey E300 Pro Manual de usuario
