Directed Electronics AM6 Manual de usuario

Model AM6

Owner's Guide

Limited Lifetime

Consumer Warranty

Directed Electronics, Inc. promises to the original purchaser to repair or replace with

a comparable reconditioned model any Directed Electronics, Inc. unit (hereafter the

"unit"), excluding without limitation the siren, the remote transmitters, the associ-

ated sensors and accessories, which proves to be defective in workmanship or

material under reasonable use during the lifetime of the vehicle provided the follow-

ing conditions are met: the unit was professionally installed and serviced by an

authorized Directed Electronics dealer; the unit will be professionally reinstalled in

the vehicle in which it was originally installed by an authorized Directed Electronics

dealer; and the unit is returned to Directed Electronics, Inc., shipping prepaid with a

legible copy of the bill of sale or other dated proof of purchase bearing the follow-

ing information: consumer's name, telephone number and address; the authorized

dealers name, telephone number and address; complete product description, includ-

ing accessories; the year, make and model of the vehicle; vehicle license number and

vehicle identification number. All components other than the unit, including without

limitation the siren, the remote transmitters and the associated sensors and acces-

sories, carry a one-year warranty from the date of purchase of the same. This warranty

is non-transferable and is automatically void if: the original purchaser has not com-

pleted the warranty card and mailed it within ten (10) days of the date of purchase

to the address listed on the card; the unit's date code or serial number is defaced,

missing or altered; the unit has been modified or used in a manner contrary to its

intended purpose; the unit has been damaged by accident, unreasonable use, neglect,

improper service, installation or other causes not arising out of defects in materials

or construction. The warranty does not cover damage to the unit caused by installa-

tion or removal of the unit. Directed Electronics, Inc., in its sole discretion, will

determine what constitutes excessive damage and may refuse the return of any unit

with excessive damage. TO THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WAR-

RANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED

WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE

AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY, ARE

EXPRESSLY EXCLUDED; AND DIRECTED ELECTRONICS, INC. NEITHER ASSUMES NOR

AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION

OR LIABILITY IN CONNECTION WITH ITS PRODUCTS. DIRECTED ELECTRONICS, INC.

DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY AND ALL ACTS OF THIRD

PARTIES INCLUDING ITS AUTHORIZED DEALERS OR INSTALLERS. DIRECTED ELEC-

TRONICS, INC. SECURITY SYSTEMS, INCLUDING THIS UNIT, ARE DETERRENTS

AGAINST POSSIBLE THEFT. DIRECTED ELECTRONICS, INC. IS NOT OFFERING A GUAR-

ANTEE OR INSURANCE AGAINST VANDALISM, DAMAGE OR THEFT OF THE

AUTOMOBILE, ITS PARTS OR CONTENTS; AND HEREBY EXPRESSLY DISCLAIMS ANY

LIABILITY WHATSOEVER, INCLUDING WITHOUT LIMITATION, LIABILITY FOR THEFT,

DAMAGE AND/OR VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS

FOR MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY CONSE-

QUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM OR A DISPUTE

INVOLVING DIRECTED ELECTRONICS, INC. OR ITS SUBSIDIARY, THE PROPER VENUE

SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CALIFORNIA STATE

LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN THE DISPUTE.

THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DIRECTED ELECTRONICS,

INC. SHALL BE STRICTLY LIMITED TO THE AUTHORIZED DIRECTED ELECTRONICS

DEALER'S PURCHASE PRICE OF THE UNIT. DIRECTED ELECTRONICS, INC. SHALL NOT

BE RESPONSIBLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT LIMITED

TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES FOR THE

LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPOR-

TUNITY AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER DOES

OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CONTROL MODULE AS

DESCRIBED ABOVE. Some states do not allow limitations on how long an implied

warranty will last or the exclusion or limitation of incidental or consequential

damages. This warranty gives you specific legal rights and you may also have other

rights that vary from State to State.

This product may be covered by a Guaranteed Protection Plan ("GPP"). See your

authorized Directed Electronics dealer for details of the plan or call Directed

Electronics, Inc. Customer Service at 1-800-876-0800. Directed Electronics, Inc. secu-

rity systems, including this unit, are deterrents against possible theft. Directed

Electronics, Inc. is not offering a guarantee or insurance against vandalism, damage or

theft of the automobile, its parts or contents; and hereby expressly disclaims any lia-

bility whatsoever, including without limitation, liability for theft, damage and/or

vandalism. Directed Electronics, Inc. does not and has not authorized any person or

entity to create for it any other obligation, promise, duty or obligation in connection

with this security system.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

■Date of purchase

■Your full name and address

■Authorized dealer's company name and address

■Type of alarm installed

■Year, make, model and color of the automobile

■Automobile license number

■Vehicle identification number

■All security options installed on automobile

■Installation receipts

Limited Lifetime Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

What is Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Information. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FCC/ID Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Caution. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Transmitter Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Using Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Warning! Safety First . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Locking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Unlocking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Disabling the Starter Kill Without a Transmitter . . . . . . . . . . . . . . . . . . . . . . . . 10

Valet® Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Panic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Remote Start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Valet® Take-Over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Short-Run/Turbo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Timer Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Starter Anti-Grind Circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Disabling the Remote Start System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Rapid Resume Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Glossary of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Convenience Expansions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Table of Contents

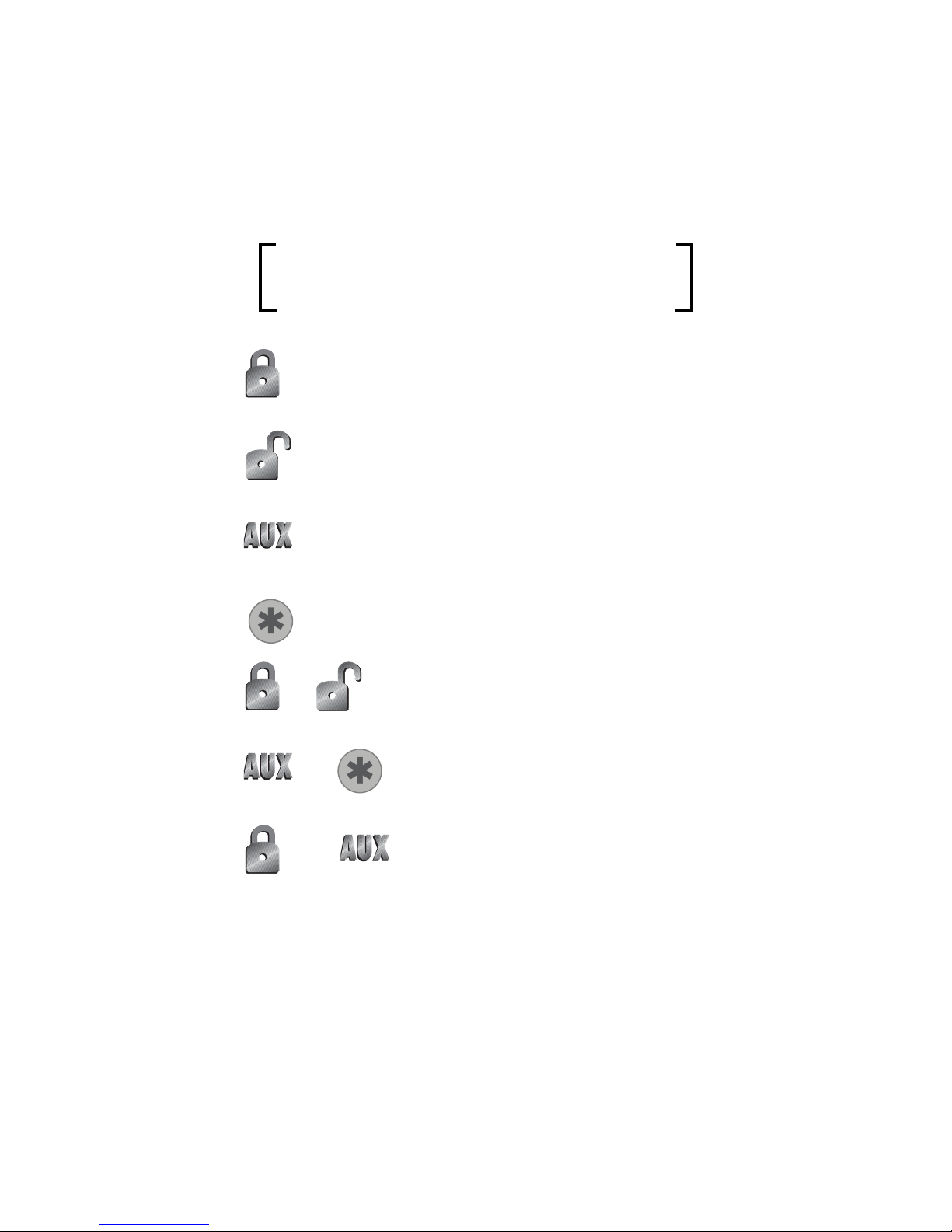

Standard Configuration

controls the Lock/Panic ON/Panic OFF function.

controls the Disarm function.

controls Silent Mode™and an Auxiliary Output.

controls Remote Start.

/controls Timer mode.

+controls Turbo/Short Run.

+ controls Channel 4 output.

What is Included

■The control module

■An XHF receiver/antenna

■Two four-button transmitters

■The red status LED indicator light

■A push-button Valet®switch

■Your warranty registration

■A shut-down toggle switch

Important Information

Congratulations on the purchase of your remote start keyless entry

system. Due to the complexity of this system, it must be installed

by an authorized dealer only. Installation of this product by any-

one other than an authorized dealer voids the warranty. All deal-

ers are provided with a preprinted dealer certificate to verify that

they are authorized.

By carefully reading this Owner's Guide prior to using your system,

you will maximize the use of this system and its features.

You can print additional or replacement copies of this manual by

accessing the Directed Electronics internet website at

www.directed.com.

The system requires no specific maintenance. Your remote is powered

by a small, lightweight 3-volt lithium battery that will last approx-

imately one year under normal use. When the battery begins to weaken,

operating range will be reduced and the LED on the remote will dim.

Your warranty registration must be completely filled out and

returned within 10 days of purchase. Your product warranty

will not be validated if your warranty registration is not returned.

Make sure you receive the warranty registration from your dealer.

It is also necessary to keep your proof of purchase, which reflects

that the product was installed by an authorized dealer.

This device complies with Part 15 of FCC rules. Operation is subject

to the following conditions: (1) This device may not cause harmful

interference, and (2) This device must accept any interference re-

ceived, including interference that may cause undesired operation.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user's authority to operate this device.

This product is designed for fuel injected, automatic transmission

vehicles only. Use of this product in a standard transmission vehi-

cle is dangerous and contrary to the product's intended use.

Caution

FCC/ID Notice

Your Warranty

System Maintenance

Transmitter Functions

The receiver uses a computer-based learn routine to learn the

transmitter buttons. This makes it possible to assign any specific

transmitter button, or combination of buttons, to any receiver

function. The transmitter initially comes programmed with the

Standard Configuration, but may also be customized by an autho-

rized dealer. The transmitter buttons indicated in all of the

instructions in this manual correspond to a Standard Configuration

transmitter.

Button

The lock and panic functions are controlled by pressing on the

transmitter for one second.

Button

The unlock function is controlled by pressing on the trans-

mitter for one second.

Button

Silent Mode™and an optional auxiliary function are controlled

by pressing . Silent Mode works by pressing for less

than one second. An optional auxiliary function, such as

trunk release, is controlled by pressing and holding for

1.5 seconds.

Standard Configuration

Button

The remote start function of your system is controlled by pressing

this button twice within 3 seconds.

and Buttons

An optional auxiliary convenience or expansion function that you

have added to your system can be activated by pressing these but-

tons simultaneously.

The auxiliary output controls __________________________.

Using Your System

The following safety warnings must be observed at all times:

■Due to the complexity of this system, installation of this

product must only be performed by an authorized Directed

Electronics dealer.

■When properly installed, this system can start the vehicle via

a command signal from the remote control transmitter.

Therefore, never operate the system in an enclosed area or

partially enclosed area without ventilation (such as a garage).

When parking in an enclosed or partially enclosed area or

when having the vehicle serviced, the remote start system

Warning! Safety First

must be disabled using the installed toggle switch. It is the

user's sole responsibility to properly handle and keep out of

reach from children all remote control transmitters to assure that

the system does not unintentionally remote start the vehicle.

THE USER MUST INSTALL A CARBON MONOXIDE DETECTOR

IN OR ABOUT THE LIVING AREA ADJACENT TO THE VEHICLE.

ALL DOORS LEADING FROM ADJACENT LIVING AREAS TO THE

ENCLOSED OR PARTIALLY ENCLOSED VEHICLE STORAGE

AREA MUST AT ALL TIMES REMAIN CLOSED. These precau-

tions are the sole responsibility of the user.

■Use of this product in a manner contrary to its intended mode

of operation may result in property damage, personal injury,

or death. (1) Never remotely start the vehicle with the vehi-

cle in gear, and (2) Never remotely start the vehicle with the

keys in the ignition. The user must also have the neutral safe-

ty feature of the vehicle periodically checked, wherein the

vehicle must not remotely start while the car is in gear. This

testing should be performed by an authorized Directed

Electronics dealer in accordance with the Safety Check out-

lined in the product installation guide. If the vehicle starts in

gear, cease remote start operation immediately and consult

with the authorized Directed Electronics dealer to fix the

problem.

■After the remote start module has been installed, contact your

authorized dealer to have him or her test the remote start

module by performing the Safety Check outlined in the prod-

uct installation guide. If the vehicle starts when performing

the Neutral Safety Shutdown Circuit test, the remote start unit

Tabla de contenidos

Otros manuales de Arranque remoto de Directed Electronics

Directed Electronics

Directed Electronics Ready Remote 23927 Manual de usuario

Directed Electronics

Directed Electronics 991 Manual de usuario

Directed Electronics

Directed Electronics AS-1271 Manual de usuario

Directed Electronics

Directed Electronics Viper 5501 Manual de usuario

Directed Electronics

Directed Electronics 3000 Manual de usuario

Directed Electronics

Directed Electronics Xpresskit Xpressparts Series Manual de usuario

Directed Electronics

Directed Electronics SmartStart 5000-series Manual de usuario

Directed Electronics

Directed Electronics 410 Manual de usuario

Directed Electronics

Directed Electronics Viper Manual de usuario

Directed Electronics

Directed Electronics SmartStart 5000-series Manual de usuario

Directed Electronics

Directed Electronics Python 1401 Manual de usuario

Directed Electronics

Directed Electronics AutoCommand 25522 Manual de usuario

Directed Electronics

Directed Electronics Valet 562T Manual de usuario

Directed Electronics

Directed Electronics Python 1401 Manual de usuario

Directed Electronics

Directed Electronics AutoCommand 25523T Manual de usuario

Directed Electronics

Directed Electronics 440HP Manual de usuario

Directed Electronics

Directed Electronics Smart start Manual de usuario

Directed Electronics

Directed Electronics XK811 Manual de usuario

Directed Electronics

Directed Electronics Xpresskit CANMAX400 Manual de usuario

Directed Electronics

Directed Electronics 553 Manual de usuario

Directed Electronics

Directed Electronics 435 Manual de usuario

Directed Electronics

Directed Electronics READY REMOTE 24921 Manual de usuario

Directed Electronics

Directed Electronics Rattler 259D Manual de usuario

Directed Electronics

Directed Electronics BOA 165B Guía de inicio rápido

Manuales populares de Arranque remoto de otras marcas

AstroStart

AstroStart 803U Manual de usuario

Durite

Durite 0-649-20 Manual

EINHELL

EINHELL BT-PS 1000 Manual

Linear

Linear ACCESS AK-21 Especificaciones técnicas

Soundstream

Soundstream TARANTULA RS.2 Manual de usuario

Jaycar Electronics

Jaycar Electronics MB3752 Manual de usuario

Ultra Start

Ultra Start 72 Series Manual de usuario

ADS

ADS FLASHLOGIC FLRSVW1 Manual de usuario

Selecta

Selecta JS012 Manual de usuario

Black Widow Security

Black Widow Security BW RAS 400 Manual de usuario

Vector

Vector Power City DK080706 Suplemento

Code Alarm

Code Alarm CA-535 Manual de usuario

Ozito

Ozito OJS-800 Manual de usuario

Profi-Partner

Profi-Partner 46387 Manual de usuario

EZ STARTER

EZ STARTER EZ-45 Manual de usuario

Viper

Viper 4204 Manual de usuario

Essex Electronics

Essex Electronics KE-1701 Manual de usuario

EINHELL

EINHELL EGS 3600 Manual
