Directed Electronics Vehicle Security System 3901V Manual de usuario

Model 3901V / 3902V / 3903V

Owner’s Guide

Vehicle Security System

Limited consumer warranty

For a period of one calendar year from the date of purchase of this auto-security

device, Directed Electronics, (Directed) promises to the ORIGINAL PURCHASER to

repair or replace (at Directed's election) with a comparable reconditioned model, any

Directed unit (hereafter the "unit"), excluding without limitation the siren, the

remote transmitters, the associated sensors and accessories which proves to be

defective in workmanship or material under reasonable use, provided the following

conditions (herein "Conditions") are met: the unit was purchased from an authorized

Directed dealer; the unit was professionally installed and serviced by an authorized

Directed dealer; the unit will be professionally reinstalled in the vehicle in which it

was originally installed by an authorized Directed dealer; and the unit is returned to

Directed, shipping prepaid with a legible copy of the bill of sale or other dated proof

of purchase bearing the following information: consumer's name, telephone number

and address; the authorized dealer's name, telephone number and address; complete

product description, including accessories; the year, make and model of the vehicle;

vehicle license number and vehicle identification number. ALL UNITS RECEIVED BY

DIRECTED FOR WARRANTY REPAIR WITHOUT PROOF OF PURCHASE WILL BE DENIED.

After the first calendar year, from the date of purchase of the unit, Directed, promises

to the ORIGINAL PURCHASER to repair or replace, (at Directed's sole and absolute

discretion) with a comparable reconditioned model any unit which proves to be

defective in workmanship or material under reasonable use FOR A CHARGE OF $45.00,

SO LONG AS THE AFOREMENTIONED CONDITIONS HAVE BEEN MET. The unit must be

returned to Directed, postage pre-paid, along with a legible copy of the receipt

(including the information below) and a cashier's check or money order made payable

to Directed Electronics in the amount of $45.00.

This warranty is non-transferable and is automatically void if the unit has been

modified or used in a manner contrary to its intended purpose, or if the unit has been

damaged by accident, unreasonable use, neglect, improper service or other causes not

arising out of defects in materials or construction. This warranty does not cover

damage to the unit caused by installation or removal of the unit. This warranty does

not cover labor costs for the removal, diagnosis, troubleshooting or reinstallation of

the unit. For service on an out-of-warranty product a flat rate fee by model is

charged. Contact your authorized dealer to obtain the service charge for your unit.

These security systems are a deterrent against possible theft. Directed is not offering

a guarantee or insuring against vandalism, damage or theft of the automobile or its

parts or contents and Directed hereby disclaims any liability whatsoever, including

without limitation, liability for damage, vandalism and/or theft of the vehicle, parts

and/or its contents. Directed neither assumes nor authorizes any person or entity to

assume for it any duty, obligation or liability in connection with its products.

Directed disclaims and has absolutely no liability for any and all acts of third parties,

including its authorized dealers or installers. In the event of a claim or a dispute

involving Directed or its subsidiary, the venue shall be in San Diego, California.

California state laws and applicable federal law shall apply and govern the dispute.

TO THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES ARE EXCLUDED,

INCLUDING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY, WARRANTY

OF MERCHANTABILITY AND/OR ANY AND ALL WARRANTY OF FITNESS FOR A

PARTICULAR PURPOSE AND/OR ANY AND ALL WARRANTY OF NON-INFRINGEMENT OF

PATENTS, IN THE UNITED STATES OF AMERICA AND/OR ABROAD. THE MAXIMUM

RECOVERY UNDER ANY CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE

AUTHORIZED DIRECTED DEALER'S PURCHASE PRICE OF THE UNIT. DIRECTED SHALL NOT

BE RESPONSIBLE OR LIABLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT

LIMITED TO ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, TOWING, REPAIR,

REPLACEMENT, DAMAGE TO VEHICLE, DAMAGES FOR LOSS OF TIME, LOSS OF EARNINGS,

COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE LIKE. NOTWITH-

STANDING THE ABOVE, MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE

OR REPAIR THE UNIT, SO LONG AS THE CONDITIONS ARE MET AS DESCRIBED HEREIN.

Some states do not allow limitations on how long an implied warranty will last or the

exclusion or limitation of incidental or consequential damages. This warranty gives

you specific legal rights, and you may also have other rights which vary from state

to state. This warranty is void if the unit has not been purchased from Directed, or

an authorized Directed dealer, or if the unit has been damaged by accident, unrea-

sonable use, negligence, Acts of God, neglect, improper service, or other causes not

arising out of defect in materials or construction. This warranty is only valid for sale

of product(s) within the United States of America. Product(s) sold outside of the

United States of America are sold "AS-IS," and shall have NO WARRANTY, express or

implied.

This product warranty is automatically void if its date code or serial number is

defaced, missing, or altered. This warranty will not be valid unless you have

completed the warranty card and mailed it to Directed, within 10 days after purchase

to the address listed on the warranty registration card.

Make sure you have all of the following information from your authorized Directed

dealer: A clear copy of the sales receipt, showing the following:

o Date of purchase

o Your full name and address

o Authorized dealer's company name and address

o Type of system installed

o Year, make, model and color of the automobile

o Automobile license number

o Vehicle identification number

o All security options installed on automobile

Limited consumer warranty . . . . .i

Trademarks and copyrights . . . . .1

What is included . . . . . . . . . . . . .2

Important information . . . . . . . . .2

Using your system . . . . . . . . . . . .3

Arming your system . . . . . . . . .3

Armed protection . . . . . . . . . .4

Disarming . . . . . . . . . . . . . . . .6

Disarming without a transmitter

.................................................6

Valet® mode . . . . . . . . . . . . . .7

Panic mode . . . . . . . . . . . . . . .7

Nuisance Prevention Circuitry® . .8

Diagnostics . . . . . . . . . . . . . . . . .10

Arming diagnostics . . . . . . . .10

Disarming diagnostics . . . . . .10

table of zones . . . . . . . . . . . .11

Rapid resume logic . . . . . . . . . . .11

Glossary of terms . . . . . . . . . . . .12

Notes . . . . . . . . . . . . . . . . . . . . . .13

Contents

Trademarks and copyrights

Code-Hopping™, Directed®, Doubleguard®, FailSafe®, Nuisance Prevention Circuitry®, NPC®,

Silent Mode™, Soft Chirp®, Stealth Coding™, Stinger®, Valet®, and Warn Away®are all

Trademarks or Registered Trademarks of Directed Electronics, Inc.

What is included

zControl module and harness

zA Stinger®dual stage shock sensor (on-board the control

module)

zPre-wired Valet®switch with integrated red status LED

zFailsafe®Starter Kill relay (if equipped)

Important information

Congratulations on the purchase of your security system. Due to the

complexity of this system, it must be installed by an authorized dealer

only. Installation of this product by anyone other than an authorized

dealer voids the warranty. All dealers are provided with a preprinted

dealer certificate to verify that they are authorized.

By carefully reading this Owner's Guide prior to using your system, you

will maximize the use of this system and its features.

You can print additional or replacement copies of this manual by

accessing the Directed web site at www.xpressvip.com.

Using your system

Arming your system

You can activate, or arm, the system by locking the doors with your fac-

tory keyless entry transmitter. When the system arms, you will hear a

short siren sound and see the parking lights flash once. While the sys-

tem is armed, the status LED will flash about twice a second, showing

that the system is actively protecting your vehicle. If you hear a second

short siren sound after arming, and see the status LED flashing in

groups, see Diagnostics section. This extra short siren sound is called

Bypass Notification. This means a zone such as a door or trunk is open.

Armed protection

When armed, your vehicle is protected as follows:

zLight impacts to your vehicle will trigger the Warn Away sig-

nal. The system will pulse the horn and flash the parking

lights for a few seconds.

zHeavy impacts will trigger the system. The triggered

sequence is 30 or 60 seconds of constant siren sounding and

flashing parking lights.

zIf a door is opened, the system will immediately start pulsing

the siren and flashing the parking lights. Three seconds later,

the siren output changes to a continuous blast. This progres-

sive response gives you time to disarm the system with your

transmitter if you inadvertently open the door while the sys-

tem is armed, while still providing instant response (even if

the door is immediately closed).

zTurning on the ignition key triggers the same progressive

response as opening a door.

zIf equipped, the starter interrupt prevents the vehicle’s

starter from cranking.

nnoottee::The vehicle may already be equipped with a starter

interrup relay from the factory.

nnoottee::If programmed for instant trigger, the siren will output

full trigger response after the door has been opened (see

Programming Options)

Multi-level security arming

(If programmed ON)

Multi-Level Security Arming allows the user to select sensors to be

active or bypassed when the system is armed. Multi-Level Security

Arming can only be accessed if the function is set ON (option 3-2)

By pressing the LOCK button more than once within 3 and 7 seconds

of arming the system activates Multi-Level Security Arming. If the LOCK

button is pressed again the unit cancels the bypass of the sensors.

There are different security levels which can be selected, as follows:

Step Lock Button

pressed

Number of Siren

Chirps

Armed State with

Zone Bypassed

1Once 1 Chirp No Zone Bypassed

2Twice 3 Chirps, 3 flashes Zone 2 & 4

Bypassed

3If the Lock button is pressed again anytime, the system will

return to step 1. The user can repeat the steps provided the

LOCK button is pressed between 3 and 7 seconds and no

other buttons are pressed.

Disarming

To disarm the system, unlock the doors using your factory keyless trans-

mitter. The siren will sound twice, and the parking lights will flash twice.

If the siren sounds either four or five times when disarming, refer to the

Diagnostics section of this guide. This is called Tamper Alert.

Disarming without a transmitter

This feature allows you to override the system without the transmitter

should it be lost, damaged or disabled. To do this, you must have the ve-

hicle's ignition key and know where the integrated LED/Valet®switch is

located. The Valet®switch is activated by pressing the LED status indicator.

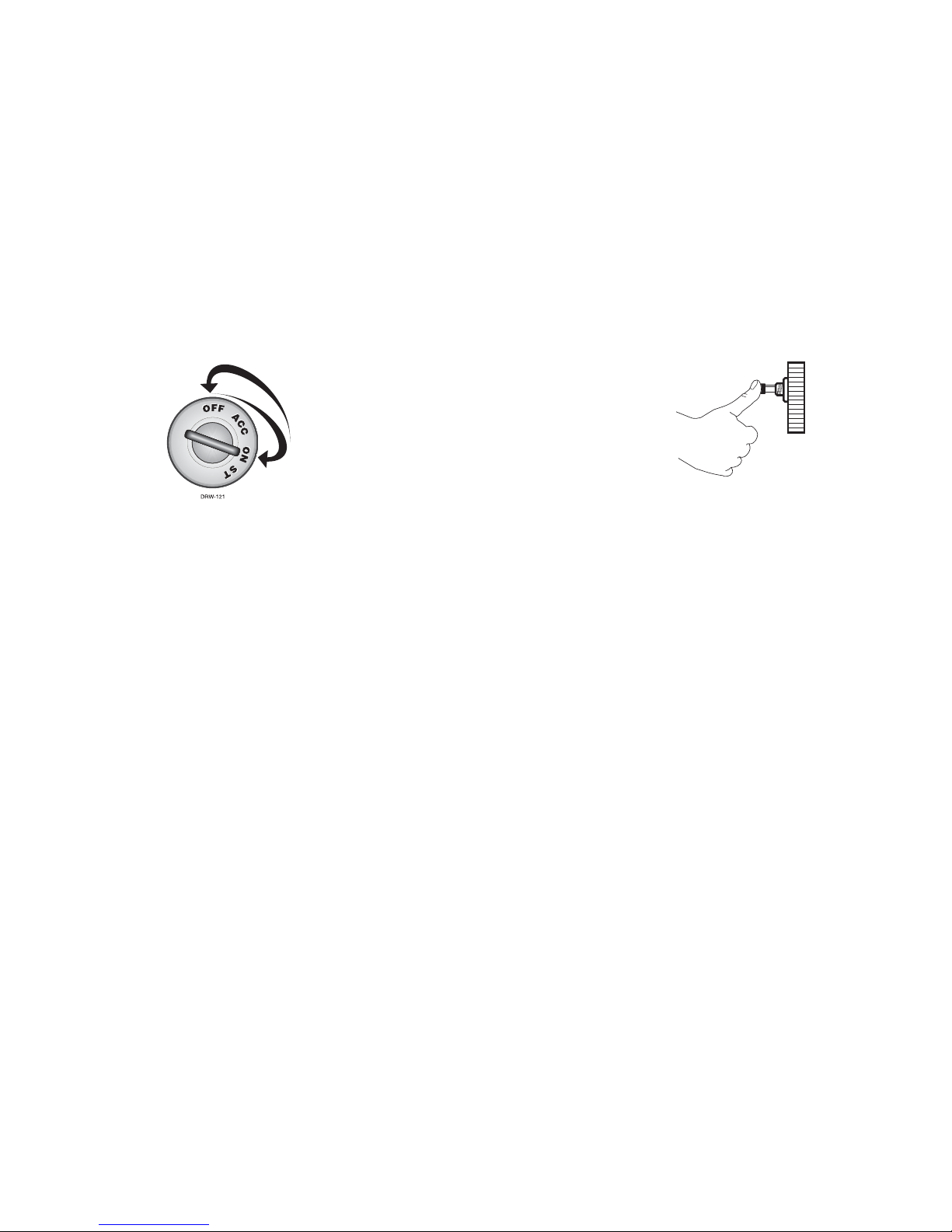

Turn the ignition to the “run”position.

Press and release the integrated

LED/Valet®switch, within 10 seconds.

After a few seconds the LED will stop

flashing and the vehicle should start. If it does not, you may have waited

too long. Turn the ignition off and try again.

nnoottee::The setting for the number of times the integrated

LED/Valet® switch must be pressed is set in the

Programming Section of this guide.

DRW-35

Integrated

LED/Valet®switch LED status indicator

Valet®mode

You can prevent your system from arming, by using Valet®Mode. This

is very useful when washing the vehicle or having it serviced. In Valet®

Mode, the system will not arm, even with the transmitter, but all con-

venience functions (door locks, trunk release, etc.) will work normally.

To enter or exit Valet® Mode with the integrated LED/Valet® switch:

Turn the ignition to “on” position,

then turn to “off” position. Press

and release the integrated

LED/Valet®switch within 10 sec-

onds. The status LED will light

steady if you have entered Valet®Mode. To exit Valet®Mode, repeat the

steps above. The LED will turn off when exiting Valet®Mode.

Panic mode

(If programmed On, Step 3-2)

If you are threatened in or near your vehicle, you can attract attention

by triggering the system with your transmitter! If your factory keyless

transmitter does not have a panic button, this system can be pro-

grammed to enable a panic feature (refer to the Programming

Options).

If enabled, just press the lock button on your factory keyless transmit-

ter twice more than once within three seconds 7 seconds to enter Panic

Mode.

DRW-35

Otros manuales para Vehicle Security System 3901V

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Alarma de coche de Directed Electronics

Directed Electronics

Directed Electronics 6000 Manual de usuario

Directed Electronics

Directed Electronics Intelliguard 750 Manual de usuario

Directed Electronics

Directed Electronics Arrow 5 Manual de usuario

Directed Electronics

Directed Electronics MERLIN 2000 Manual de usuario

Directed Electronics

Directed Electronics 700J Manual de usuario

Directed Electronics

Directed Electronics 791XV Manual de usuario

Directed Electronics

Directed Electronics 553S Manual de usuario

Directed Electronics

Directed Electronics AutoCommand 20095 Manual de usuario

Directed Electronics

Directed Electronics Intelliguard 950 Manual de usuario

Directed Electronics

Directed Electronics 730T Manual de usuario

Directed Electronics

Directed Electronics 417 Manual de usuario

Directed Electronics

Directed Electronics 544T Manual de usuario

Directed Electronics

Directed Electronics 871XP Manual de usuario

Directed Electronics

Directed Electronics Python 450 ESP Manual de usuario

Directed Electronics

Directed Electronics 732T Manual de usuario

Directed Electronics

Directed Electronics 425 Series Manual de usuario

Directed Electronics

Directed Electronics AM1 Manual de usuario

Directed Electronics

Directed Electronics 625 Manual de usuario

Directed Electronics

Directed Electronics Python 881XP Manual de usuario

Directed Electronics

Directed Electronics AdvantGuard 5 Manual de usuario

Directed Electronics

Directed Electronics WASP 718W Manual de usuario

Directed Electronics

Directed Electronics Viper 550HF Manual de usuario

Directed Electronics

Directed Electronics Hornet 740T Manual de usuario

Directed Electronics

Directed Electronics 446 Series Manual de usuario

Manuales populares de Alarma de coche de otras marcas

Clifford

Clifford 3606X Manual de usuario

Ultra Start

Ultra Start 2500M SERIES Manual de usuario

Ultra Start

Ultra Start 650 Series Manual de usuario

Audiovox

Audiovox Prestige Platinum+ APS-511C Manual de usuario

Sparkrite

Sparkrite SRA8 Manual de usuario

Viper

Viper 4708V Manual de usuario

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manual

Falcon

Falcon Predator XL3 Guía del usuario

Audiovox

Audiovox Auto Security XR91 Instrucciones de funcionamiento

Clifford

Clifford Sabre II Manual de usuario

CrimeStopper

CrimeStopper CS-8717 Guía de inicio rápido

Ultra Start

Ultra Start 450 SERIES Manual de usuario

Scytek electronic

Scytek electronic Vectra X3 Manual de usuario

Excalibur

Excalibur AL-1860-EDPB Manual de usuario

Clifford

Clifford CYBER 2 Manual de usuario

Gemini

Gemini 7057 Manual de usuario

FlashLogic

FlashLogic FLRSBA PRESTIGE Manual de usuario

Magicar

Magicar FAI-440 Manual de usuario
