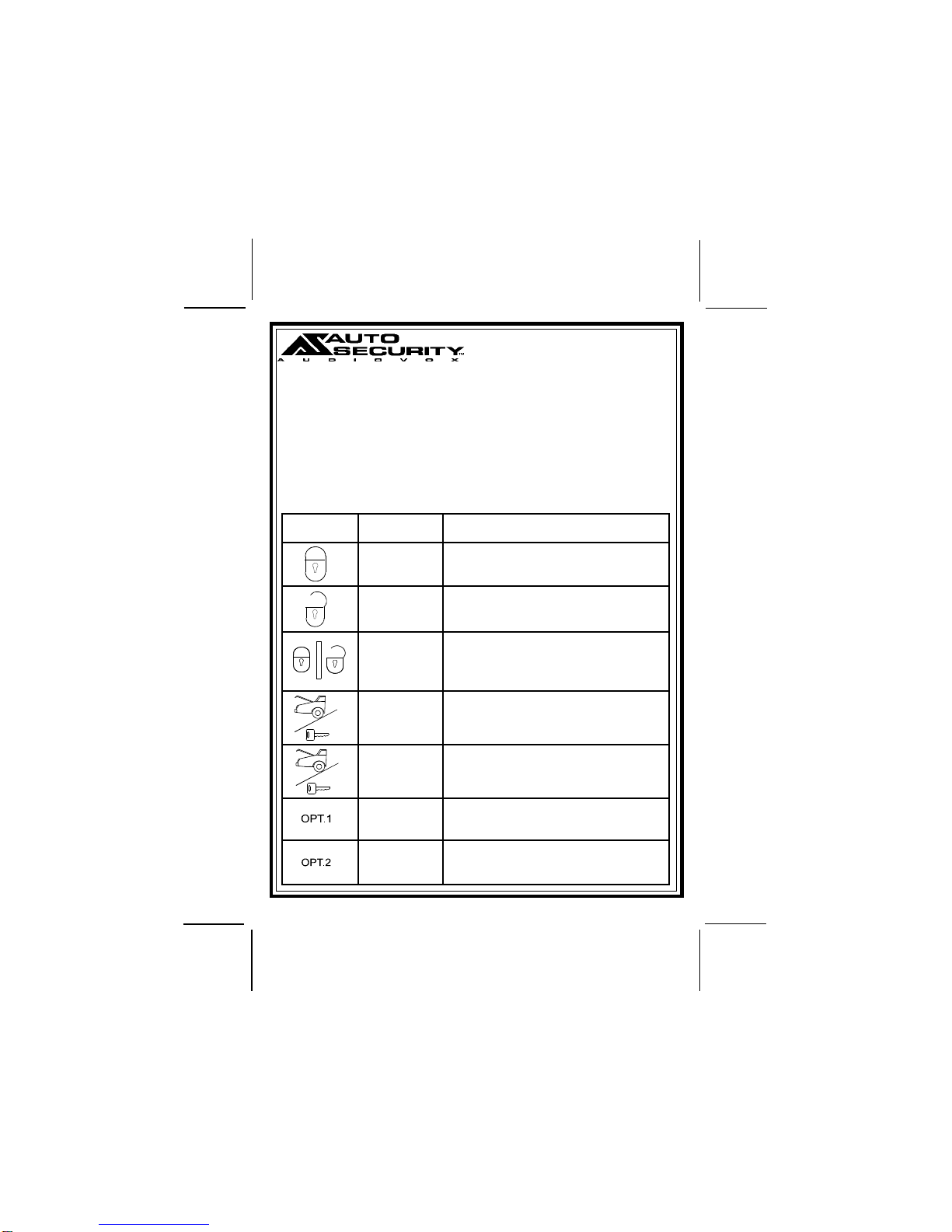

BUTTON RECEIVER

CHANNEL SYSTEM FUNCTION

Lock And Arm Alarm, also initiate and

terminates *Panic

Unlock And Disarm, also initiates and

terminates *Panic. Programmable to

unlock drivers door and or all doors.

Lock and arm/unlock and disarm. May

be programmed to unlock driver's door

or all doors. Also will initiate and

terminate *Panic.

Pulsed or switched output to control

Remote Trunk Release or optional

device connected to channel 3.

When pressed and release two times,

will provide pulsed output or activate the

Remote Start option when installed.

When so equipped, this button can be

used to operate an optional device

connected to channel 4.

When so equipped, this button can be

used to operate an optional device

connected to channel 5.

These transmitters makes use of icons (symbols) to identify the reac-

tion your security system/keyless entry/and or remote start system,

where applicable, will have when any icon (button) is pressed.

These icons are programmed at time of installation to meet the needs of

the individual and to complement the vehicle that the system is installed

in. To replace a transmitter or add transmitters, please follow the

programming instructions listed on the pages of this manual.

Transmitter Programming Guide

* Where So Equipped

Model XR91

128-7860

2 of 8

Some of the more popular options available for the unused Option

Buttons of your transmitter are:

AS 9554 Remote Garage Door Interface (APS-2K4S only)

AS 9075 Remote car starter

AS 9153 Remote window roll up

AS 9256 Remote trunk release relay

Although the most common use of the transmitter buttons are shown

on the front page of this guide, any button or button combination can be

programmed into any receiver channel. Additionally, if all 4 buttons are

used and you require access to a 5th channel, you would program a

combination of buttons to control the 5th function. i.e... you have

programmed lock for arm, unlock for disarm, trunk for trunk release,

and OPT1 for garage door operation, and you've added a window up

module that you want independent control of, you would program un-

lock and trunk buttons pressed simultaneously into the receiver to con-

trol this function independently. Also, if you do not program a transmit-

ter button into channel 2 which is the separate unlock/disarm chan-

nel, then whatever button is programmed into channel 1 will serve

as both lock/arm & unlock/disarm.

PROGRAMMING TRANSMITTERS:

NOTE: It is important to remember that during the programming mode,

each individual step must be completed within 15 seconds of

the previous step. If the 15 second time limit expires between

steps, the unit will automatically exit the program mode. This

is indicated by a long chirp from the siren.

Non alarm models will flash the parking lights only to confirm the

transmitter code has been learned and stored.

NOTE: Because the system may be capable of sounding a siren, the

vehicle horn, or both, where the siren chirp is referenced be-

low, the siren may chirp, the horn may beep, or both devices

may sound.

TO PROGRAM ADDITIONAL TRANSMITTERS:

1) Enter the vehicle, and turn the ignition switch to the on position.

2) Press and release the valet push button switch three times.

Note: Some systems may use a combination push-button LED

switch. In these systems the push-button and the dash mounted

LED are one and the same.

3) The dash mounted LED will flash 1x, and the siren will chirp 1x,

indicating that the system is ready to accept programming of channel

#1 which is arm/lock, disarm/unlock/unlock 2, and panic functions.

4) Press and hold the lock or lock/unlock symbol button of the transmit-

ter you wish to program for 4 seconds or until a long chirp is heard

from the siren.

"Repeat step 4 for each transmitter you wish to program".

128-7860

3 of 8

NOTE: If your transmitter button has the Lock/Unlock icon on one

button, press and release the valet push button switch 2 times

then move on to step #8.

5) Press and release the valet push button switch one time to advance

to channel 2. The siren will chirp 2 times and the dash mounted LED

will Flash 2 times, indicating that the unit is ready to accept program-

ming for channel # 2 which is only used for separate lock and

unlock button transmitters, and is the disarm/unlock/unlock 2 and

panic.

6) Press and hold the unlock symbol button of the transmitter you wish

to program for 4 seconds or until a long chirp is heard from the

siren.

"Repeat step 6 for each transmitter you wish to program".

7) Press and release the valet push button switch one time to ad-

vance to channel 3. The siren will chirp 3 times and the dash

mounted LED will Flash 3 times, indicating that the unit is ready

to accept programming for channel # 3 which is the trunk re-

lease/alternate output channel of the system.

8) Press and hold the trunk/key symbol button of the transmitter you

wish to program for 4 seconds or until a long chirp is heard from the

siren.

"Repeat step 8 for each transmitter you wish to program".

9) Press and release the valet push button switch one time to advance

to channel 4 if so equipped. The siren will chirp 4 times and the

dash mounted LED will Flash 4 times, indicating that the unit is ready

to accept programming for channel # 4, optional device (where

equipped)

10)Press and hold the Option button of the transmitter you wish to

program for 4 seconds or until a long chirp is heard from the siren.

"Repeat step 10 for each transmitter you wish to program".

11) Press and release the valet push button switch one time to ad-

vance to channel 5 if so equipped. The siren will chirp 5 times and

the dash mounted LED will Flash 5 times, indicating that the unit is

readytoacceptprogrammingfor channel#5 optionaldevice(where

equipped)

12) Press and hold the second Option button of the transmitter you

wish to program for 4 seconds or until a long chirp is heard from the

siren.

"Repeat step 12 for each transmitter you wish to program".

13) Within 10 seconds, press and release the valet program switch

onetime.

(Siren emits 6 short chirps indicating channel 6 has been entered)

14) Within 10 Seconds, Press and hold the unlock button, (or any

unused button(s)), of the first transmitter you wish to control

Channel 6 output, (Driver Priority 1) until a long chirp is heard from

the siren.

128-7860

4 of 8

(Repeat this for each transmitter you wish to operate the Channel 6

output, Driver Priority 1)

15) Within 10 seconds, press and release the valet program switch

onetime.

(Siren emits 7 short chirps indicating channel 7 has been entered)

16) Within 10 Seconds, Press and hold the unlock button (or any

unused button(s)) of the first transmitter you wish to control Channel

7 output, (Driver Priority 2) until a long chirp is heard from the siren.

(Repeat this for each transmitter you wish to operate the Channel 7

output, Driver Priority 2)

NOTE: Channels 6 and 7 can be used as a separate output to

control a function other than driver priority. Simply programming any

unused transmitter button other than the unlock button will allow

complete independent control of these outputs.

ERASINGTRANSMITTERS IFTHEYHAVEBEEN LOSTORSTOLEN:

NOTE: Before you begin to erase the lost or stolen transmitter(s), have

all transmitters available that you wish to remain programmed.

These will be used during the program process to identify

transmitters that will continue to be used.

Enter the transmitter program mode:

1. Turn the ignition switch to the “ON” position.

2. Within 10 seconds, press and release the valet/program switch

three times. (Siren emits 1 short chirp indicating channel 1 has

been entered)

3. Within 10 Seconds, press and hold the ARM or ARM/DISARM

button of the first transmitter you wish to remain stored into the

control unit until a single chirp is heard from the siren.

(Repeat this for each transmitter you wish to remain stored in the control

unit).

The receiver stores up to four transmitters. To be certain all transmitter

slots in the receiver are occupied with transmitters you wish to con-

tinue to use, and all others are erased, you will have to fill all four

receiver slots. If in step 3 you identified one transmitter, you will have

to fill the additional 3 slots. If in step 3 you identified two transmitters,

you will have to fill the additional two slots, etc...

4. Press and hold any unused button or combination of buttons until a

long chirp is heard from the siren. Release and press the button or

button combination again and again until all remaining slots are full.

NOTE: The button or combination of buttons entered will also control

the arm or arm/disarm function until additional transmitters are

added. All unwanted transmitters are now deleted.

REPRIORITIZING A TRANSMITTER’S PROGRAMMING:

To reprogram a receiver channel with a different transmitter button

once a code has been stored, there will be two options:

128-7860

5 of 8

1. Enter the transmitter program mode of the receiver channel to be

reprogrammed. Using any unused button or combination of but-

tons, push out the stored code by pressing the unused button until

a long chirp is heard, then repeat 3 additional times. After this, you

can add any desired unused transmitter button. This action erases

only the button stored of the transmitter you are programming. All

other codes will remain stored.

2. Enter the transmitter program mode. Using any transmitter button

press and hold until a long chirp is heard. If a single chirp or multiple

chirps, (up to 7 chirps), are heard, the unit is indicating that the

transmitter has already been programmed elsewhere in the re-

ceiver. Release the transmitter button and within 5 seconds press

and hold until a long chirp is heard. This action forces the unit to

erase all stored codes of that transmitter.

The unit then exits the program mode the siren emits the program mode

exit chirp pattern. All transmitter buttons for that transmitter must now

be reprogrammed. Any other transmitter stored in the unit’s memory still

remain operational. If the button is released and not pressed again

within the 5 second period, no change in programming has been made

to the receiver channel. The programmer can move onto a different

channel or erase the transmitter codes as described in 1 above.

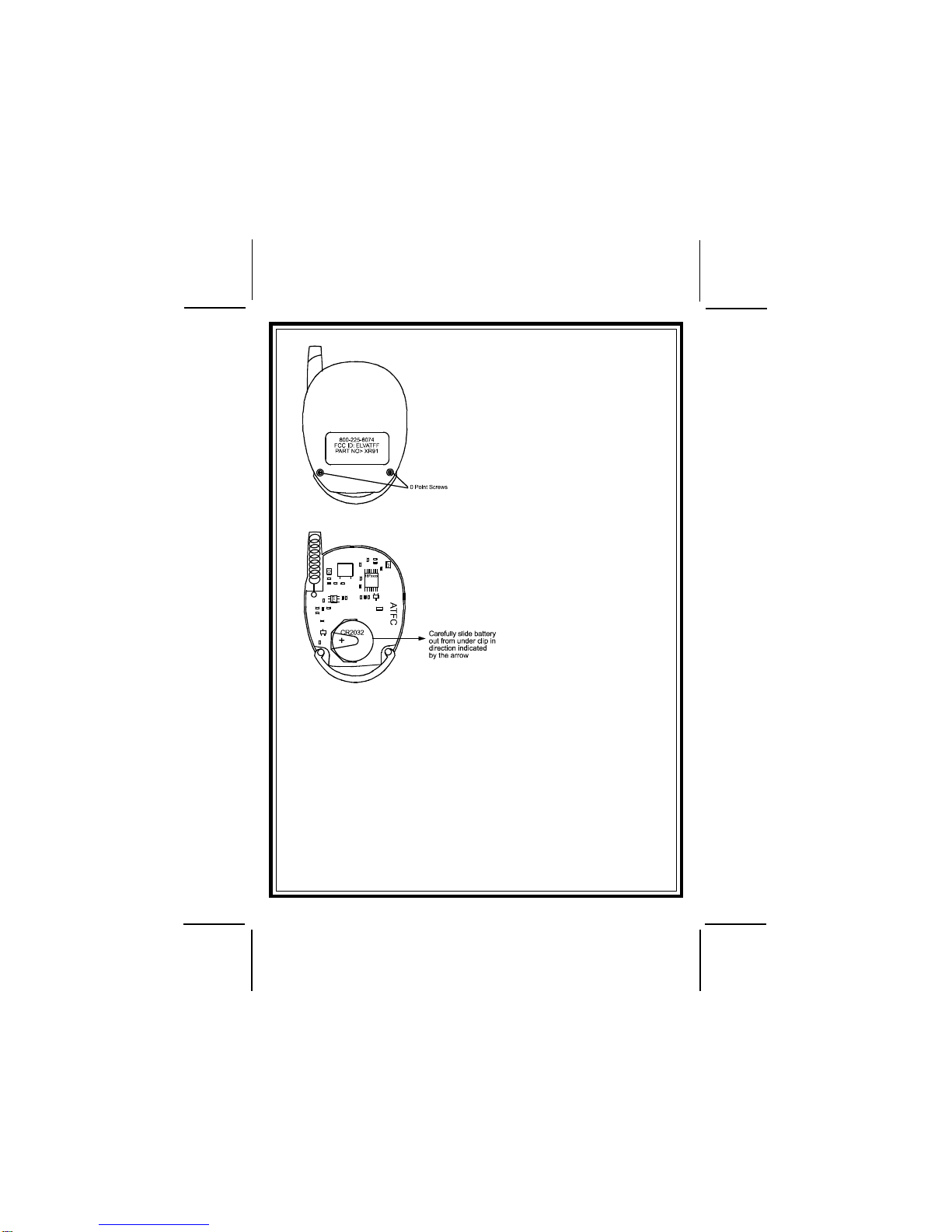

BATTERYREPLACEMENT:

The transmitter incorporates a small LED visible through the case which

is used to indicate battery condition. You will notice a decrease in

transmitter range as the battery condition deteriorates. Transmit-

ter battery replacementis recommendedatleast every10to 12 months,

depending upon how frequently the transmitter is used.

To replace the battery:

1) Remove the 2 small # 0 Phillips head screw from the rear of the

case.

2) Remove the rear cover to access the discharged battery paying

attention to the proper polarity

orientation.

3) Carefully remove and properly dispose of the

discharged battery.

4) Insert the new battery, being certain the metal key ring bar is in it's

proper location, close the case, then reinstall the 2 small case screw

removed in step 1.

5) If you accidently dislodge the circuit board from the transmitter hous-

ing, be certain that the rubber membrane is seated properly, and the

buttons are properly exposed from the front view of the case,

then insert the circuit board, and return to step #4.

XR91 uses CR2032 Coin Cell Type Batteries.

SEEASSOCIATEDDIAGRAMSON FOLLOWINGPAGE

128-7860

6 of 8

Remove two #0 philips head screws

where indicated to gain access to the

CR 2032 battery. Carefully remove

transmitter back cover keeping hold of

the metal key ring to prevent it's loss.

Carefully remove the

discharged battery by sliding it

out from under the clip in the

direction indicated by the arrow

in the diagram below.

Properly dispose of the

exhausted battery and insert a

new CR2032 taking care to

arrange it so that the + is facing

up toward the + symbol on the

battery clip.

128-7860

7 of 8

1) Name: _______________________________________

2)Address: ______________________________________

3) City: ________________ State: _____ Zip Code: ________

4) Telephone Number: (_____) _______________

5) Total Number Of Transmitters Required:

Cost Per Transmitter is: $75.00

Multiply By Number Of Transmitters X ______

6) Enter Total Amount Enclosed _________________

(New York State Residents must include the appropriate sales tax)

7) Method of Payment:

MastercardVisaCheckor Money Order(donotsend cash)

Make Checks Payable To Audiovox Corporation

CreditCard Number: _________________________________

Credit Card Expiration Date: ____ / _____ / _____

8) Mail this form along with your payment to:

ORDERFORMFOR XR91Transmitter

Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y., 11788

Attn.:TRANSMITTERDEPARTMENT

Credit card purchasers can order additional or replacement

transmitters by phone. Simply dial 1 - 800 - 645 - 4994, and

follow the instructions from the operator interface.

Attention: Transmitter Ordering Department

Important: To help us expedite your order, please print all of

the information legibly and mail this form and your pay-

ment according to the instructions below.

Indicate the pad number of your transmitter selected from

the pads shown above.

Note: Transmitter model number found on back of case.

128-7860

8 of 8

128-7860

Tabla de contenidos

Otros manuales de Alarma de coche de Audiovox

Audiovox

Audiovox Professional PS-230i Manual de usuario

Audiovox

Audiovox Pursuit Series Manual de usuario

Audiovox

Audiovox PRO-9649a Manual de usuario

Audiovox

Audiovox AA-9005 Guía de solución de problemas

Audiovox

Audiovox Pursuit PRO-9642 Manual de usuario

Audiovox

Audiovox PRO-9776i Manual de usuario

Audiovox

Audiovox Auto Security AA-9300 Manual de usuario

Audiovox

Audiovox Pursuit PRO-9900 Manual de usuario

Audiovox

Audiovox Prestige Platinum 128-4631B Manual de usuario

Audiovox

Audiovox Platinum APS 500 Manual de usuario

Audiovox

Audiovox Prestige APS-25KB Manual de usuario

Audiovox

Audiovox Auto Security AA-9300 Instrucciones de funcionamiento

Audiovox

Audiovox Prestige Platinum APS-300R Manual de usuario

Audiovox

Audiovox Pursuit PRO 9232a Manual de usuario

Audiovox

Audiovox Keyless Entry Alarm Upgrade Module APS-30 Manual de usuario

Audiovox

Audiovox Pursuit PRO-9675FT4 Manual de usuario

Audiovox

Audiovox Pursuit PRO 2000S Cómo utilizar

Audiovox

Audiovox Prestige Platinum 128-8533 Manual de usuario

Audiovox

Audiovox Pursuit PRO-9776N Series Manual de usuario

Audiovox

Audiovox Professional PS-230i Manual de usuario

Audiovox

Audiovox SECURIKEY+ Instrucciones de funcionamiento

Audiovox

Audiovox XRO9100 Manual de usuario

Audiovox

Audiovox APS-787C Manual de usuario

Audiovox

Audiovox Prestige 128-8601 Manual de usuario

Manuales populares de Alarma de coche de otras marcas

Clifford

Clifford 3606X Manual de usuario

Ultra Start

Ultra Start 2500M SERIES Manual de usuario

Ultra Start

Ultra Start 650 Series Manual de usuario

Sparkrite

Sparkrite SRA8 Manual de usuario

Viper

Viper 4708V Manual de usuario

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manual

Falcon

Falcon Predator XL3 Guía del usuario

Clifford

Clifford Sabre II Manual de usuario

CrimeStopper

CrimeStopper CS-8717 Guía de inicio rápido

Ultra Start

Ultra Start 450 SERIES Manual de usuario

Scytek electronic

Scytek electronic Vectra X3 Manual de usuario

Excalibur

Excalibur AL-1860-EDPB Manual de usuario

Clifford

Clifford CYBER 2 Manual de usuario

Gemini

Gemini 7057 Manual de usuario

FlashLogic

FlashLogic FLRSBA PRESTIGE Manual de usuario

Magicar

Magicar FAI-440 Manual de usuario

Clifford

Clifford Nova 3 Manual de usuario

Viper

Viper 560XV Manual de usuario
