Digitus DN-80223 Manual de usuario

24 Port 10/100/1000 +

4 SFP + UPLINK Switch,

19", L2 + Features

Quick Installation Guide

DN-80223

1. Introduction

Digitus DN-80223, with its 24 Gigabit RJ45 port and four

independent SFP + fiber expansion slot, is ideal for connecting

local networks to data centers. Equipped with 4x 10G SFP + slot,

flexibly expand your network. The 10G uplink switch provides

high performance, enterprise QoS, advanced security policies

and comprehensive layer 2 + management features. With all

these advanced features, the switch is powerful and flexible

enough to meet almost all IT needs.

2. Features

1. Support RJ45 Auto-MDI/MDIX

2. Panel light monitors working status and assists in fault

analysis

3. Supports full-duplex IEEE 802.3x flow control and

Backpressure half-duplex flow control

4. Support Energy-Efficient Ethernet (EEE) function

(IEEE802.3az)

5. High reliability design, supporting traditional STP/RST layer

2+ link protection technology; Supports manual

aggregation and dynamic aggregation, which increases link

bandwidth, improves link reliability, and implements load

balancing and link backup

6. Management and maintenance Supports Console, Telnet,

and SSH management modes

7. The system supports WEB management, which facilitates

installation and debugging for engineers and maintenance

personnel

8. Virtual Gateway Supports file upload and download

management through TFTP

3. Package Content

24 Port RJ45, 4 10G SFP + Uplink Switch

Power Cord

Manual

4. Specifications

Model

24-Port Gigabit+4x 10G SFP + Managed

Switch

Standard

IEEE 802.3, IEEE 802.3u, IEEE 802.3ab,

IEEE 802.3z, IEEE 802.3x, IEEE 802.1X,

IEEE 802.1q, IEEE 802.1p, IEEE 802.1d,

IEEE 802.1w, IEEE 802.3ad

Network -

Media

10BASE-T: UTP category 3,4,5 cable

(≤100m)

100BASE-TX: UTP category 5 cable (≤100m)

1000BASE-T: UTP category 5e cable

(≤100m)

1000BASE-X: MMF, SMF

Transfer mode

Store-and-Forward

Frame Forward

Rate

10Base-T: 14881pps/Port

100Base-TX: 148810pps/Port

1000Base-T/X: 1488095pps/Port

MAC Address

Table

16K, Auto-learning, Auto-aging

Switching

Capacity

128Gbps

Dimensions

(L x W x H)

441.1 x 206.7 x 44 mm

Green energy

saving

IEEE 802.3az

Power Input

AC: 100~240V 50/60Hz

Temperature

Operating Temperature:

0°C ~ 40 °C (32 °F ~104°F )

Storage Temperature:

-40 °C ~ 70 °C (-40 °F ~158°F )

Humidity

Operating Humidity:

10% ~ 90% non-condensing

Storage Humidity:

5% ~ 90% non-condensing

5. Hardware Description

5.1 Front Panel

The following diagram shows the front panel of the switch:

LED indicator

Reset Switch

24x 10/100/1000Mbps RJ45 Ports

Console

4x 1000/10000Mbps SFP Ports

LED indicator

LED

Color

Function

PWR Green

Off: No Power supply.

Light: Indicates the switch has power.

LNK/

ACT

Green

Off: No network device is connected.

Light: The network device is connected.

Blink: Indicates that the Switch is actively

sending or Receiving data over that port.

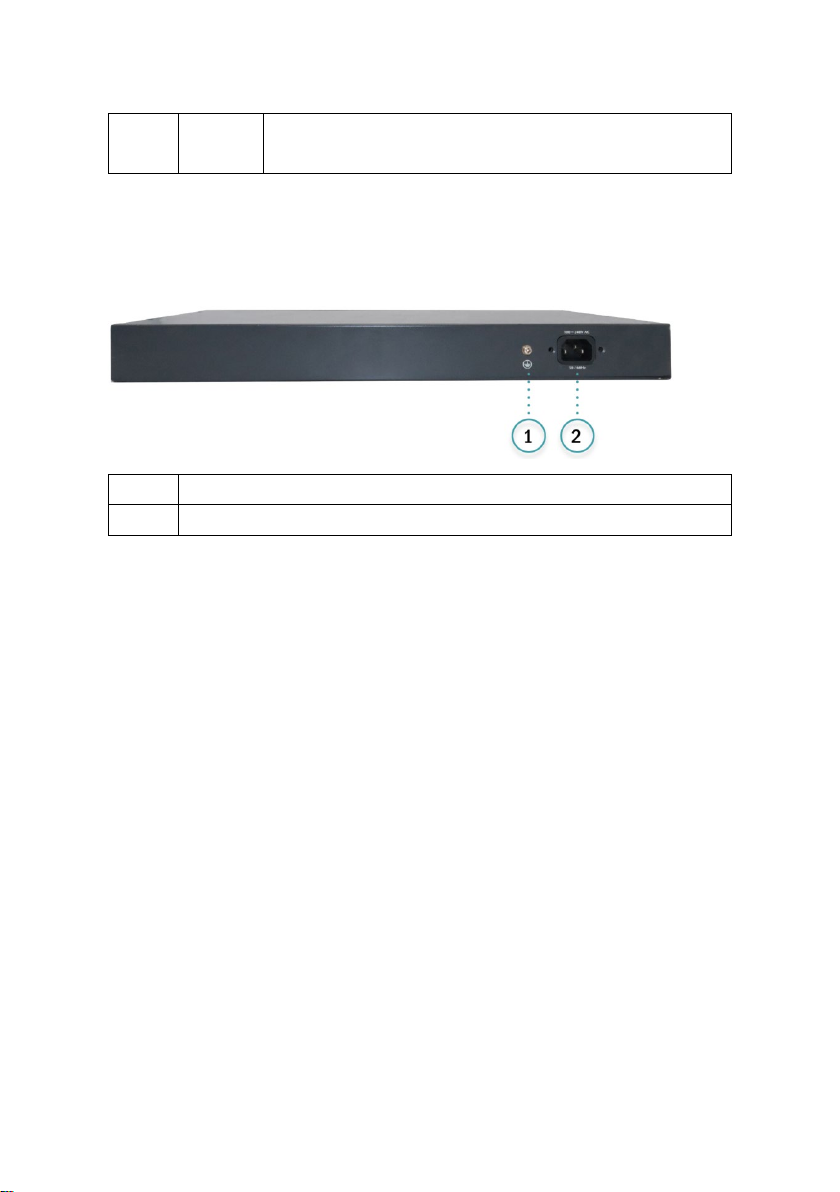

5.2 Rear Panel

The rear panel of a switch shows the AC power interface. The

power input ranges from 100 v AC to 240V AC at 50/60 Hz.

Grounding Column

Power Socket

This is an AC power socket, connect the negative plug of the

power cord to this interface, and connect the positive plug to

the AC power supply.

Grounding Column

It is located to the left of the power interface. Please use wire

grounding to prevent lightning strike.

6. Installation the Switch

6.1 Matters needing attention

Please follow the following instructions in avoid of incorrect

installation causing device damage and security threat:

Before cleaning the switch, unplug the power plug of the

switch first. Do not clean the switch with wet cloth or liquid

Do not place the switch near water or any damp area.

Prevent water or moisture from entering the switch chassis

Do not place the switch on an unstable case or desk. The

switch might be damaged severely in case of a fall

Ensure proper ventilation of the equipment room and keep

the ventilation vents of the switch free of obstruction

Make sure that the operating voltage is the same one

labeled on the switch

Do not open the chassis while the switch is operating or

when electrical hazards are present to avoid electrical

shocks

6.2 Desktop Installation

Place the bottom of the switch face up on a large enough

stable table

Tear off the attached sticky paper on the surface of the

footpad and paste the footpad into the groove at the

bottom of the chassis of the switch to prevent external

vibration

Carefully position the switch upright on the workbench

6.3 Rack-mountable Installation

To check the grounding and stability of the EIA-19inch cabinet,

use screws to fix mounting ears to both sides of the front panel

of the switch. Place the switch on a bracket in the cabinet and

move the switch along the guide rails to a proper position.

Then, use screws to fix mounting ears to the guide rails at both

ends of the cabinet. Ensure that the switch is securely installed

on the tray in the cabinet slot. The mounting ear of the device

is not used for weight bearing, it is only used for fixation. When

installing devices in a cabinet, brackets (fixed on the cabinet)

are provided below the device chassis to support devices.

6.4 Turn on the switch

Connect the power cord, plug in, and turn on the power. After

the switch is started, the switch

automatically initializes. If all port indicators are on and off, the

system is successfully reset. The power LED indicator is steady

on.

Note: Please confirm the voltage is correct before power on,

otherwise the switch will be damaged.

(The power input is: 100V-240Vac, 50/60Hz.)

7. Console Port Interface

The smart switch has a monitor port (Console port). Rate 1200bps-

115200bps, standard RJ45 plug.

Use a dedicated monitoring cable to lead the port to the PC serial port

connection, as follows:

The RJ45 connector used by the Console port is shown in the

figure below, and the RJ45 plug corresponds to the RJ45 socket,

from left to right numbered from 1 to 8.

This cable is used to connect the console port of the switch to

the external monitoring terminal. One end of the RJ45 eight-pin

plug, the other end is a 25-hole plug (DB25) and 9-hole plug

(DB9), RJ45 head into the switch’s console port socket, DB25

and DB9 can be used according to the requirements of the

terminal serial port, the cable internal connection schematic as

follows:

8. Login Web-based configuration

1. Connect the Ethernet cable to any of the ports on the front

panel of the switch and to the Ethernet port on the PC.

2. This switch provides web login management. The default

Type

Default parameter

IP address

192.168.2.1

Username

admin

Password

admin

3. Open the browser, enter http://192.168.2.1 in the address

bar, then press the Enter key to open the web login interface.

(Please make sure the browser version is up to date)

4. In the web login interface of the switch, enter the login user

name, login password, and click login to enter the switch web

control interface.

5. After logging in, you can see the switch web control

interface.
