HDMI VIDEO EXTENDER

User Manual

DS-55400

１

Table of Contents

1.0 Introduction........................................................................... 2

2.0 Specifications ....................................................................... 3

3.0 Package Contents ................................................................ 3

4.0 Panel Descriptions ............................................................... 4

5.0 Connection and operation................................................... 7

２

Dear customer

Thank you for purchasing this product. For optimum performance and safety,

please read these instructions carefully before connecting, operating or

adjusting this product. Please keep this manual for future reference.

1.0 INTRODUCTION

The Extender is based on the HDBaseT technology. It extends your HD display

with the resolutions of 1080p/60Hz up to 330 feet (100 meters) away from your

HDMI or DVI-D source using one CAT5e/6 cable. Built-in IR extender function

allows IR remote control of Source devices from remote viewing location by

sending IR commands received in the vicinity of the Display back to the Source

devices.

It also provides POE function that you only need to provide a piece of 48V/1A

DC power adapter at the end of the Sender to supply the power both the end of

the Sender and Receiver.

1.1 FEATURES

Support HDCP

Support POE

Support uncompressed HDMI signal.

Enables HDMI 10.2Gbps over a single 100m Cat5e/6 cable.

Support 340MHz/3.4Gbps per channel (10.2Gbps all channel) bandwidth.

Support 1080p@60Hz@48bit pixels

Support 3D pass-through.

Support CEC pass-through.

Support uncompressed audio such as LPCM.

Support compressed audio such as DTS Digital, Dolby Digital（including

DTS-HD and Dolby True HD）.

Built-in IR extender function allows IR remote control of Source devices from

remote viewing location by sending IR commands received in the vicinity of

the Display back to the Source devices.

CAT5e/6 cable follows the standard of IEEE-568B.

３

2.0 SPECIFICATIONS

Signal Inputs/Output

Input Video Signal 1.2 volts p-p

Output Video HDMI

Video format supported

DTV/HDTV 480i/576i/480p/576p/720p/1080i/1080P

Transmission distance

Cat5e/6 cable 100m for1080p/60Hz

Operating Frequency

Video Amplifier Bandwidth 3.4Gpbs/340MHz

Vertical Frequency Range 50/60Hz

Resolutions(HDTV)

Interlaced(50&60Hz) 480i,576i,1080i

Progressive(50&60Hz) 480p,576p,720p,1080p

Mechanical

Size (L-W-H) 100×65×25.5MM

Weight (Net) 170G（each unit）

Warranty

Limited Warranty 1 Year Parts and Labor

Power Requirement

Power Supply 48V DC@1A

Power consumption (Max) 16.8W

Regulatory Approvals

Converter Unit FCC,CE,UL

Power Supply UL,CE,FCC

Accessories

AC Power Adapter US standard, UK standard and so on

User Manual English Version

3.0 PACKAGE CONTENTS

Before attempting to use this unit, please check the packaging and make sure

the following items are contained in the shipping carton:

1) Main unit NO. 1 Sender

2) Main unit NO. 2 Receiver

3) One piece of 48V DC Power Supply.

4) IR(Extender infrared receiver) X1

5) IE(Extender infrared emitter) X1

6) User’s Manual

４

4.0 PANEL DESCRIPTIONS

Sender

(1) DC/48V

(2) Power Indicator

The LED will turn on once the DC/48V provided.

(3) Link

When LED is “ON”, it indicates HDBaseT link connection established

between the Sender and the Receiver over the Cat5e/6 cable.

５

(4) HDCP

When the LED is “ON”, it indicates a video content with HDCP protection is

being transferred.

When LED is “Blinking”, it indicates a video content without HDCP.

When LED is “OFF”, it indicates no video connected.

(5) HDBaseT

Connect the Sender to the Receiver using a Cat5e/6 cable.

(6) IE

Connect Extender infrared emitter cable from this port to the HDMI Source

to control the source from the viewing location.

(7) HDMI In

Connect HDMI Source to this Port.

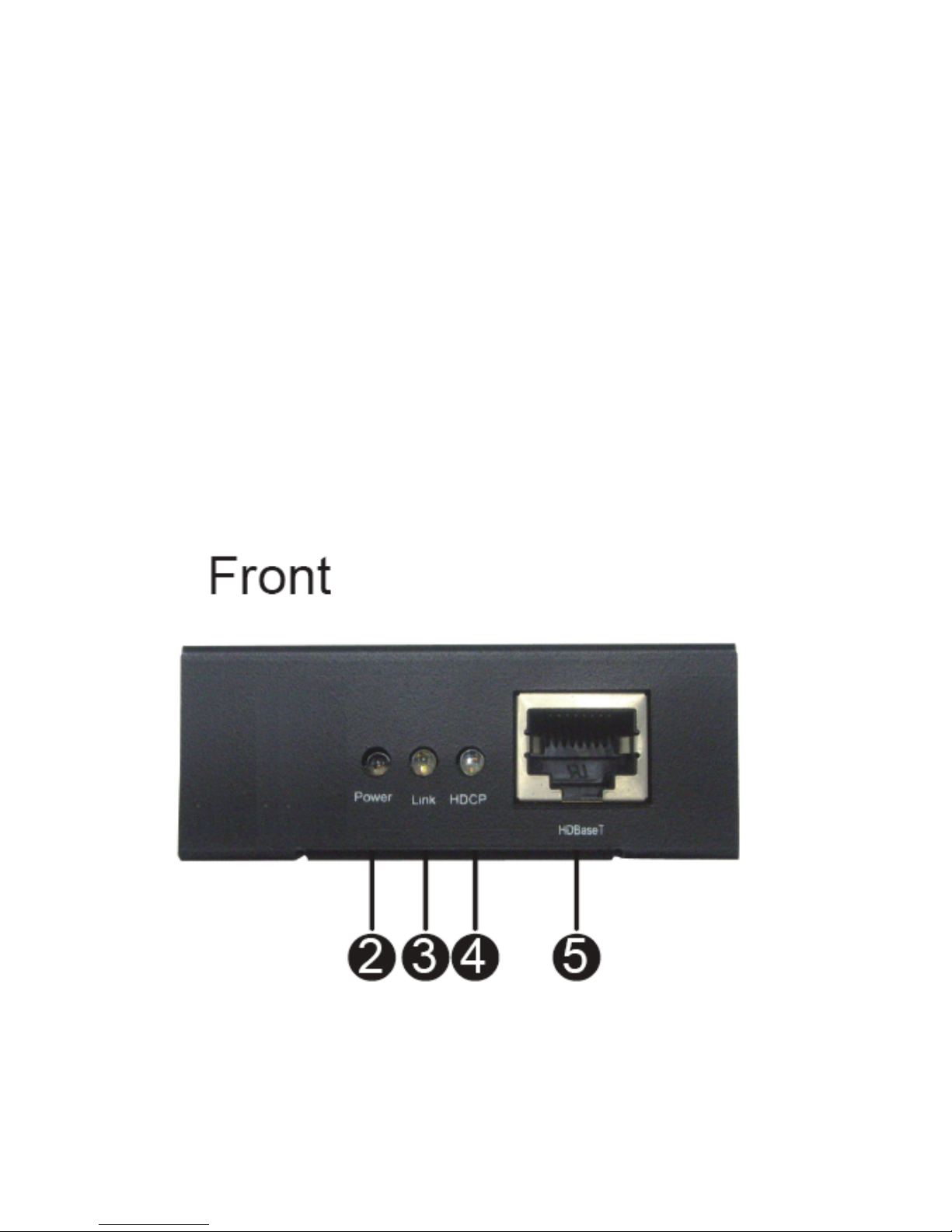

Receiver

６

(2) Power Indicator

The LED will turn on once the 48V Power adapter provided at the end of the

Sender.

(3) Link

When LED is “ON”, it indicates HDBaseT link connection established

between the Sender and the Receiver over the Cat5e/6 cable.

(4) HDCP

When the LED is “ON”, it indicates a video content with HDCP protection is

being transferred.

When LED is “Blinking”, it indicates a video content without HDCP.

When LED is “OFF”, it indicates no video connected.

(5) HDBaseT

Connect the Sender to the Receiver using a Cat5e/6 cable.

(6) IR

Connect Extender infrared receiver cable from this port to receiver the IR

command of the source

(7) HDMI Out

Connect HDMI Sink to this Port

７

5.0 CONNECTION AND OPERATION

1) Connect the HDMI source (such as DVD, PS3, STB ) to the input of

Sender.

2) Connect the output of Receiver to HDTV display.

3) Use a Cat5e/6 cable up to 100m to connect the Sender and Receiver.

4) Plug one piece of 48V/1A power supply into the Sender

5) Power on the HDTV display and HDMI source.

Note: It is recommended to use one continuous run Cat5e/6 cable from one

end to the other. In some cases, connecting through a patch connector might

not work.

Attention: Insert / Extract cable gently.

5.1 CONNECTION DIAGRAM
