Digitus DS-55309 Manual de usuario

Wireless HDMI Extender Set

Manual

DS-55309

Introduction

This HDMI wireless extender includes transmitter unit and receiver unit, allows to

transmit and extend HDMI signal up to 25 meters wirelessly (free field of vision).

It has strong anti-interference ability by running at 5 GHz operation frequency,

and supports point to point connection. It is really a very good solution for

meeting/conference rooms, home entertainment, multi-media education, etc.

Important Safety Notice

Please read below safety instructions carefully before installation and operation:

1) Observe all warnings and notes regarding this device.

2) Do not expose the device to rain, moisture, vapors and liquids.

3) Do not insert any objects into the device.

4) Never attempt to repair the device yourself or open the housing. Danger of

an electric shock!

5) Ensure adequate ventilation to prevent overheating damage.

6) Turn off the power supply and make sure the immediate surroundings are

safe before installation.

7) During a thunderstorm, there is a risk of lightning strike and overvoltage

damage to connected electrical devices.

8) Do not install this device during a thunderstorm.

9) Disconnect the device from the connected electrical devices during a

thunderstorm.

10) The device is intended for indoor use only.

11) If the device needs repair, bring it to a specialist dealer.

12) Dust, moisture, vapors, and harsh detergents or solvents can damage the

device.

13) Disconnect the device from the power supply and connected devices before

cleaning.

14) Use a lint-free cloth to clean the device.

Note:

1) Transmission distance will be different due to the environment.

2) Wall, brick or glass will shorten the signal cover range or cause big signal loss.

Features

1. Highest resolution up to 1080p full HD.

2. Strong anti-interference ability by running at 5GHz operation frequency.

3. Support point to point wireless configuration.

4. Support HDMI 1.4, compatible with HDCP 1.4.

5. 20~30 meters transmission distance (free field of vision)

6. 15~20 meters transmission distance (restricted field of vision)

7. Plug and play, easy installation.

8. Transmitter can be powered by input sources through HDMI port, if the

HDMI port of your notebook/device offer more than 500 mAh

(if the transmission is not working /connection is not stable, or the output is

not fluent, please use included Micro USB to power it via USB port or USB

charging adapter)

Package Contents

1 x HDMI Extender Sender (TX)

1 x HDMI Extender Receiver (RX)

2 x Micro USB cable

2 x HDMI cable

1 x User manual

Installation Requirement

1. HDMI source device (DVD, Gaming Console, Set top box, PC, etc)

2. HDMI display, monitor, TV and projector with HDMI port.

3. Please make sure use DC5V/1A power supply if need to use

external power adapters.

4. If there is obstacle between transmitter and receiver, especially the display is

with the metal house, please use a male-female HDMI cable to connect this

receiver and display to make sure transmitter connects receiver well.

Frequency range and maximum transmission power

Frequency range: Wi-Fi (HT80) 5.1 GHz ~ 5.8 GHz

Transmission power: max. 14.5 dBm

SW (software) version: V 1.3e

HW (hardware) version: V 1.0

Beschreibung

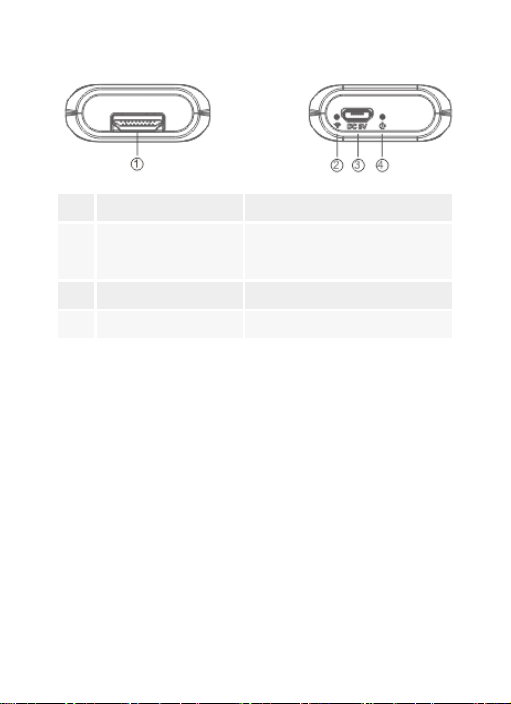

1. HDMI Extender Sender (TX)

①

HDMI input

Connect with HDMI source device

②

Connections indicator

LED keeps on when there is HDMI input,

blinks slowly when it is successfully

connected, blinks fast when it is

transmitting data

③

Power input

Connect with Micro USB power cable

(optional)

④

Power indicator

LED indicator turn on when power on

NOTE:

This device can be powered from the HDMI source device (which with HDMI

port) directly. However, when the transmission/connection is not stable, or the

output is not fluent, please use external Micro USB power supply.

HDMI Input

2. HDMI Extender Receiver (RX)

①

HDMI output

Connect with HDMI display device

②

Connections indicator

LED blinks slowly when it is not

transmitting data, blinks fast when it is

transmitting data

③

Power input

Connect with Micro USB power cable

④

Power indicator

LED indicator turn on when power on

NOTE:

Receiver can be powered by HDMI display device via Micro USB cable.

HDMI Output

Verbindungen

Connection instruction

1) Connect HDMI input to HDMI source device via HDMI cable.

2) Connect HDMI output to HDMI display device via HDMI cable.

3) Power on the device (power led lights) and it works.

Note

1) When the wireless signal transmits through wall, glass or other obstacles,

it will cause signal loss. Please install this device in good environment with

few obstacles.

2) The external environment wireless signal will affect transmission, such as

micro waver, wireless mouse and keyboard etc.

HDMI Extender Sender (TX)

DVD

HDMI-Extender-

Empfänger (RX)

HDMI-

Anzeigegerät

Micro-USB-Kabel

HDMI Extender

Receiver (RX)

HDMI display

Micro USB cable

FAQ

Q: Transmitter and receiver can't be connected with each other?

1) Please check if the wireless connection light on product blinks properly.

2) Restart the transmitter or receiver.

3) Reconnect the HDMI cable or use another HDMI cable to try again.

4) Please change the location of sender (TX) and receiver (RX) and make sure

devices are within the signal coverage.

Q: The Wifi LED indicator of the transmitter is off, but no signal output

on display/monitor?

1) Please check if there is an HDMI signal input of sender TX

2) Try to connect the signal source directly to display device to see if there is

signal output from source device or change the signal source, the resolution

of input signal, HDMI cables to try again.

Q: Display is not fluent and stable

1) Please change the location of sender (TX) and receiver (RX) and make sure

the device is within the signal coverage.

2) Restart the transmitter or receiver.

3) Reconnect the HDMI cable.

4) Remove other wireless signal disturbance and reduce the obstacle on the

way.

Spezification

Supported video resolution

Model: DS-55309

480p@60Hz, 576p@50Hz,

720p@50/60Hz, 1080p@50/60Hz

Supported audio formats

LPCM

HDMI connector

Type A, Female, 19-pin

HDbitT version

1.3e

Latency

<220ms

Input and Output

TMDS signal

0.7～1.2Vp-p(TMDS)

Input and Output

DDC signal

5Vp-p(TTL)

Transmission distance

up to 30 m (free field of vision)

Voltage

power by HDMI port or USB cable

Power consumption

TX＜2.5W,

RX＜2W

ESD protection

1a (contact discharge) level 3

1b (air-gap discharge) level 3

International Standard: IEC61000-4-2

Operating temperature

(0°C ~ 60°C) 32°F ~ 140°F

Storage temperature

(-10°C ~ 70°C) -14°F ~ 94°F

Relative humidity

0 ~ 90% RH (Non-condensing)

Dimension

TX: 88.9(W) x38.99(D) x 15.17(H) mm

RX: 88.9(W) x38.99(D) x 15.17(H) mm

Material

Plastic

Weight

TX: 30g

RX: 30g

Colour

black

Disclaimer

The product name and brand name may be registered trademark of related

manufacturers. ™ and ® may be omitted on the user manual. The pictures on the

user manual are just for reference, and there may be

some slight difference with the real products. We reserve the rights to make

changes without further notice to a product or system described herein to

improve reliability, function or design.

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is part of the shipping

content. If the Declaration of Conformity is missing, you can request it by post under the below mentioned

manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
