Digitus DA-70882 Manual de usuario

USB-C™ SMARTPHONE

DOCKING STATION, 7-PORT

Manual

DA-70882

2
The statement
Thank you very much for choosing this product!
All information in this manual may be changed without notice
and the company reserves the right to change the information
at any time without notice.

1. PRODUCT INTRODUCTION ............................................3
1.1. PRODUCT INTRODUCTION ...............................................3
2. SPECIFICATION ..............................................................3
3. APPEARANCE AND INTERFACE ......................................4
3.1. APPEARANCE AND INTERFACE FUNCTION DESCRIPTION .........4
4. FUNCTIONAL INSTRUCTIONS.........................................6
4.1. HDMI OUTPUT.............................................................6
4.2. USE OF USB3.0 OR USB2.0 INTERFACES...........................7
4.3. SD/MICRO SD CARD READER ..........................................8
4.4. USE OF CHARGING.........................................................8
5. PRODUCT PRECAUTIONS.............................................10



1. Product introduction

1.1. Product introduction

The DA-70882 is a high-performance USB-C hub for android

smartphones. It extends two USB2.0, one USB 3.0 hub, high

speed SD/MicroSD card reader, 5V/3A charging and 4K/30Hz

HDMI video output. This product size is small, the appearance is

fashion and easy to carry, It is very suitable for smartphones.

2. Specification

2.1. Support system: Windows 10, Android 8.0.0 and higher

operation system.

2.2. Not all USB-C™ ports support all features of the

USB Type-C™ standard. Make sure your notebook's

USB-C™ port supports DisplayPort Alternate Mode

(DP-Alt Modi) and USB Power Delivery (PD) to use the

full features of this docking station

2.3. High compatibility: e.g. Samsung, Huawei and other

USB-C™ devices

2.4. Support USB3.1 Gen1 5Gbps speed translate, and

downward compatible with USB2.0 and USB1.1.

(Data support FAT32, don’t support NTFS format)

2.5. Support MicroSD, SD, SDHC, SDXC etc storage device,

Support capacity up to 2TB. (Data support FAT32, don’t

support NTFS format), Card reader can only use single

card, can’t use two cards at the same time.

2.6. Support hot plug, plug and play, easy to use.

2.7. Support HD HDMI 4K/30Hz output, support HDCP1.4/2.

2.8. Working voltage: 5V~20V.

2.9. Static current: ＜220mA.

2.10. Working current: 220~3000mA.

2.11. USB C charging port: support max 5V/3A charging.

2.12. Product size: 110 x 80 x 21 mm

2.13. Product weight: 80 g.

3. Appearance and interface

3.1. Appearance and interface function description

No.

Name

Functional description

USB-C charging

port

Connect the PD charger or QC charger,

which can provide power for the dock

and charge the mobile phone. Support

up to 15W power supply for mobile

phone. (power supply size is related to

power adaptor and mobile phone)

HDMI video port

Connect HDMI HD cable to display

device, provide maximum output of

4k@30hz or 2k@60hz video, support

hdcp1.4/2.2 video streaming protocol

3/4

USB-A 2.0 port

USB2.0 data transfer interface,

connecting mouse, keyboard, USB disk,

mobile hard disk and other USB devices

(data support FAT32, don’t support

NTFS)

SD card reader

socket

USB2.0 SD card interface, maximum

supports 2TB(data support FAT32,

can’t support NTFS), (* and Micro SD

card cannot be used at the same time)

Micro SDcard

reader socket

USB2.0 MicroSD card interface,

maximum supports 2TB(data support

FAT32, can’t support NTFS), (* and SD

card cannot be used at the same time)

USB-A 3.0 port

USB3.0 high-speed data transmission

interface, connected to mouse,

keyboard, USB disk, mobile hard disk

and other USB devices (data support

FAT32, don’t support NTFS)

USB-C connector

Connect to android smartphone and

support typc-c full-function protocol.

4. Functional instructions

4.1. HDMI output

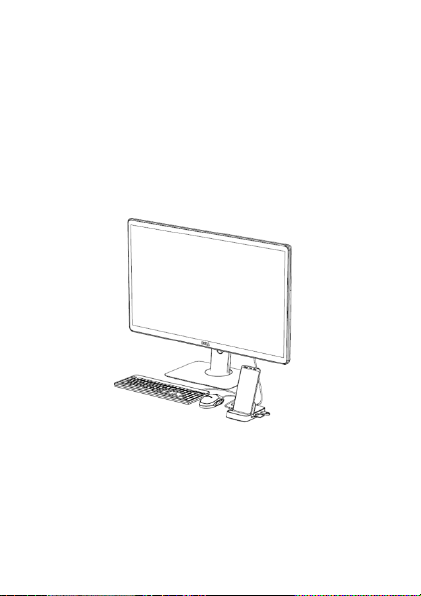

Connect the smart phone to the DA-70882 dock, and then use

HDMI (*2.0) audio and video cable to connect the HD display

to the DA-70882 dock. The system will automatically identify

the display and synchronously display the contents of the

smart phone screen.

Notice:

•The resolution and refresh rate of video output are related

to the actual output of smart phones. If smart phones only

support the maximum output of 2K, video output can only

display 2K.

•The quality of video output is related to HDMI cable.

It is recommended to use genuine HDMI2.0 cable.

•Make sure the display device meets video resolution and

refresh rate.

4.2. Use of USB3.0 or USB2.0 interfaces

Connect the smart phone to the DA-70882 dock, and then

connect the mouse or keyboard to the USB3.0(USB2.0)

interface of the DA-70882 dock to operate the mobile with the

external mouse or keyboard.

Insert the USB flash drive or mobile hard drive. At this time,

the disk symbol of USB flash drive or mobile hard drive pops

up on the screen. Click enter to copy, move and delete the

files inside.

4.3. SD/Micro SD card reader

Connect the smart phone to the DA-70882 dock, insert the SD

card or MicroSD card, then pop up the SD card or Micro SD

card symbol on the screen, click enter, and you can copy,

move, delete and do other operations on the inside files.

(* note: this product does not support simultaneous reading

and writing of SD card and MicroSD card. Insert the card first

and read first)

4.4. Use of charging

Connect the PD charger or QC charger, which can provide

power for the dock and charge the mobile phone. Support

5V/3A maximum 15W power supply to mobile phone.

(The power supply size is related to the power adaptor and

mobile phone)

Notice:

•when using video output, connecting the mouse or

keyboard is consuming the power of the smartphone. It is

recommended to connect the PD charger when using to

ensure the continuous sufficient power and avoid the fast

loss of power.

•if the original charger of the phone is not a high-power PD

or QC charger, the power supply connected to DA-70882

may be insufficient, resulting in slow charging for the

phone.

•high power PD&QC charger can be purchased separately.

5. Product precautions

5.1. do not allow any object (such as combustible material,

needle) or any liquid (such as water and beverage) to

fall into or infiltrate into the product, resulting in the

failure of normal use of the product.

5.2. do not use or place the product in the following places:

damp environment (such as bathroom, toilet);Exposed

to a dusty environment, rotting objects.

5.3. if the equipment is not used for a long time, the plastic

bag of the product shall be put into the box for

preservation to prevent dust accumulation and poor

contact of the socket caused by the oxidation of the

socket.

5.4. do not repair or replace any parts of this machine by

yourself (unless otherwise specified in this

manual).Please leave the maintenance to your dealer

or authorized agent.

Hereby Assmann Electronic GmbH declares that the Declaration of

Conformity is part of the shipping content. If the Declaration of Conformity

is missing, you can request it by post under the below mentioned

manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
