Digitus DA-70891 Manual de usuario

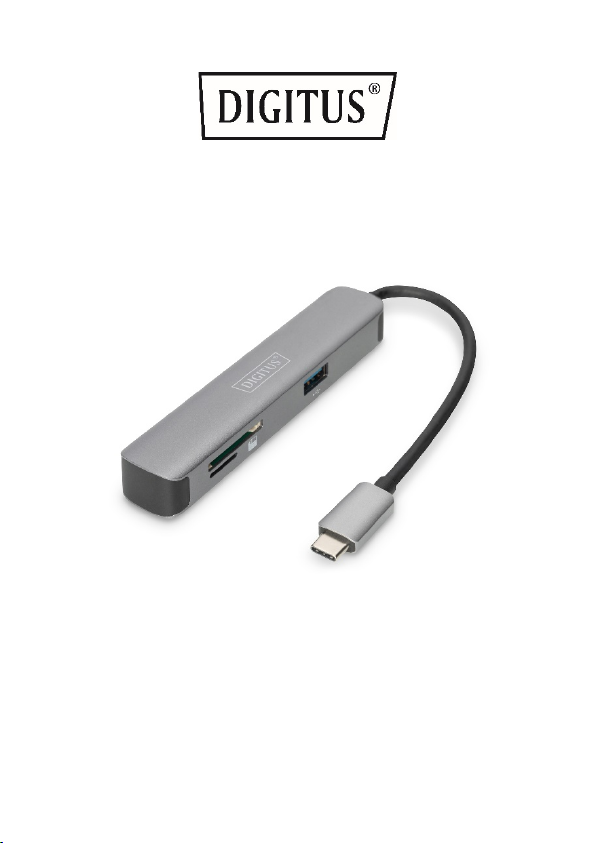

USB-C™ Dock, 5 Port
Manual
DA-70891
2
CONTENTS
1.0 INTRODUCTION.............................................................................3
2.0 FEATURES......................................................................................3
3.0 SPECIFICATIONS ............................................................................4
4.0 PACKAGE CONTENTS.....................................................................4
5.0 CONNECTOR DESCRIPTION ...........................................................5
7.0 EXAMPLE OF APPLICATION ...........................................................6
DEAR CUSTOMER
Thank you for purchasing this product. For optimum performance
and safety, please read these instructions carefully before
connecting, operating or using this product. Please keep this manual
for future reference.
3
1.0 INTRODUCTION
With the DIGITUS® USB-C™ to HDMI® Adapter, you have the option
of connecting an additional HDMI® display to your existing device
with a USB-C™ port. This allows you to reproduce your content on a
large monitor, projector or TV in 4K resolution, for example – easy
streaming with minimal effort. Two additional USB 3.0 connections
are available for you to connect other peripheral equipment. For
instance, USB memory sticks or a mouse/keyboard combination can
be used here. You can even connect an additional USB hub to
increase the number of USB connections. The integrated card reader
can be equipped with SD and MicroSD cards and can be used for
both storage media simultaneously, that is, it can work with both
card formats at the same time. Thanks to its compact design, the
DIGITUS® Docking Station is easy to travel with – perfect for business
trips and presentations on HDMI® displays of all kinds.
2.0 FEATURES
•Use this adapter to send your desktop to a second display
•Use the two additional USB 3.0 ports with SuperSpeed for
additional peripheral equipment
•SD and MicroSD card readers are also integrated and can work
simultaneously
•Supports USB 3.0 SuperSpeed (5 Gbps max.) for data
transmission in a very short time
•Supports HDMI® resolution up to UHD 4K/30 Hz
•Supports Secure Digital 3.0 UHS-I (Ultra High Speed)
•Simultaneous use of SD and MicroSD cards possible
•Compact dimensions – ideal for travel
•Plug and Play – no driver/software installation required
4
3.0 SPECIFICATIONS
•Input: 1 x USB-C™
•Connections: 2 x USB 3.0, 1 x HDMI®, 1 x SD, 1 x microSD
•Supported resolutions: 4K (3840 x 2160p / 30 Hz)
(Full HD 1080p/60Hz)
•Supports USB 3.0 SuperSpeed (5 Gbps max.)
•HDMI® version: 1.4b
•HDCP version: 1.4
•Operating temperature: 0 °C to +45 °C
•Operating humidity: 10% to 85% RH (non-condensing)
•Storage temperature: -10 °C to +70 °C
•Storage humidity: 5% to 90% RH (non-condensing)
•Power supply: USB-C™
•Length of USB-C™ connection cable (host): 15 cm
•Dimensions: L 11 x W 2.3 x 1.6 cm
•Weight: 50 g
•Color: Gray
•Not all USB-C™ ports support all functions of the USB Type-C™
standard. Make sure that your notebook’s USB-C™ port supports
the DisplayPort Alternate Mode (DP Alt Mode).
4.0 PACKAGE CONTENTS
Before attempting to use this unit, please check the packaging and
make sure the following items are contained in the shipping carton:
•1 x USB-C™ Dock, 5 Port
•1 x QIG
5
5.0 CONNECTOR DESCRIPTION
1) HDMI® Out
Connect this port to an HDMI® display to reproduce your
content on a large monitor
2) USB 3.0
Connect this port to additional peripheral equipment
3) SD / micoSD
SD and MicroSD card readers can work simultaneously
4) USB Type-C™
Connection to source device
6
7.0 EXAMPLE OF APPLICATION
1
HDMI® Display
4
HDMI® Source (Notebook)
2
External HDD
5
Printer
3
Memory Cards
Hereby ASSMANN Electronic GmbH declares that the Declaration of
Conformity is part of the shipping content.
If the Declaration of Conformity is missing, you can request it by post
under the below mentioned manufacturer address.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
