Digimerge DPD24W Manual

Printed in KOREA

Model : DPD24W

Ultra Resolution TDN WDR Varifocal Dome

Digimerge Technologies Inc.

Instruction Guide

Ultra Resolution

TDN WDR Varifocal Dome

Model : DPD24W

INFORMATION - This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

◆

Do NOT use power sources other than those specified.

◆

Do NOT expose this appliance to rain or moisture.

This installation should be made by a qualified service person and

should conform to all local codes.

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user's authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

Ultra Resolution TDN WDR Varifocal Dome

How to Use the Camera 14

■Menu 14

■Settings 15

ㆍPRESETS 16

ㆍEXPOSURE 17

ㆍWDR 18

ㆍWHITE BALANCE 19

ㆍDAY/NIGHT 21

ㆍIMAGE ADJ. 22

ㆍSPECIAL 23

- CAMERA ID

- VIDEO OUT

- DZOOM

- MOTION

- PRIVACY SETUP

- RS485 SETUP

ㆍEXIT MENU 27

ㆍRESET 27

Troubleshooting 28

Specifications 30

Limited Warranty 31

Features

Warnings and Precautions

Names and Functions of Parts

Installation

Cable Connections

Dimensions 11

■LENS 10

■OSD 10

■2ND VIDEO OUTPUT 11

■SMPS 11

■3 AXIS BRACKET 11

Components 8

■Contents

Ultra Resolution TDN WDR Varifocal Dome

The camera requires periodic inspection.

Contact an authorised technician to carry out the inspection.

Do not Install the camera on a surface that can not support it.

If the camera is installed on an inappropriate surface, it may fall

and cause injury.

Do not hold plug with wet hands.

It could cause an electric shock.

Do not dis-assemble the camera.

It may result in an electric shock or other hazards.

Additional Functions

SYNC (INT/LL), SENS-UP, FLIP(H/V-REV),

D-ZOOM, SHARPNESS and PRIVACY

functions are provided.

Wide Dynamic Range (WDR)

The camera delivers high quality pictures,

even when backlit, by increasing exposure

in dark areas while decreasing it in bright

areas;

ㆍ120dB maximum dynamic range

RS-485 Communication

Control Support

Remote OSD menu control via an RS-485

interface is supported.

Motion Detection

Since the camera detects motion without any

additional external sensor, you can monitor

activity more efficiently.

3 Axis built-in 120mm Dome Housing

High Resolution Color for Crisp,

Clear Video

ㆍ690TVL Effective (Color)

ㆍ800TVL Effective (B/W)

Filter Changeable Day & Night

This camera has a function that automatically

selects the mode that is appropriate for daytime

or night-time conditions. The COLOR mode

operates in daytime conditions to provide

optimum colors and BW mode operates in

nighttime conditions to enhance the definition

of the image.

High Sensitivity for low-light

images

The built-in high sensitivity PIXIM SEAWOLF

Sensor enables a clear image even at

0.1Lux(COLOR), 0.01Lux(B/W) or lower

illumination.

DNR (Digital Noise Reduction)

The amount of low illuminance noise is

significantly reduced, and the signal-to-noise

ratio (S/N ratio) as well as horizontal resolution,

have been improved resulting in a clear and

sharp images even in low light.

■Features Warning ■

Ultra Resolution TDN WDR Varifocal Dome

ㆍPlease check the power supply satisfies the normal specification before

connecting the camera.

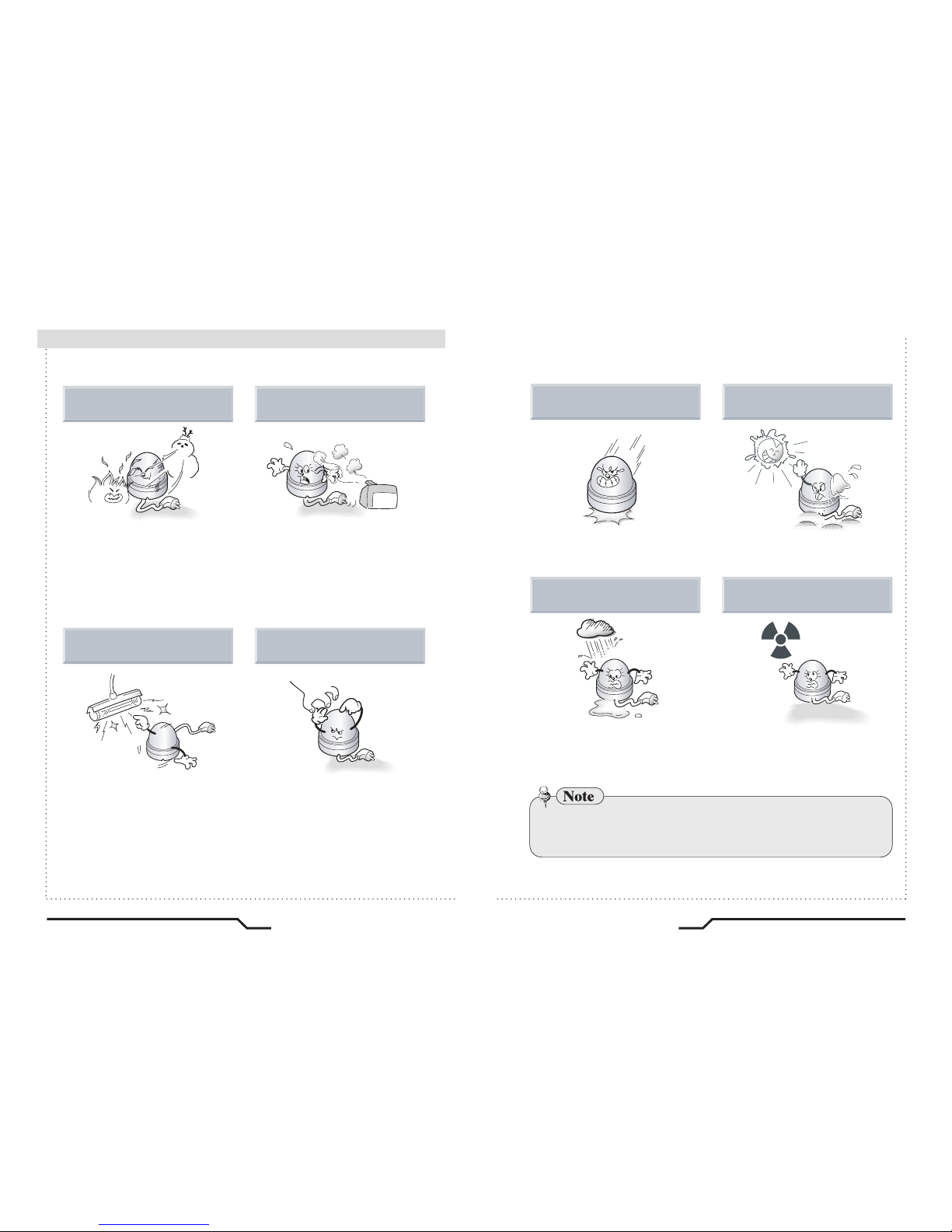

■Precautions

Do not install the camera in

extreme temperature conditions.

Do not install the camera under

unstable lighting conditions.

Do not touch the front lens of the

camera.

Only use the camera under conditions

where temperatures are between

-10˚C and +50˚C. Be especially

careful to provide ventilation when

operating under high temperatures.

It can cause the image quality to be

poor.

Severe lighting change or flicker can

cause the camera to work improperly.

This is one of the most important parts

of the camera. Be careful not to leave

fingerprints on the lens cover.

Do not install or use the camera in an

environment where the humidity is high.

It can cause malfunctions to occur.

If it gets wet, wipe it dry immediately.

Liquids can contain minerals that

corrode the electronic components.

If exposed to radioactivity the CMOS

will fail.

It can damage the CMOS.

Do not drop the camera or protect

it from physical shocks.

Do not expose the camera to rain

or spill beverage on it.

Do not expose the camera to

radioactivity.

Never keep the camera pointed

directly at strong light.

Ultra Resolution TDN WDR Varifocal Dome

■Components Names and Functions of Parts ■

1. DAY/NIGHT

DOME CAMERA

2. SCREWS

2ND VIDEO OUTPUT CABLE

4. INSTRUCTION GUIDE

③

⑤

④

②①

Ultra Resolution TDN WDR Varifocal Dome

②OSD PCB

●SET button : Used for menu display. This button can be used to access

OSD menu, confirm settings after changing the value of the selected

function.

●UP & DOWN buttons : Used for selecting items by moving the cursor

up or down on the menu screen.

●LEFT & RIGHT buttons : Used when changing item values, by moving

the cursor to the left or right on the menu screen.

①LENS : Vari-Focal DC Auto Iris Lens

DOWNUPSETRIGHTLEFT

④ 3 AXIS BRACKET

Loosen screws to adjust for optimal viewing angle

③ 2ND VIDEO OUTPUT CABLE

Please use the supplied wire when connecting to LCD

⑤ DUAL VOLTAGE POWERBOARD

VBS-EXTRA

■Names and Functions of Parts Names and Functions of Parts ■

Dimensions ■

120.0

140.0

60.0

111.0

1627

(unit : mm)

Ultra Resolution TDN WDR Varifocal Dome

■Installation

1. Dome Base Mounting

- Open the dome cover by loosening 3 screws using special wrench

provided.

- Mount the base of camera to a sturdy surface using 4 screws

(1.5 inch) and 4 premade holes on the base of the dome.

2. Power Connect & Monitor Impedance

- DC12V/300mA regulated power supply (DC12V only)

AC24V Class 2 power supply (AC24V/DC12V)

- To avoid fire or shock hazard, must use a UL listed power supply.

- Set the monitor impedance switch to 75Ω. Check the impedance

switch when the screen turns blurred.

3. Camera Module Adjustment

- Loosen screws for 3-axis camera bracket and adjust the direction

and angle of camera.

- Make sure to retighten the screws for camera bracket.

- Set any function you wish to activate by using the OSD buttons.

4. Dome Cover Mounting

- Replace the dome cover to the base and tighten 3 screws.

Control via RS-485 Interface (Optional)

RS-485 Control Port

485 Control Board Connection Port

485+

(+) CONNECTION TERMINAL (TRX+)

(- ) CONNECTION TERMINAL (TRX-)

485-

Item

Initial value

PET PKT

UART MODE

BAUD RATECamera ID ENABLE

8-NONE-124001

The camera can be controlled by using an external controller equipped

with RS-485 communications.

• To control using a DVR or keyboard controller

Connect the RS-485 cable (TRX+, TRX-) to the connection port of the

485 control board in the DVR or controller.

* RS-485 communication default initial values

•

To control the camera use Pelco-D protocol.

- Set Preset 95 : Enters into OSD menu.

- Iris Open command : Set key function.

- Iris Close command : Cancel function.

Note

■Cable Connections

DC only

AC24V

DC12V AC IN

DC IN AC IN

DC IN

VIDEO

POWER

RS-485(Optional)

DOME COVER

GIMBAL A'SSY

24V POWER BOARD

CONTROL BOARD

BASE HOUSING

DECORATION RING

Ultra Resolution TDN WDR Varifocal Dome

ㆍOUTDOORㆍINDOORㆍNORMAL

SETUP menu

PRESETS

EXPOSURE

WDR

WHITE BALANCE

DAY/NIGHT

IMAGE ADJ.

EXIT MENU

ㆍLENS

ㆍCOLOR ROLL

ㆍMIDDLE

ㆍLOW

ㆍCAMERA ID

ㆍDZOOM

ㆍATW

ㆍAWB ㆍMANUAL

ㆍFLIP

ㆍAUTO

SPECIAL

ㆍHIGH

ㆍVIDEO OUT

ㆍMOTION

ㆍINDOOR ㆍOUTDOOR

ㆍSHARPNESS

ㆍCOLOR GAIN ㆍGAMMA

ㆍDNR

ㆍAGC

ㆍSENS-UP

ㆍBLC

ㆍUSER

ㆍPRIVACY SETUP

ㆍRESET

ㆍRS485 SETUP

ㆍCOLOR ㆍBW

Settings can be made using the 5 buttons located in the camera.

DOWNUPSETRIGHTLEFT

■

1. Press the SET button

ㆍSettings can now be accessed. The SETUP menu is displayed

on the monitor.

2. Select a menu item from the list available by using the UP and DOWN

buttons.

ㆍFuntions are selected using up and down buttons.

ㆍThe selected position is displayed in blue.

■

Settings

SETUP

PRESETS

EXPOSURE..

WDR

WHITE BALANCE

DAY/NIGHT

IMAGE ADJ..

SPECIAL..

EXIT MENU.

OUTDOOR

MIDDLE

ATW

AUTO..

■How to Use the Camera

Ultra Resolution TDN WDR Varifocal Dome

LENS MENU

DC GAIN

AI THRESH

PREVIOUS PAGE.

0 120 255

-24-48 60

EXPOSURE

SETUP

PRESETS

EXPOSURE..

WDR

WHITE BALANCE

DAY/NIGHT

IMAGE ADJ..

OUTDOOR

MIDDLE

ATW

AUTO..

When the SETUP menu screen is displayed, select‘EXPOSURE’by

using the Up and Down buttons so that the arrow indicates‘EXPOSURE’.

● LENS : Using this function, you can control the screen brightness.

ㆍDC / Manual : Select Lens Type

EXPOSURE

LENS

AGC

DNR

BLC

COLOR ROLL

SENS-UP

PREVIOUS PAGE.

DC..

MIDDLE

OFF

LOW

SETUP

PRESETS

EXPOSURE..

WDR

WHITE BALANCE

DAY/NIGHT

IMAGE ADJ..

SPECIAL..

EXIT MENU.

OUTDOOR

MIDDLE

ATW

AUTO..

Set up a selected item by using the Left and Right buttons.

To finish and save the settings, select 'EXIT' and press the SET button.

Select the function using

the UP or DOWN button. Change the status using

the LEFT or RIGHT button.

PRESETS

Note

•

An item with the ".." icon contains a sub-menu. To access a sub-menu,

press the SET button.

SETUP

PRESETS

EXPOSURE..

WDR

WHITE BALANCE

DAY/NIGHT

IMAGE ADJ..

SPECIAL..

EXIT MENU.

OUTDOOR

MIDDLE

ATW

AUTO..

●

NORMAL : Normal environment.

●

INDOOR : Indoor environment.

●

OUTDOOR : Outdoor environment.

■How to Use the Camera

Tabla de contenidos

Otros manuales de Cámara de seguridad de Digimerge

Digimerge

Digimerge DCBHR1535 Manual de usuario

Digimerge

Digimerge DPB14TLX Manual de usuario

Digimerge

Digimerge DPV34WL Manual

Digimerge

Digimerge DCV23DL Manual de usuario

Digimerge

Digimerge DND7220 Series Manual de usuario

Digimerge

Digimerge DPV24D Manual de usuario

Digimerge

Digimerge DNB6300V Manual de usuario

Digimerge

Digimerge DCV54DL Manual de usuario

Digimerge

Digimerge DBD14 Manual de usuario

Digimerge

Digimerge DPD23D Manual de usuario

Digimerge

Digimerge DPV14D Manual de usuario

Digimerge

Digimerge DCBHR1037 Manual de usuario

Digimerge

Digimerge DCBHR1035 Manual de usuario

Digimerge

Digimerge DPV24D Manual de usuario

Digimerge

Digimerge DCDHR2532 Manual de usuario

Digimerge

Digimerge DCV24DL Manual de usuario

Digimerge

Digimerge DNP5320E Manual de usuario

Digimerge

Digimerge DPV24D Manual de usuario

Digimerge

Digimerge DCBHR1535 Manual de usuario

Digimerge

Digimerge DPV24DL Manual de usuario

Digimerge

Digimerge DCS100033 Manual de usuario

Digimerge

Digimerge DNP5220E Manual de usuario

Digimerge

Digimerge DPV24DL Manual de usuario

Digimerge

Digimerge DNZ9320W Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
