HIGH RESOLUTION DUAL-CODEC

HEAVY DUTY VARIFOCAL DAY/

NIGHT BULLET CAMERA

DNB6300V

Page 2

www.digimerge.com

DNB6300V_Quick Installation Guide_En_R1

This installation guide provides instructions for installing the Digimerge DNB6300V High

Resolution Dual-Codec Heavy Duty Varifocal Day/Night Bullet Camera on your network.

For all other aspects of using the product, please refer to the user manual available at

www.digimerge.com or on the Installation CD included with this product.

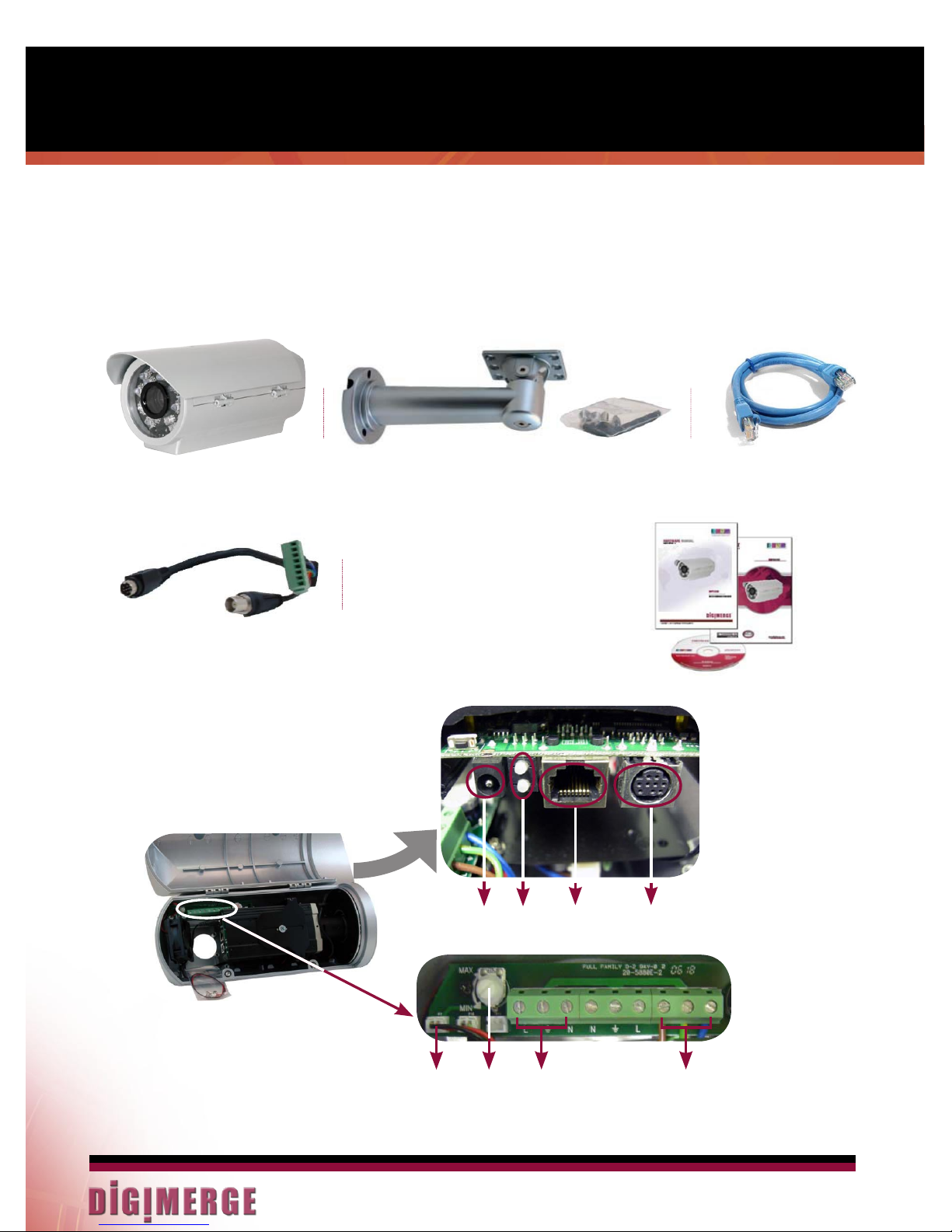

PACKAGE CONTENTS

IMPORTANT!

This product must be installed in compliance with local laws and regulations.

Package Contents:

1 x High Resolution Dual-

Codec Heavy Duty Varifocal

Day/Night Bullet Camera

1 x Heavy Duty Metal Wall Mount Arm

1 x Mounting Hardware

2 x Security HEX Tools

1 x GPIO Mini-DIN/Terminal

Block Conversion Cable

1 x Software CD with Quick Installation

Guide & Hardware Manual.

1 x hard copies of Quick Installation

Guide, Housing Manual & Warranty Card

1 x 3ft Ethernet Cable

1. Camera Power Input Port

2. Power/Network Status LED Indicators

3. Ethernet Port

4. GPIO Port (Optional Connection)

1 2 3 4

To access the ports on the Camera, the lid

must first be lifted (by unscrewing the 2

holding screws using the large Hex tool).

Connector Ports:

12 3 4

1. Cooling Fan Power Cable

2. IR Sensitivity Adjustment

3. Hard Wired Power Terminal Block

4. IR LED Power Terminal Block

DNB6300V_Quick Installation Guide_En_R1

www.digimerge.com

Page 3

• Hardware installation:

A. Powered Install

B. Optional GPIO Connections

C. Adjusting the Included Lens

• Software installation

• Network conﬁguration

HARDWARE CONNECTIONS

Hardware Installation - Powered Install

The basic Hardware installation consists of

mounting the camera and stand, connecting the

hard wired power and connecting the Ethernet cable

to the Camera. Other connections are optional.

NOTE: The cables should be run through the wall or

ceiling to the mounting location, prior to installing

the Camera.

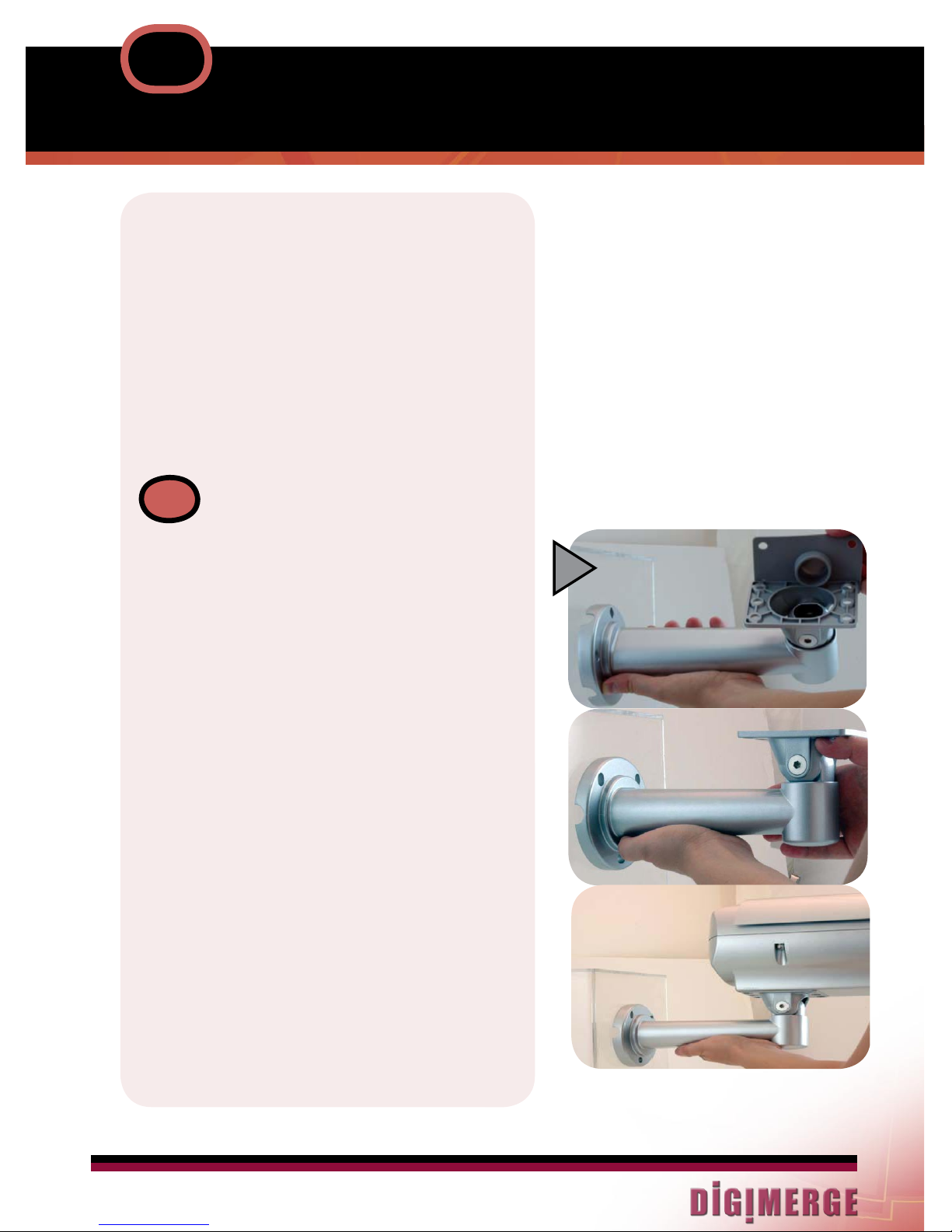

1. Mounting Instructions: Run the Power and

Ethernet cables to the desired location.

• Cut out the cable channel hole in the Rubber

stopper. Place the stopper on the stand.

• Run the cables from the wall and through the

stand before permanently mounting the stand

to the wall or ceiling.

• Mount the stand to the wall or ceiling using the

provided screws.

• Securely connect the camera housing to the

stand.

Page 4

www.digimerge.com

DNB6300V_Quick Installation Guide_En_R1

HARDWARE CONNECTIONS

Continued

2. Use the provided HEX tool to loosen the screws on

the top of the camera housing. Open the lid to

access the ports.

NOTE: Make sure the Power and Ethernet Cables have

been passed through the stand and into the housing

before proceeding.

3. Power: Connect a CSA/UL approved 3 Conductive

Wire Power Cable (not provided) to the 3 terminals

on the far left of the Power Terminal Block as shown:

• Loosen the 3 screws with a screwdriver.

• Connect the wires to the labelled ports (Live,

Earth and Neutral).

• Tighten the screws to hold the wires in place.

NOTE: Please refer to the included INFRARED

ILLUMINATOR HOUSING insert or Hardware Manual

for additional installation details.

4. Network: Connect the network cable to the Camera

Ethernet Cable (Port).

NOTE: CAT-5 Ethernet Cabling has a maximum

effective range of 100m (330 ft.) depending on the

cable/switcher quality. For a longer run, a repeater

device may be required.

To test the video feed locally from the Camera, tem-

porarily connect the GPIO Connector to the Camera

(see Section B) and use the BNC Connector to connect

to a local TV or Monitor (a BNC/RCA Adaptor may be

required).

DNB6300V_Quick Installation Guide_En_R1

www.digimerge.com

Page 5

Hardware Installation - GPIO Connections

The Optional Connection includes the use of the

GPIO Cable for analouge video capture, Alarm

and/or PTZ Control.

• Feed the wires for the desired control into the

Camera through the stand.

• Connect the GPIO Cable to the GPIO Port

located to the right of the Ethernet Cable

Connection.

• Connect the wires to the GPIO Terminal block

inside the camera housing. Tuck the GPIO

terminal block below the bracket once

complete.

NOTE: The GPIO Terminal Block is color coded

and labelled. Please see Appendix #2 of the hard-

ware manual for Alarm Block connections.

HARDWARE CONNECTIONS

Continued

4i 4ii

Hardware Installation - Adjusting the Included

Lens

• Use the ZOOM and FOCUS controls on the front

of the attached lens to adjust:

FOCUS - Adjust the lens to make the image

appear sharp and well deﬁned once the varifocal

distance has been set.

ZOOM - Increase or Decrease the viewing

distance for the camera image (adjust the varifocal

distance between 7.5~50mm)

NOTE: Once all internal connections have been

made, set the desired angle for the camera and

secure the tightening screw on the camera base.

Replace the cover and tighten the screws with the

HEX tool.

Focus Zoom

GPIO Port

GPIO Terminal

Block

OPTIONAL

Page 6

www.digimerge.com

DNB6300V_Quick Installation Guide_En_R1

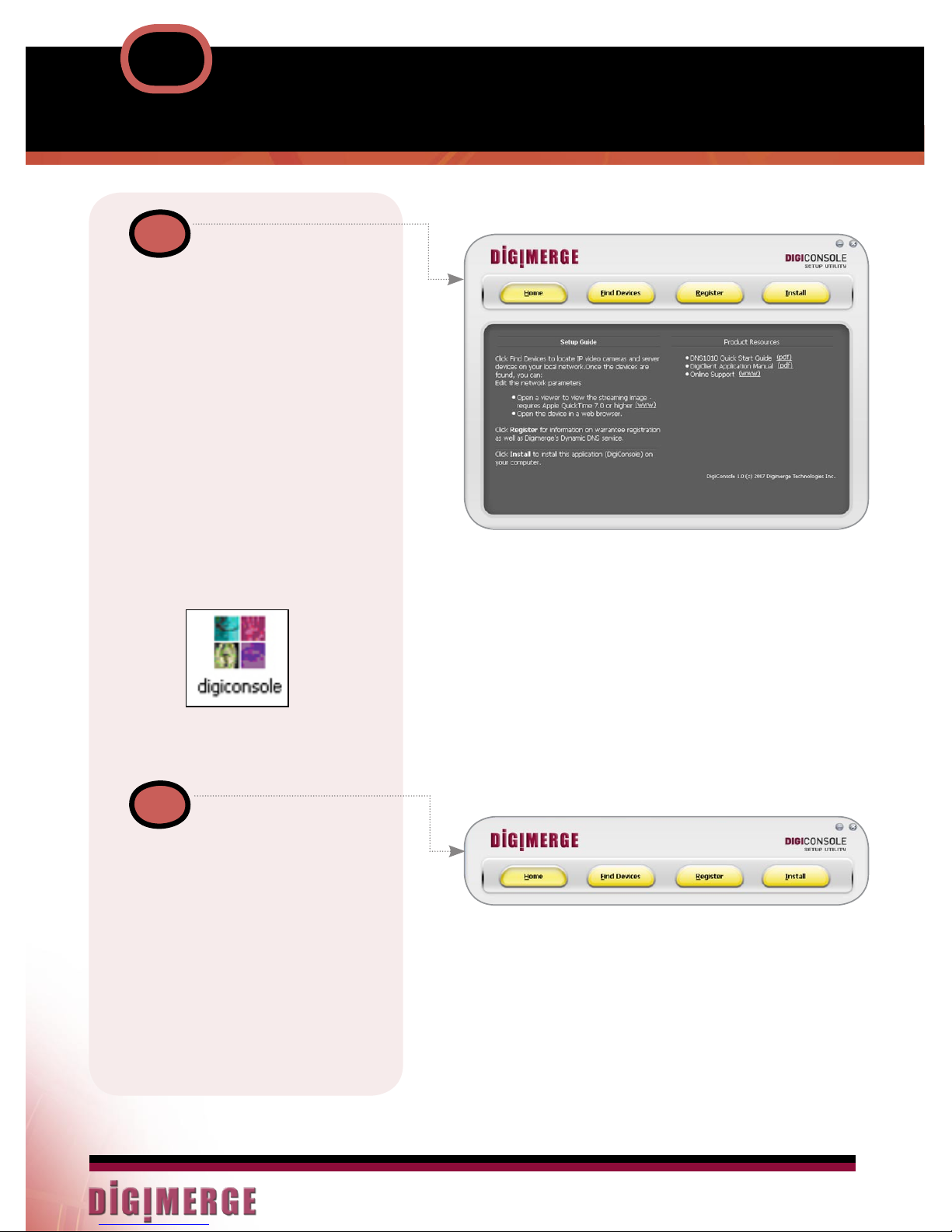

SOFTWARE INSTALLATION

The Digiconsole application loads

from the CD included with your

package, and provides you with the

following:

1. Web links to various resources

and documentation

2. Discovery of all the Digimerge

IP devices on the network

3. Provides Network

conﬁguration of IP Devices

4. Installs DigiConsole and

Surveillance application on your

local PC

5. Warranty information and DDNS

registration

Digiconsole Utility screen consists of

the following menus:

1. Home

2. Find Devices

3. Register

4. Install

DNB6300V_Quick Installation Guide_En_R1

www.digimerge.com

Page 7

Home:

Provides basic Digiconsole operating

instructions, links to product informa-

tion/documentation as well as 3rd party

software support links.

SOFTWARE SET-UP

Find Devices:

Locates all available Digimerge IP

devices on your network and displays

a snapshot of the results. Click on any

available device to display image on

the right side screen display.

NOTE: You may need to press the Find

Devices button several times as some

devices may not respond immediately.

If you do not see a camera image,

please check that all cables running

from the Camera are connected

properly.

Menu:

The Menu Button or right clicking on

a device icon provides access to

device speciﬁc settings:

• Edit Network Parameters

• View Live Image

• Open Device in Browser

• Update Firmware in Video Device

• Refresh the device list - in order to

remove inactive and disconnected

devices

NOTE: It is recommended that you

record the device speciﬁc MAC and

IP address for DDNS registration

purposes. If you have multiple

cameras on a local network, only

one camera needs to be conﬁgured

for DDNS.

MAC:

IP:

Page 8

www.digimerge.com

DNB6300V_Quick Installation Guide_En_R1

SOFTWARE SET-UP

Edit Network Parameters:

The Network Parameters are

automatically assigned to the

Device by the network router (by

using DHCP). These settings can

be manually changed if desired.

1. Select the IP device you would

like to edit by clicking on its icon.

2. Click on the MENU button or

right click the icon for the device

to access the menu. Select

“Edit Network Parameters” from

the menu.

3. Make the necessary changes

and click OK to save changes or

click CANCEL to close the

window without saving any of the

changes made.

NOTE: If a user name and password

were set-up on the IP Device previ-

ously, you will be required to enter

this authentication information when

attempting to access the device.

Continued

View Live Image:

View live video from the IP Device

using the Apple Quicktime program.

If this application is not installed on

your system, please download it (no

charge) at

http://www.apple.com/quicktime

OPTIONAL

If by clicking VIEWING LIVE IMAGE

the image is not automatically shown

in Quicktime, follow these steps in

Quicktime:

1. Go to FILE

2. Choose OPEN URL

3. Enter the following: rtsp://<device

IP address> (i.e. rtsp://192.168.2.102)

A device IP address can be obtained

from the Digiconsole device list.

NOTE: Minimum Quicktime version installed

should be 7.1.6. If you cannot install Quick-

time, use Microsoft Internet Explorer to view

the device. See step C3 for details.

DNB6300V_Quick Installation Guide_En_R1

www.digimerge.com

Page 9

SOFTWARE SET-UP

Continued

Open Device in Browser:

Opens up the DigiViewer Video Browser

using your default web browser (e.g.

Internet Explorer).

The DigiViewer browser allows the user

to view streaming video from the device

as well as change certain settings on the

device depending on the level of access

set by the administrator.

Once user names and passwords are set

up by the administrator, the users (except

for a VIEWER level user) are required to

enter this information every time they ac-

cess the DigiViewer.

Click (during streaming mode)

to mute the audio.

Click to capture a snapshot image

in a new browser window.

By default, the image refresh rate

is set to OFF. Move slider to the

right to set image refresh rate.

Click to bring up image brightness and contrast controls

Click to capture a video clip and send it to a FTP site. FTP

must be conﬁgured in the SETTINGS screen

Click here to start streaming video

Page 10

www.digimerge.com

DNB6300V_Quick Installation Guide_En_R1

SOFTWARE SET-UP

3 Levels of User Access:

• Administrator (current user)

• Operator (general user)

Default User Name: guest

Password:<leave blank>

• Viewer (anonymous guest)

Creating Current User Account:

1. Click SETTINGS

2. Select ACCOUNTS

3. Fill in a user name and

password in the assigned ﬁelds

4. Reconﬁrm password

5. Click UPDATE ACCOUNTS

1. Administrator: Administrator has

unrestricted access to all the

settings of the device. The

interface will only permit creation

of ONE administrator account.

2. Operator: Operator has restricted

access to the settings of the

server. The interface will only

permit creation of FIVE operator

accounts.

Note: Restrictions - View images.

Requires username and password.

3. Viewer: The interface will permit

the creation of ONE viewer

account (i.e. Anonymous Guest).

This account does not require a

password.

Note: Viewer Restrictions - View im-

ages if permission is granted by ad-

ministrator. Note that the permission

in this case refers to providing the

IP address to someone. Whomever

receives the IP address can view the

camera remotely as a anonymous

guest. No password is required.

Multiple users can access the de-

vice at the same time, however this

will limit the quality and speed of the

video as the feed is shared between

all connected users.

Continued

Otros manuales para DNB6300V

Tabla de contenidos

Otros manuales de Cámara de seguridad de Digimerge

Digimerge

Digimerge DPV24D Manual de usuario

Digimerge

Digimerge DCBHR1535 Manual de usuario

Digimerge

Digimerge Flir DBV44TL Manual de usuario

Digimerge

Digimerge DPP22W Manual

Digimerge

Digimerge DCV23DL Manual de usuario

Digimerge

Digimerge DPD14T Manual de usuario

Digimerge

Digimerge DNP5320E Manual de usuario

Digimerge

Digimerge DCBHR1037 Manual de usuario

Digimerge

Digimerge DPV24DL Manual de usuario

Digimerge

Digimerge DCB13TL Manual de usuario

Digimerge

Digimerge DPV14D Manual de usuario

Digimerge

Digimerge DPP12D Manual

Digimerge

Digimerge DPV14W Manual de usuario

Digimerge

Digimerge DNZ9320W Manual de usuario

Digimerge

Digimerge DCV24DL Manual de usuario

Digimerge

Digimerge DCV13TL Manual de usuario

Digimerge

Digimerge DPV24DL Manual de usuario

Digimerge

Digimerge DPV24D Manual de usuario

Digimerge

Digimerge DPB14TLX Manual de usuario

Digimerge

Digimerge DPZ16TO27 Manual de usuario

Digimerge

Digimerge DCBHR1035 Manual de usuario

Digimerge

Digimerge DPV34WL Manual

Digimerge

Digimerge DPZ36WO23 Manual de usuario

Digimerge

Digimerge DBD14 Manual de usuario

Manuales populares de Cámara de seguridad de otras marcas

Okina USA

Okina USA SIR36-870VF650LP Manual de usuario

Divio

Divio NDR155PA Manual de usuario

Canon

Canon VB-C500D Manual de usuario

Easy Access

Easy Access EasyGuard Manual de usuario

Vivotek

Vivotek FD9389-EHV-v2 Manual de usuario

TUYA

TUYA COSMO W2 Manual de usuario

Eusso

Eusso UNC7500-IR Guía de configuración

urmet domus

urmet domus 1096/204 Manual de usuario

VC VC20 series Manual de usuario

Axis

Axis Q1614 Manual de usuario

ieGeek

ieGeek DD201 Manual de usuario

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manual de usuario

Vicon

Vicon V662-D-1 Instrucciones de funcionamiento

Grundig

Grundig GCH-K0274P Manual de usuario

Lorex

Lorex VANTAGE LBC7032 Manual de usuario

4xem

4xem WPT Manual de usuario

Samsung

Samsung SCV-3082 Manual de usuario

Vitek

Vitek VTC-C544 Manual de usuario
