Digi-tech BADMONKEY Manual de usuario

Owner’s Manual

Bad Monkey™

Tube Overdrive

Warning

For your protection, please read the following:

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Do not use this apparatus near water.

5. Clean only with dry cloth.

6. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

7. Do not install near any heat sources such as radiators,

heat registers, stoves, or other apparatus (including

amplifiers) that produce heat.

8. Protect the power cord from being walked on or

pinched particularly at plugs, convenience receptacles,

and the point where they exit from the apparatus.

9. Unplug this apparatus during lightning storms or when

unused for long periods of time.

10. No user serviceable parts inside. Refer all servicing to

qualified service personnel. Servicing is required when

the apparatus has been damaged in any way, such as

power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does

not operate normally, or has been dropped.

11.WARNING:To reduce the risk of fire or electric shock,

do not expose this apparatus to rain or moisture.

12. Refer to labels on the unit, including bottom cover, or

other markings and pertinent information.

DECLARATION OF CONFORMITY

Manufacturer’s Name: DigiTech

Manufacturer’s Address: 8760 S. Sandy Parkway

Sandy, Utah 84070, USA

declares that the product:

Product name: DigiTech Bad Monkey (DBM)

Product option: all (requires Class II power

adapter that conforms to the

requirements of EN60065,

EN60742, or equivalent.)

conforms to the following Product Specifications:

Safety: IEC 60065 (1998)

EMC: EN 55013 (1990)

EN 55020 (1991)

Supplementary Information:

The product herewith complies with the requirements of the Low

Voltage Directive 72/23/EEC and the EMC Directive 89/336/EEC

as amended by Directive 93/68/EEC.

Vice-President of Engineering

8760 S. Sandy Parkway

Sandy, Utah 84070, USA

Date: May 28, 2004

European Contact: Your local DigiTech Sales and

Service Office or

Harman Music Group

8760 South Sandy Parkway

Sandy, Utah

84070 USA

Ph: (801) 566-8800

Fax: (801) 568-7583

WARRANTY: We at DigiTech are proud of our products and back-up each one with the following warranty:

1.The warranty registration card must be mailed within ten days after purchase date to validate this war-

ranty.

2. DigiTech warrants this product, when used solely within the U.S., to be free from defects in materials

and workmanship under normal use and service.

3. DigiTech liability under this warranty is limited to repairing or replacing defective materials that show

evidence of defect, provided the product is returned to DigiTech WITH RETURN AUTHORIZATION,

where all parts and labor will be covered up to a period of one year (this warranty is extended to a

period of six years when the product has been properly registered by mail or through our website).

A Return Authorization number may be obtained from DigiTech by telephone.The company shall not

be liable for any consequential damage as a result of the product's use in any circuit or assembly.

4. Proof-of-purchase is considered to be the burden of the consumer.

5. DigiTech reserves the right to make changes in design, or make additions to, or improvements upon

this product without incurring any obligation to install the same on products previously manufactured.

6.The consumer forfeits the benefits of this warranty if the product's main assembly is opened and tam-

pered with by anyone other than a certified DigiTech technician or, if the product is used with AC volt-

ages outside of the range suggested by the manufacturer.

7.The foregoing is in lieu of all other warranties, expressed or implied, and DigiTech neither assumes nor

authorizes any person to assume any obligation or liability in connection with the sale of this product.

In no event shall DigiTech or its dealers be liable for special or consequential damages or from any

delay in the performance of this warranty due to causes beyond their control.

NOTE:The information contained in this manual is subject to change at any time without notification. Some

information contained in this manual may also be inaccurate due to undocumented changes in the product or

operating system since this version of the manual was completed.The information contained in this version

of the owner's manual supersedes all previous versions.

The Bad Monkey Tube Overdrive gives your guitar amp a boost just

when you need it. This rugged pedal produces the smooth natural char-

acter of an overdriven tube amp while maintaining your guitar's distinct

tone. Low and High tone controls give you the flexibility to boost or

cut the bass and treble frequencies for just the right sound.

1. Level Knob

Controls the overdrive output level. Turn this knob clockwise to

increase the output level, and counter-clockwise to decrease output

level.

2. Low Knob

Controls the boost or cut of low frequencies. Turn this knob clockwise

to increase the low frequency content, and counter-clockwise to

decrease the low frequency content.

3.AC Adapter Jack

Connect a DigiTech PS200R power supply to this jack. Use the proper

supply for your area’s Mains line voltage.

2 3 4

TUBE OVERDRIVE

4. High Knob

Controls the boost or cut of high frequencies. Turn this knob clockwise

to increase the high frequency content, and counter-clockwise to

decrease the high frequency content.

5. Gain Knob

Controls the amount of overdrive. Turn this knob clockwise to increase

the amount of distortion, and counter-clockwise to decrease the amount

of distortion.

6. Input Jack

Connect your instrument to this jack. Connecting a guitar cable to this

jack engages battery power even though the Indicator LED may not be

lit. To prolong battery life, disconnect all cables from the pedal when not

in use.

7. Pedal Release Pins

These two pins are spring-loaded hinges that hold the pedal in place.

Push these pins in to release the pedal from the chassis exposing the

battery compartment. (See battery replacement diagram.)

8. Pedal

Press the pedal to turn the effect on and off.

9. Out 1(Amp) Jack

Connect this output to your guitar amplifier.

10. Indicator LED

This LED indicates when the effect is turned on. If the LED becomes

dim or does not light when the cables are connected, the battery needs

to be replaced.

11. Out 2 (Mixer) Jack

This output features DigiTech’s speaker cabinet emulation, that lets you

run the pedal directly into a mixer or recorder input without having to

use a guitar amplifier.

Connections

The Bad Monkey has a single input (INPUT) and a pair of outputs (AMP

and MIXER). The two outputs give you the following options: running

into a guitar amplifier, running directly to a mixing console or recording

device, or both. The MIXER output uses DigiTech’s speaker cabinet

emulation for an authentic guitar amplifier sound without using an amp.

Follow these setup directions before use:

1.Turn the volume down on the amplifier/mixer you are connecting to.

2. Connect the pedal output to the amplifier/mixer input.

3. Connect the guitar to the pedal input.

4. Connect the power supply to the pedal (optional).

5.Turn the level control on the pedal to the minimum position.

6.Turn up your amplifier/mixer level to the desired listening level.

7.Turn on the pedal by pressing the pedal switch and gradually turn up

the level to the desired listening level.

TUBE OVERDRIVE

Battery Replacement

1. Using the tip of a 1/4” guitar cable, push one of the release pins in on

either side of the pedal, and remove the pedal from the pedal chassis.

2. Remove the battery from the battery compartment and disconnect

the battery cable.

3. Connect a new battery to the battery cable and put it back in the

battery compartment. Make sure the battery cable does not interfere

with the spring or pedal switch arm.

4. Place one hole of the pedal over its corresponding pin.

5. Push the opposite pin in and lower the other side of the pedal into

place over the depressed pin. Release the pin. When the pedal is

properly fastened, both released pins are flush with the outer side of

the pedal.

Tabla de contenidos

Otros manuales de Pedal de música de digi-tech

digi-tech

digi-tech HYPERPHASE Manual de usuario

digi-tech

digi-tech JAMMAN - MANUAL 2 Manual de usuario

digi-tech

digi-tech Genesis 1 Manual de usuario

digi-tech

digi-tech Expression Factory EX-7 Manual de usuario

digi-tech

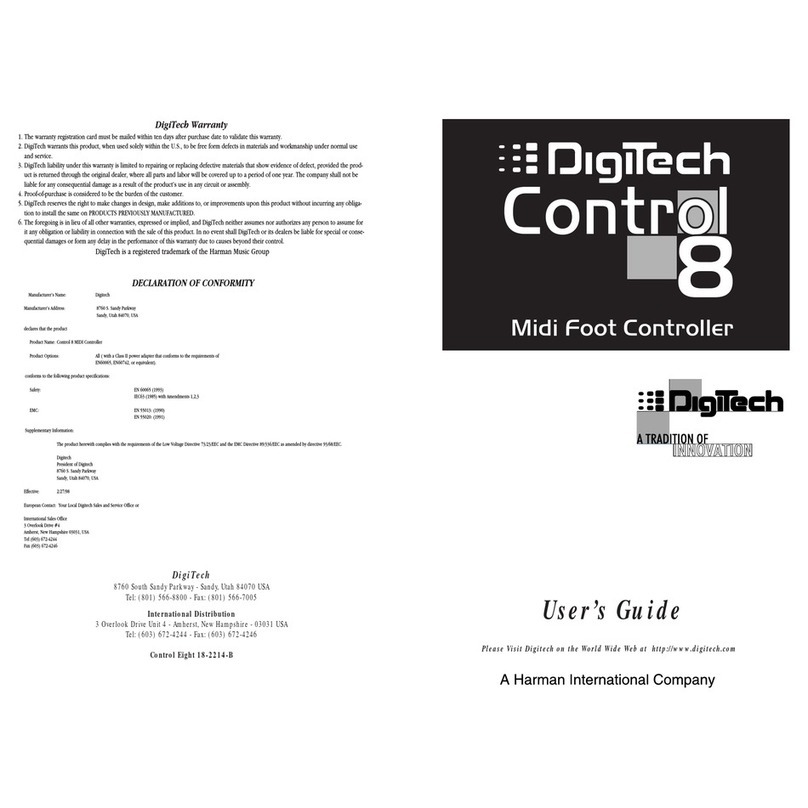

digi-tech C8 Manual de usuario
