DFI PE10-SA/RAMA Manual de usuario

PE10-SA/RAMA

PE10-LA/RAMA

Mainboard Users Manual

Carte Mère Manuel Pour Utilisateur

System-Platine Benut erhandbuch

Manual del Usuario de Placas Base

55400203

This publication contains information that is protected by copyright.

No part of it may be reproduced in any form or by any means or

used to make any transformation/adaptation without the prior

written permission from the copyright holders.

This publication is provided for informational purposes only. The

manufacturer makes no representations or warranties with respect to

the contents or use of this manual and specifically disclaims any

express or implied warranties of merchantability or fitness for any

particular purpose. The user will assume the entire risk of the use or

the results of the use of this document. Further, the manufacturer

reserves the right to revise this publication and make changes to its

contents at any time, without obligation to notify any person or

entity of such revisions or changes.

Trademarks

Windows® 98, Windows® 98 SE, Windows® ME, Windows® 000,

Windows NT® 4.0 and Windows® XP are registered trademarks of

Microsoft Corporation. Intel® and Pentium® 4 are registered

trademarks of Intel Corporation. VIA is a registered trademark of

VIA Technologies, Inc. Award is a registered trademark of Award

Software, Inc. Other trademarks and registered trademarks of

products appearing in this manual are the properties of their

respective holders.

Caution

To avoid damage to the system:

 Use the correct AC input voltage range.

To reduce the risk of electric shock:

 Unplug the power cord before removing the system chassis

cover for installation or servicing. After installation or servicing,

cover the system chassis before plugging the power cord.

Battery:

 Danger of explosion if battery incorrectly replaced.

 Replace only with the same or equivalent type recommend by

the manufacturer.

 Dispose of used batteries according to the battery

manufacturers instructions.

Joystick or MIDI port:

 Do not use any joystick or MIDI device that requires more than

10A current at 5V DC. There is a risk of fire for devices that

exceed this limit.

FCC and DOC Statement on Class B

This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC rules.

These limits are designed to provide reasonable protection against

harmful interference when the equipment is operated in a residential

installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with

the instruction manual, may cause harmful interference to radio

communications. However, there is no guarantee that interference

will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be

determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the

following measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and the receiver.

 Connect the equipment into an outlet on a circuit different from

that to which the receiver is connected.

 Consult the dealer or an experienced radio TV technician for

help.

Notice:

1. The changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority

to operate the equipment.

. Shielded interface cables must be used in order to comply with

the emission limits.

Quick Setup Guide



Quick Setup

Guide

Table of Contents

Chapter 1

Quick Setup Guide.............................................

Chapter 2

En lish......................................................................

Chapter 3

Français (French).................................................

Chapter 4

Deutsch (German)................................................

Chapter 5

Español (Spanish)..................................................

Onboard audio

- AC97 codec

- Game/MIDI port

- Audio jacks

- AUX-in and CD-in

- Front audio (J9)

- CNR slot

Onboard LAN

- Realtek RTL8100

- RJ45 LAN port

PE10-LA/RAMAPE10-SA/RAMA



Quick Setup Guide

Quick Setup

Guide

Chapter 1 - Quick Setup Guide

Table of Contents

1.1 Mainboard Layout...........................................................................................................

1. Jumpers.....................................................................................................................................

1.3 Ports and Connectors................................................................................................

1.4 Award BIOS Setup Utility.......................................................................................

Note:

The users manual in the provided CD contains detailed information

about the mainboard. If, in some cases, some information doesnt

match those shown in this manual, this manual should always be

regarded as the most updated version.

Quick Setup Guide



Quick Setup

Guide

1.1 Mainboard Layout

PE10-SA/RAMA

Mouse

CN1

USB 1

USB 2

COM 1

Parallel

COM 2

Game/MIDI (J7)

J5 Speaker-out (J5)

Line-in (J6)

Mic-in (J8)

Wake-On-PS/2 KB

(JP2)

CPU fan

(J16)

CD-in

(J10)

AUX-in

(J11)

AC’97

BIOS

I/O

chip

Wake-On-LAN

J12 Wake-On-Ring (J14)

PCI standby

power LED

VIA

APOLLO

P4X266A

VIA

VT8233ACD

Chassis fan

(J15)

JP6

FDD

J23

HD-LED

RESET

SPEAKER

PWR-LED

G-SW

ATX-SW

G-LED

Secondary IDE

Primary IDE

J21

J22

DIMM1

DIMM2

DIMM3

ATX main

power (J25)

+12V power

(ATXP1)

J26

AGP Slot

PCI 1 Slot

PCI 2 Slot

PCI 3 Slot

PCI 4 Slot

PCI 5 Slot

CNR Slot

DIMM standby

power LED

USB 1

(Black)

Mouse

(Green)

(Purple)

COM 1 COM 2

Parallel

(Burgundy)

Game/MIDI

(Gold)

Line-In

(Light Blue)

Speaker-Out

(Lime)

Mic-In

(Pink)

USB 2

(Black)

Square denotes pin 1

(Teal/Turquoise)

IR (J17)

USB 3, 4 (J20)

Front audio

(J9)

Battery

Speaker

Clear CMOS (JP6)

Socket 478



Quick Setup Guide

Quick Setup

Guide

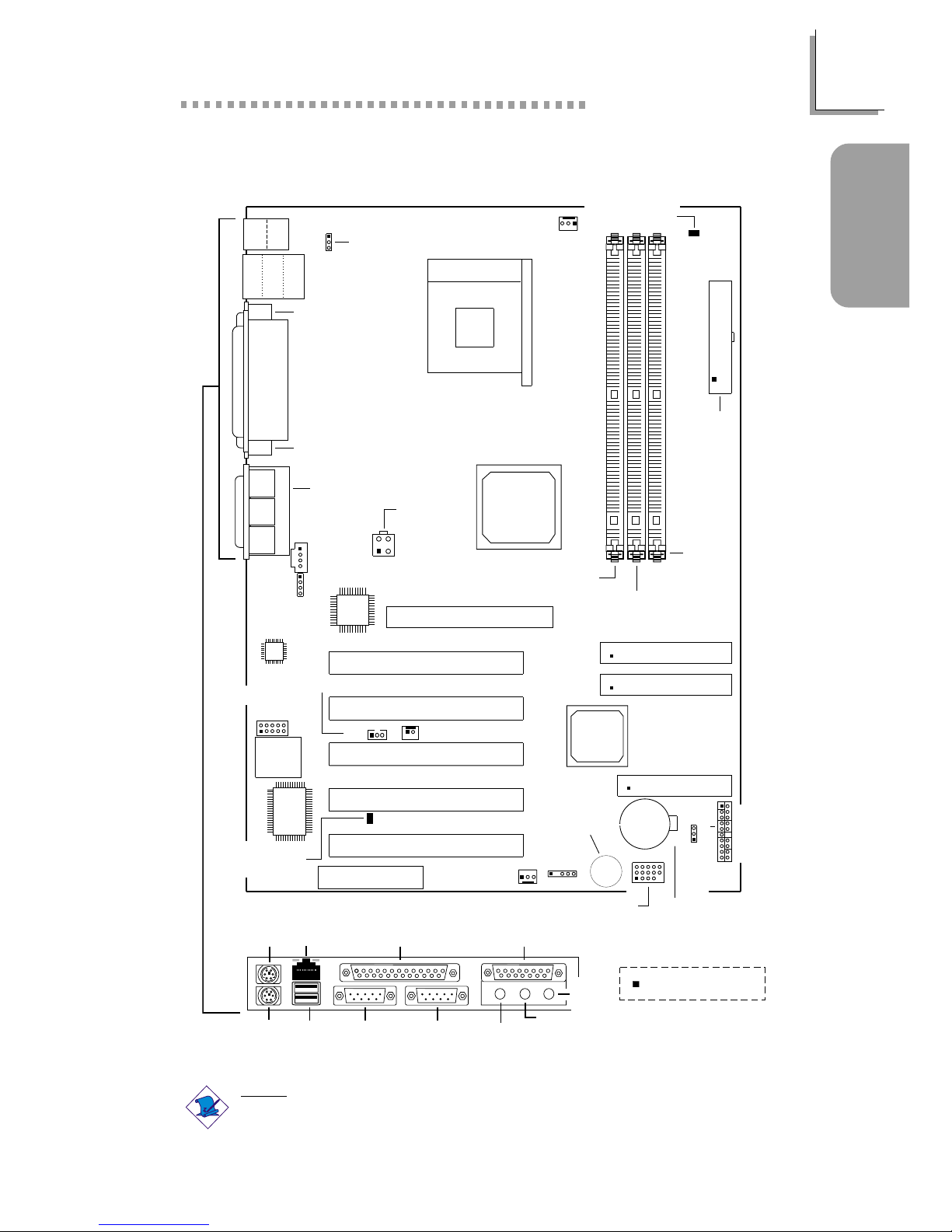

PE10-LA/RAMA

(Supports onboard AN)

Note:

The illustrations on the following pages are based on the PE10- A/

RAMA mainboard, which is the board that supports onboard AN.

Mouse

LAN

CN1

USB 1

USB 2

COM 1

Parallel

COM 2

Game/MIDI (J7)

J5 Speaker-out (J5)

Line-in (J6)

Mic-in (J8)

Wake-On-PS/2 KB

(JP2)

CPU fan

(J16)

CD-in

(J10)

AUX-in

(J11)

Realtek

RTL8100

AC’97

BIOS

I/O

chip

Wake-On-LAN

J12 Wake-On-Ring (J14)

PCI standby

power LED Chassis fan

(J15)

JP6

FDD

J23

HD-LED

RESET

SPEAKER

PWR-LED

G-SW

ATX-SW

G-LED

Secondary IDE

Primary IDE

J21

J22

DIMM1

DIMM2

DIMM3

ATX main

power (J25)

+12V power

(ATXP1)

J26

AGP Slot

PCI 1 Slot

PCI 2 Slot

PCI 3 Slot

PCI 4 Slot

PCI 5 Slot

CNR Slot

DIMM standby

power LED

USB 2/1

(Black)

Mouse

(Green)

(Purple) COM 1

Parallel

(Burgundy) Game/MIDI

(Gold)

Line-In

(Light Blue)

Speaker-Out

(Lime)

Mic-In

(Pink)

RJ45

LAN

(Teal/Turquoise)

COM 2

Square denotes pin 1

IR (J17)

USB 3, 4 (J20)

Front audio

(J9)

Battery

Speaker

Clear CMOS (JP6)

VIA

APOLLO

P4X266A

VIA

VT8233ACD

Socket 478

Quick Setup Guide



Quick Setup

Guide

1.2.1 Clear CMOS Data - JP6

1.2 Jumpers

-3 On:

Clear CMOS Data

1- On:

Normal (default)

1.2.2 Wake-On-PS/2 Keyboard - JP2

-3 On:

Enable - 5VSB

1- On:

Disable - VCC

(default)

Important:

The 5VSB power source of your power supply must support

≥

720mA.

Clear CMOS

(JP6)

Wake-On-PS/2 KB

(JP2)



Quick Setup Guide

Quick Setup

Guide

1.3 Ports and Connectors

1.3.1 PS/2 Mouse and PS/2 Keyboard Ports

Make sure to turn off your computer

prior to connecting or disconnecting a

mouse or keyboard. Failure to do so

may damage the mainboard.

PS/ Mouse

PS/ Keyboard

1.3.2 RJ45 Fast-Ethernet Port (PE10-LA/RAMA only)

RJ45 LAN

Mouse

(Green)

(Purple)

LAN

CN1

RJ45

LAN

Quick Setup Guide



Quick Setup

Guide

1.3.3 Universal Serial Bus Ports

1 VCC

UP -

3 UP +

4 Ground

5 Key

6 VCC

7 UP3-

8 UP3+

9 Ground

10 Ground

11 Ground

1 Ground

13 UP +

14 UP -

15 VCC

Onboard USB Ports (USB 1 & 2)

Additional USB Ports (USB 3 & 4)

1.3.4 Parallel Port

Parallel Port

Parallel

(Burgundy)

CN1

USB 2

(Black)

USB 1

(Black)

USB 3, 4

(J20)

The Wake-On-USB function, when

enabled in the BIOS, allows you to

use a USB device to wake up a

system.
