Quick Setup Guide

Quick Setup

Guide

Table of Contents

Chapter 1

Quick Setup Guide.............................................

Chapter 2

English......................................................................

Chapter 3

Français....................................................................

Chapter 4

Deutsch...............................................................................

Chapter 5

Español............................................................................

Chapter 6

Ðóññêèé......................................................................

The user’s manual in the provided CD contains detailed information about the system

board. If, in some cases, some information doesn’t match those shown in this manual, this

manual should always be regarded as the most updated version.

Le manuel d’utilisateur dans le CD muni contient renseignement détaillé au sujet de carte

de système. Si, en quelque cas, quelque renseignement n’appareille de ce que dit dans ce

manuel, ce manuel doit toujours être considéré comme la plus nouvelle version.

Das Benutzerhandbuch in der angebotenen CD enthält detaillierte Informationen über die

Hauptplatine. Wenn in manchen Fällen manche Informationen nicht denjenigen Informationen

dargestellt in diesem Handbuch entsprechen, soll dieses Handbuch als die meist

aktualisierte Ausgabe gelten.

El uso explicativo contene información detalle sobre la sistema board en el CD preparativo.

Si en algún caso, la información no es igual con el uso explicativo, necesita ver el uso

explicativo, esque es más nuevo.

Â ðóêîâîäñòâå ïîëüçîâàòåëÿ íà ïðåäîñòàâëÿåìîì CD äèñêå ñîäåðæèòñÿ

ïîäðîáíàÿ èíôîðìàöèÿ î ìàòåðèíñêîé ïëàòå. Èíîãäà íàïå÷àòàííîå

ðóêîâîäñòâî ìîæåò íå ñîâïàäàòü ðóêîâîäñòâîì íà CD, òàê êàê ïîñëåäíåå

íàèáîëåå ÷àñòî îáíîâëÿåòñÿ è ÿâëÿåòñÿ ñàìûì ñâåæèì.

Quick Setup Guide

Quick Setup

Guide

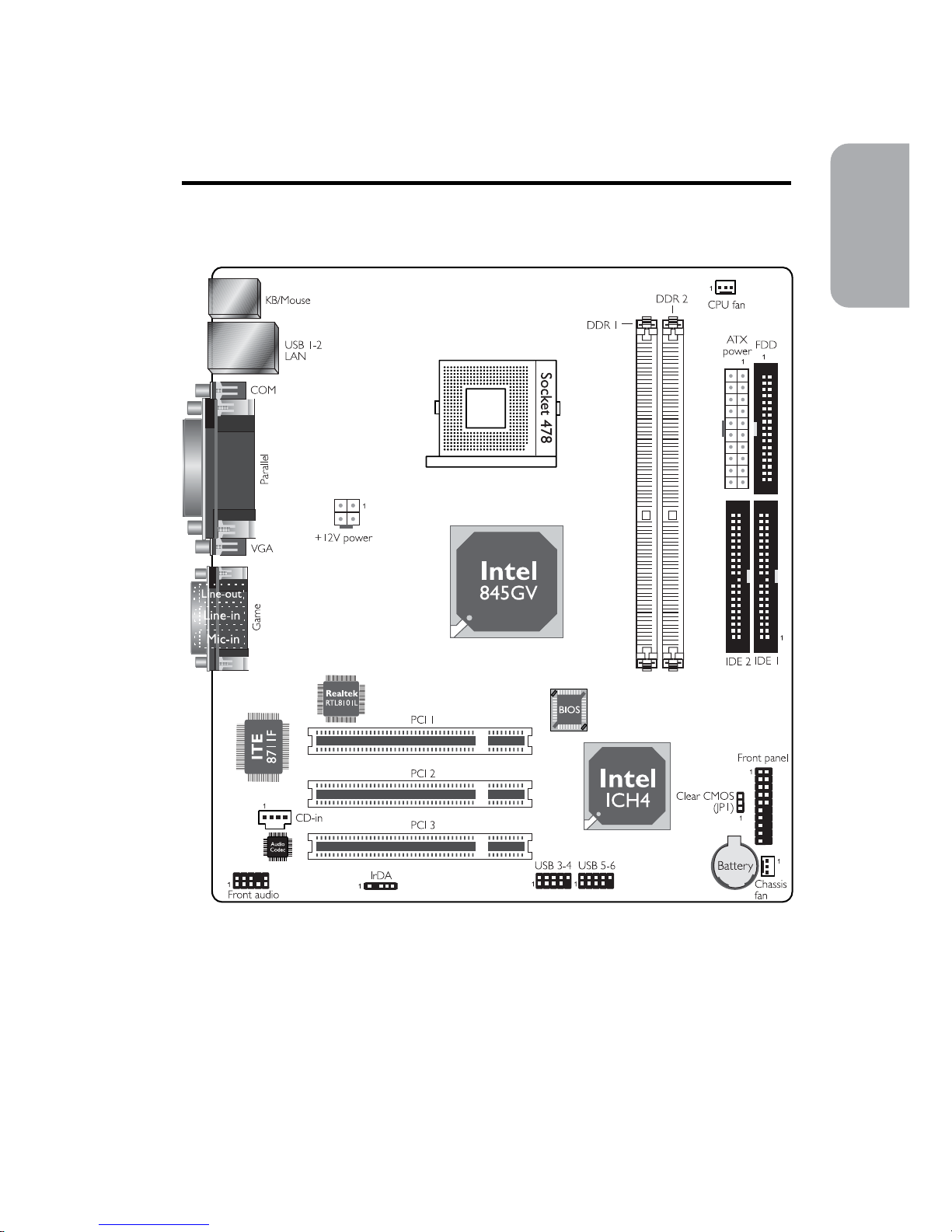

1.1 System Board Layout

Chapter 1 - Quick Setup Guide

Quick Setup Guide

Quick Setup

Guide

1.2 Jumper

1.2.1 Jumper Settings for Clearing CMOS Data

1.3 Rear Panel I/O Ports

PS/2

Mouse

RJ45

LAN Parallel GAME/MIDI

USB 1-2 COM 1 VGA Line-

out Line-

in Mic-

PS/2

K/B

2-3 On:

Clear CMOS Data

1-2 On: Normal

(default)

JP1 3

Quick Setup Guide

Quick Setup

Guide

1.4 I/O Connectors

1.4.1 Universal Serial Bus Ports

USB 2

USB 1 "

USB 3-4 USB 5-6

VCC

-Data

+Data

Ground

Key

VCC

-Data

+Data

Ground

N. C.

210

1.4.2 CD-in Internal Audio Connector

Right audio

channel

Left audio

channel

Ground Ground

Quick Setup Guide

Quick Setup

Guide

1.4.3 Audio Jacks

Line-out

Line-in

Mic-in

Mic

Mic Power

AuD_R_Out

N. C.

AuD_L_Out

GND

AuD_Vcc

Key

210

AuD_R_Return

AuD_L_Return

1.4.4 Floppy Disk Drive Connector

33 34

Quick Setup Guide

Quick Setup

Guide

1.4.6 Cooling Fan Connectors

3N. C.

Power

Ground

Power

N. C.

1.4.5 IDE Disk Drive Connector

40 39

IDE 1IDE 2

IDE 2

IDE 1

CPU fan

Chassis fan

Quick Setup Guide

Quick Setup

Guide

1.4.7 Power Connectors

+12V

11 3.3V

3.3V

Ground

+5V

Ground

+5V

Ground

PW-OK

5VSB

+5V

3.3V

-12V

Ground

PS-ON

Ground

-5V

+5V

+12V 43

12 GroundGround +12V

1.4.8 IrDA Connector

VCC

N. C.

IRRX

Ground

IRTX
