Thank you for choosing DELTA DVP PLC Series. DVP08TC-H2 is able to receive 8

points 0~150mV voltage input of thermocouple temperature sensors (J-type, K-type,

R-type, S-type, T-type, E-type, N-type) and convert them into 24-bit digital signals.

Besides, through FROM/TO instructions in DVP-EH2 MPU program, the data in

DVP08TC-H2 can be read or written. There are 49 16-bit control registers (CR) in it.

DVP08TC-H2 displays temperatures in Celsius (resolution: 0.1°C) and Fahrenheit

(resolution: 0.1°F).

EN DVP08TC-H2 is an OPEN-TYPE device. It should be installed in a control cabinet

free of airborne dust, humidity, electric shock and vibration. To prevent

non-maintenance staff from operating DVP08TC-H2, or to prevent an accident

from damaging DVP08TC-H2, the control cabinet in which DVP08TC-H2 is

installed should be equipped with a safeguard. For example, the control cabinet

in which DVP08TC-H2 is installed can be unlocked with a special tool or key.

EN DO NOT connect AC power to any of I/O terminals, otherwise serious damage

may occur. Please check all wiring again before DVP08TC-H2 is powered up.

After DVP08TC-H2 is disconnected, Do NOT touch any terminals in a minute.

Make sure that the ground terminal on DVP08TC-H2 is correctly grounded in

order to prevent electromagnetic interference.

FR DVP08TC-H2 est un module OUVERT. Il doit être installé que dans une enceinte

protectrice (boitier, armoire, etc.) saine, dépourvue de poussière, d’humidité, de

vibrations et hors d’atteinte des chocs électriques. La protection doit éviter que

les personnes non habilitées à la maintenance puissent accéder à l’appareil (par

exemple, une clé ou un outil doivent être nécessaire pour ouvrir a protection).

FR Ne pas appliquer la tension secteur sur les bornes d’entrées/Sorties, ou l’appareil

DVP08TC-H2 pourra être endommagé. Merci de vérifier encore une fois le

câblage avant la mise sous tension du DVP08TC-H2. Lors de la déconnection de

l’appareil, ne pas toucher les connecteurs dans la minute suivante. Vérifier que la

terre est bien reliée au connecteur de terre afin d’éviter toute interférence

électromagnétique.

Product Profile & Dimension

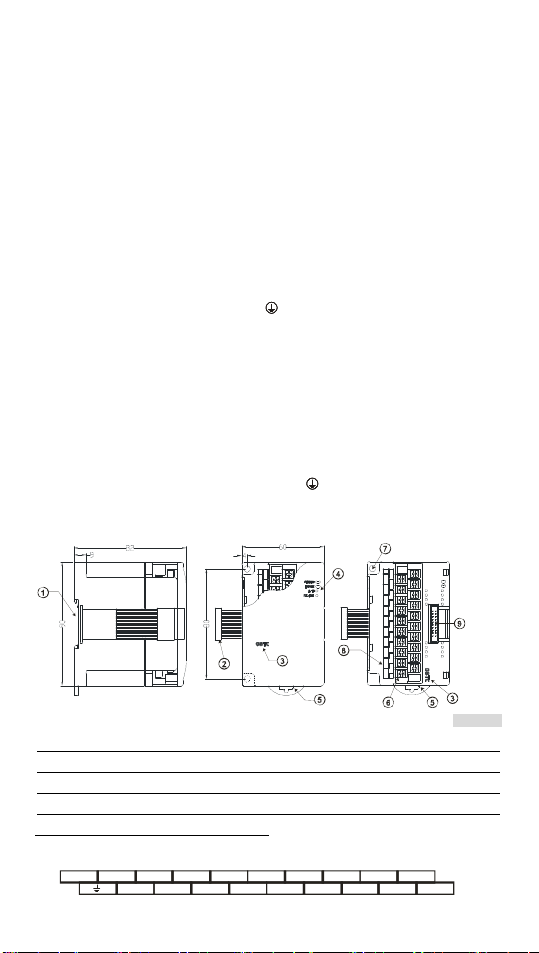

Unit: mm [inch] [Figure 1]

1. DIN rail (35mm) 6. Terminals

2. Connection port for extension module 7. Mounting hole

3. Model name 8. I/O terminals

4. POWER, ERROR, A/D indicator 9. Mounting port for extension module

5. DIN rail clip

I/O Terminal Layout

24V 0V

L -

L+

Ch8

Ch7Ch6Ch5Ch4

L+L+L+L+

L+

L+L+

L -L -L -L -L -L -L -

Ch3Ch2Ch1

SLD

- 2 -

External Wiring

CH1

CH8

L -

L+

DC/ DC A+5V

24V

-L -

L+

ADC

AGND

Cold-Junction

Compensation

Shielded

cable *1

Shielded

cable *1

Converter

Thermocouple

System

gr ou ndin g

Terminal of

power module

Class 3 ground ing

(1 00 or less)

AGND

SLD

[Figure 2]

*1: The wiring used for analog input should adopt the connection cable or shielding cable of

thermocouple temperature sensor J-type / K-type / R-type / S-type / T-type / E-type / N-type

and should be separated from other power cable or wirings that may cause interference.

The screw torque of the terminal should be 1.95 kg-cm (1.7 in-lbs).

*2: Please connect the terminal on both the power module and DVP08TC-H2 to the system

earth point and ground the system contact or connect it to the cover of power distribution

cabinet.

*3: Terminal SLD is a grounding location for noise suppression.

Note: DO NOT wire empty terminal. Use 60/75°C copper conductor only.

Specifications

Temperature

measurement module Explanation

Power supply voltage 24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%)

Analog output channel 8 channels/module

Applicable sensor types J-type, K-type, R-type, S-type, T-type, E-type, N-type Floating

thermocouple sensor, 0~150mV, ±150mV voltage input.

Range of input temp. See the table in section Temperature / Digital Curve

Range of digital

conversion See the table in section Temperature / Digital Curve

Resolution 24 bits (0.1°C/0.1°F)

Overall accuracy 0.6% when in full scale within the range of 0 ~ 55°C, 32 ~ 131°F

Response time 200ms × the number of channels

Isolation

Isolation between digital circuits and analog circuits. Isolation

between channels.

500VDC between digital circuits and Ground

500VDC between analog circuits and Ground

500VDC between analog circuits and digital circuits

500VDC between 24VDC and Ground

Digital data format 15 significant bits out of 16 bits are available; in 2’s complement

Average function Yes; available for setting up in CR#10 ~ CR#17; range: K1 ~ K100

Self-diagnosis Upper and lower bound detection/channel

Communication mode

(RS-485)

Supported, including ASCII/RTU mode. Default communication

format: 9600, 7, E, 1, ASCII; refer to CR#36 for details on the

communication format.

Note1: RS-485 cannot be used when connected to CPU series

PLCs.

Note2: The communication format can only be changed via RS-485

- 3 -

Temperature

measurement module Explanation

and cannot be changed via the instruction TO while connected to

CPU series PLCs. Refer to Communication Format Setup in the

appendix of the DVP programming manual for more details.

When connected to

DVP-PLC MPU in series

The modules are numbered from 0 to 7 automatically by their

distance from MPU. No. 0 is the closest to MPU and No. 7 is the

furthest. Maximum 8 modules are allowed to connect to MPU and

will not occupy any digital I/O points.

Other Specifications

Power supply

Max. rated power

consumption

24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%), 2.5W supplied by

external power.

Environment

Operation/storage

1. Operation: -10°C~ 60°C (Temperature), 5 ~ 95% (Humidity), pollution

degree 2

2. Storage: -25°C~ 70°C (Temperature), 5 ~ 95%（Humidity）

Vibration/shock

immunity

Standard: IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC

68-2-27 (TEST Ea)

Control Register

CR# Attrib. Register name Explanation

#0 O R Model name

Set up by the system.

DVP08TC-H2 model code = H’6804

User can read the model name from the

program and see if the extension

module exists.

#1 O R Firmware version

Displaying the current firmware version

in hex; e.g. version 1.01 is indicated as

H’0101

#2 O R/W CH1 thermocouple type There are 10 setting options for the

thermocouple type, shown in

hexadecimal digits:

H0000: J-type; H0001: K-type;

H0002: R-type; H0003: S-type;

H0004: T-type; H0005: E-type;

H0006: N-type; H0007: 0~150mV;

H0008: ±150mV; HFFFF: channel

closed; Default value: H’0000;

For options not listed above are

reserved for system use.

#3 O R/W CH2 thermocouple type

#4 O R/W CH3 thermocouple type

#5 O R/W CH4 thermocouple type

#6 O R/W CH5 thermocouple type

#7 O R/W CH6 thermocouple type

#8 O R/W CH7 thermocouple type

#9 O R/W CH8 thermocouple type

#10 O R/W CH1 average time

Range of settings in CH1 ~ CH8:

K1 ~ K100. Default =K10.

#11 O R/W CH2 average time

#12 O R/W CH3 average time

#13 O R/W CH4 average time

#14 O R/W CH5 average time

#15 O R/W CH6 average time

#16 O R/W CH7 average time

#17 O R/W CH8 average time

#18 O R/W Temperature unit K0 = centigrade, K1 = Fahrenheit.

Default =K0

#19 X R Average temp. measured at CH1 Average temperature measured at

- 4 -

CR# Attrib. Register name Explanation

#20 X R Average temp. measured at CH2 CH1~CH8.

The average temperature measured at

CH1~CH8 obtained from the average

time settings in CR#10 ~ CR#17.

#21 X R Average temp. measured at CH3

#22 X R Average temp. measured at CH4

#23 X R Average temp. measured at CH5

#24 X R Average temp. measured at CH6

#25 X R Average temp. measured at CH7

#26 X R Average temp. measured at CH8

#27 O R/W OFFSET value of CH1

Adjustable OFFSET settings at CH1 ~

CH8

Range: -1,000 ~ +1,000

Default = K0

Unit: 0.1°C

Definition of OFFSET value: Module

measurement value – OFFSET value =

actual display value

#28 O R/W OFFSET value of CH2

#29 O R/W OFFSET value of CH3

#30 O R/W OFFSET value of CH4

#31 O R/W OFFSET value of CH5

#32 O R/W OFFSET value of CH6

#33 O R/W OFFSET value of CH7

#34 O R/W OFFSET value of CH8

#35 O R/W Communication address setting For setting RS-485 communication

address. Range: 01 ~ 254, Default = K1.

#36 O R/W

Communication speed (baud

rate) setting

For setting up communication speed:

9,600/19,200/ 38,400/57,600/115,200

bps. ASCII data format: 7-bit, even bit,

1 stop bit (7, E, 1). RTU data format:

8-bit, even bit, 1 stop bit (8, E, 1).

Default: H’0002.

b0: reserved

b1: 9,600 bps (default).

b2: 19,200 bps.

b3: 38,400 bps.

b4: 57,600 bps.

b5: 115,200 bps.

b14: High/low bit exchange of CRC

checksum (only valid in RTU

mode)

b15: Switch between ASCII/RTU

modes; 0 = ASCII mode (default)

#37 X R Error status

the table of error status for more

information.

#38~47 X R Reserved －

Symbols: O: Latched. X: Non-latched.

R: Able to read data by FROM instruction or RS-485 communication.

W: Able to write data by TO instruction or RS-485 communication.

※The corresponding parameter address H’4200 ~ H’4232 are for users to read/write

data by RS-485 communication. When using RS-485, the user has to separate the

module with MPU first.

1. Function: H’03 (read register data); H’06 (write 1 word datum into register); H’10

(write many word data into register).

2. Latched CR should be written by RS-485 communication to stay latched. CR will

not be latched if written by MPU through TO/DTO instruction.

CR#37: Error status (see the table below)

Error status Value b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

Abnormal

power supply

(H’1) 0000

Reserved

0 0 0 0 0 0 0 0 0 1

Abnormal

module

(H’2) 0000 0000000010

- 5 -

Error status Value b15 b14 b13 b12 b11 b10 b9 b8 b7 b6 b5 b4 b3 b2 b1 b0

Abnormal

digital range

of Ch1

(H’4) 0000 0000000100

Abnormal

digital range

of Ch2

(H’8) 0000 0000001000

Abnormal

digital range

of Ch3

K16

(H’10) 0000 0000010000

Abnormal

digital range

of Ch4

K32

(H’20) 0000

Reserved

0 0 0 0 1 0 0 0 0 0

Abnormal

digital range

of Ch5

K64

(H’40) 0000 0001000000

Abnormal

digital range

of Ch6

K128

(H’80) 0000 0010000000

Abnormal

digital range

of Ch7

K256

(H’100) 0000 0100000000

Abnormal

digital range

of Ch8

K512

(H’200) 0000 1000000000

Note: Each error status is determined by the corresponding bit (b0 ~ b11) and there may be

more than 2 errors occurring at the same time. 0 = normal; 1 = error.

[Table 1]

Adjust D/A Conversion Curve

CR# Latched Register

content Explanation

CH1 CH2 CH3 Ch4 Ch5 Ch6 Ch7 Ch8

#100 #115 #130 #145 #160 #175 #190 #205 O R/W Temperature

SV Default = K0.

#101 #116 #131 #146 #161 #176 #191 #206 O R/W Sampling

time (s)

Range: K1 ~ K30 (s).

Default = K2.

#102 #117 #132 #147 #162 #177 #192 #207 O R/W KPDefault = K121.

#103 #118 #133 #148 #163 #178 #193 #208 O R/W KIIntegral constant, Default =

K2,098.

#104 #119 #134 #149 #164 #179 #194 #209 O R/W KDDerivative constant, Default

= K-29.

#105 #120 #135 #150 #165 #180 #195 #210 O R/W Default I

value

Range: K-32768 ~ K32767.

Default = K0. Only valid

when PID Stop->Run.

#106 #121 #136 #151 #166 #181 #196 #211 X R limit of I value

(Low word) Current accumulated offset

value. Default = K0.

#107 #122 #137 #152 #167 #182 #197 #212 X R limit of I value

(High word)

#108 #123 #138 #153 #168 #183 #198 #213 O R/W

Preheating

temperature

setting

Range: K-32768 ~ K32767.

Default = K0.

#109 #124 #139 #154 #169 #184 #199 #214 O R/W Preheating

output setting

Range: K0 ~ K1,000 (unit:

0.1%). Default= K500.

#110 #125 #140 #155 #170 #185 #200 #215 O R/W

Output

percentage

(%)

Range: K0 ~ K1,000 (Unit:

0.1%). Default = K0.

#111 #126 #141 #156 #171 #186 #201 #216 X R Output width

(ms)

Width of control output,

Default = K0.

#112 #127 #142 #157 #172 #187 #202 #217 X R Output cycle

(ms)

Cycle of control output,

Default = K0.

- 6 -

CR# Latched Register

content Explanation

CH1 CH2 CH3 Ch4 Ch5 Ch6 Ch7 Ch8

#220 X R/W

Temperature

control

_Run/Stop

b0: Ch1

b1: Ch2

b2: Ch3

b3: Ch4

b4: Ch5

b5: Ch6

b6: Ch7

b7: Ch8

0: Stop, 1: Run, Default = K0

#221 X R/W PID

Auto Tune

b0: Ch1

b1: Ch2

b2: Ch3

b3: Ch4

b4: Ch5

b5: Ch6

b6: Ch7

b7: Ch8

0: Disabled, 1: Auto-tuning

Default = K0

#222 X R/W Heating/cooli

ng control

b0: Ch1

b1: Ch2

b2: Ch3

b3: Ch4

b4: Ch5

b5: Ch6

b6: Ch7

b7: Ch8

0: Heater, 1: Cooler

Default = K0

#223 X R/W Preheating

function

b1: Ch2

b2: Ch3

b3: Ch4

b4: Ch5

b5: Ch6

b6: Ch7

b7: Ch8

0: Disable, 1: Enable

Default = K0

※The CR# listed above do not support RS-485 read/write。

Temperature / Digital Curve

°C/°F Temperature Measurement Mode:

Max.

Min.

Digital Output

Measured

temperature input

Min.

Max.

[Figure 3]

Thermo-couple Range of input temperature Range of digital conversion

Min. (°C / °F) Max. (°C / °F) Min. (°C / °F) Max. (°C / °F)

J type -100°C / -148°F 1,150°C / 2,102°F K-1,000 / K-1,480 K11,500 /

K21,020

K type -100°C / -148°F 1,350°C / 2,462°F K-1,000 / K-1,480 K13,500 /

K24,620

R type 0°C / 32°F 1,750°C / 3,182°F K0 / K320 K17,500 /

K31,820

S type 0°C / 32°F 1,750°C / 3,182°F K0 / K320 K17,500 /

K 31,820

T type -150°C / -238°F 390°C / 734°F K-1,500 / K-2,380 K3,900 / K7,340

E type -150°C / -238°F 980°C / 1,796°F K-1,500 / K-2,380 K9,800 / K17,960

N type -150°C / -238°F 1,280 °C / 2,336°F K-1,500 / K-2,380 K12,800 /

K23,360

0 ~ 150mV 0mV 150mV H0 HFFFF

±150mV -150mV 150mV K-30000 K30000

- 7 -

…………………………………………………………………繁體中文 ………………………………………………………………………

DVP08TC-H2 溫度量測模組可接受外部 8點0~150mV 電壓輸入（熱電耦溫度感測器 J, K,

R, S, T, E, N 型），將之轉換成 24 位元之數位信號。透過 DVP-PLC EH2 主機程式以指令

FROM/TO 來讀寫模組內之資料，模組內具有 49 個CR (Control Register) 暫存器，每個

暫存器有 16 bits。使用者可選擇攝氏溫度或華氏溫度，攝氏溫度輸入解析度為 0.1°C，華

氏溫度輸入解析度為 0.1°F。

本使用說明書僅提供電氣規格、功能規格、安裝配線部份說明，其它詳細之程式設計

及指令說明請見 DVP-PLC 應用技術手冊【程式篇】，選購之週邊裝置詳細說明請見該

產品隨機手冊或 DVP-PLC 應用技術手冊【特殊模組篇】。

本機為開放型 (OPEN TYPE) 機殼，因此使用者使用本機時，必須將之安裝於具防

塵、防潮及免於電擊/衝擊意外之外殼配線箱內。另必須具備保護措施（如：特殊之工

具或鑰匙才可打開）防止非維護人員操作或意外衝擊本體，造成危險及損壞。

交流輸入電源不可連接於輸入／出信號端，否則可能造成嚴重損壞，請在上電之前再

次確認電源配線。請勿在上電時觸摸任何端子。本體上之接地端子務必正確的接

地，可提高產品抗雜訊能力。

由測溫體到溫調本體的配線路請用最短距離配線，為了避免雜訊及誘導的影響儘可能

將電源線和負載配線分開。

感測器熱電耦型式設定 CR#2~CR#9，如設定錯誤會造成量測重大誤差。

產品外觀尺寸與部位介紹

詳細圖示請參閱英文版 Figure1，單位：mm [inch]。

1. DIN 軌槽 (35mm) 6. 端子

2. 擴充模組連接口 7. 固定孔

3. 機種名稱 8. 端子配置

4. 電源、錯誤及轉換指示燈 9. 擴充模組連接座

5. DIN 軌固定扣

輸入/輸出端子台配置

請參閱英文版之端子配置圖，在此語言版本省略說明。

外部配線

詳細圖示請參閱英文版 Figure 2，在此語言版本省略說明。

註1：使用於類比輸入的配線應採用 J / K / R / S / T / E / N 型熱電耦溫度感測器之連接線或隔離

線且應與其他電源線或可能引起雜訊之接線分開。端子螺絲扭力為 1.95 kg-cm (1.7 in-lbs)。

註2：請將電源模組之端及 DVP08TC-H2 溫度量測模組之端連接到系統接地點，再將系統

接點作第三種接地或接到配電箱之機殼上。

註3：如果雜訊過大，請將 SLD 及接地端子連接。

注意：空端子請勿配線。只能使用 60/75°C 的銅導線。

電氣規格

溫度量測模組規格說明

電源電壓 24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%)

類比訊號輸出通道 8通道／台

適合感應器形式 J-type, K-type, R-type, S-type, T-type, E-type, N-type 熱電耦感測器，

0~150mV, ±150mV 電壓輸入

輸入溫度範圍請參閱溫度⁄數位特性曲線附表

數位轉換範圍請參閱溫度⁄數位特性曲線附表

解析度 24 bits (0.1°C/0.1°F)

- 8 -

溫度量測模組規格說明

總和精密度 0.6% 在(0 ~ 55°C, 32 ~ 131°F) 範圍內滿刻度時

響應時間 200ms × 通道數

隔離方式

類比電路與數位電路之間隔離，通道間隔離

數位電路與接地之間：500VDC

類比電路與接地之間：500VDC

類比電路與數位電路之間：500VDC

24VDC 與接地之間：500VDC

數位資料格式 16 位元二補數，有效位 15 bits。

平均功能有（CR#10 ~ CR#17 可設定，範圍 K1 ~ K100）

自我診斷功能上下極限偵測／通道

通訊模式 (RS-485)

有，包含 ASCII/RTU 模式，預設通訊格式為 9600, 7, E, 1, ASCII，詳細

通訊格式請參考 CR#36 說明。

備註 1：當與 PLC 主機串接時，RS-485 通訊無法使用。

備註 2：其通訊格式只可採用 RS-485 通訊修改，無法由主機連接模組方

式，下達 TO 指令修改，詳細內容請參考 DVP 程式篇手冊之附錄”模組通

訊設定”篇。

與DVP-PLC 主機

串接說明

模組編號以靠近主機之順序自動編號由 0到7，最大可連接 8台且不佔用

數位 I/O 點數

其他規格

電源規格

額定最大消耗功率直流 24VDC (20.4VDC ~ 28.8VDC) (-15% ~ +20%), 2.5W, 由外部電源供應

環境規格

操作⁄儲存環境 1. 操作：-10°C ~ 60°C（溫度），5 ~ 95%（濕度），污染等級 2

2. 儲存：-25°C ~ 70°C（溫度），5 ~ 95%（濕度）

耐振動⁄衝擊國際標準規範 IEC61131-2, IEC 68-2-6 (TEST Fc)/IEC61131-2 & IEC

68-2-27 (TEST Ea)

控制暫存器 CR

CR# 保持型暫存器名稱說明

#0 O R

機種型號

系統內定，DVP08TC-H2 機種編碼 = H’6804

使用者可在程式中將此機種型號讀出，以判斷擴充

模組是否存在。

#1 O R

韌體版本 16 進制，顯示目前韌體版本，如 1.01 則H’0101

#2 O R/W

CH1 熱電耦型式此設定值為熱電耦型式選擇參數，其支援的設定值

共有 10 種，詳細說明如下（以 16 進制數值表示）：

H0000：J-type。H0001：K-type。

H0002：R-type。H0003：S-type。

H0004：T-type。H0005：E-type。

H0006：N-type。H0007：0~150mV。

H0008：±150mV。HFFFF：關閉通道。

出廠設定值為 H’0000。

以上未被列出之設定值為系統保留參數，使用者不

可使用。

#3 O R/W

CH2 熱電耦型式

#4 O R/W

CH3 熱電耦型式

#5 O R/W

CH4 熱電耦型式

#6 O R/W

CH5 熱電耦型式

#7 O R/W

CH6 熱電耦型式

#8 O R/W

CH7 熱電耦型式

#9 O R/W

CH8 熱電耦型式

#10 O R/W

CH1 平均次數

通道 CH1 ~ CH8 訊號的平均次數設定，可設定範

圍K1 ~ K100。

出廠設定值為 K10。

#11 O R/W

CH2 平均次數

#12 O R/W

CH3 平均次數

#13 O R/W

CH4 平均次數

- 9 -

CR# 保持型暫存器名稱說明

#14 O R/W

CH5 平均次數

#15 O R/W

CH6 平均次數

#16 O R/W

CH7 平均次數

#17 O R/W

CH8 平均次數

#18 O R/W

溫度單位設定 K0 = 攝氏，K1 = 華氏。出廠設定值為 K0

#19 X R

CH1 量測平均值

通道 CH1 ~ CH8 量測平均值顯示。

內容值為通道 CH1 ~ CH8 量測溫度信號以 CR#10

~ CR#17 設定之平均次數所取得之平均值。

#20 X R

CH2 量測平均值

#21 X R

CH3 量測平均值

#22 X R

CH4 量測平均值

#23 X R

CH5 量測平均值

#24 X R

CH6 量測平均值

#25 X R

CH7 量測平均值

#26 X R

CH8 量測平均值

#27 O R/W

CH1 OFFSET 值

通道 CH1 ~ CH8 提供使用者自行調整的 OFFSET

可調範圍：-1,000 ~ +1,000

出廠設定值為 K0。

OFFSET 值定義：模組量測值- OFFSET 值= 實

際顯示值。

#28 O R/W

CH2 OFFSET 值

#29 O R/W

CH3 OFFSET 值

#30 O R/W

CH4 OFFSET 值

#31 O R/W

CH5 OFFSET 值

#32 O R/W

CH6 OFFSET 值

#33 O R/W

CH7 OFFSET 值

#34 O R/W

CH8 OFFSET 值

#35 O R/W

通訊位址設定設定 RS-485 通訊位址，設定範圍 1 ~ 254。

出廠設定值為 K1。

#36 O R/W

通訊速率設定

設定通訊速率，共有 9,600/19,200 bps/38,400

bps/57,600 bps/115,200 bps 五種。ASCII 模式資

料格式固定為 7-bit、偶位元、1 stop bit (7, E, 1)，

RTU 模式資料格式固定為 8-bit、偶位元、1 stop bit

(8, E, 1)。出廠設定值為 H’0002。

b0：保留。

b1：9,600 bps（位元/秒）（出廠設定值）。

b2：19,200 bps（位元/秒）。

b3：38,400 bps（位元/秒）。

b4：57,600 bps（位元/秒）。

b5：115,200 bps（位元/秒）。

b14：CRC 檢查碼高低位交換（僅 RTU 模式有效）。

b15：ASCII/RTU 模式切換，0為ASCII（出廠設

定值）。

#37 X R

錯誤狀態儲存所有錯誤狀態的資料暫存器，詳細內容請參照

錯誤信息表。

#38~47 X R 保留－

符號定義： O：停電保持型。 X：非停電保持型。

R：可使用 FROM 指令讀取資料，或利用 RS-485 通訊讀取資料。

W：可使用 TO 指令寫入資料，或利用 RS-485 通訊寫入資料。

※CR#0 ~ CR#34：對應之參數位址 H’4200 ~ H’4232 可提供使用者利用 RS-485 通訊來讀寫資

料。由 RS-485 通訊時須先將模組與主機分離。

1. 功能碼 (Function)：H’03 讀出暫存器資料。H’06 寫入一個 word 資料至暫存器。H’10 寫入

多筆 word 資料至暫存器。

2. 停電保持型的 CR 須由 RS-485 通訊來寫入才有停電保持的功能，如果是由主機以 TO/DTO

指令寫入則不會有停電保持的功能。

Otros manuales para DVP series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Unidad de control de Delta

Delta

Delta DFM-400P Guía del usuario

Delta

Delta MultiChoice T27897 Series Manual de usuario

Delta

Delta DVP01PU-S Manual de usuario

Delta

Delta MultiChoice T27 Series Manual de usuario

Delta

Delta Hikvision DS-2FP2020 Manual de usuario

Delta

Delta Monitor 17 Series Manual de servicio

Delta

Delta AC-160-DIN Manual de usuario

Delta

Delta MultiChoice T24 Series Manual de usuario

Delta

Delta 160 T6 Series Manual de usuario

Delta

Delta EnviroStation EMS2000 Manual de usuario

Delta

Delta TECK 81T2 -WHSHWA Series Manual de usuario

Delta

Delta CANopen DVPCOPM-SL Manual de usuario

Delta

Delta TECK II Manual de instrucciones

Delta

Delta RTU-PD01 Manual de usuario

Delta

Delta 112962C Manual de usuario

Delta

Delta dvp04pt-s Manual de usuario

Delta

Delta DVP04DA-H Manual de usuario

Delta

Delta DVP04AD-SL Manual de usuario

Delta

Delta RP70878 Manual de usuario

Delta

Delta SEG-48100-02I Manual de usuario

Delta

Delta MultiChoice T27859 Series Manual de usuario

Delta

Delta DVP08ST11N Manual de usuario

Delta

Delta MultiChoice 13 Series Manual de usuario

Delta

Delta 5CN-220T Series Manual de usuario

Manuales populares de Unidad de control de otras marcas

Festo

Festo Compact Performance CP-FB6-E Manual de lista de piezas

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manual de usuario

JS Automation

JS Automation MPC3034A Manual de usuario

JAUDT

JAUDT SW GII 6406 Series Guía rápida

Spektrum

Spektrum Air Module System Manual de usuario

BOC Edwards

BOC Edwards Q Series Manual de usuario

KHADAS

KHADAS BT Magic Manual de usuario

Etherma

Etherma eNEXHO-IL Manual de usuario

PMFoundations

PMFoundations Attenuverter Manual de usuario

GEA

GEA VARIVENT Manual de usuario

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manual de usuario

Altronix

Altronix LINQ8PD Instrucciones de montaje

Eaton

Eaton Powerware Series Manual de usuario

WAGO

WAGO 750-407/040-000 Manual de usuario

Sony

Sony CCU-590 Manual de usuario

Graco

Graco 25D614 Manual de usuario

Task Force Tips

Task Force Tips YE-RF-900 Manual de programación

Shini

Shini SPV-U Series Manual de usuario
