Delta RTU-PD01 Manual de usuario

PROFIBUS DP

RTU-PD01 Slave Communication Module

Operation Manual

DVP-0215820-01

PROFIBUS DP Slave Communicaion Module RTU-PD01

DVP-PLC Operation Manual 1

Table of Content

1Introduction to RTU-PD01....................................................................................................................2

1.1 Product Introduction .......................................................................................................................2

1.2 Features...........................................................................................................................................2

2Product Profile and Outline...............................................................................................................3

3Installation .............................................................................................................................................4

3.1 Definition of PROFIBUS DP Port ....................................................................................................4

3.2 Connecting to PROFIBUS DP Port by 35mm DIN Rail .....................................................................4

3.3 Installing RTU-PD01 and I/O Module on DIN Rail.............................................................................5

4Components..........................................................................................................................................6

5Establishing PROFIBUS DP Network by RTU-PD01 ............................................................................7

6Transmission Distance and Baud Rate.................................................................................................7

7GSD File...................................................................................................................................................8

8RTU-PD01 Settings and Configurations ...............................................................................................8

8.1 RTU-PD01 Settings...........................................................................................................................8

8.2 Configuration Items ...........................................................................................................................9

8.3 Settings of Configuration Items .......................................................................................................11

9LED Indicator and Trouble-shooting...................................................................................................23

10 Application Example 1..........................................................................................................................25

PROFIBUS DP Slave Communicaion Module RTU-PD01

DVP-PLC Operation Manual

1 Introduction to RTU-PD01

1.1 Product Introduction

1. Thank you for choosing Delta RTU-PD01 PROFIBUS DP Slave Communication Module. To ensure

correct installation and operation of the product, please read this operation manual carefully before

using it.

2. This operation manual only provides introductory information on RTU-PD01. Detailed information

about PROFIBUS DP protocol is not included in this manual. Please refer to relevant literatures for

more information on PROFIBUS DP protocol.

3. RTU-PD01 is a PROFIBUS DP slave communication module for connecting Delta’s Slim series

special I/O modules, digital I/O modules and standard Modbus devices to PROFIBUS DP network.

1.2 Features

1. Supports PROFIBUS DP cyclic data transmission.

2. Auto-detects baud rates; supports max. 12Mbps.

3. Self-diagnosis

4. Able to connect to max. 8 DVP-Slim type special I/O modules (i.e. analog I/O, temperature

measurement, counter and positioning modules) and 16 digital I/O modules (max. 256 digital I/O

points).

5. The RS-485 COM port is able to connect to max. 16 standard Modbus slave stations.

6. Supports max. 100 bytes of data input and 100 bytes of data output.

PROFIBUS DP Slave Communicaion Module RTU-PD01

DVP-PLC Operation Manual 3

2 Profuct Profile and Outline

2.1 Parts and Dimensions

Unit: mm

1. POWER indicator 2. NET indicator 3. RS-485 indicator

4. RUN/STOP switch 5. RUN indicator 6. ALARM indicator

7. Address setup switch 8. PROFIBUS DP COM port 9. I/O module positioning hole

10. Nameplate 11. I/O module connection port 12. DIN rail (35mm)

13. I/O module fixing clip 14. DIN rail fixing clip 15. RS-485 COM port

16. I/O module fixing notch 17. DC24V power supply interface

2.2 Specifications

PROFIBUS DP Port!

Interface DB9 connector

Transmission method High-speed RS-485

Transmission cable Shielded twisted pair cable

Electrical isolation 500VDC

Communication

Message type Cyclic data exchange

Module name RTU-PD01

GSD file DELA09B9.GSD

Product ID 09B9 (HEX)

PROFIBUS DP Slave Communicaion Module RTU-PD01

DVP-PLC Operation Manual

Serial transmission

speed supported

(auto-detection)

9.6kbps; 19.2kbps; 93.75kbps; 187.5kbps; 500kbps; 1.5Mbps; 3Mbps; 6Mbps;

12Mbps (bits per second)

Electrical Specification

Power supply voltage 24VDC

Insulation voltage 500VDC

Power consumption 2.5W

Weight 90g

Environment

Noise immunity

ESD (IEC 61131-2,IEC 61000-4-2): 8kV Air Discharge

EFT (IEC 61131-2,IEC 61000-4-4): Power Line:±2kV,Digital Input:±2kV

Comunication I/O: ±2kV

Conducted Susceptibility Test (EN61000-4-6, IEC 61131-2 9.10): 150kHz ~

80MHz,10V/m

RS (IEC 61131-2, IEC 61000-4-3): 26MHz ~ 1GHz, 10V/m

Storage/operation Operation: 0°C ~ 50°C (temperature), 50 ~ 90% (humidity), pollution degree 2

Storage: -25°C ~ 70°C (temperature), 5 ~ 95% (humidity)

Shock/vibration

immunity

International standards: IEC 61131-2,IEC 68-2-6 (TEST Fc)/IEC 61131-2& IEC

68-2-27 (TEST Ea)

3 Installation

3.1 Definition of PROFIBUS DP Port

PIN PIN name Definition

1 -- N/C

2 -- N/C

3 RxD/TxD-P Sending/receiving data P(B)

4 -- N/C

5 DGND Data reference potential (C)

6 VP Power voltage – positive

7 -- N/C

8 RxD/TxD-N Sending/receiving data N(A)

9 -- N/C

3.2 Connecting to PROFIBUS DP Port

Insert PROFIBUS DP bus connector into PROFIBUS DP port on RTU-PD01 (see the figure below)

Screw it tight to ensure RTU-PD01 and PROFIBUS DP bus are properly connected.

PROFIBUS DP Slave Communicaion Module RTU-PD01

DVP-PLC Operation Manual 5

3.3 Installing RTU-PD01 and I/O Module on DIN Rail

zUse 35mm DIN rail.

zOpen the DIN rail clips on RTU-PD01 and I/O module. Insert RTU-PD01 and I/O module on the

DIN rail.

zClip up the DIN rail clips on RTU-PD01 and I/O module to fix them on the DIN rail (see the figure

below).

PROFIBUS DP Slave Communicaion Module RTU-PD01

DVP-PLC Operation Manual

4 Components

4.1 RUN/STOP Switch

Status Description

1. Special I/O module switches from RUN to STOP.

2. All Y points on digital output module turn OFF.

3. Modbus function switch

RUN => STOP

4. RUN LED turns off.

1. RTU-PD01 re-detects the number of digital I/O points and

specialI/O modules.

2. Special I/O module switches from STOP to RUN.

3. Enable digital I/O modules.

4. Enable Modbus function.

STOP

RUN

STOP => RUN

5. RUN LED turns on.

4.2 Address Setup Switch

The two rotary address setup switches, x160and x161, set up the node address of RTU-PD01 on

PROFIBUS DP network in hex form. The range for rotation is 0 ~ F.

Address Definition

H’1~ H’7D Valid PROFIBUS address

H’0 or H’7E ~ H’FF Invalid PROFIBUS address. NET LED will flash in red

color if the node address falls within this range.

x16

Example: If you need to set the node address of RTU-PD01 to 26 (decimal), simply switch x161 switch

to “1” and x160to “A”. 26 (decimal) = 1A (hex) = 1x161 + Ax160.

Note:

zSwitch off the power supply before setting up the node address of RTU-PD01. Re-power the

module after the setup is completed.

zChanging the value on the switch during the operation of RTU-PD01 is invalid.

zUse slot type screwdriver to set up the switch. Be careful not to scratch the module.

PROFIBUS DP Slave Communicaion Module RTU-PD01

DVP-PLC Operation Manual 7

5 Establishing PROFIBUS DP Network by RTU-PD01

The right-side interface on RTU-PD01 is connectable to DVP-Slim series special I/O modules and

digital I/O modules. The RS-485 port is connectable to standard Modbus devices. See the figure below

for the connection of Slim series I/O modules and Modbus devices and into the PROFIBUS DP

network.

6 Transmission Distance and Baud Rate

The baud rate range for PROFIBUS DP is 9.6kbps ~ 12Mbps, and the length of transmission cable

varies upon the transmission speed. The transmission distance ranges from 100m to 1,200m. See the

table below for the baud rates RTU-PD01 supports and their corresponding communication distance.

Baud rate (bps) 9.6k 19.2k 93.75k 187.5k 500k 1.5M 3M 6M 12M

Distance (m) 1,200 1,200 1,200 1,000 400 200 100 100 100

PROFIBUS DP Slave Communicaion Module RTU-PD01

DVP-PLC Operation Manual

7 GSD File

The GSD file is a text file and can be used to identify PROFIBUS DP device (master or slave).A GSD

file usually contains the supplier’s information, baud rates supported and applicable I/O messages.

When using RTU-PD01, you have to first import the GSD file to the configuration software for

PROFIBUS DP master. After the import of the file, the configuration software for master will display

RTU-PD01 and its configuration settings. You can download the GSD file for RTU-PD01 at Delta’s

website: http://www.delta.com.tw/

8 RTU-PD01 Settings and Configurations

8.1 RTU-PD01 Settings

When you set up RTU-PD01 in the configuration software for PROFIBUS DP master, there will be

plenty of setup items for you to choose from, which adds flexibility to the manipulation of RTU-PD01.

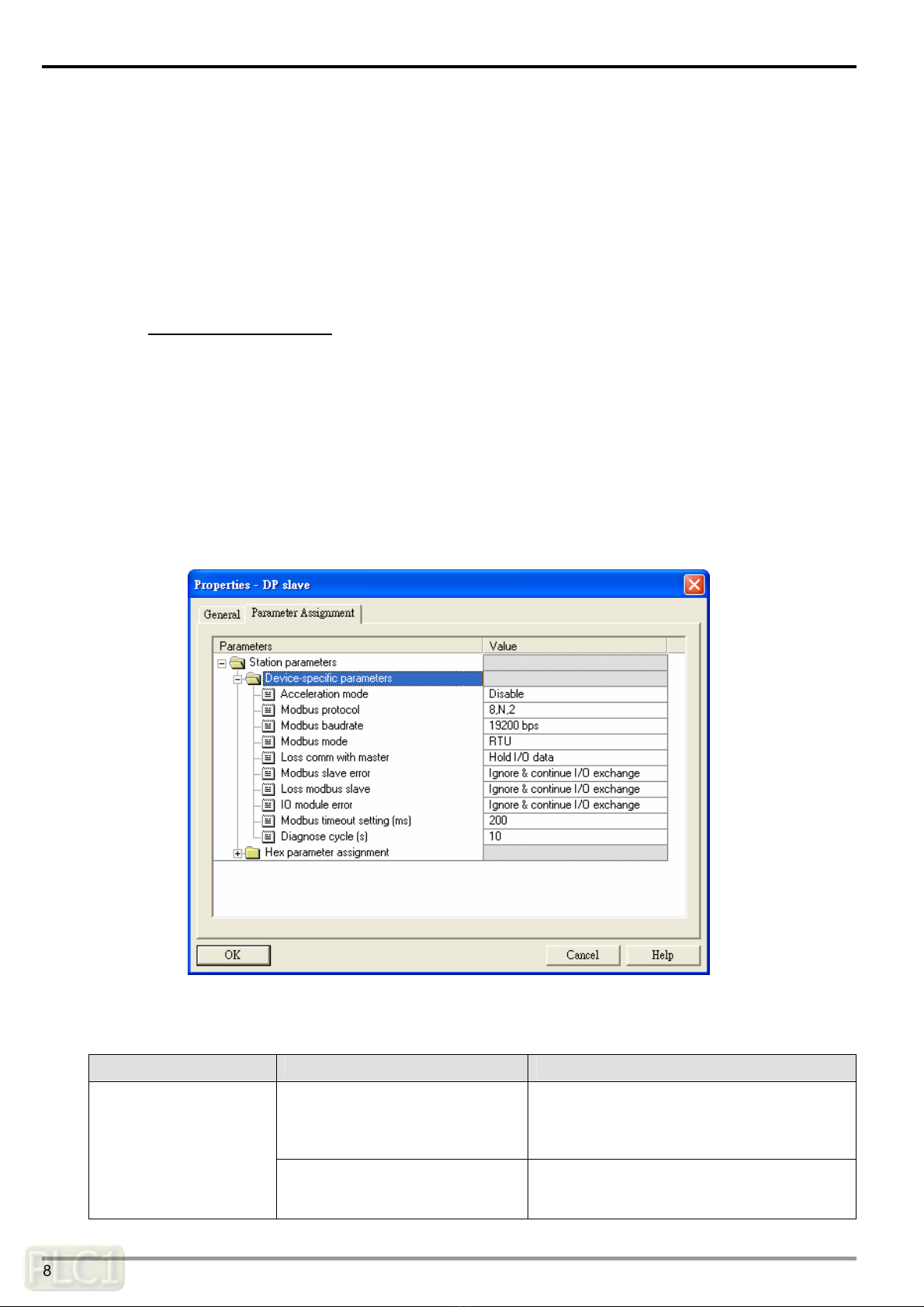

See the figure below for RTU-PD01 settings.

Definitions of settings:

Setup item Setting Definition

Enable

When the Modbus device is configured with

many addresses and the addresses are

consecutive, all contents in the consecutive

addresses can be read or written at a time.

Acceleration mode

Disable

When the Modbus device is configured with

many addresses, only contents in a single

address can be read or written.
