Operating manual

Photo-radiometer

HD2302.0

www.deltaohm.com

English

ep for future

referen

ce.

HD2302 - 2 - V1.10

INDEX

GENERAL CHARACTERISTICS ......................................................................... 3

DESCRIPTION OF THE FUNCTIONS................................................................. 6

PRO ES AND MEASUREMENTS ....................................................................... 8

COMBINED PROBE LP471P-A .............................................................................. 9

COMBINED PROBE LP471A-UVEFF ........................................................................ 9

PROBES LP471PYRA10 - LP471PYRA02 – LP471PYRA03......................................... 9

PROBE LP471SILICON-PYRA ............................................................................ 9

INSTRUMENT SIGNALS AND FAULTS ............................................................ 10

LOW ATTERY WARNING AND ATTERY REPLACEMENT .............................. 11

WARNING ABOU BA ERY USE .......................................................................... 11

WARNINGS .................................................................................................. 12

INSTRUMENT STORAGE ................................................................................ 12

SAFETY INSTRUCTIONS ............................................................................... 13

TECHNICAL SPECIFICATIONS ...................................................................... 14

ECHNICAL SPECIFICA IONS OF HE PHO O-RADIOME ER ........................................... 14

ECHNICAL SPECIFICA IONS OF PROBES IN LINE WI H HE INS RUMEN ........................... 15

PRO ES AND ACCESSORIES ORDERING CODES............................................ 19

HD2302 - 3 - V1.10

GENERAL CHARACTERISTICS

he Photo-Radiometer HD2302.0 is a portable instrument, fitted with a large LCD

display for visualization of the measured data. It measures:

•illuminance;

•luminance;

•PAR;

•irradiance (across VIS-NIR, UVA, UVB and UVC spectral regions or in the

measured effective irradiance according to the UV action curve).

he probes are fitted with the SICRAM automatic detection module, with the factory

calibration settings already being memorized inside. In addition to detection, the unit

of measurement selection is also automatic.

he Photo-Radiometer measures the following instantaneous quantities:

Type of measurement Unit of measurement

Illuminance (PHO ) lux - fcd

Irradia

nce

(RAD

UVA

UVB

UVC

UVBC

PYRA)

W/m² - µW/cm²

PAR µmol/(m²⋅s)

Luminance (LUM2) cd/m²

Using the Max, Min and Avg function of this instrument respectively obtains the

maximum, minimum or average values.

Other available functions are:

•the relative measurement REL;

•the HOLD function;

•the automatic turning off which can also be disabled.

For further details, see chapter ‘Description of the functions’ on page 6.

HD2302 - 4 - V1.10

Photo-Radiometer

HD2302.0

HD2302 - 5 - V1.10

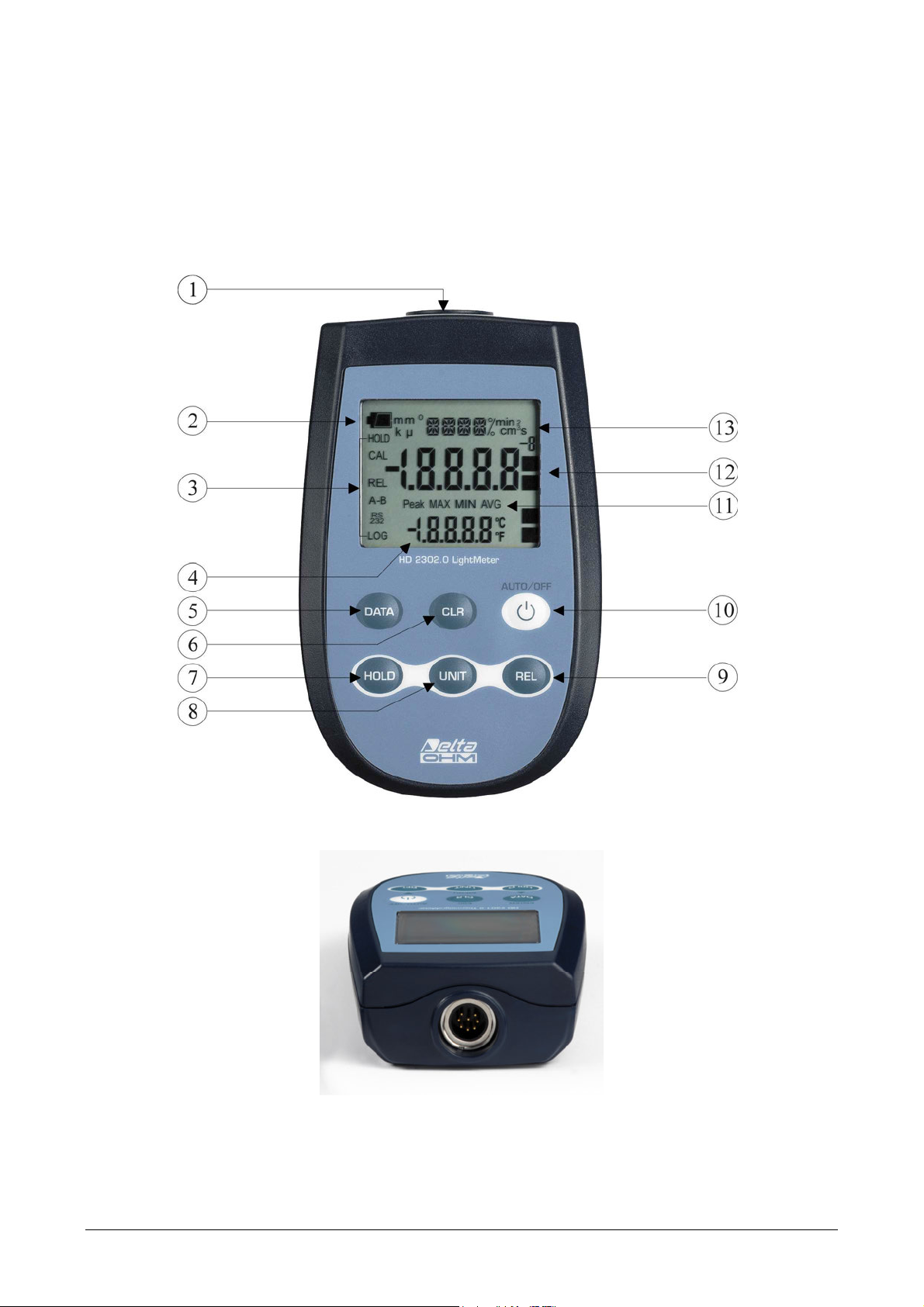

HD2302.0

1. Input for probes, 8-pole DIN45326 connector.

2. Battery symbol: displays the battery charge level.

3. Function indicators.

4. Secondary display line.

5. DATA key: displays the maximum (MAX), the minimum (MIN) and the average

(AVG) of current measurements.

6. CLR key: resets the maximum, average, and minimum value of the captured

measurements.

7. HOLD key: freezes the measurement.

8. UNIT key: allows selection of the unit of measurement.

9. REL key: enables the relative measurement (displays the difference between the

current value and the logged value when the key is pressed).

10. ON-OFF/AUTO-OFF key: turns the instrument on and off; when pressed

together with the HOLD key, disables the AutoPowerOff function.

11. MAX (maximum value), MIN (minimum value) and AVG (average value)

symbols.

12. Main display line.

13. Line for symbols and comments.

HD2302 - 6 - V1.10

DESCRIPTION OF THE FUNCTIONS

he Photo-Radiometer Model HD2302.0 keyboard is composed of single-function

keys, except the ON-OFF/Auto-OFF key that has two functions (see the description of

the key below).

he pressing of a key is accompanied by a short confirmation "beep": a longer "beep"

sounds if the wrong key is pressed.

Each key specific function is described in detail below.

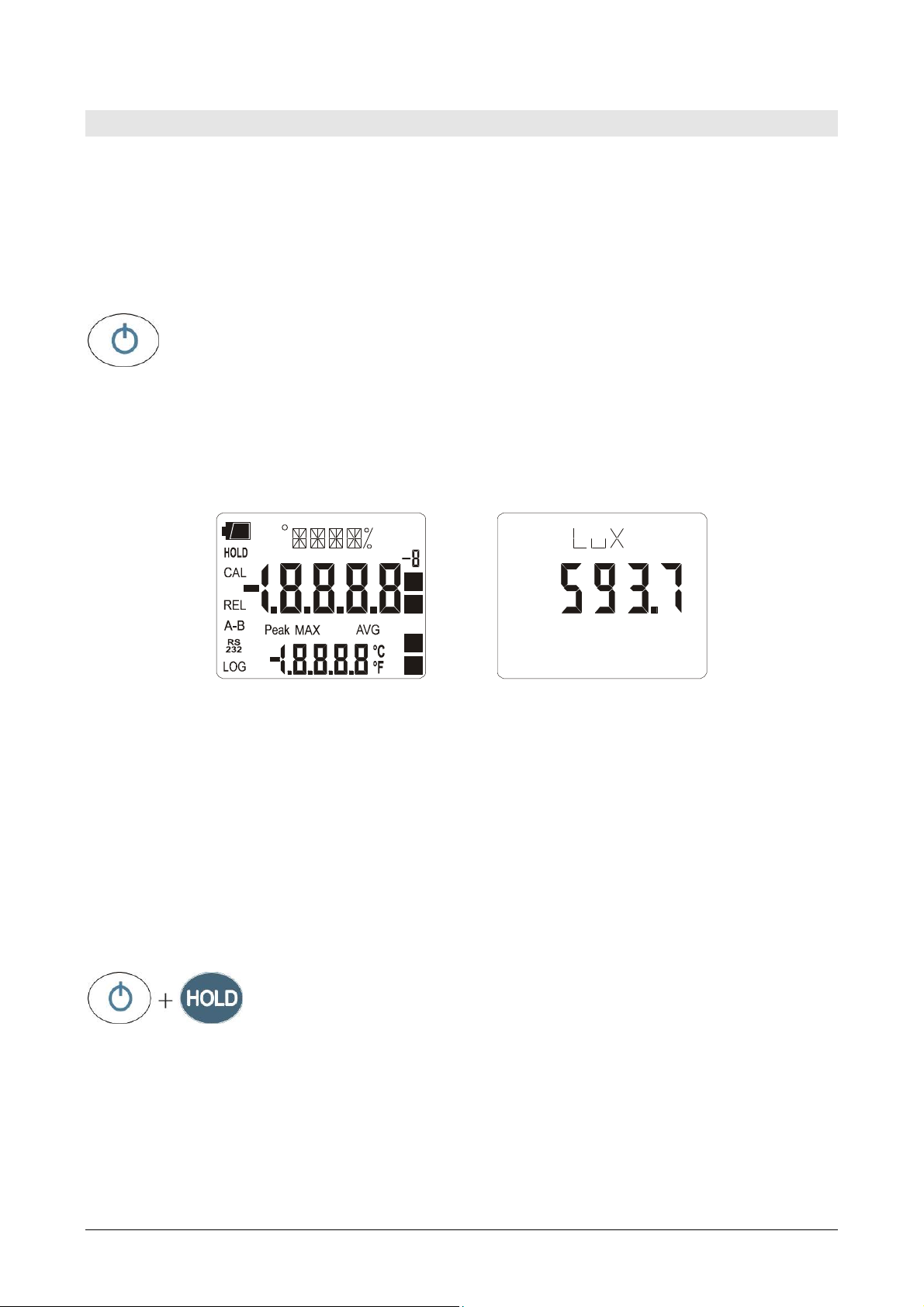

his key has two functions:

•ON/OFF: to turn the instrument on press ON, to turn it off press OFF.

he turning on enables all display segments for a few seconds, starts an Auto-test

including the detection of the probe connected to the input, and sets the instrument

ready for normal measurement. he following is displayed:

MIN

min s

>>>

•AUTO/OFF: the AutoPowerOff function can be disabled by simultaneously

pressing this key and the "HOLD" key when turning the instrument on.

During turning on, should no probes be connected, the "PRO " message is displayed

in the line for symbols for a few seconds, while the "ERR" message is shown in the

central part of the display.

When the probe is inserted into a functioning instrument, it is not detected:

as the data are captured upon turning the instrument on, it is necessary to

turn it off and on again.

Caution! Replace the probes when the instrument is off.

he instrument has an AutoPowerOff function that automatically turns the instrument

off after about 8 minutes if no key is pressed during the intervening time.

Press simultaneously the ON/OFF key and the HOLD key to disable this function.

In this case, remember to turn the instrument off using the ON/OFF key: disabling of

the automatic turning off is shown by the blinking battery symbol.

ON/OFF and AUTO/OFF key

Disabling of the automatic turning off

HD2302 - 7 - V1.10

It resets the maximum, average, and minimum value of the captured measurements.

By pressing this key once the maximum (MAX) value of the measurements captured

by the probe connected to the instrument is displayed, updating it with the acquisition

of new samples. By pressing this key again, the minimum (MIN) value is displayed

and by pressing this key a third time the average (AVG) value is displayed.

The acquisition frequency is once a second.

he MAX, MIN and AVG values remain in the memory until the instrument is on, even

after exiting the DA A calculation function. When the instrument is off, the previously

memorized data are cleared. Upon turning on, the instrument automatically starts

memorizing the MAX, MIN and AVG values.

o reset the previous values and start with a new measurement session, press the

CLR key until the FUNC_CLRD message appears.

By pressing this key, the current measurement update is frozen and the "HOLD"

message will appear in the upper left-hand corner of the display. o return to the

current measurement, press the key again.

It is also used to disable the AutoPowerOff function (see the description of the ON/OFF

key).

By pressing this key, the unit of measurement of the main input quantity is

selected: the unit of measurement will appear in the upper part of the display; the

measured value will be displayed in the central line. By repeatedly pressing the UNI

key, the desired unit of measurement can be selected. In the combined probes, UNIT

key allows to select one of the available measures (in these probes, unit of

measurement cannot be changed).

NOTE: he units of measurement available are determined according to the probe

connected to the input, as reported in the following table:

Type of measurement Unit of measurement

Illuminamento (PHO ) lux - fcd

Irradiamento (RAD

UVA

UVB

UVC

UVBC - PYRA) W/m² - µW/cm²

PAR µmol/(m²⋅s)

Luminanza (LUM2) cd/m²

It displays the difference between the current value and that measured on pressing

the key. he "REL" message is displayed on the left.

o return to the normal measurement, press the key again.

DATA

key

HOLD key

REL

key

CLR

key

UNIT

key

HD2302 - 8 - V1.10

PRO ES AND MEASUREMENTS

he instrument works with probes of the LP471… series: these are photometric and

radiometric probes that measure:

•illuminance (LP471PHO ),

•irradianace (LP471RAD, LP471UVA, LP471UVB, LP471UVC and LP471UVBC),

•PAR (LP471PAR and LP471PAR02),

•luminance (LP471LUM2),

•effective irradiance in the spectral range of blue light (LP471BLUE),

•illuminance, UVA irradiance and UVA irradiance-illuminance ratio

(Combined probe LP471P-A),

•total effective irradiance UVA + UV-C according to the UV weighting

curve (combined probe LP471A-UVeff for measuring total effective irradiance

in the range 250...400 nm),

•global solar irradiance in the spectral range 400…1100 nm with silicon

photodiode (LP471SILICON-PYRA),

•global solar irradiance in the spectral range 300…2800 nm. Probe consisting

of a Spectrally Flat Class C pyranometer LPPYRA03 and a cable with SICRAM

module (LP471PYRA03),

•global solar irradiance in the spectral range 283…2800 nm. Probe consisting

of a Spectrally Flat Class B LPPYRA02 or Spectrally Flat Class A pyranometer

LPPYRA10 and a cable with SICRAM module (LP471PYRA02 – LP471PYRA10).

All probes, except LUM2, are provided with a diffuser for cosine correction.

Upon turning on the instrument automatically detects the probe connected to the

input: it is sufficient to connect it before turning the instrument on.

he unit of measurement is determined according to the probe connected to the

input: use the UNI key to change the unit of measurement.

In the combined probes, UNIT key allows to select one of the available measures (in

these probes, unit of measurement cannot be changed).

All probes are calibrated in the factory; no calibration is required by the user.

The probe is detected during turn on: if a probe is connected and the

instrument is on, it is necessary to turn it off and on.

HD2302 - 9 - V1.10

COM INED PRO E LP471P-A

LP471P-A is a two sensors combined probe with SICRAM module for measuring

illuminance (lux) with standard photopic spectral response and irradiance (μW/cm2)

in UVA spectral range (315...400 nm, with peak at 365 nm). he probe also provides

the ratio of UVA irradiance and illuminance in µW/lumen (quantity of interest in the

museums field).

Equipped with diffuser for the correction according to the cosine law.

At switching on, the instrument displays alternatively the measures of the two

sensors. Pressing any key (except ON/OFF), automatic commutation is turned off. o

reactivate it, press HOLD and REL keys together.

o select the measure to display, press UNI key.

COM INED PRO E LP471A-UVEFF

LP471A-UVeff is a two-sensors combined probe with SICRAM module for measuring

total effective irradiance according to the UV weighting curve. wo sensors are

used to correctly measure the total effective irradiance in the range 250...400 nm.

Both sensors are equipped with diffuser for the correction according to the cosine law.

he probe provides the total effective irradiance (“Er” at display), the effective

irradiance in the range UV-CB (“BC” at display) and the UVA irradiance (“A” at display).

At switching on, the instrument displays alternatively the measures of the two

sensors. Pressing any key (except ON/OFF), automatic commutation is turned off. o

reactivate it, press HOLD and REL keys together.

o select the measure to display, press UNI key.

PRO ES LP471PYRA10 - LP471PYRA02 – LP471PYRA03

he LP471PYRA… probes measure the global solar radiation in the spectral range

283…2800 nm (LP471PYRA10 and LP471PYRA02) or 300…2800 (LP471PYRA03).

hey are composed of a pyranometer (LPPYRA02, LPPYRA03 or LPPYRA10) and a cable

with SICRAM module.

Since calibration data of pyranometer are saved in SICRAM module, the cable cannot

be used together with other pyranometers.

he global solar radiation is expressed in W/m2 or μW/cm2. Measuring range is

0…2000 W/m2.

No user calibration is required.

PRO E LP471SILICON-PYRA

he LP471SILICON-PYRA probe measures the global solar radiation using a

silicon photodiode in the spectral range 400…1100 nm.

he particular geometry and the diffuser allow the sensor to have a field of view of

180° according to the cosine law.

he probe is suitable for the measurement of natural sunlight. Under overcast skies,

or for reflected light measurements the use of a thermopile pyranometer is

recommended (LP471PYRA10, LP471PYRA02 or LP471PYRA03).

he measurement of global solar radiation is expressed in W/m2 or μW/cm2.

Measuring range is 0…2000 W/m2.

No user calibration is required.

HD2302 - 10 - V1.10

INSTRUMENT SIGNALS AND FAULTS

he following table lists all of the indications displayed by the instrument in different

operating and error situations.

Display indications

Description

ATT TOO LOW

CHNG NOW

Indication of insufficient battery charge: it appears when you

turn the instrument on. he instrument issues a long beep and

turns off. Replace the batteries.

CAL

LOST

Program error: it appears after turning on for a few seconds.

Contact the instrument's supplier.

PRO COMM LOST

his appears if the probe has already been detected by the

instrument, but is disconnected. At the same time an

intermittent beep is issued.

FUNC CLRD Maximum (MAX), minimum (MIN) and average (AVG)

values

cleared.

NEW PRO E DET New probe detected.

NO_PR E_ SER_NUM he connected probe's serial number is absent.

OVER

- - - -

Measurement overflow: indicates that the probe is measuring a

value exceeding the measuring range.

PLS_EXIT >>> FUNC

RES_FOR_FACT ONLY

Please exit using ESC >>> function reserved to factory

calibration.

PR E_SER #### ####

Serial number #### #### of the connected probe.

PRO

ERR

A probe with SICRAM module has been inserted when not

admissible for that instrument.

SYS

ERR

Instrument management program error.

Contact the instrument's supplier and communicate the numeric

code # reported by the display.

Tabla de contenidos

Otros manuales de Instrumento de medición de Delta OHM

Delta OHM

Delta OHM HD 2020 Manual de usuario

Delta OHM

Delta OHM HD21AB Manual de usuario

Delta OHM

Delta OHM HD2015 Manual de usuario

Delta OHM

Delta OHM HD3409.2 Manual de usuario

Delta OHM

Delta OHM HD2109.1 Manual de usuario

Delta OHM

Delta OHM LPPYRA02 Manual de usuario

Delta OHM

Delta OHM HD45 Series Manual de usuario

Delta OHM

Delta OHM HD2101.1 Manual de usuario

Delta OHM

Delta OHM HD2302.0 Manual de usuario

Delta OHM

Delta OHM HD2011NMT Manual de usuario

Delta OHM

Delta OHM TP32MTT.03 Manual de usuario

Delta OHM

Delta OHM HD52.3D... series Manual de usuario

Delta OHM

Delta OHM HD21ABE Manual de usuario

Delta OHM

Delta OHM LPPYRA-Lite Manual de usuario

Delta OHM

Delta OHM HD2010UC Manual de usuario

Delta OHM

Delta OHM HD 2013 Series Manual de usuario

Delta OHM

Delta OHM LPPYRA10 Manual de usuario

Delta OHM

Delta OHM HD2010UC/A Manual de usuario

Delta OHM

Delta OHM HD46 Series Manual de usuario

Delta OHM

Delta OHM HD 8706-R2 Manual de usuario

Delta OHM

Delta OHM HD32.2 Manual de usuario

Delta OHM

Delta OHM HD 8706-R1 Manual de usuario

Delta OHM

Delta OHM HD 9213-R1 Manual de usuario

Delta OHM

Delta OHM HD2402 Manual de usuario

Manuales populares de Instrumento de medición de otras marcas

Suaoki

Suaoki D40 Manual de usuario

Elster

Elster BK-G1.6 Manual de usuario

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manual

Duratool

Duratool D03128 Manual de usuario

Vega

Vega VEGAPULS 65 Manual de usuario

Tonghui

Tonghui TH2618B Manual de usuario

Tenmars

Tenmars TM-801 Manual de usuario

MSR

MSR 145 Manual de usuario

TPS

TPS WP-82 Manual de usuario

ELMETRON

ELMETRON CP-511 Manual de usuario

PCB Piezotronics

PCB Piezotronics 003C30 Manual de usuario

Tenma

Tenma 72-10465 Manual de usuario

Endress+Hauser

Endress+Hauser Proline Promag 50 Especificaciones técnicas

Siemens

Siemens SITRANS F Coriolis FCT030 Manual de lista de piezas

KLINGER

KLINGER CMF V Series Manual de usuario

EXFO

EXFO FTB-2 Manual de operación y mantenimiento

Keysight

Keysight M8290A Manual de usuario

ADTEK

ADTEK MW-5 Manual de usuario
