DeLonghi MELODY 3 Manual de usuario

www.dolce-gusto.com.au

USER MANUAL

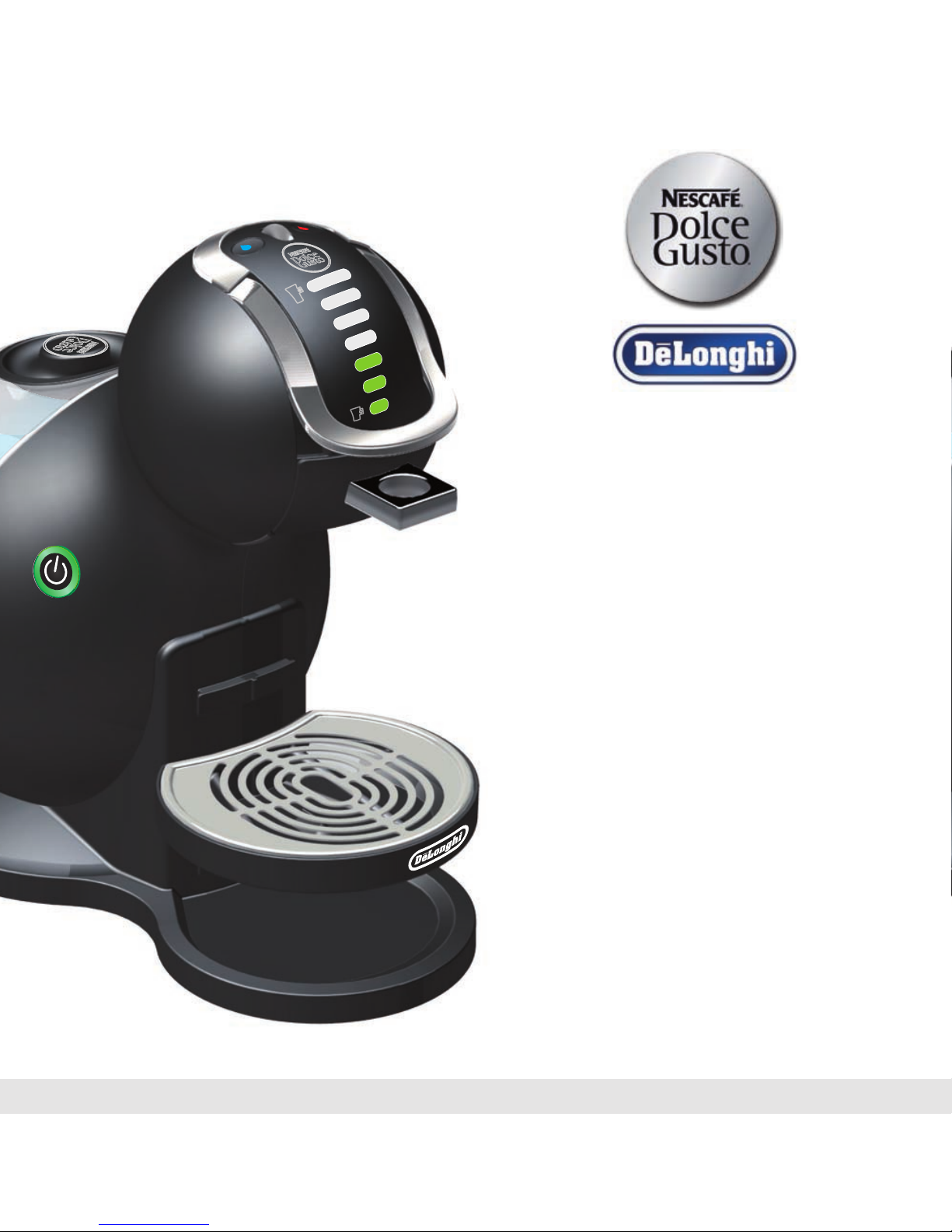

MELODY 3

AUTOMATIC

TABLE OF CONTENTS

OVERVIEW . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

PRODUCT RANGE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

FIRST USE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

PREPARING A BEVERAGE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

RECOMMENDATIONS FOR A SAFE USE / ECONOMY MODE . . .8

CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

DESCALING AT LEAST EVERY 3-4 MONTHS. . . . . . . . . . . .12-13

IF NO LIQUID COMES OUT... . . . . . . . . . . . . . . . . . . . . . . . 10-11

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14-15

SAFETY PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

OVERVIEW

1Water tank

2Selector wheel

3Cold

Locking handle

6Capsule holder

Drip grid

Capsule bin

4Hot 7Power button

9Drip tray

17/23mm

17/18mm

17/23mm

0-12

1.3 l 5-45 °C

41-113 °F

~3 kg

A = 20.0 cm

max. 15 bar B = 30.6 cm

C = 31.5 cm

220-240 V~, 50/60 Hz, 1340-1600W

AUS

LUNGO

543

OFF

PRODUCT RANGE

Espresso

Espresso Intenso

60 ml

Espresso Ristretto

40 ml

Latte Macchiato

220 ml

50 ml

170 ml

Espresso Intenso

40 ml

Cappuccino

240 ml

40 ml200 ml

Lungo

120 ml

Chococino®

210 ml

110 ml

100 ml

LUNGO

Hot Beverage

ESPRESSO

CAFFÈ AMERICANO

CAPPUCCINO

Café au Lait

180 ml

Caffè Americano

230 ml

Nestea Peach

200 ml

Espresso

Espresso Intenso

60 ml

Espresso Ristretto

40 ml

Latte Macchiato

220 ml

50 ml

170 ml

Espresso Intenso

40 ml

Cappuccino

240 ml

40 ml200 ml

Lungo

120 ml

Chococino®

210 ml

110 ml

100 ml

PRODUCT RANGE

CAFÉ AU LAIT

CAPPUCCINO ICE

Café au Lait

180 ml

Caffè Americano

230 ml

Nestea Peach

200 ml

Latte Macchiato

220 ml

50 ml

170 ml

Aroma

200 ml

Caffè Crema Grande

200 ml

Aroma

200 ml

Cappuccino Ice

240 ml

105 ml135 ml

CAPPUCCINO ICE

Cold Beverage

Café au Lait

180 ml

Caffè Americano

230 ml

Nestea Peach

200 ml

NESTEA PEACH

LATTE MACCHIATO

Latte Macchiato

220 ml

50 ml

170 ml

Aroma

200 ml

GrandeCaﬀèCrema

200 ml

Aroma

200 ml

FIRST USE

8 9

30 sec

Rinse water tank at ﬁ rst.

Fill water tank with fresh, drinking water.

Place cap and insert water tank into machine.

Start rinsing with cold water:

Set bar display to max. level with selector

wheel.

Press cold water button.

Machine starts rinsing.

Wait until countdown is ﬁ nished and machine

stops.

Open locking handle and insert empty capsule

holder. Close locking handle.

Place capsule bin under outlet.

Connect power plug to mains power socket.

Machine starts rinsing.

Wait until countdown is ﬁ nished and machine

stops.

Empty capsule bin and reﬁ ll water tank with

fresh, potable water.

Remove protection foil from drip grid. Place

drip grid on drip tray. Then attach drip tray at

desired position on machine.

Switch machine on. While machine is heating

up, power button starts blinking red.

After approx. 30 seconds, power button lights

steady green and machine is ready.

Continue rinsing with hot water:

Set bar display to max. level with selector

wheel.

Press hot water button.

30 sec

PREPARING A BEVERAGE

LUNGO

5 sec

Switch machine on. While machine is heating

up, power button starts blinking red. After ap-

prox. 30 seconds, power button lights steady

green and machine is ready.

Use the selector wheel to illuminate the bars

in accordance with the number of bars shown

on capsule, or set the bar display to your own

taste.

Take cup from drip tray. Open the locking

handle.

Adjust drip tray position according to the

chosen beverage (see page 4-5). Place cup on

drip tray.

Press hot or cold water button (depending on

beverage). Beverage preparation starts.

Bar display lights vanish progressively.

Machine stops preparation automatically.

Pull out capsule holder and remove used cap-

sule. Put used capsule in capsule bin.

Open locking handle and pull out capsule

holder. Insert capsule in capsule holder and

insert it back in machine. Close locking handle.

After ﬁ nishing preparation, bar display ﬂ ashes

and power button blinks red for about 5

seconds.

During that time do not open the locking

handle!

Rinse and dry capsule holder with water from

both sides. Insert capsule holder to machine.

Enjoy your beverage!

5 sec

ECONOMY MODE

RECOMMENDATIONS FOR A SAFE USE

5 min

ON OFF

After 5 minutes of non-usage the machine

automatically shuts down (Economy Mode).

To restart, press power button.

Never add hot water to the water tank! Never open the locking handle during

beverage preparation!

After ﬁ nishing preparation the bar dis-

play ﬂ ashes and the power button blinks

red for about 5 seconds. During that

time do not open locking handle!

Do not touch used capsule after

beverage preparation! Hot surface, risk

of burns!

CLEANING

30 sec

Rinse drip tray with water and clean it with a

brush.

Open locking handle and insert empty capsule

holder. Close locking handle and place cap-

sule bin under the delivery outlet.

Wait until countdown is ﬁ nished and water

delivery stops.

Empty and clean capsule bin.

Place drip grid on drip tray. Then attach drip

tray at desired position on machine.

Clean machine with a soft damp cloth. Dry it

afterwards with a soft dry cloth.

Rinse and dry capsule holder with water from

both sides. You can also put it in the dish-

washer.

Switch machine on. While machine is heat-

ing up, power button starts blinking red. After

approx. 30 seconds, power button light turns

green and machine is ready to use.

Rinse and clean water tank. Afterwards reﬁ ll

with fresh, drinking water and insert it to ma-

chine. The water tank is not dishwasher proof!

Rinse the machine as follows:

Light up all bars to max. level using the selec-

tor wheel and press the hot button. Machine

starts rinsing. Lights on the bar display vanish

progressively.

IF NO LIQUID COMES OUT...

20 min

1 3

Error symptoms: Beverage preparation stops

part way during delivery or does not start

at all. Bar display ﬂ ashes and power button

blinks red and green rapidly.

The capsule may be blocked and under pres-

sure.

Then lift the locking handle and remove the

capsule holder.

Throw away the capsule.

Check if there is water in the water tank:

if not, reﬁ ll and press hot/cold button again to

continue preparation; if the water tank is full

proceed as follows:

Do not use force to lift the locking handle. Wait for 20 minutes for the pressure to reduce.

Check if locking handle can be lifted easily: NO - see section A (below) / YES – see section B (next page)
