Dell™ E-Flat Panel Stand

User’s Guide

FILE LOCATION: C:\Documents and Settings\julie_Woodson\My

DELL CONFIDENTIAL – PRELIMINARY 7/22/08 – FOR PROOF ONLY

Notes, Notices, and Cautions

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data

and tells you how to avoid the problem.

CAUTION: A CAUTION indicates a potential for property damage, personal injury,

or death.

____________________

Information in this document is subject to change without notice.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly

forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; VESA is a registered

trademark of Video Electronics Standards Association.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

June 2008 Rev. A00

FILE LOCATION: C:\Documents and Settings\julie_Woodson\My

Documents\eDocs\Edocks\efpl\en\Source\bookTOC.fm

Contents 3

Contents

1 About Your Dell™ E-Flat Panel Stand . . . . 5

2 Using the E-Flat Panel Stand. . . . . . . . . . . 7

Connecting the Riser to the Base of the Stand . . . . . . 7

Adjusting the Weight Limit for a Flat Panel Monitor . . . 8

Attaching a Flat Panel Monitor to the Flat Panel Stand . 9

Using a VESA Adapter Plate. . . . . . . . . . . . . . . 10

Adjusting the Flat Panel Monitor . . . . . . . . . . . . 14

Connecting a Port Replicator to the Flat Panel Stand . 14

Disconnecting a Laptop from the Port Replicator and Flat Panel Stand

Disconnecting a Port Replicator from the Flat Panel Stand 17

3 Specifications . . . . . . . . . . . . . . . . . . . . . 19

4 Finding Information . . . . . . . . . . . . . . . . . 21

FILE LOCATION: C:\Documents and Settings\julie_Woodson\My

Documents\eDocs\Edocks\efpl\en\Source\bookTOC.fm

4Contents

Template Last Updated - 2/7/2007 About Your Dell™ E-Flat Panel Stand 5

DELL CONFIDENTIAL – PRELIMINARY 7/22/08 - FOR PROOF ONLY

About Your Dell™ E-Flat Panel

Stand

The Dell™ E-Flat panel stand supports the following:

• 12.1-inch to 17-inch Dell E-

Family

laptop

• Dell E-Port and Dell E-Port Plus port replicators

• Flat panel monitors up to 24 inches

6About Your Dell™ E-Flat Panel Stand

FILE LOCATION: C:\Documents and Settings\julie_Woodson\My

Documents\eDocs\Edocks\efpl\en\Source\about.fm

DELL CONFIDENTIAL – PRELIMINARY 7/22/08 - FOR PROOF ONLY

1 riser 2 monitor weight adjustment

3 base 4 release tab for port replicator

5 monitor weight adjustment tool 6 monitor attachment plate

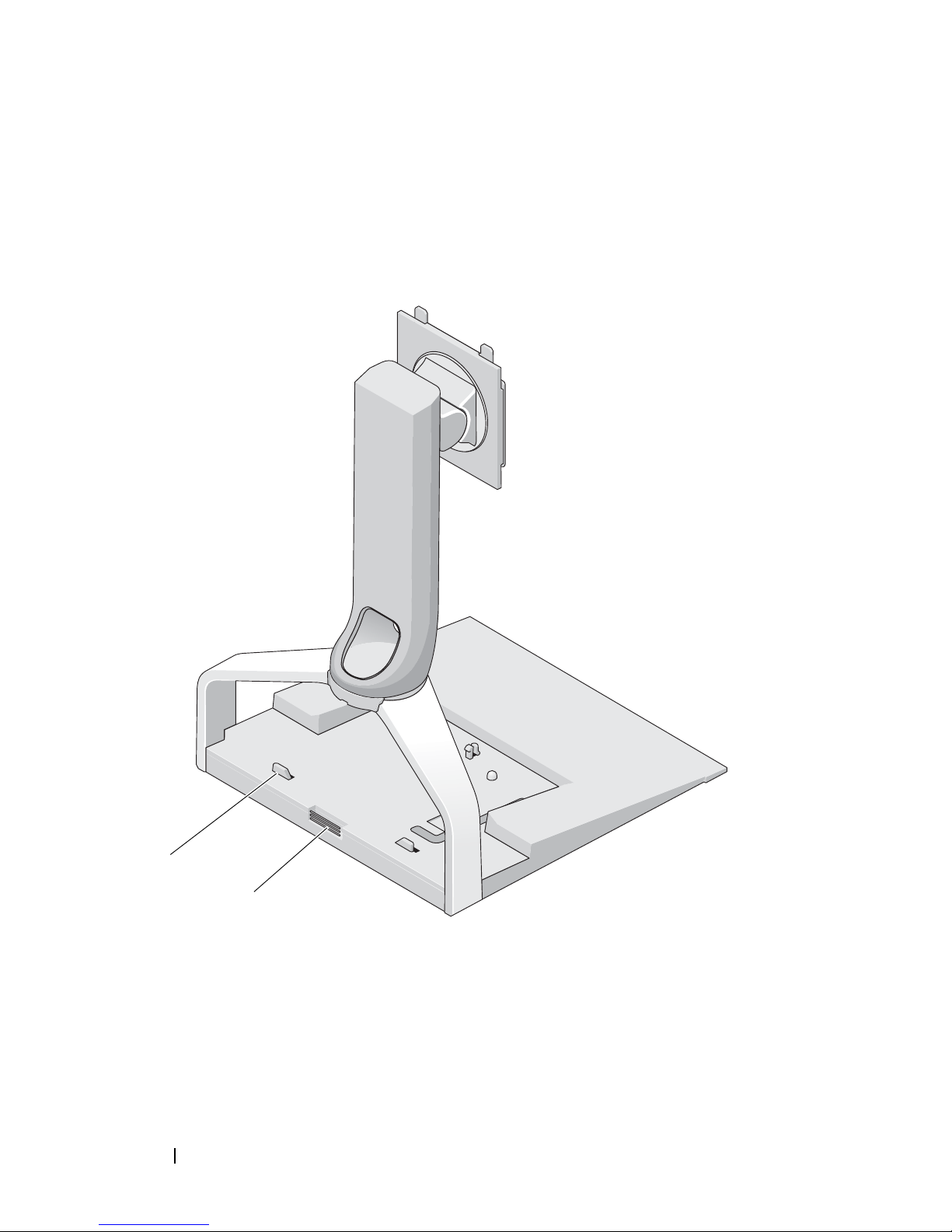

1 release button for port replicator 2 guide posts for port replicator

Template Last Updated - 2/7/2007 Using the E-Flat Panel Stand 7

DELL CONFIDENTIAL – PRELIMINARY 7/22/08 - FOR PROOF ONLY

Using the E-Flat Panel Stand

Connecting the Riser to the Base of the Stand

Align the front of the riser with the attachment slot.

Slide the riser into the attachment slot. You hear a click when the riser is

completely engaged with the base of the stand.

1 riser 2 attachment slot on the base of the stand

8Using the E-Flat Panel Stand

FILE LOCATION: C:\Documents and Settings\julie_Woodson\My

Documents\eDocs\Edocks\efpl\en\Source\using.fm

DELL CONFIDENTIAL – PRELIMINARY 7/22/08 - FOR PROOF ONLY

Adjusting the Weight Limit for a Flat Panel

Monitor

The default weight limit for the flat panel monitor is set for a 17-inch to 20-

inch monitor. If your monitor is 20 inches to 24 inches, adjust the weight

limit setting on the flat panel stand.

Remove the tool from the base of the flat panel stand.

Insert the tool into the weight limit slot.

Turn the tool counter-clockwise to point the arrow to the 20 to 24-inch

setting.

1 magnified weight limit 2 weight limit slot

3 weight limit adjustment tool

Using the E-Flat Panel Stand 9

FILE LOCATION: C:\Documents and Settings\julie_Woodson\My

Documents\eDocs\Edocks\efpl\en\Source\using.fm

DELL CONFIDENTIAL – PRELIMINARY 7/22/08 - FOR PROOF ONLY

Attaching a Flat Panel Monitor to the Flat Panel

Stand

Align the back of the flat panel monitor with the attachment plate on the

riser.

Slide the flat panel monitor onto the attachment plate, ensuring that the

monitor is securely set in place.

1 attachment plate 2 flat panel monitor

10 Using the E-Flat Panel Stand

FILE LOCATION: C:\Documents and Settings\julie_Woodson\My

Documents\eDocs\Edocks\efpl\en\Source\using.fm

DELL CONFIDENTIAL – PRELIMINARY 7/22/08 - FOR PROOF ONLY

Using a VESA®Adapter Plate

NOTE: The VESA adapter plate is optional. See Dell.com for purchasing

information.

Use a VESA adapter plate to attach your monitor to the flat panel stand if

your monitor does not work with the attachment plate.

Remove the four screws from the attachment plate on the flat panel stand.

1 screws (4) 2 attachment plate

3 flat panel stand
