Dell Projector 7700FullHD
Firmware Upgrade
Setup Guide
Released date: June 2015 Rev.C
1
Contents
1. Projector Firmware Upgrade Setup.......................................................................................... 2
Part A: Enable Wireless or LAN on the Projector............................................................................2
Part B: Connect Your Computer to the Projector and Login Web Management.....................4
Part C: Upgrade Projector Firmware.................................................................................................5
2. Wireless Firmware Upgrade Setup ........................................................................................... 8
Part A: Enable Wireless or LAN on the Projector............................................................................8
Part B: Connect Your Computer to the Projector and Login Web Management...................10
Part C: Upgrade Wireless Firmware.................................................................................................11
2
1. Projector Firmware Upgrade Setup
Part A: Enable Wireless or LAN on the Projector
1. Connect the power cable and turn on the projector by pressing the power button.
2-1. If the LAN Connection is used for firmware upgrade, follow these steps to enable Wireless
and LAN feature when the Wireless and LAN is Disabled: Advanced Settings →LAN Settings →
Wireless and LAN →Enabled. Go to Step 2-3.
2-2. If the Wireless Connection is used for firmware upgrade, follow these steps to enable
wireless connection when the wireless connection is Disconnected: Advanced Settings →
Wireless Settings →Wireless →Connected. Go to Step 2-3.
3
NOTE: If your want to use the wireless connection, need to installed the optional wireless
dongle. The wireless dongle is not shipped with your projector. You can purchase it
from Dell website: www.dell.com.
2-3. Ensure Wireless/LAN is set to "Always On" so the Wireless/LAN can still be connected when
the projector is in standby status: Advanced Settings →Power Settings →Wireless →Always
On.
2-4. Turn off the projector and the projector will enter standby mode.
If the LAN Connection is used for firmware upgrade, go to Step 3.1.
If the Wireless Connection is used for firmware upgrade, go to Step 3.2.
4
Part B: Connect Your Computer to the Projector and Login Web Management
3-1. If you select the LAN Connection for upgrade, connect the LAN cable to the projector and
the computer.
3-2. If you select the Wireless connection for upgrade, connect your computer to the
7700FullHD wireless network.
NOTE:
Your computer must have wireless network function to detect the connection.
When you connect to the 7700FullHD wireless network, you will lose wireless connectivity
with other wireless network.
4. Open the Internet browser on your computer. You will be automatically directed to the
7700FullHD Web Management page.
NOTE: If the web page does not load automatically, enter the IP address (default IP address
is 192.168.100.10) in the browser’s address bar.
5

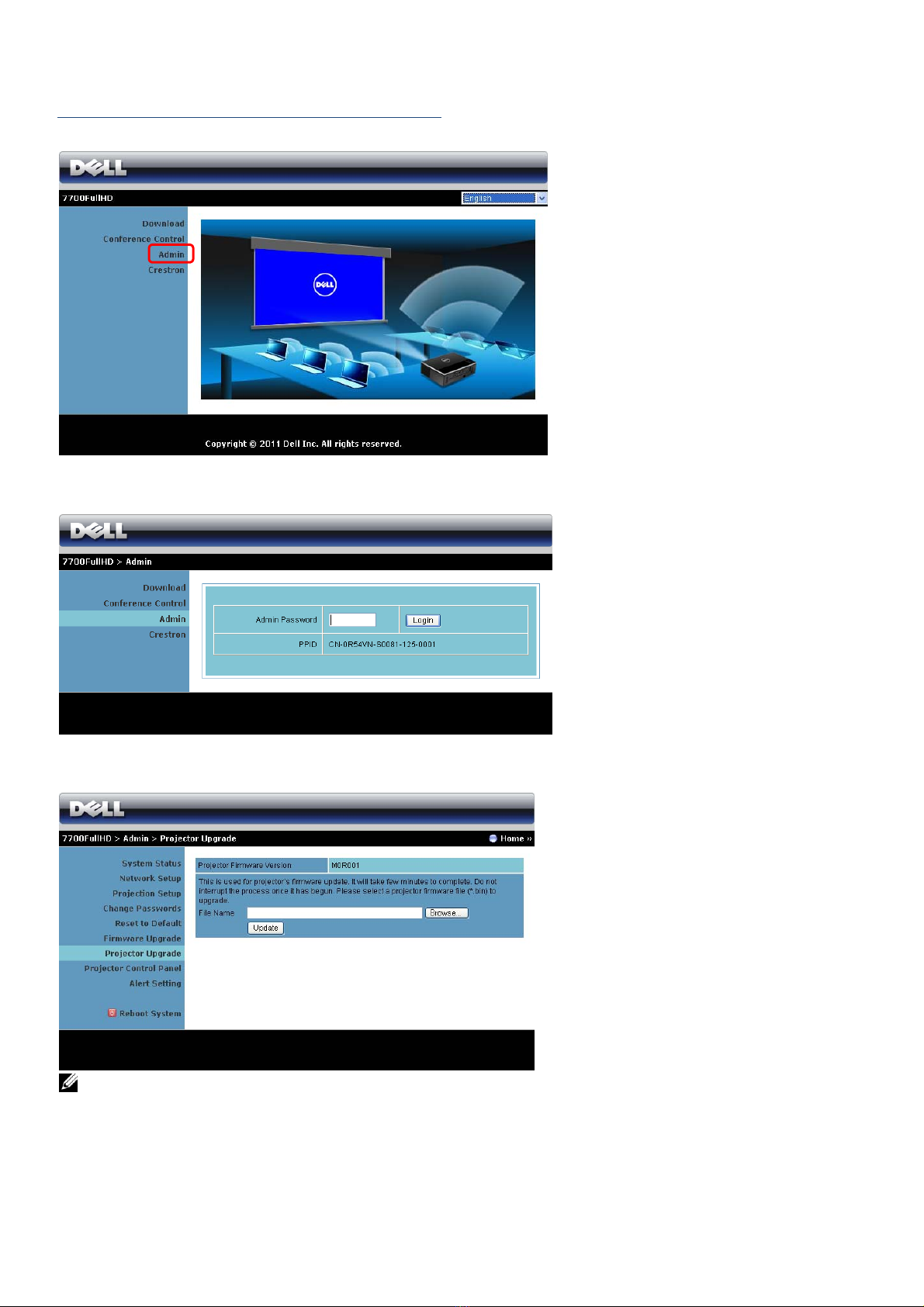

Part C: Upgrade Projector Firmware
5. The 7700FullHD web management page opens. Click Admin.
6. Enter the administrator password (default password is admin), then click Login.
7. Click Firmware Upgrade.
NOTE: Please disable and enable wireless/network using the OSD to restart the network
card for the projector after firmware upgrade is successful.
6
8. Follow these steps to upgrade firmware:
Step A: Click “Browse” to first find the firmware (*.bin) from downloaded Projector FW
folder.
Step B: Click “Update” to start the upgrade firmware (*.bin).
Step C: Download and upgrade firmware (*.bin).
A
B
7
NOTE: Temp and Lamp LEDs are both lighted up (Amber).
△CAUTION: Do not interrupt the update process as this may cause the system to crash.
Step D: Firmware (*.bin) completed, click “OK”. The upgrade is successfully.
8
2. Wireless Firmware Upgrade Setup
Part A: Enable Wireless or LAN on the Projector
1. Connect the power cable and turn on the projector by pressing the power button.
2-1. If the LAN Connection is used for firmware upgrade, follow these steps to re-active
Wireless and LAN feature when the Wireless and LAN is Disabled: Advanced Settings →LAN
Settings →Wireless and LAN →Enabled. Go to Step 3-1.
2-2. If the Wireless Connection is used for firmware upgrade, follow these steps to re-active
wireless connection when the wireless connection is Disconnected: Advanced Settings →
Wireless Settings →Wireless →Connected. Go to Step 3-2.
9
NOTE: If your want to use the wireless connection, need to installed the optional wireless
dongle. The wireless dongle is not shipped with your projector. You can purchase it
from Dell website: www.dell.com.
