Dell S560T Manual de usuario

Dell | Interactive Projector

S560T

Touch Setup Guide

S560T Laser Touch QSC_A00.book Page 1 Wednesday, June 22, 2016 2:39 PM

About Notes

NOTE: A NOTE indicates important information that helps you make better use of your

projector.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal injury, or

death.

__________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of

Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell and the DELL logo are trademarks of Dell Inc.; Microsoft,

Windows 7, and Windows Vista are trademarks or registered trademarks of Microsoft Corporation

in the United States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities

claiming the marks and names or their products. Dell Inc. disclaims any proprietary interest in

trademarks and trade names other than its own.

June 2016

S560T Laser Touch QSC_A00.book Page 2 Wednesday, June 22, 2016 2:39 PM

Set Up Touch on Your Projector

Usage Notice

Please follow all warnings, precautions and

maintenance as recommended in this user's

manual.

WARNING: Do not disassemble Touch

Unit.

WARNING: Do not use, store, or leave the

Touch Unit near fire, or in places with a

high temperature, e.g., in direct sunlight,

or in sun-heated cars.

WARNING: Use standard USB cable

(maximum length: 0.2 inch (5 m )). To

extend USB cable length over 5m, a

certified active extension USB cable is

required.

WARNING: Do not allow liquids or foreign

materials enter the Touch Unit.

Precautions

The Infrared (IR) camera on the projector

receives infrared signal from the Touch Unit

which is attached to the whiteboard.

To operate normally:

• The IR camera should face the

projected image area on the wall.

• Remove any obstacle in between IR

camera and Touch Unit.

• Do not place other infrared

communication devices, such as IR

microphone; lighting equipments; or

residential heating equipments etc,

nearby.

• Use only the interactive cable from the

accessory kit, with the L side connector

plugged into the Touch Unit.

Maintenance: Gently clean the optical port with

a dust blower.

Set Up Touch on Your Projector

S560T Laser Touch QSC_A00.book Page 3 Wednesday, June 22, 2016 2:39 PM

Set Up Touch on Your Projector

How it works

• The Touch Unit covers the entire

whiteboard with a thin invisible IR light.

• When a finger or stylus breaks into the

light curtain, the IR light reflects on to

the IR camera.

• The camera module tracks multiple

touch points and reports the positions

to a computer via USB.

• To optimize the touch function, the

screen non-flatness should be less than

0.2 inch (5 mm).

S560T Laser Touch QSC_A00.book Page 4 Wednesday, June 22, 2016 2:39 PM

Set Up Touch on Your Projector

Specifications

I. Touch Unit (S560T Only)

Laser Safety Class 1

Touch Unit to Screen Distance 0.79 inch ~3.94 inch (20 mm~100 mm) @81"~100" 1080p

LED Indicator Blue/Red

I/O Port Interactive Jack x1

Touch sensor adjustment 2-knob adjustment and with visible light

ID Size(W*L*H) 5.91 (W) x 1.97 (L) x 1.57 (H) inch

(150.0 (W) x 50.0 (L) x 40.0 (H) mm)

Weight < 330 g

Power Consumption 12V/0.3A

Operation Temperature 0 °C~+40 °C (without cooling fan)

Storage Temperature -20 °C~+60 °C

II. General Specifications

Screen Non-flatness <0.2 inch (5 mm)

S560T Laser Touch QSC_A00.book Page 5 Wednesday, June 22, 2016 2:39 PM

Set Up Touch on Your Projector

Display mode Supports ceiling mode only

Calibration 1. Manual Calibration :

9 points manual calibration ,

1080p model: +/- 6 pixels (screen non-flatness <0.2 inch

(5mm))

2. Auto calibration :

1080p model:+/- 8 pixels (screen non-flatness <0.2 inch

(5mm))

3. Supports one-key calibration

Aspect ratio correction Auto- calibration to different display resolutions and aspect

ratios

Multi-touch Windows 7/8/10: 10 touch points

Mac : Single-point touch

ChromeBook: 10 touch points

Multi-touch Min. Distance ≥1.57 inch (40mm)

Trouble Shooting Viewer Utility support real-time image for trouble shooting.

Working Projection Image Size 81"~100" @1080P(co-operate with S560T projector)

S560T Laser Touch QSC_A00.book Page 6 Wednesday, June 22, 2016 2:39 PM

Set Up Touch on Your Projector

*1 : Get S560x Interactive Utility from provided CD or download it from Dell Support

*2 : S560T requires first-time alignment and calibration, ensure you complete setup process

before use

*3 : .NET Framework 4.0 installation is required

*4 : Mac OS support 1 touch point only

III. OS requirement

System Requirements Processor Type Intel Core™ i3 (or above) or same level of

AMD Core.

RAM 2 GB or More

Operating

System

Number of touch

points supported

Installation of S560x Interactive Utility*1

For first-time setup*2 For subsequent use

Windows 7/8/10 10 touch points Supported*3 Not required

Mac OS X

(10.7-10.11)

1 touch point*4 Supported Required, please install the

setup utility on all Mac OS

computers, to use them

with the S560T

Chromebook 10 touch points Not supported, please use a

Windows OS or Mac OS

computer to complete first-

time setup for the S560T

Not required

S560T Laser Touch QSC_A00.book Page 7 Wednesday, June 22, 2016 2:39 PM

Set Up Touch on Your Projector

Step 1: Environment Check

A Make sure the projector is installed under

the following conditions:

-The wall should be strong enough to avoid

projection image flickering.

-Do no install the projector or screen in a

location subject to direct sunlight. If the

projector or the screen is subjected to

direct sunlight, the interactive function

may not operate correctly.

-The surface shall be suitable for the Touch

Unit to be secured with screws.

-The projection image on screen must be

sharp and visible with no light reflections

or hot spots.

-The screen surface should be flat, non-

flatness less than 0.2 inch (5mm). The

surface can either be a flat wall or a

whiteboard. For details on how to check

surface flatness see page 10.

-Keep at least 2 inch (50 mm) clearance

boundary of the projection image to avoid

reflection interference.

-Other IR devices are not allowed because

they will interfere the touch function. For

example, IR microphone.

-Use standard USB cable with a maximum

length of 16.4 ft (5 m). If the USB cable is

longer than 16.4 ft (5 m), a USB Hub or a

certificated active extension USB cable is

required.

-The projected image is a rectangular

shape.

If the projection surface meets the criteria

above, the Touch Unit can then be installed in

one of the following ways

1Mount the Touch Unit on a whiteboard.

S560T Laser Touch QSC_A00.book Page 8 Wednesday, June 22, 2016 2:39 PM

Set Up Touch on Your Projector

2Mount the Touch Unit on a wall surface.

NOTE: The Touch Unit must be mounted

on the same surface as the projected

image.

B S560T Whiteboard size guidance

When mounting the Touch Unit on a

whiteboard please follow the guidelines below:

C Measuring projection surface flatness

-Criteria: overall whiteboard flatness <0.2

inch (5 mm), flatness requirement is <0.12

inch (3 mm) at Touch Unit mounting area.

-Equipment: leveling instrument 3.94~4.92

Ft (1.2~1.5 m) and thickness gauge.

D-1) Split projection area into 16 segments

equally as below chart. Place leveling

instrument on whiteboard.

Spaces of a & b are reserved to cater

for touch unit.

• Dimension a = 50 mm

• Dimension b = 77 mm

* inch [mm]

S1 W1 W2

81.0 [2057] ≥ 44.7 [1136] ≥ 74.5 [1893]

85.0 [2159] ≥ 46.7 [1186] ≥ 78.0 [1982]

89.1 [2263] ≥ 48.7 [1237] ≥ 81.6 [2073]

90.0 [2286] ≥ 49.1 [1248] ≥ 82.4 [2092]

95.0 [2413] ≥ 51.6 [1310] ≥ 86.7 [2203]

100.0 [2540] ≥ 54.0 [1372] ≥ 91.1 [2314]

1080p (16:9) image

S560T Laser Touch QSC_A00.book Page 9 Wednesday, June 22, 2016 2:39 PM

Set Up Touch on Your Projector

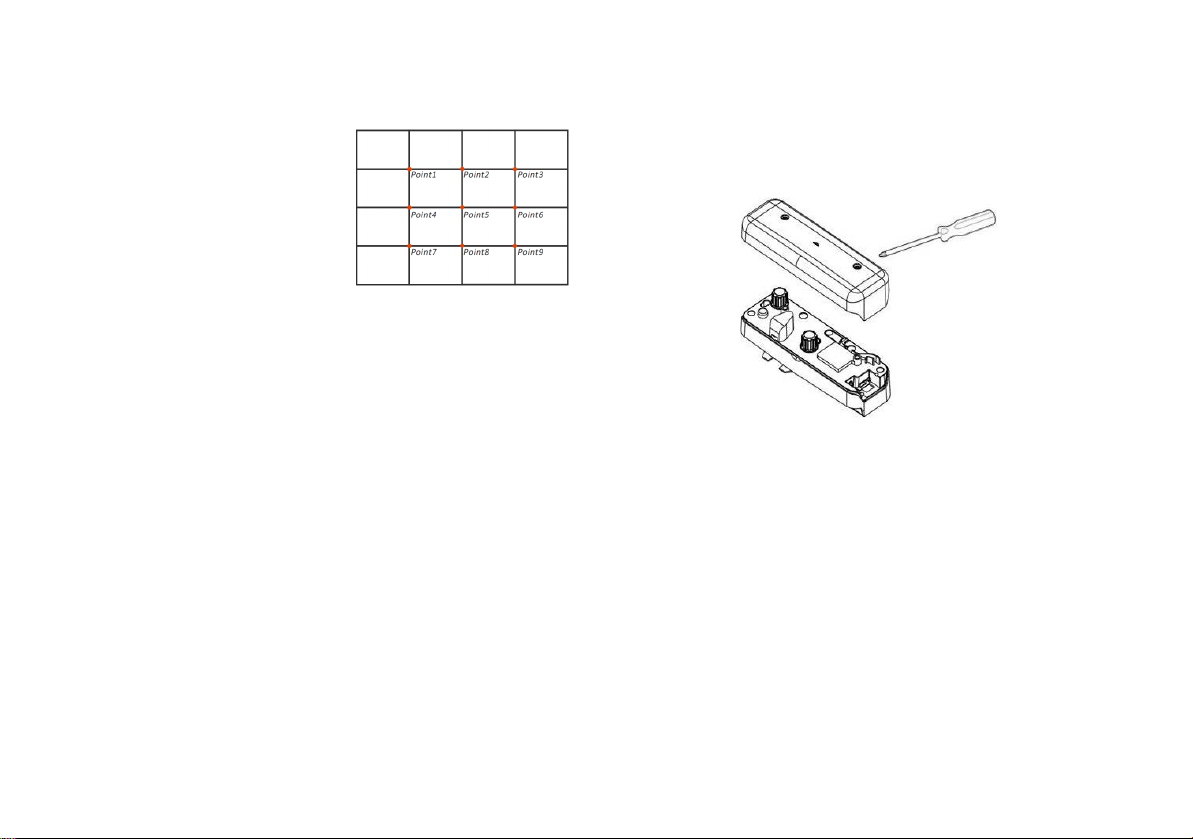

D-2) Insert 0.2 inch (5mm) thickness gauge at

point 1~9 positions in the following order:

Horizontal:

-Measure point 1, 2 & 3.

-Measure point 4, 5 & 6.

-Measure point 7, 8 & 9.

Vertical:

-Measure point 1, 4 & 7.

-Measure point 2, 5 & 8.

-Measure point 3, 6 & 9.

D-3) If 0.2 inch (5 mm) thickness gauge cannot

be inserted, it means whiteboard flatness

is less than 0.2 inch (5 mm) and capable

for finger touch.

Step 2: Installing the Touch

Unit

1Open top cover by Phillips screwdriver

(model: number 1).

2Mount base plate to whiteboard or wall.

Keep distance to image area:

-2.17~5.31 inch (55~135 mm) from bottom

of the base plate

S560T Laser Touch QSC_A00.book Page 10 Wednesday, June 22, 2016 2:39 PM
