Dell XPS 730X Manual de usuario

www.dell.com | support.dell.com

Dell™ XPS™ 730/730X Service Manual

Model DCDO

Notes, Cautions, and Warnings

NOTE: A NOTE indicates important information that helps you make better use of

your computer.

CAUTION: A CAUTION indicates potential damage to hardware or loss of data if

instructions are not followed.

WARNING: A WARNING indicates a potential for property damage, personal

injury, or death.

If you purchased a Dell™ n Series computer, any references in this document to

Microsoft

Windows

operating systems are not applicable.

____________________

Information in this document is subject to change without notice.

Reproduction of these materials in any manner whatsoever without the written permission of Dell Inc.

is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and XPS are trademarks of Dell Inc.; Microsoft

and Windows,are either trademarks or registered trademarks of Microsoft Corporation in the United

States and/or other countries.

Other trademarks and trade names may be used in this document to refer to either the entities claiming

the marks and names or their products. Dell Inc. disclaims any proprietary interest in trademarks and

trade names other than its own.

Model DCDO

November 2008 Rev. A00

Contents 3

Contents

1 Technical Overview . . . . . . . . . . . . . . . . . . 7

Inside View of Your Computer . . . . . . . . . . . . . . . 7

System Board Components . . . . . . . . . . . . . . . . 8

Dell™ XPS™ 730 . . . . . . . . . . . . . . . . . . . 8

Dell XPS 730X . . . . . . . . . . . . . . . . . . . . 10

Master Control Board . . . . . . . . . . . . . . . . . . 12

2 Before You Begin. . . . . . . . . . . . . . . . . . . 13

Technical Specifications . . . . . . . . . . . . . . . . 13

Recommended Tools. . . . . . . . . . . . . . . . . . . 13

Turning Off Your Computer. . . . . . . . . . . . . . . . 13

Safety Instructions. . . . . . . . . . . . . . . . . . . . 14

3 Replacing the Computer Stand . . . . . . . . 15

4 Replacing the Computer Cover . . . . . . . . 17

5 Replacing the Theater Lighting Unit . . . . 19

Replacing the Batteries . . . . . . . . . . . . . . . . . 19

4Contents

Replacing the Theater Lighting Card . . . . . . . . . . 20

6 Replacing Memory Module(s) . . . . . . . . 23

7 Replacing a PCI/PCI Express Card . . . . 27

Removing a PCI Express Graphics Card From a

Multi Graphics Card Configuration . . . . . . . . . . . 28

Installing Graphics Cards for Multi Graphics Card . . . 31

Replacing the PCI and PCI Express Cards. . . . . . . . 35

8 Replacing Drives . . . . . . . . . . . . . . . . . . 43

Replacing a Hard Drive . . . . . . . . . . . . . . . . . 43

Replacing the Drive Panel . . . . . . . . . . . . . . . . 51

Replacing a Floppy Drive (XPS 730 Only) . . . . . . . . 53

Replacing a Media Card Reader. . . . . . . . . . . . . 62

9 Replacing the Heat Sink Assembly . . . . 67

Replacing the Air Cooled Heat Sink Assembly . . . . . 67

Replacing the Liquid Cooling Heat Sink Assembly . . . 69

10 Replacing the Processor . . . . . . . . . . . . 73

Removing the Processor . . . . . . . . . . . . . . . . . 74

Installing the Processor . . . . . . . . . . . . . . . . . 75

Contents 5

11 Replacing Fans . . . . . . . . . . . . . . . . . . . . 77

Removing the Card Slot and

Processor Fan Shrouds. . . . . . . . . . . . . . . 77

Replacing the Card Slot Fan Assembly. . . . . . . 77

Replacing the Processor Fan Assembly . . . . . . 79

Replacing the Hard Drive Fan . . . . . . . . . . . 80

12 Replacing the Master Control Board . . . 83

13 Replacing the System Board . . . . . . . . . . 85

14 Replacing the Power Supply . . . . . . . . . . 89

15 Replacing the Battery . . . . . . . . . . . . . . . 93

16 System Setup . . . . . . . . . . . . . . . . . . . . . . 95

Overview . . . . . . . . . . . . . . . . . . . . . . . . . 95

Entering System Setup . . . . . . . . . . . . . . . . . . 95

System Setup Screens . . . . . . . . . . . . . . . 95

System Setup Options—Dell™ XPS™ 730 . . . . . . . 97

System Setup Options—Dell XPS 730X . . . . . . . . . 99

Boot Sequence. . . . . . . . . . . . . . . . . . . . . . 103

Option Settings . . . . . . . . . . . . . . . . . . . 103

Changing Boot Sequence for the

Current Boot . . . . . . . . . . . . . . . . . . . . 103

Changing Boot Sequence for Future Boots . . . . 104

6Contents

Clearing CMOS Settings . . . . . . . . . . . . . . . . 104

Technical Overview 7

Technical Overview

WARNING: Before working inside your computer, read the safety information

that shipped with your computer. For additional safety best practices information,

see the Regulatory Compliance Homepage at

www.dell.com/regulatory_compliance.

Inside View of Your Computer

1 optical drive bays (4) 2 floppy drive/media card reader

3 hard drive bays (4) 4 processor cooling solution: liquid

cooling assembly (shown) or air

cooling assembly

5 card fan

8Technical Overview

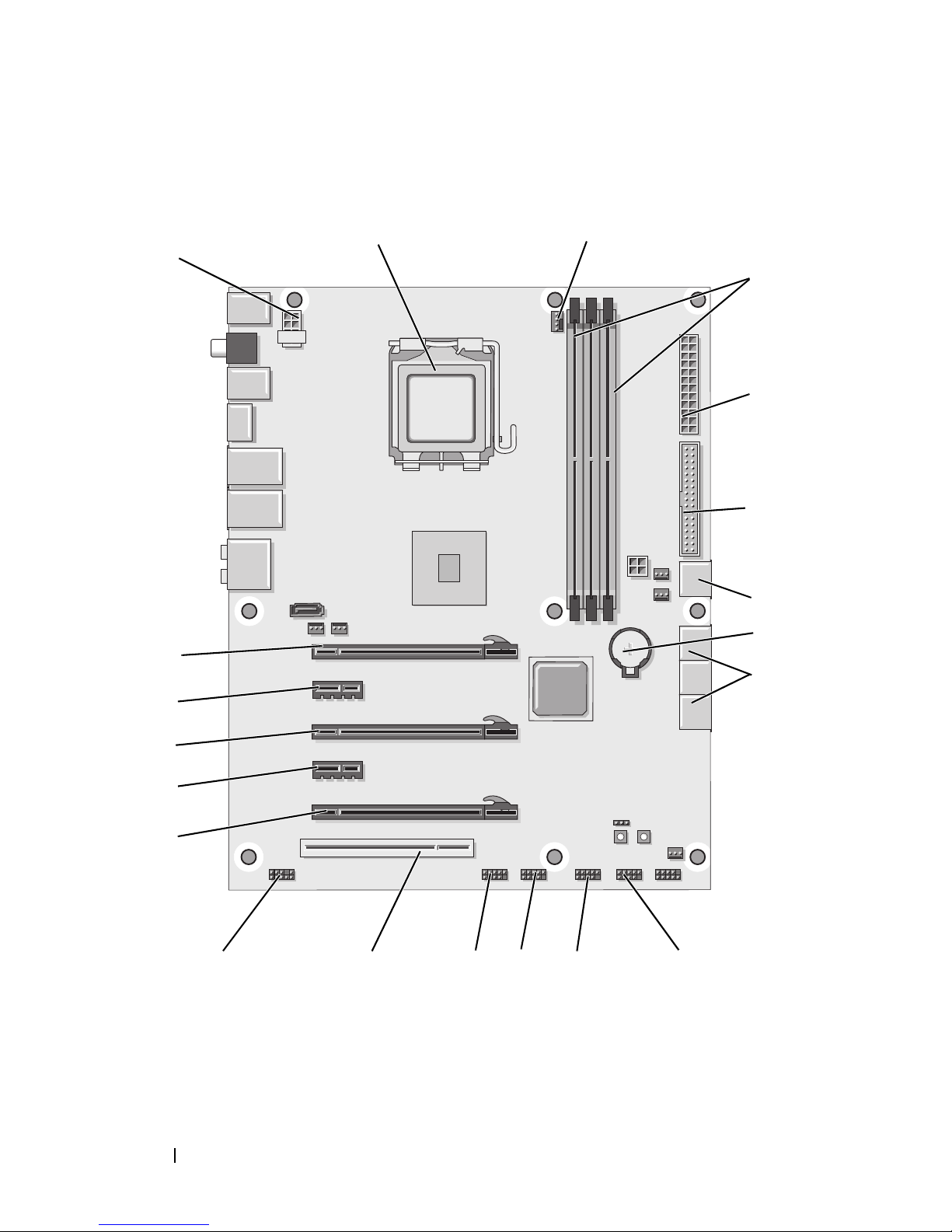

System Board Components

Dell™ XPS™ 730

12 11

16 15

Technical Overview 9

1 CPU socket 2 system board CPU fan header

3 DIMMs 0 and 1 (DIMM 0-1) 4 DIMMs 2 and 3 (DIMM 2-3)

5 ATX power connector

(ATX_PWR)

6 IDE connector (IDE)

7 SATA ports 3-6 (SATA 3-6) 8 floppy header (FLOPPY)

9 BIOS debug codes (PORT 80

DECODER)

10 SATA ports 1-2 (SATA 1-2)

11 font panel connector (FRONT

PNL)

12 serial port header (SERIAL

PORT)-unused

13 reset CMOS jumper (RESET

CMOS)

14 internal USB header 1 (USB)

15 internal USB header 2 (USB) 16 1394 header

17 battery socket 18 power button (POWER)

19 reset button (RESET) 20 front panel audio header (FP

Audio)

21 PCI slot 1 (PCI SLOT 1) 22 PCIe x16 (Generation 2) slot 2

(PCIe x16_2)

23 PCI slot 2 (PCI SLOT 2) 24 PCIe x16 (Generation 1) slot 3

(PCIe x16_3)

25 PCIe x1 slot (PCIe x1) 26 PCIe x16 (Generation 2) slot 1

(PCIe x16_1)

27 PCIe x1 slot (PCIe x1) 28 internal eSATA header

29 CPU power header

10 Technical Overview

Dell XPS 730X

14 10
