Dell OptiPlex 7010 Manual de usuario

TECHNICAL GUIDEBOOK

INSIDE THE OPTIPLEX 7010

DELL

OPTIPLEX 7010

TABLE OF CONTENTS

O V E R V IE W

Mini Tower Computer (MT) View 3-4

Desktop Computer (DT) View 5-6

Small Form Factor Computer (SFF) View 7-8

Ultra Small Form Factor Computer (USFF) View 9-10

M A R K E T I N G S Y S T E M C O N F I G U R A T I O N S

Operating System, Chipset 11

Processor 12

Memory 13

Drives and Removable Storage, 14

System Board Connectors 15

Graphics/Video Controller 16

External Ports/Connectors 16

Communications—Network Adapter (NIC), Wireless 17

Audio and Speakers, Keyboard and Mouse 17

Security, Service and Support, Software 18

DETAILED ENGINEE RING S PECIF IC ATIONS

System Dimensions (Physical) 19

System Board Connector Maximum Allowable Dimensions 19

System Level Environmental and Operating Conditions 20

Power 21-22

Audio 23

Communications 23-28

Graphics/Video Controller 29-30

Hard Drives 31-38

Optical Drive 39-40

Media Card Reader 41

BIOS Defaults 42

Chassis Enclosure and Ventilation Requirements 43

Acoustic Noise Emission Information 44-47

DELL™ OPTIPLEX™ 7010 TECHNICAL GUIDEBOOK VER1.0

MINI TOWER COMPUTER (MT) VIEW

FRONT VIEW

1Power Button, Power

Light

6Optical Drive (optional)

2Optical Drive Bay

(optional)

7Optical Drive Eject

Button

3Headphone Connector 8USB 2.0 Connectors (2)

4Microphone

Connector

9Drive Activity Light

5USB 3.0 Connectors

(2)

BACK VIEW

10 Power Supply Diag-

nostic Light

14 Expansion Card Slots

(4)

11 Power Supply Diag-

nostic Button

15 Kensington / Noble

Security Cable Slot

12 Power Connectors 16 Padlock Ring

13 Back Panel Connect-

ors

BACK PANEL CONNECTORS

1PS2 Mouse Con-

nector 7SP2 Keyboard Con-

nector

2Link Integrity Light 8USB2.0 Connectors (2)

3Network Connector 9DisplayPort Connector

(2)

4Network Activity

Light 10 USB2.0 Connectors (2)

USB3.0 Connectors (2)

5Serial Connector 11 VGA Connector

6Line-out Connector 12 Line-in/Microphone

Connector

DELL™ OPTIPLEX™ 7010 TECHNICAL GUIDEBOOK VER1.0

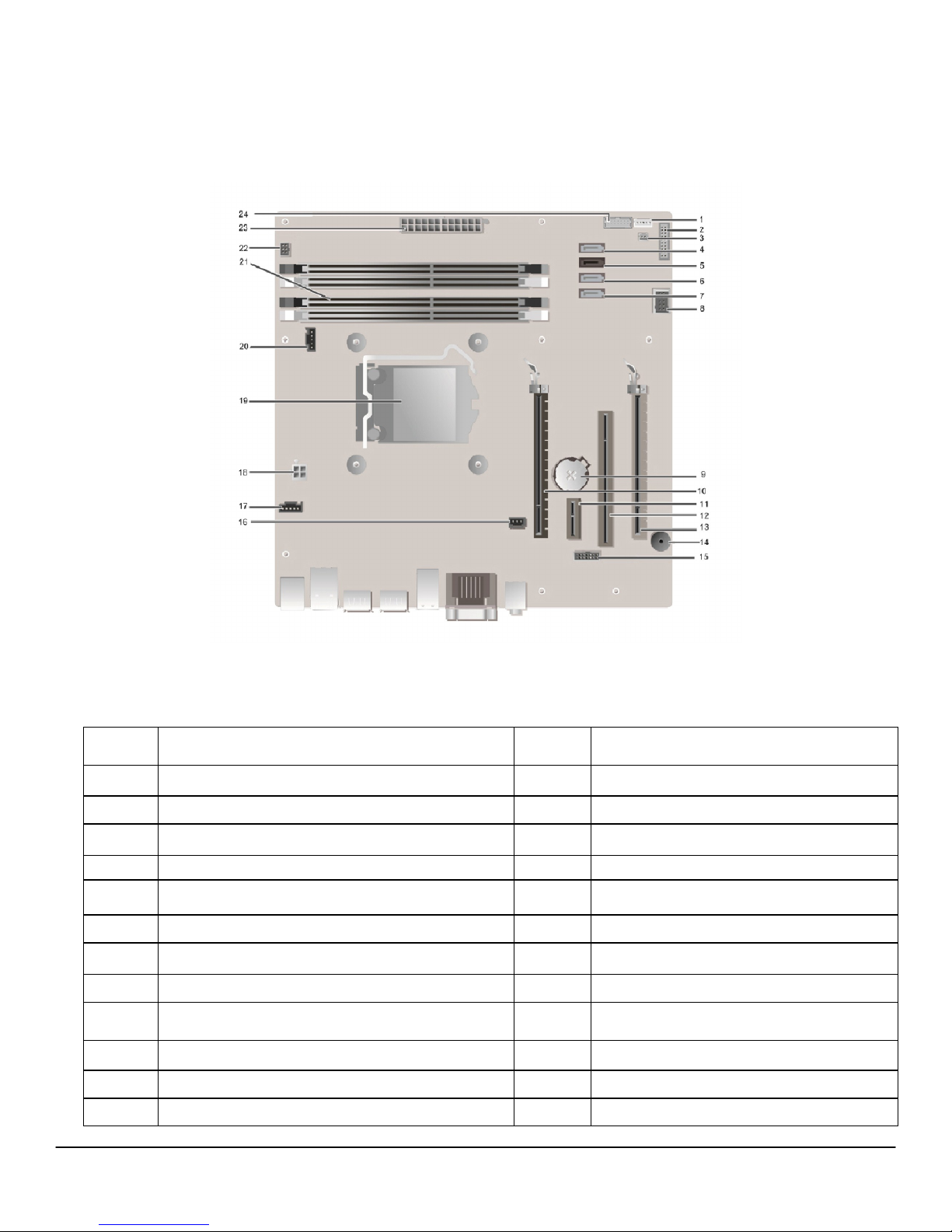

MT System Board Components

Num-

ber Name Num-

ber Name

1Internal Speaker Connector (INT_SPKR) 13 PCI-e x16 (wire x4) Connector (SLOT4)

2Front IO Connector (FRONTPANEL) 14 Buzzer (BEEP)

3Thermal Sensor Connector (THRM_2) 15 LPC Debug Connector (LPC_DEBUG)

4SATA 0 Connector (SATA0) 16 Intrusion Switch Connector (INTRUDER)

5SATA 1 Connector (SATA1) 17 System Fan Connector (FAN_HDD)

6SATA 2 Connector (SATA2) 18 P2 Power Connector (12V_PWRCONN)

7SATA 3 Connector (SATA3) 19 Processor Socket (N/A)

8Internal USB Connector (INT_USB) 20 CPU fan Connector (FAN_CPU)

9Battery Connector (BATTERY) 21 Memory Connectors (DIMM1, DIMM2,

DIMM3, DIMM4)

10 PCI-e x16 Connector (SLOT1) 22 Power Switch Connector (PWR_SW)

11 PCI-e x1 Connector (SLOT2) 23 P1 Power Connector (POWER)

12 PCI Connector (SLOT3) 24 Front USB3.0 Connector (Front _USB )

DELL™ OPTIPLEX™ 7010 TECHNICAL GUIDEBOOK VER1.0

DESKTOP COMPUTER (DT) VIEW

BACK VIEW

9Padlock Ring 13 Expansion Card Slots

(4)

Kensington / Noble

Security Cable Slot 14 Power Supply

Diagnostic Light

11 Power Connectors 15 Power Supply

Diagnostic Button

Back Panel

Connectors

FRONT VIEW

1Optical Drive 5USB 3.0 Connectors (2)

2Optical Drive Eject

Button 6Microphone Connector

3Power Button, Power

Light 7Headphone Connector

4USB 2.0 Connectors (2) 8Drive Activity Light

BACK PANEL CONNECTORS

1PS2 Mouse

Connector 7PS2 Keyboard

Connector

2Link Integrity Light 8USB2.0 Connectors (2)

3Network Connector 9DisplayPort Connector

(2)

4Network Activity

Light 10 USB2.0 Connectors (2)

USB3.0 Connectors (2)

5Serial Connector 11 VGA Connector

6Line-out Connector 12 Line-in/Microphone

Connector

DELL™ OPTIPLEX™ 7010 TECHNICAL GUIDEBOOK VER1.0

DT System Board Components

Num-

ber Name Num-

ber Name

1Internal Speaker Connector (INT_SPKR) 12 PCI-e x16 (wire x4) Connector (SLOT4)

2Front IO Connector (FRONTPANEL) 13 Buzzer (BEEP)

3Thermal Sensor Connector (THRM_2) 14 LPC Debug Connector (LPC_DEBUG)

4SATA 0 Connector (SATA0) 15 Intrusion Switch Connector (INTRUDER)

5SATA 1 Connector (SATA1) 16 System Fan Connector (FAN_HDD)

6SATA 2 Connector (SATA2) 17 P2 Power Connector (12V_PWRCONN)

7Internal USB Connector (INT_USB) 18 Processor Socket (N/A)

8Battery Connector (BATTERY) 19 CPU fan Connector (FAN_CPU)

9PCI-e x16 Connector (SLOT1) 20 Memory Connectors (DIMM1, DIMM2,

DIMM3, DIMM4)

10 PCI-e x1 Connector (SLOT2) 21 Power Switch Connector (PWR_SW)

11 PCI Connector (SLOT3) 22 P1 Power Connector (POWER)

23 Front USB3.0 Connector (Front _USB )

DELL™ OPTIPLEX™ 7010 TECHNICAL GUIDEBOOK VER1.0

SMALL FORM FACTOR COMPUT ER (SFF) VIEW

FRONT VIEW

1Optical Drive 5USB 3.0 Connectors (2)

2Optical Drive Eject

Button

6Microphone Connector

3Power Button, Power

Light

7Headphone Connector

4USB 2.0 Connectors (2) 8Drive Activity Light

BACK VIEW

9Padlock Ring 13 Power Supply

Diagnostic Light

10 Kensington / Noble

Security Cable Slot

14 Back Panel

Connectors

11 Power Connectors 15 Expansion Card Slots

(2)

12 Power Supply

Diagnostic Button

BACK PANEL CONNECTORS

1PS2 Mouse

Connector

7PS2 Keyboard Connector

2Serial Connector 8 VGA Connector

3Link Integrity Light 9 DisplayPort Connector(2)

4Network Connector 10 USB 2.0 Connectors (2)

5Network Activity Light 11 USB2.0 Connectors (2)

USB3.0 Connectors (2)

6Line-out Connector 12 Line-in/Microphone Con-

nector

DELL™ OPTIPLEX™ 7010 TECHNICAL GUIDEBOOK VER1.0

SFF System Board Components

Number Name Number Name

1P1 power Connector (POWER) 11 Front IO Connector (FRONTPANEL)

2System fan Connector (FAN_HDD) 12 Intrusion Switch Connector (INTRUDER)

3Internal Speaker Connector (INT_SPKR) 13 LPC debug Connector (LPC_DEBUG)

4Buzzer (BEEP) 14 Battery Connector (BATTERY)

5PCI-e x16 (wire x4) Connector (SLOT2) 15 P2 Power Connector (12V_PWRCONN)

6PCI-e x16 Connector (SLOT1) 16 Processor Connector (N/A)

7Front USB3.0 Connector (Front _USB ) 17 CPU Fan Connector (FAN_CPU)

8SATA 2 Connector (SATA2) 18 Power Switch Connector (PWR_SW)

9SATA 1 Connector (SATA1) 19 Memory Connectors (DIMM1, DIMM2,

DIMM3, DIMM4)

10 SATA 0 Connector (SATA0)

DELL™ OPTIPLEX™ 7010 TECHNICAL GUIDEBOOK VER1.0

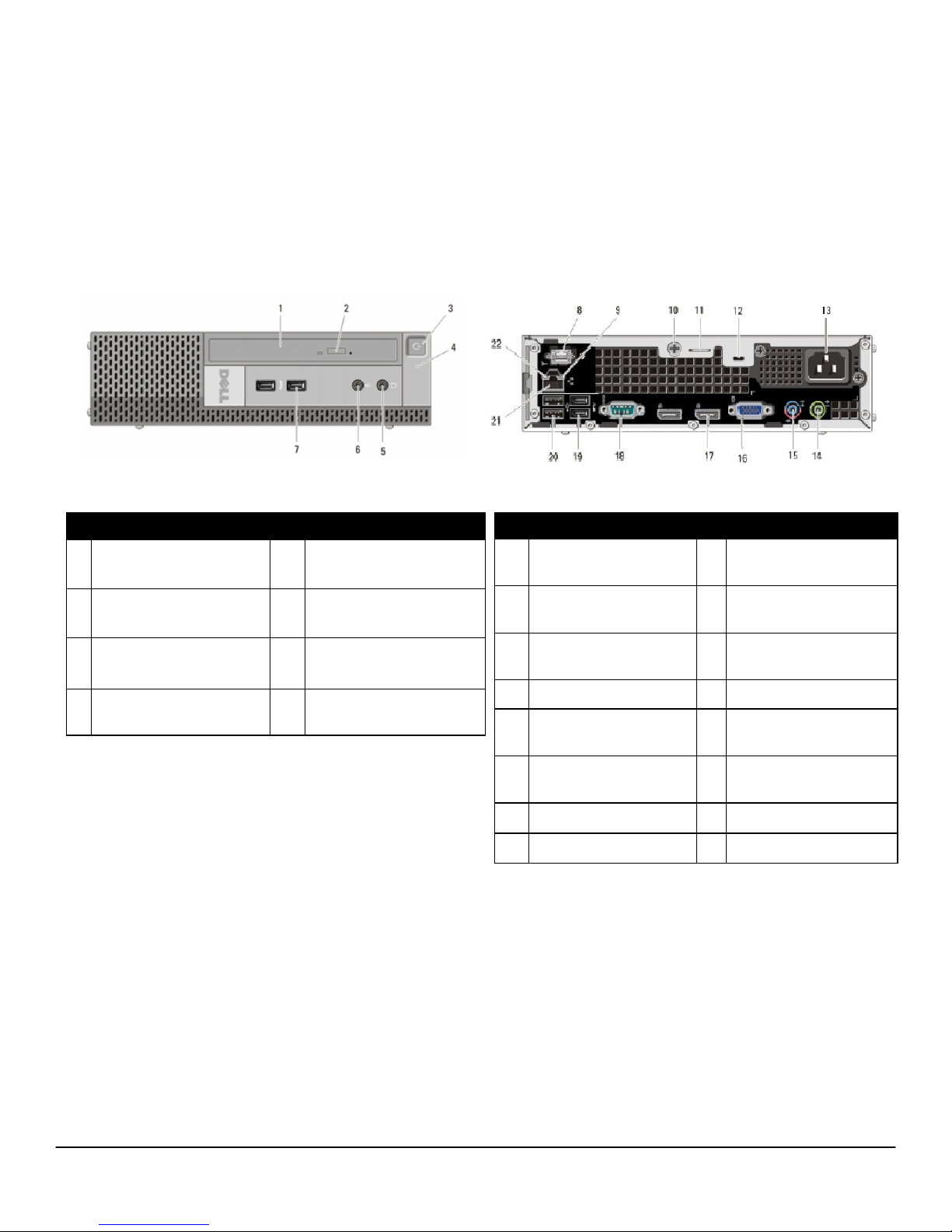

ULTRA SMALL FORM FACTOR COMPUTER (USFF) VIEW

FRONT VIEW

1Optical Drive 5Headphone Connector

2Optical Drive Eject

Button

6Microphone Connector

3Power Button, Power

Light

7USB 3.0 Connectors (2)

4Drive Activity Light

BACK VIEW

8Wi-Fi Antenna

(optional) 15 Line-in/ Microphone

Connector

9Network Activity Light 16 VGA Connector

10 Captive Thumbscrew 17 DisplayPort Connector

(2)

11 Padlock Ring 18 Serial Connector

12 Kensington / Noble

Security Cable Slot 19 USB 3.0 Connectors

(2)

13 Power Connector 20 USB 2.0 Connectors

(2)

14 Line-Out Connector 21 Network Connector

22 Link Integrity Light

DELL™ OPTIPLEX™ 7010 TECHNICAL GUIDEBOOK VER1.0

USFF System Board Components

Number Name Number Name

1Front Panel Connector (FRONTPANEL) 9HDD-ODD Power Connector

(HDD_ODD_POWER)

2Memory Connector (DIMM_1,DIMM_2) 10 SATA 1 Connector (SATA1)

3CPU Fan Connector (FAN_CPU) 11 P1 Power Connector (POWER)

4Internal Speaker Connector (INT_SPKR) 12 SATA 0 Connector (SATA0)

5Front IO Connector (F_USB_AUDIO) 13 Intrusion Switch Connector

(INTRUDER)

6System Fan Connector (FAN_HDD) 14 LPC Debug Connector (LPC_DEBUG)

7Mini-PCI Socket (PCIE_MINICARD) 15 P2 Power Connector (12V_PWRCONN)

8Front USB3.0 connector (Front USB) 16 Processor socket (N/A)

17 Battery Connector (BATTERY)
