Dell Vostro 410 Manual de usuario

Dell™Vostro™410ServiceManual



Notes, Notices, and Cautions

IfyoupurchasedaDELL™nSeriescomputer,anyreferencesinthisdocumenttoMicrosoft®Windows®operating systems are not applicable.

Information in this document is subject to change without notice.

©2008DellInc.Allrightsreserved.

Reproduction in any manner whatsoever without the written permission of Dell Inc. is strictly forbidden.

Trademarks used in this text: Dell, the DELL logo, and Vostro are trademarks of Dell Inc.; Microsoft, Windows,Windows Vista, and the Windows start button logo are either trademarks

or registered trademarks of Microsoft Corporation in the United States and/or other countries. Bluetooth is a registered trademark of Bluetooth SIG Inc.

Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products. Dell Inc. disclaims any

proprietary interest in trademarks and trade names other than its own.

Model DCGAF

August2008Rev.A00

Troubleshooting

Working on Your Computer

Computer Cover

Bezel

PCI and PCI Express Cards

Drives

I/O Panel

Fans

Memory

Battery

Processor

Power Supply

System Board

System Setup

Contacting Dell

NOTE: A NOTE indicates important information that helps you make better use of your computer.

NOTICE: A NOTICE indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.

CAUTION: A CAUTION indicates potential for property damage, personal injury, or death.

Back to Contents Page

Bezel

Dell™Vostro™410ServiceManual

Removing the Bezel

Replacing the Bezel



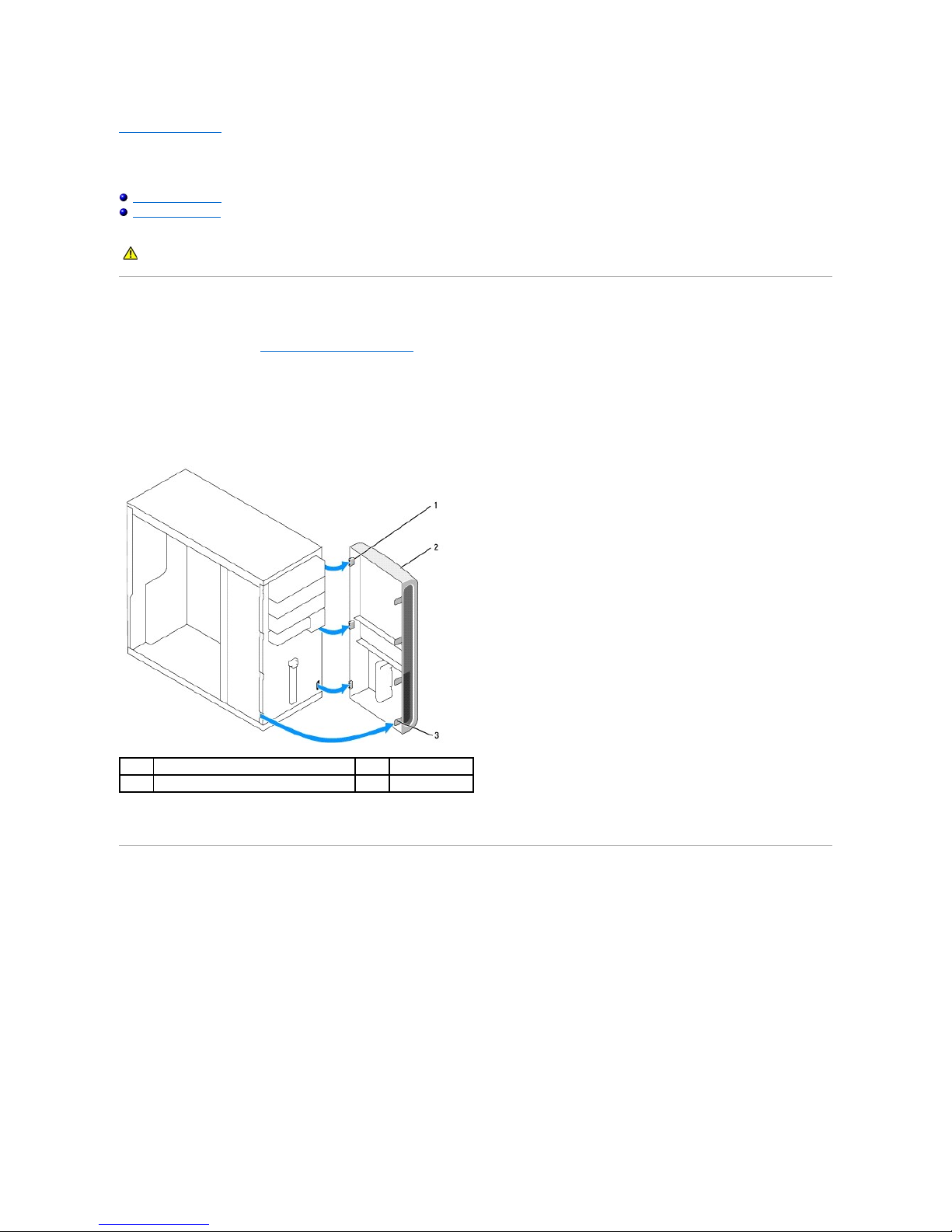

Removing the Bezel



1. Follow the procedures in Before Working on Your Computer.



2. Remove the computer cover (see Removing the Computer Cover).



3. With the computer set upright, find the four cover bezel grips inside the chassis along the left edge of the cover. Gently bend the bezel grips outward to

release the left side of the cover from the chassis.



4. Rotate the left edge of the cover outward until the bezel clamps on the right side of the cover are free of the clamp slots.



5. Set aside the bezel in a secure location.

Replacing the Bezel



1. With the computer set upright, align and insert the bezel clamps into the bezel clamp slots along the right edge of the front panel.

CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

bezel clamp (3)

bezel

bezel grip (4)



2. Rotate the front cover toward the computer until it bezel grips on the left edge of the cover snap into place.



3. Perform the steps in the procedure After Working on Your Computer.

Back to Contents Page



bezel clamp (3)

bezel

bezel grip (4)

bezel clamp slots (3)

Back to Contents Page

PCI and PCI Express Cards

Dell™Vostro™410ServiceManual

Removing a PCI or PCI Express Card

Installing a PCI or PCI Express Card

Configuring Your Computer After Removing or Installing a PCI or PCI Express Card



YourcomputerprovidesthefollowingslotsforPCIandPCIExpresscards:

lOne PCI Express x16 card slot (SLOT1)

lTwo PCI Express x1 card slots (SLOT2, SLOT3)

lThree PCI card slots (SLOT4, SLOT5, SLOT6)

See System Board Components for card slot location.

Removing a PCI or PCI Express Card



1. Follow the procedures in Before Working on Your Computer.



2. Uninstall the card's driver and software from the operating system. For more information, see your Setup and Quick Reference Guide.



3. Remove the computer cover. See Removing the Computer Cover.



4. Remove the bracket screw securing the card to the chassis.



5. If necessary, disconnect any cables connected to the card.



6. Remove the card:

lFor a PCI card, grasp the card by its top corners, and ease it out of its connector.

lFor a PCI Express card, pull the securing tab, grasp the card by its top corners, and then ease it out of its connector.



7. If you are removing the card permanently, install a filler bracket in the empty card-slot opening.



CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.

alignment bar

fully-seated card

not fully-seated card

bracket screw

bracket within slot

bracket caught outside of slot

NOTE: Installing filler brackets over empty card-slot openings is necessary to maintain FCC certification of the computer. The brackets also keep

dust and dirt out of your computer.

8. Perform the steps in the procedure After Working on Your Computer.



9. To complete the removal procedure, see Configuring Your Computer After Removing or Installing a PCI or PCI Express Card.

Installing a PCI or PCI Express Card



1. Follow the procedures in Before Working on Your Computer.



2. Remove the computer cover. See Removing the Computer Cover.



3. If you are installing a new card, remove the screw holding the expansion card filler bracket.



4. If you are replacing a card that is already installed in the computer, remove the card (see Removing a PCI or PCI Express Card).



5. Prepare the card for installation.

See the documentation that came with the card for information on configuring the card, making internal connections, or otherwise customizing it for your

computer.



6. If you are installing the PCI Express card into the x16 card connector, position the card so the securing slot is aligned with the securing tab.



7. Place the card in the connector and press down firmly. Ensure that the card is fully seated in the slot.



8. Replace and tighten the screw to secure the card in the slot.



NOTE: The position of the card shown in the illustration is indicative and may vary from the original.

CAUTION: Some network adapters automatically start the computer when they are connected to a network. To guard against electrical shock, be

sure to unplug your computer from its electrical outlet before installing any cards.

alignment bar

fully-seated card

not fully-seated card

bracket screw

bracket within slot

bracket caught outside of slot

PCI Express x16 card

PCI Express x16 card slot

securing tab

PCI Express x1 card slot

PCI Express x1 card

securing slot



9. Connect any cables that should be attached to the card.



10. See the documentation for the card for information about the card's cable connections.



11. Perform the steps in the procedure After Working on Your Computer.



12. Install any drivers required for the card as described in the card documentation.

Configuring Your Computer After Removing or Installing a PCI or PCI Express Card

Back to Contents Page



NOTICE: Do not route card cables over or behind the cards. Cables routed over the cards can prevent the computer cover from closing properly or

cause damage to the equipment.

NOTE: For information on location of connectors, see the Setup and Quick Reference Guide. For information on installing drivers and software for your

card, see the documentation that shipped with the card.



Installed

Removed

Sound

Card

1. Enter system setup (see

Entering System Setup)

2. Go to Integrated

Peripherals and select

Onboard Audio Controller,

and then change the

setting to Disabled.

3. Connect the external audio

devices to the sound card's

connectors.

1. Enter system setup

(see Entering System

Setup)

2. Go to Integrated

Peripherals and select

Onboard Audio

Controller, and then

change the setting to

Enabled.

3. Connect the external

audio devices to the

computer's back panel

connectors.

Network

Card

1. Enter system setup (see

Entering System Setup)

2. Go to Integrated

Peripherals and select

Onboard LAN Controller,

and then change the

setting to Disabled, if you

prefer not to use both

interfaces.

3. Connect the network cable

to the network card's

connector.

1. Enter system setup

(see Entering System

Setup)

2. Go to Integrated

Peripherals and select

Onboard LAN

Controller, and then

change the setting to

Enabled.

3. Connect the network

cable to the integrated

network connector.

Back to Contents Page

Battery

Dell™Vostro™410ServiceManual

Removing the Battery

Replacing the Battery



A coin-cell battery maintains computer configuration, date, and time information. The battery can last several years. If you have to repeatedly reset time and

date information after turning on the computer, replace the battery.

Removing the Battery



1. Recordallthescreensinsystemsetupsothatyoucanrestorethecorrectsettingsinstep9(seeSystem Setup).



2. Follow the procedures in Before Working on Your Computer.



3. Remove the computer cover (see Removing the Computer Cover).



4. Locate the battery socket (see System Board Components).



5. Carefully press two of the battery retention tabs away from the battery to release the battery from the socket.



6. Remove the battery from the system and properly dispose of the battery.

Replacing the Battery



1. Insert the new battery into the socket with the side labeled "+" facing up, then snap the battery into place. Ensure that it is secured by each of the

retention tabs.



2. Perform the steps in the procedure After Working on Your Computer.



3. Enter system setup (see Entering System Setup)andrestorethesettingsyourecordedinstep1.Also,enterthecorrectdateandtime.

Back to Contents Page



CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: A new battery can explode if it is incorrectly installed. Replace the battery only with the same or equivalent type recommended by the

manufacturer. Discard used batteries according to the manufacturer's instructions.

NOTICE: If you pry the battery out of its socket with a blunt object, be careful not to touch the system board with the object. Ensure that the object is

inserted between the battery and the socket before you attempt to pry out the battery. Otherwise, you may damage the system board by prying off

the socket or by breaking circuit traces on the system board.

battery (positive side)

battery retention tabs (4)

Back to Contents Page

Contacting Dell

Dell™Vostro™410ServiceManual

To contact Dell for sales, technical support, or customer service issues:



1. Visit support.dell.com.



2. Verify your country or region in the Choose a Country/Region drop-down menu at the bottom of the page.



3. Click Contact Us on the left side of the page.



4. Select the appropriate service or support link based on your need.



5. Choose the method of contacting Dell that is convenient for you.

Back to Contents Page



Back to Contents Page

Computer Cover

Dell™Vostro™410ServiceManual

Removing the Computer Cover

Replacing the Computer Cover



Removing the Computer Cover



1. Follow the procedures in Before Working on Your Computer.



2. Lay your computer on its right side with the computer cover facing up.



3. Remove the two screws securing the cover.



4. Release the computer cover by pulling it away from the front of the computer and lifting it up.



5. Set the cover aside in a secure location.

Replacing the Computer Cover



1. Ensure that all cables are connected and folded out of the way.



2. Ensure that no tools or extra parts are left inside the computer.



3. Align the tabs at the bottom of the computer cover with the slots located along the edge of the computer.



4. Press the computer cover down and slide it towards the front of the computer until you feel a click or feel the computer cover securely installed.



5. Ensure that the cover is seated correctly.



6. Replace and tighten the two screws that secure the computer cover.

CAUTION: Before working inside your computer, read the safety information that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage at www.dell.com/regulatory_compliance.

CAUTION: To guard against electrical shock, always unplug your computer from the electrical outlet before removing the cover.

CAUTION: Do not operate your equipment with any cover(s) (including computer covers, bezels, filler brackets, front-panel inserts, etc.)

removed.

NOTICE: Ensure that sufficient space exists to support the system with the cover removed—at least 1 ft. (30 cm) of desktop space.

computer cover

bezel



7. Follow the procedures in After Working on Your Computer.

Back to Contents Page



Otros manuales para Vostro 410

Tabla de contenidos

Otros manuales de De oficina de Dell

Dell

Dell Precision 7560 Manual de instrucciones

Dell

Dell Dimension 4100 Manual de usuario

Dell

Dell OptiPlex GX100 Manual de usuario

Dell

Dell OptiPlex 745c Manual de usuario

Dell

Dell OptiPlex 5090 Small Form Factor Manual de usuario

Dell

Dell OptiPlex 330 Manual de usuario

Dell

Dell Alienware X51 Manual de usuario

Dell

Dell Inspiron 3472 Manual de operación y mantenimiento

Dell

Dell OptiPlex 745 Manual de usuario

Dell

Dell OptiPlex HUB Manual de usuario

Dell

Dell OptiPlex 3020 Manual de usuario

Dell

Dell Studio XPS 7100 Manual de usuario

Dell

Dell Alienware Aurora R8 Manual de usuario

Dell

Dell Dimension 8400 Series Manual

Dell

Dell OptiPlex Gn+ Manual de usuario

Dell

Dell Precision Workstation 650 Manual de usuario

Dell

Dell vostro Manual de usuario

Dell

Dell OptiPlex JK523 Manual de usuario

Dell

Dell Latitude 7000 Series Instrucciones de funcionamiento y mantenimiento

Dell

Dell GX620 - 3.6GHz Desktop 1GB RAM 80GB Windows XP... Manual de usuario

Dell

Dell Dimension 8250 Series Manual de usuario

Dell

Dell OptiPlex 380 Manual del propietario

Dell

Dell PE R720XD Manual de usuario

Dell

Dell Precision T3610 Manual del propietario

Manuales populares de De oficina de otras marcas

HP m9060n - Pavilion - Elite Hoja de especificaciones

Asus

Asus E210 Series Manual de usuario

TotalFlow

TotalFlow uFLO Manual de usuario

HP Presario SV7000 - Desktop PC Manual de usuario

HP ProDesk 400 G5 Manual

Logitech

Logitech MK320 Manual de usuario

Sony

Sony Vaio Series Manual de usuario

Sony

Sony VGC-LT32E - Vaio All-in-one Desktop Computer Manual de usuario

Alto

Alto MD 250 Manual de usuario

Lenovo

Lenovo ThinkCentre Edge 72 Manual

Lenovo

Lenovo ThinkStation D20 Manual

Arbor Technology

Arbor Technology FPC-7800 Series Manual de usuario

Sony

Sony VAIO VGX-TP1 Series Manual de usuario

Asus

Asus Eee Box B204 Manual de usuario

HP Z1 Manual de usuario

Everex

Everex eXplora Manual de usuario

Lenovo

Lenovo ThinkCentre M75e Manual de usuario

Compaq

Compaq iPAQ Internet Device Manual de usuario
