Dell Precision Tower

5810/7810/7910/1700MT/1700SFF/3620MT

and Rack 7910

Thunderbolt Add-In-Cards Setup Guide

Setting up the Thunderbolt Add-In-Card

This section describes in brief on how to install the thunderbolt add-in-cards on a Dell Precision Tower 5810, 7810, 7910, Rack 7910, T1700

MT, T1700 SFF and 3620 MT.

Pre-requisite actions before setting up a Thunderbolt card:

1. To utilize a Thunderbolt Add-In-Card (AIC) make sure you have a compatible Thunderbolt system board.

2. Install Thunderbolt software before installing the Add-In-Card (AIC).

NOTE: Thunderbolt card supports windows operating system only. Linux operating system is not supported.

To setup a Thunderbolt Add-In-Card

1. Connect the GPIO cable to the GPIO header on the system board.

NOTE: There is a 5-Pin keyed GPIO cable, one end goes to the card, and the other end goes to the GPIO header on

the system board.

• For Precision Tower 7910: the Thunderbolt AIC is placed in CPU1 slot 3

• For Precision Tower 5810/T7810: the Thunderbolt AIC is placed in CPU1 slot 5

• For Precision Rack 7910: the Thunderbolt AIC NOT supported

• For Precision T1700 MT: the Thunderbolt AIC is placed in slot 4

• For Precision T1700 SFF: the Thunderbolt AIC is placed in slot 1

• For Precision T3620 MT: the Thunderbolt add in card (AIC) is placed in slot 3

2 Setting up the Thunderbolt Add-In-Card

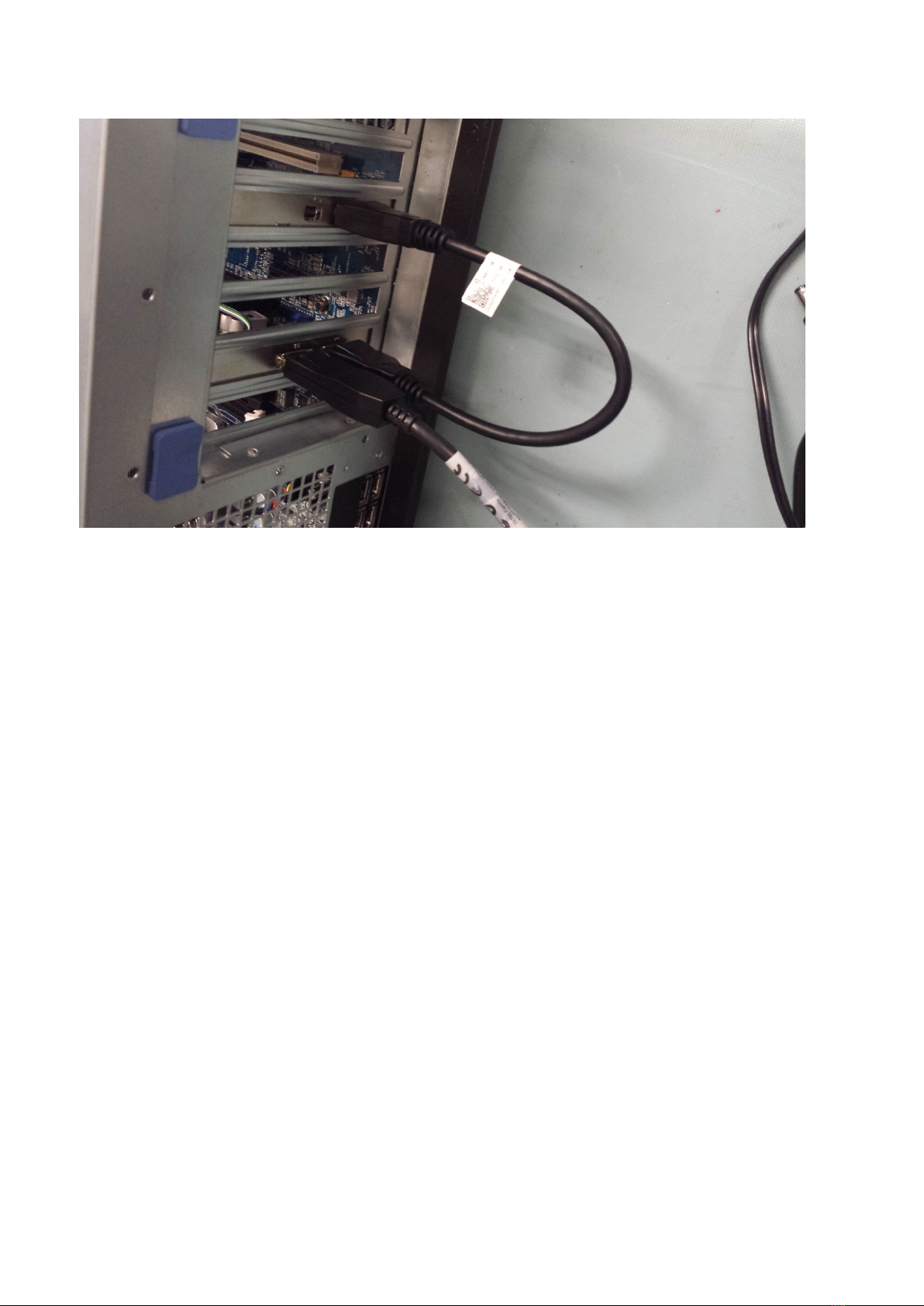

2. Connect the display port to DisplayPort cable.

Finding More Information and Resources

See the safety and regulatory documents that shipped with your computer and the regulatory compliance website at www.dell.com/

regulatory_compliance for more information on:

• Safety best practices

• Regulatory certification

• Ergonomics

See Dell.com for additional information on:

• Warranty

• Terms and Conditions (U.S. only)

• End User License Agreement

Additional information on your product is available at https://www.dell.com/support.

© 2017 Dell Inc. or its subsidiaries. All rights reserved. Dell, EMC, and other trademarks are trademarks of Dell Inc. or its subsidiaries.

Other trademarks may be trademarks of their respective owners.

Setting up the Thunderbolt Add-In-Card 3
