TABLE OF CONTENTS EN
1 / DESCRIPTION OF YOUR APPLIANCE
• Introduction to your oven ____________________________________ 92
• Swivelling fascia ___________________________________________ 93
• Introduction to the programmer ______________________________ 94
• Introduction to the selection buttons __________________________ 95
2 / USING YOUR APPLIANCE
• Using the programmer
ºHow to set the time_____________________________________ 96
ºImmediate cooking _____________________________________ 97
• Programmed cooking
ºImmediate start ________________________________________ 98
ºDelayed start __________________________________________ 99
•Using the timer function_____________________________________ 100
•Personalising the recommended temperature___________________ 101
•Locking the controls________________________________________ 101
• “I.C.S.” Function
ºImmediate start ________________________________________ 102
ºDelayed start __________________________________________ 103
3 / GUIDE TO ICS FUNCTIONS _____________________________________ 104
4 / OVEN COOKING MODES_______________________________________ 106
5 / CARING FOR AND CLEANING YOUR OVEN_______________________ 108
6 / NOTES ______________________________________________________ 110
99644373_A_EN.qxp 29/01/2008 16:03 Page 91
92
1 / DESCRIPTION OF YOUR APPLIANCE
EN

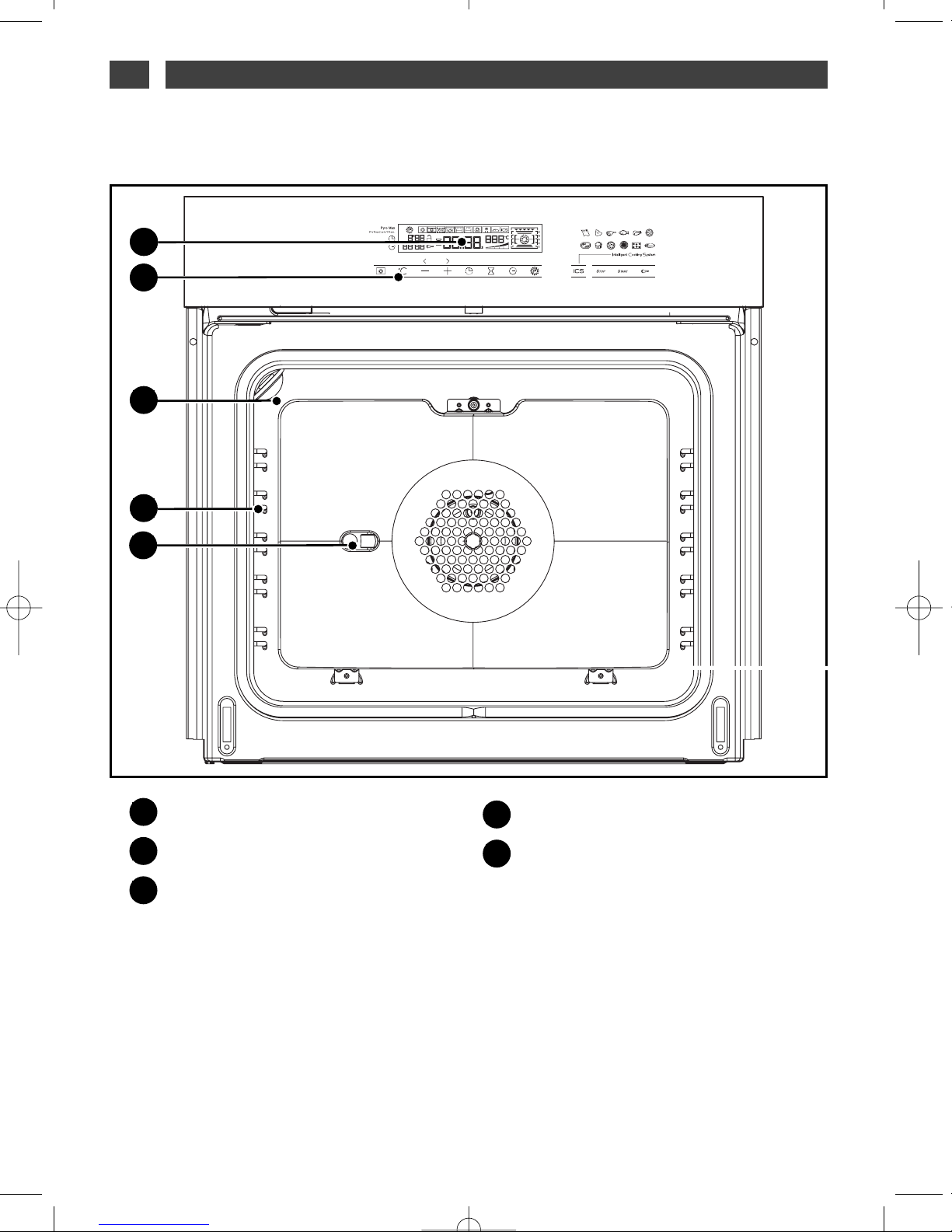

INTRODUCTION TO YOUR OVEN
•
A
B
Programmer
Control buttons
Lamp
C
D
E
Wire shelf supports
Hole for rotisserie
D
C
B
A
E
99644373_A_EN.qxp 29/01/2008 16:03 Page 92
93
1 / DESCRIPTION OF YOUR APPLIANCE EN
By pressing the centre of the fascia (fig.1)
under the control buttons the glass swivels
out to make it easier to see your programmer
and use it (fig.2).
You can shut it again by pressing the same
spot (fig.1).
SWIVELLING FASCIA
•
fig.1
fig.2
99644373_A_EN.qxp 29/01/2008 16:03 Page 93
94
1 / DESCRIPTION OF YOUR APPLIANCE
EN
INTRODUCTION TO THE PROGRAMMER
•
A
K
A
B
Cooking modes display
Oven temperature display
Shelf support indicator and
selected cooking mode indicator.
Temperature rise indicator
Clock or timer display
Timer indicator
Control panel lock indicator (child
safety device).
C
D
E
Cooking end time display
Cooking end time indicator
Cooking time indicator
Cooking time display
Cleaning indicator
Pyrolysis lock
F
G
H
I
C
J
I
L
GFE
B
H
J
K
L
M
M
D
99644373_A_EN.qxp 29/01/2008 16:03 Page 94
95
1 / DESCRIPTION OF YOUR APPLIANCE EN
INTRODUCTION TO THE SELECTION BUTTONS
•
A
B
C
D
E
F
G
H
I
J
K
ABDEFG
CHIJ K
L
Selecting cooking modes
Cooking temperature
Adjustment buttons
Cooking time
Timer
End of cooking
Cleaning
ICS button
Stop
Start
Control panel locking (child safety device)
Indicator of dishes selected with ICS
L
99644373_A_EN.qxp 29/01/2008 16:03 Page 95
96
2 / USING YOUR APPLIANCE
EN
•How to set the time
-When plugged in
The displays flashes 12:00 (fig.1).
Set the time by pressing the + or - buttons
(holding your finger on the button allows you
to scroll through the numbers rapidly) (fig.2).
Example: 12:30
Press the button to confirm.
The display stops flashing (fig.3).
- To set the time on the clock
Press and hold the “ ” button for a few
seconds until the display is flashing (fig.1),
then release.
Audible beeps indicate that it is now possible
to set the time.
Adjust the clock setting with the + and -
buttons (fig.2).
Press the button to confirm.
USING THE PROGRAMMER
Warning
If there is no confirmation from the
“ ” button, the time is recorded
automatically after a few seconds.
•
fig.1
fig.2
fig.2
fig.3
fig.1
99644373_A_EN.qxp 29/01/2008 16:03 Page 96
97
2 / USING YOUR APPLIANCE EN
•Immediate cooking
— The programmer should display only the
time. It should not be flashing.
Press the button (fig.1) then select your
cooking programme using + or - (fig.2).
Example: —> shelf support 2 recommended.
— Confirm with the button “
Start”
(fig.3).
The indicator for cooking programme and
recommended temperature freeze. The shelf
support indicator and the working elements
appear.
The oven begins heating.
Place your dish in the oven based on the
recommendation shown in the display.
Your oven recommends the optimal
temperature for the chosen cooking mode.
Hower, you can still adjust the temperture by
pressing the “°C” button under the display
(fig.4).
The “°C” flashes in the display to indicate that
you can adjust the termperature by pressing
the + or - buttons (fig.5).
Example: —> set to 220°C.
— Confirm with the “
Start”
button.
The temperature rise indicator indicates
the temperature increase in the oven.
A series of beeps will sound when the oven
reaches the selected temperature.
To stop cooking, press and hold the “
Stop”
button for a few seconds.
Warning
All types of cooking are done with the door closed.
Warning
After a cooking cycle, the cooling fan continues to operate for a period of time in order
to guarantee optimal oven reliability.
fig.2
fig.1
fig.4
fig.5
fig.3
99644373_A_EN.qxp 29/01/2008 16:03 Page 97
98
2 / USING YOUR APPLIANCE
EN
-
Cooking with immediate start and
programmed duration
- Select the desired cooking mode and adjust
the temperature (see paragraph: immediate
cooking).
- Press the button until the cooking time
indicator starts to flash .
The display flashes 0:00 to indicate that you
can now adjust the setting (fig.1).
- Press the +or -buttons to set the desired
time.
Example: 30 mins cooking time (fig.2).
The cooking time is recorded automatically
after several seconds or alternatively, confirm
by pressing the “
Start”
button.
The cooking time display stops flashing.
The countdown of the cooking time begins
immediately after it has been set.
After these three steps, the oven heats up:
A series of beeps will sound when the oven
reaches the selected temperature.
At the end of cooking (end of programmed
time),
- the oven turns off;
- the cooking time indicator and 00:00 both
flash (fig.3),
- a series of beeps sounds for a few minutes.
The beeping can be stopped by pressing
“Stop”
.
PROGRAMMED COOKING
•
fig.2
fig.1
fig.3
99644373_A_EN.qxp 29/01/2008 16:03 Page 98
