Datamax Apex 3 Manual de usuario

This guide provides reference illustrations of the initial steps to quickly

get your APEX 3 printer up and running. Refer to the User’s Guide

for more detailed information on the operation and use of the APEX 3

printer. A copy of the User’s Guide can be downloaded from www.datamax-oneil.com

LED #1 LED #2 LED #3

Communication: All printers ship in RS232 and Bluetooth™ mode.

IrDA and 802.11g are optional features. Refer to the User Guide for

set-up instructions.

noitpircseDetatSroloCDEL

LED #1

Communication

Green

Flashing Power is ON and the printer is in RS232 or IRDA

mode

Steady Communicating with host

Blue

Flashing Power is ON and the printer is in Bluetooth mode

Steady Transmitting/Receiving

Blue

Flashing Power is ON and the printer is in 802.11b/g mode

Steady Transmitting/Receiving

Red Steady Low power indication

LED #2

Battery Amber Steady

Battery being charged. The LED

will turn off when the battery

is fully charged

LED #3

Magnetic Card

Reader & Printer Error

Green Steady • Indicates that MCR is ready to accept data

• Indicates that SCR is ready to accept data

Red

Steady

• MCR track read error

• Printhead is hot [at +80°C (176°F)}

• Battery voltage dropped below

a threshold (6.25 VDC under load)

Flashing • Out of paper

• Paper door is open

APEX 3

Quick Start Guide

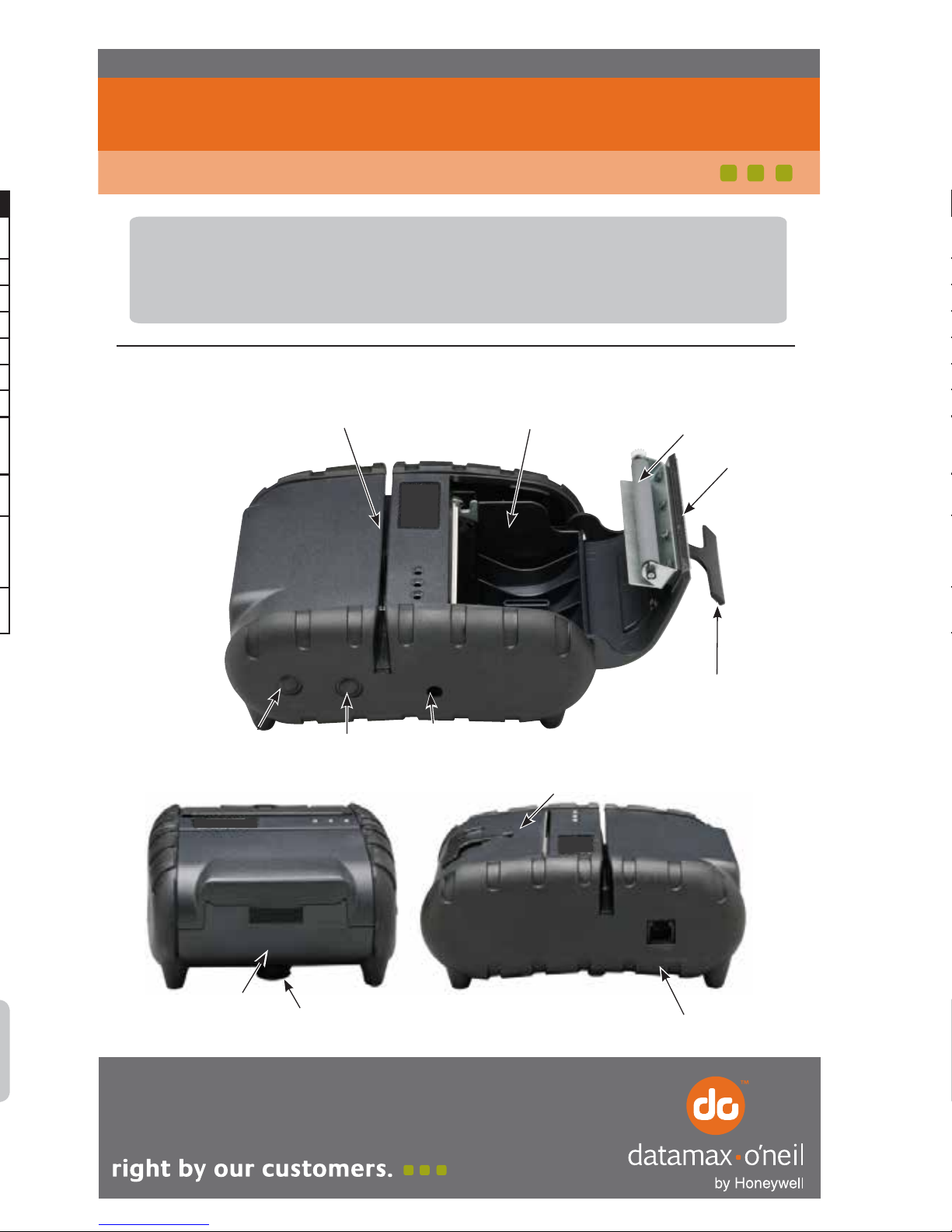

APEX 3 Overview

MCR Slot Paper

Compartment

On/Off

Button Paper Feed

Button

AC Adaptor

Port

Paper Door

Release Button

IrDa

Window Serial

Port

Platen

Roller

Metal

Tear Bar

Paper Door

Pull Lever

Belt Clip

Performing Self-Test

1. The printer myst be OFF.

2. Press and Hold the Paper FeedButton.

3. While holding the Paper FeedButton, press the ON/OFF Button.

7A300027 Rev.B

Status Indicator LEDs

Press the ON/OFF button to turn the printer on. Three LED indicators, located on the

top of the printer, indicate various printer functions. The LED will indicate the function

as described below

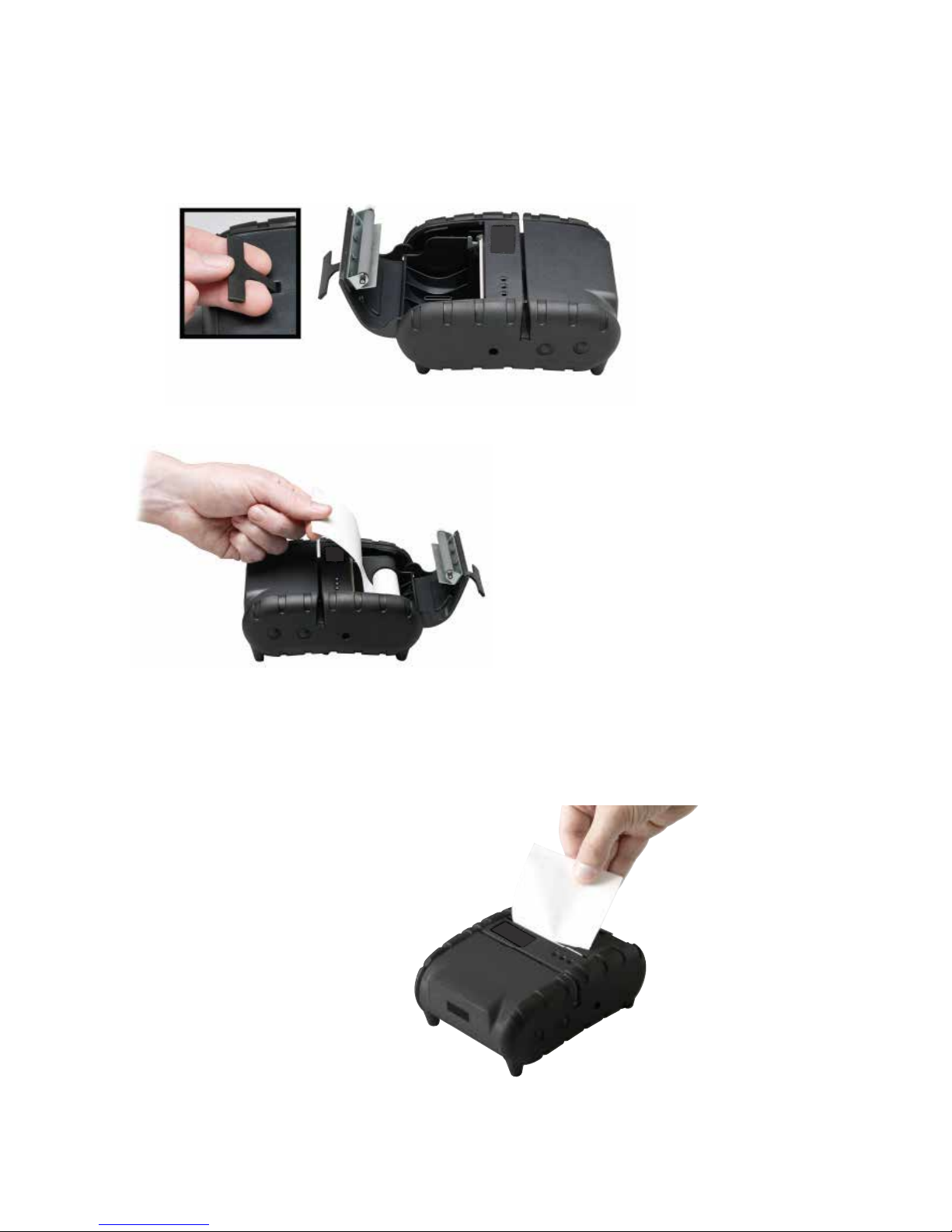

Installing the Paper Roll

1. Open the Paper Supply Cover by placing your ﬁ ngers under the “T”

pull lever and pulling up ﬁrmly on the supply cover until the lever stops

moving. The cover should open to a 90° angle.

2. Install paper roll

3. Close the Paper Supply Cover.

4. Turn the printer ON by pressing the Power button and test the paper

advance function by pressing the paper feed button. Verify that paper

advances correctly.

Installing the Battery

1. Unlock the battery door by sliding the battery door locking tab down.

2. Open the battery door to an angle of approximately 90 degrees.

(Do not force the door open)

3. Insert battery as shown (non-contact end ﬁ rst) letting the contact end drop

into place.

4. Close the battery door and then lock the battery door by sliding the

battery door locking tab up.

Charging the Battery

1. Plug the battery charger adaptor output cable into the battery charger

connector.

2. Plug the battery charger adaptor into the appropriate AC line voltage

socket.

3. The LED will illuminate indicating that the battery is being charged.

4. The battery will be fast charged and, after 180 minutes, theLED will turn off.

Note: Pull Paper Roll Leader Out

of Printer. Note Direction of

Paper Travel.

Tearing Paper

To tear paper: The printer’s

paper door acts as a tear

bar. Pull one edge of the

paper against the tear bar

as indicated, then tear

down and across against

the tear bar to tear the

paper. Note: Pulling up and/or sideways without using the

tear bar can cause a paper jam due to paper

misalignment in the printhead mechanism.

Battery

Door Tab

Note: Ensure battery is properly seated before

closing door and that the battery side that

has the 2 contact terminals is facing down

to make contact with the spring probes

inside the battery compartment

Note: Do not pull too ﬁrmly. Use

only enough force to allow

the cover to unlock and

lift freely.

Installing the Paper Roll

1. Open the Paper Supply Cover by placing your ﬁ ngers under the “T”

pull lever and pulling up ﬁrmly on the supply cover until the lever stops

moving. The cover should open to a 90° angle.

2. Install paper roll

3. Close the Paper Supply Cover.

4. Turn the printer ON by pressing the Power button and test the paper

advance function by pressing the paper feed button. Verify that paper

advances correctly.

Installing the Battery

1. Unlock the battery door by sliding the battery door locking tab down.

2. Open the battery door to an angle of approximately 90 degrees.

(Do not force the door open)

3. Insert battery as shown (non-contact end ﬁ rst) letting the contact end drop

into place.

4. Close the battery door and then lock the battery door by sliding the

battery door locking tab up.

Charging the Battery

1. Plug the battery charger adaptor output cable into the battery charger

connector.

2. Plug the battery charger adaptor into the appropriate AC line voltage

socket.

3. The LED will illuminate indicating that the battery is being charged.

4. The battery will be fast charged and, after 180 minutes, theLED will turn off.

Note: Pull Paper Roll Leader Out

of Printer. Note Direction of

Paper Travel.

Tearing Paper

To tear paper: The printer’s

paper door acts as a tear

bar. Pull one edge of the

paper against the tear bar

as indicated, then tear

down and across against

the tear bar to tear the

paper. Note: Pulling up and/or sideways without using the

tear bar can cause a paper jam due to paper

misalignment in the printhead mechanism.

Battery

Door Tab

Note: Ensure battery is properly seated before

closing door and that the battery side that

has the 2 contact terminals is facing down

to make contact with the spring probes

inside the battery compartment

Note: Do not pull too ﬁrmly. Use

only enough force to allow

the cover to unlock and

lift freely.

This guide provides reference illustrations of the initial steps to quickly

get your APEX 3 printer up and running. Refer to the User’s Guide

for more detailed information on the operation and use of the APEX 3

printer. A copy of the User’s Guide can be downloaded from www.datamax-oneil.com

LED #1 LED #2 LED #3

Communication: All printers ship in RS232 and Bluetooth™ mode.

IrDA and 802.11g are optional features. Refer to the User Guide for

set-up instructions.

noitpircseDetatSroloCDEL

LED #1

Communication

Green

Flashing Power is ON and the printer is in RS232 or IRDA

mode

Steady Communicating with host

Blue

Flashing Power is ON and the printer is in Bluetooth mode

Steady Transmitting/Receiving

Blue

Flashing Power is ON and the printer is in 802.11b/g mode

Steady Transmitting/Receiving

Red Steady Low power indication

LED #2

Battery Amber Steady

Battery being charged. The LED

will turn off when the battery

is fully charged

LED #3

Magnetic Card

Reader & Printer Error

Green Steady • Indicates that MCR is ready to accept data

• Indicates that SCR is ready to accept data

Red

Steady

• MCR track read error

• Printhead is hot [at +80°C (176°F)}

• Battery voltage dropped below

a threshold (6.25 VDC under load)

Flashing • Out of paper

• Paper door is open

APEX 3

Quick Start Guide

APEX 3 Overview

MCR Slot Paper

Compartment

On/Off

Button Paper Feed

Button

AC Adaptor

Port

Paper Door

Release Button

IrDa

Window Serial

Port

Platen

Roller

Metal

Tear Bar

Paper Door

Pull Lever

Belt Clip

Performing Self-Test

1. The printer myst be OFF.

2. Press and Hold the Paper Feed Button.

3. While holding the Paper Feed Button, press the ON/OFF Button.

Apex 3 Quick Start Guide rev.A

Status Indicator LEDs

Press the ON/OFF button to turn the printer on. Three LED indicators, located on the

top of the printer, indicate various printer functions. The LED will indicate the function

as described below
