1. Introduction

Conditions

The MP Nova printers with their unique technology have

been developed to offer a range of different applications.

Thank you for choosing an Imaje printer for your business

needs. The high quality, user-friendliness and simple

maintenance procedures of the MP Nova direct thermal

(DT) and thermal transfer (TT) printers make them the

perfect choice.

Manufacturer Address:

IMAJE AB

Säterigatan 20

SE-417 64 Göteborg

SWEDEN

Telephone no: +46 (0) 31-65 69 00

http://www.imaje.com

Conditions

Imaje AB reserves the right to change specifications in

both the text and illustrations without prior notice. The

contents of the publication may not be copied, either

wholly or in part, without permission from Imaje AB.

Imaje AB is not responsible for any direct, indirect,

specific, accidental or resultant injuries caused by a fault

with the machine system or software, or by an error in the

accompanying documentation. In particular, Imaje AB

cannot be held responsible for any program or data stored

or used with Imaje’s products, including the cost of

recovering such programs or data.

First published: July 2002

Item number: 540430

Printed in Sweden

Authors: Göran Telhage and Ann-Sofie Hertzman

Reviser: Annika Hansson

Illustrations: Jörn Schmoldt

Product Photography: Jonatan Fernström

2. Safety

Safety & Certification

Safety Requirements

Imaje disclaims all responsibility regarding the CE directive if

the printer is used, altered or installed in any way other than

described in this manual.

This symbol is used to indicate circumstances that may be

dangerous to the user or that cause damage to the equipment.

Please Note the Following Warnings:

• The MP Nova printers have double fuses. The fuses are

rated at 250 volt, 4.0 A, AT-type. Fuses must be UL-

approved.

• The circuit board contains a battery. Used batteries

should be disposed of in accordance with the manu-

facturer’s instructions.

• Please read all instructions before using the printer for

the first time.

• The printer should be connected to the power supply

indicated on the voltage plate. If you are unsure of the

type of power supply available, please contact Imaje

service personnel.

• The printer is equipped with a plug suitable for earthed

sockets. This is a safety measure. If the plug does not fit

the power socket, a qualified electrician must replace it.

• We do not recommend the use of extension cables.

• The power cable must not be subjected to pressure.

Ensure that the printer is not placed anywhere where

the cable can be stood on.

2. Safety

Safety & Certification

• Check that the power switch is off (in the ‘0’ position)

before connecting the power cable.

• Do not use liquids or aerosols when cleaning this

printer. Always use Imaje’s special cleaning cloths.

• Do not attempt to open the electronic unit or other

sealed parts! The user cannot service these parts.

• Never use sharp or pointed tools when cleaning or

replacing the print head.

• Do not use cables that exceed 5 meters in length for

RS232-communication. Signals may be corrupted or

lost as a result. This is particularly important in

environments where there are high levels of electrical

interference.

• Disconnect the power to the printer and call in qualified

personnel under the following conditions:

! The power cable or plug is damaged or worn.

! Liquid has been spilled on the printer.

! Rain or water has got into the printer.

! The printer is not functioning correctly despite that

the user has followed the instructions for use.

! You have dropped the printer or the casing has been

damaged.

! The printer is not functioning correctly and requires

service.

2. Safety

Safety & Certification

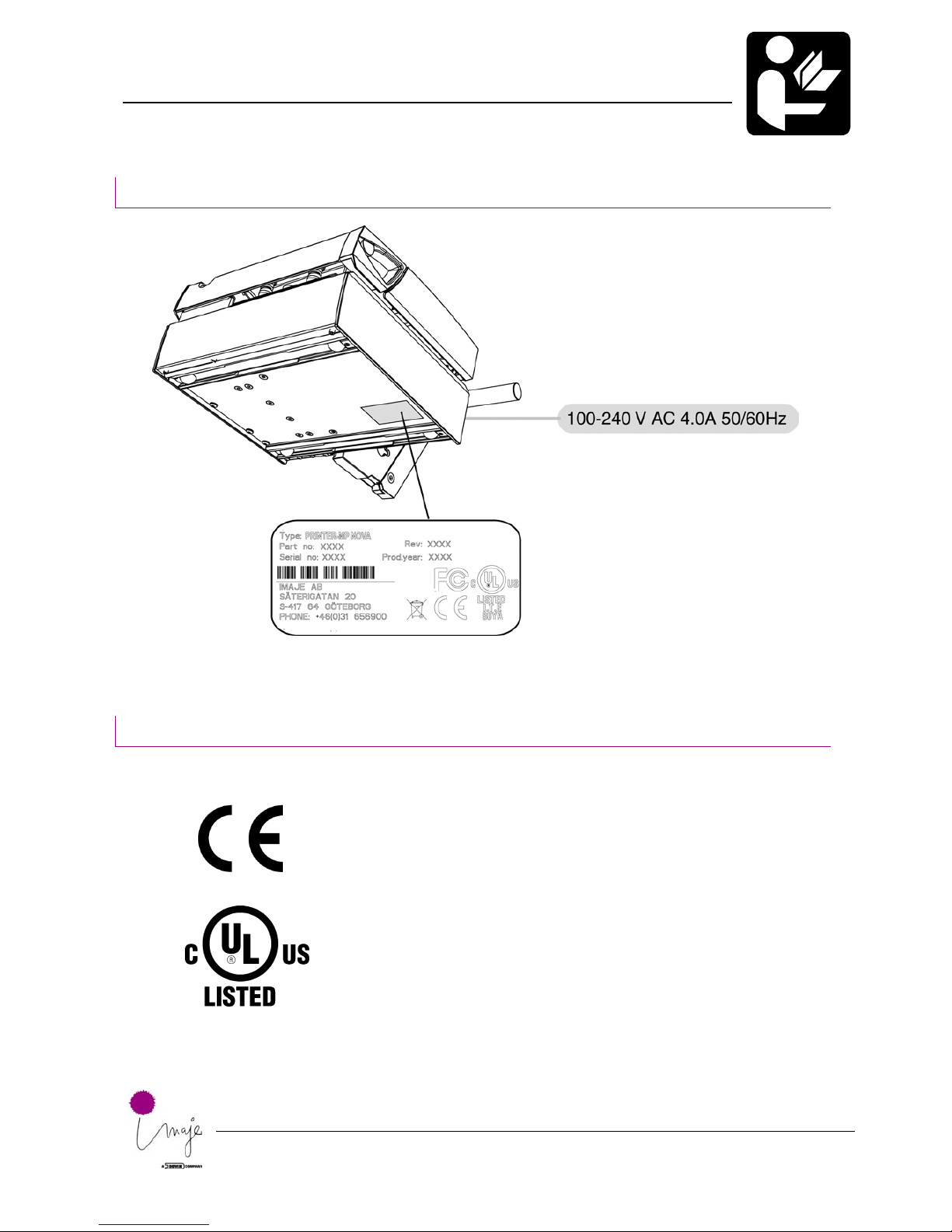

Machine Sign

Certification and Approvals

The MP Nova printers are certified in accordance

with the requirements for CE marking.

CE = European Commission

The MP Nova printers are UL-approved.

UL = Underwriter Laboratories USA

2. Safety

Safety & Certification

CE Standards & Directives

MP Nova printers are subject to the following standards:

In accordance with European directives applicable to the

products, that is to say:

• With the electromagnetic compatibility directive

EMC Directive 89/336/CEE with the European

standards which are its technical answer.

• With the Low Voltage Directive 93/68/CEE and

with the European standards which are its

technical answer.

The above referenced product bears the CE mark.

3. Product Presentation

The MP Nova Series

Imaje achieves diversity with its thermal printers, the MP series.

Powerful and intelligent with a multitude of functionality you

would not expect from one of the smallest printers on the

market.

They are built on a platform with advanced software, offering

wide possibilities from simple local solutions to integrated

solutions working over Internet.

Typical Applications:

Manufacturing

Warehousing

Healthcare

Transport

Ticketing

Printer Models

MP Nova4 DT, 200 dpi

Item number: 745130.

MP Nova4 DT, 300 dpi

Item number: 745160.

MP Nova6 DT, 200 dpi

Item number: 765130.

MP Nova8 DT, 200 dpi

Item number: 785130.

MP Nova4 TT, 200 dpi

Item number: 745140.

MP Nova4 TT, 300 dpi

Item number: 745165.

MP Nova6 TT, 200 dpi

Item number: 765140.

4. Product Overview

4.1 In the Box

MP Nova4 DT & MP Nova6 DT

The following items should be included in the box when you receive

your new MP Nova4 DT or MP Nova6 DT printer:

1. 1 x MP Nova4 DT or MP Nova6 DT

2. 1 x Cleaning cloth

3. 1 x Communication cable (Serial RS 232)

4. 1 x Power cable

5. 1 x Media roll

6. 1 x Getting Started CD

4. Product Overview

4.1 In the Box

MP Nova4 TT & MP Nova6 TT

The following items should be included in the box when you receive

your new MP Nova4 TT or MP Nova6 TT printer:

1. 1 x MP Nova4 TT or MP Nova6 TT

2. 1 x Cleaning cloth

3. 1 x Communication cable (Serial RS 232)

4. 1 x Power cable

5. 1 x Media roll

6. 1 x Getting Started CD

7. 1 x Ink ribbon, loaded in the machine
