Datalogic Magellan 800i Manual de usuario

MagellanTM 800i

On Counter Presentation

Omnidirectional Bar Code Reader

Quick Reference Guide

Datalogic ADC, Inc.

959 Terry Street

Eugene, OR 97402

USA

Telephone: (541) 683-5700

Fax: (541) 345-7140

or the procedures described therein may be reproduced or transmitted in any form or by

any means without prior written permission of Datalogic ADC, Inc. or its subsidiaries or

affiliates ("Datalogic" or “Datalogic ADC”). Owners of Datalogic products are hereby

granted a non-exclusive, revocable license to reproduce and transmit this documentation

for the purchaser's own internal business purposes. Purchaser shall not remove or alter

any proprietary notices, including copyright notices, contained in this documentation and

shall ensure that all notices appear on any reproductions of the documentation.

Should future revisions of this manual be published, you can acquire printed versions by

contacting your Datalogic representative. Electronic versions may either be download-

able from the Datalogic website (www.datalogic.com) or provided on appropriate media.

If you visit our website and would like to make comments or suggestions about this or

other Datalogic publications, please let us know via the "Contact Datalogic" page.

Disclaimer

Datalogic has taken reasonable measures to provide information in this manual that is

complete and accurate, however, Datalogic reserves the right to change any specification

at any time without prior notice.

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many

countries, including the U.S.A. and the E.U. All other brand and product names may be

trademarks of their respective owners.

Patents

See www.patents.datalogic.com for patent list.

See the Regulatory Addendum included with your product

for additional regulatory, safety and legal information.

Quick Reference Guide 1

Quick Reference

Use the Quick Reference Guide (QRG) to find easy connection, scan-

ning and troubleshooting instructions. For more details, including

programming information, reference the Product Reference Guide

(PRG), which is available for download, viewing and printing from

the Datalogic website listed on the back cover of this manual.

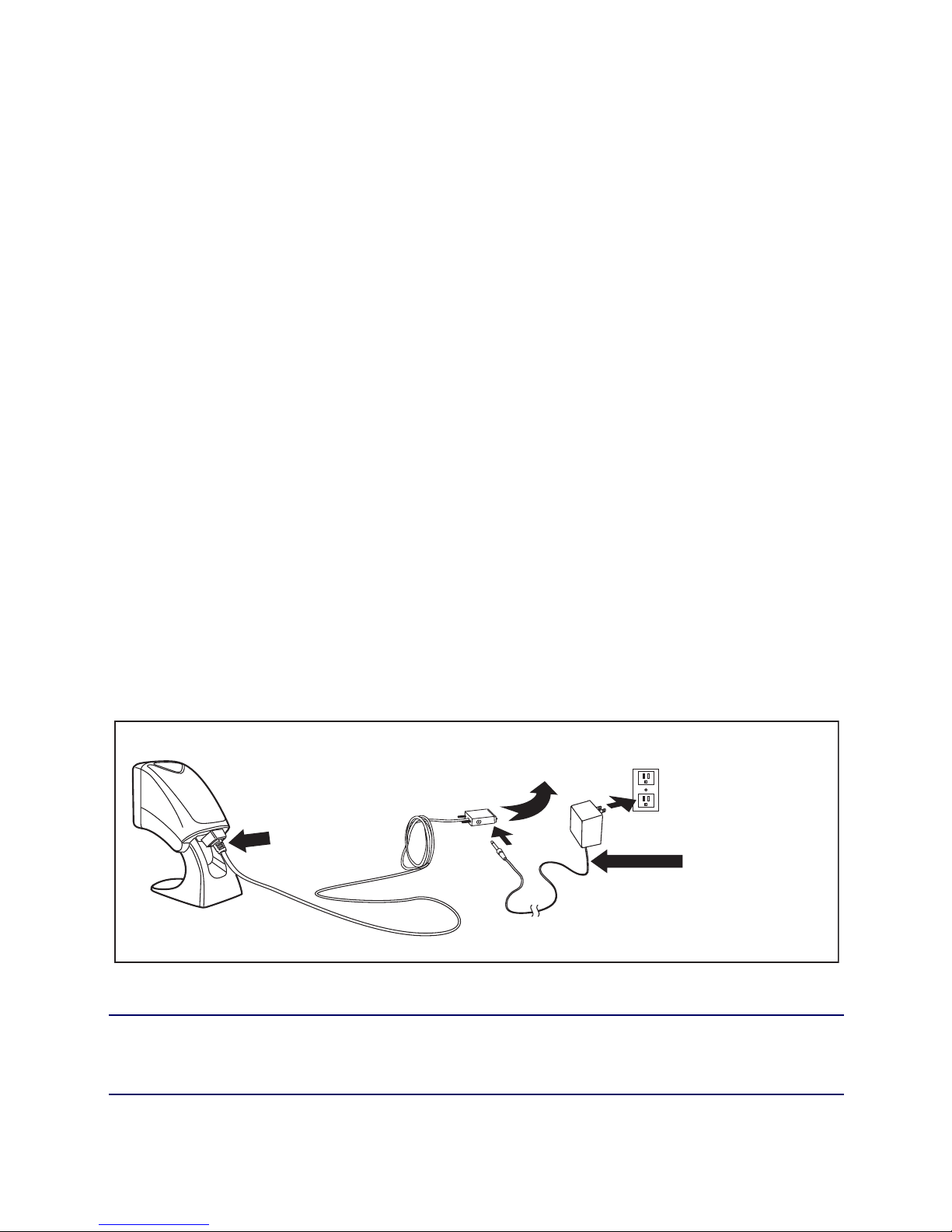

Installation

Route the interface cable from the terminal or host. Plug the AC

adapter (if one is used) into a wall outlet and the interface (I/F)

cable, then route and attach the I/F cable to the scanner. Verify

operation by presenting known-good bar codes to the scanner. The

unit should beep1and/or flash its good read LED and send the bar

code data to the host or terminal. If not, refer to Troubleshooting

on page 5 of this guide.

Scanner installation is complete.

1. Beeper and LED behavior is selectable and may have been disabled by

a previous user.

I/F Cable

A/C Adapter

(if needed)

For 220-230 VAC

adapters, the

cord must be

facing down as

shown in the

illustration. If

installed upwards,

it will pose an

undue strain on the

socket outlet.

To Host/Terminal

Connect

Here

2Magellan

TM 800i

The Magellan 800i utilizes illumix™ intelligent illumination technol-

ogy to optimize light levels for a variety of bar code scanner func-

tions including automatic reading of bar codes from printed

surfaces, mobile devices and image capture in variable contrast

environments.

Mounting the Scanner (Optional)

The scanner can be permanently attached to a wall or countertop

as follows:

1. After identifying an optimal position for the scanner, cut

out and securely hold the screw hole template (located on

the inside back cover) in the desired position matching the

scanner’s footprint.

2. Mark the center of both screw locations using a pencil or

marker and remove the template.

3. If necessary, drill pilot holes in the marked positions, then

thread two pan head1, self-tapping screws in place, leav-

ing their heads protruding approximately 1/8” (3mm)

above the counter or wall surface.

4. Align the larger ends of the keyholes located on the scan-

ner’s bottom with the protruding screw heads, then push

down and rotate clockwise to lock the scanner in position.

1. The screw heads must fit inside the larger end of the keyholes on the

bottom of the scanner.

Quick Reference Guide 3

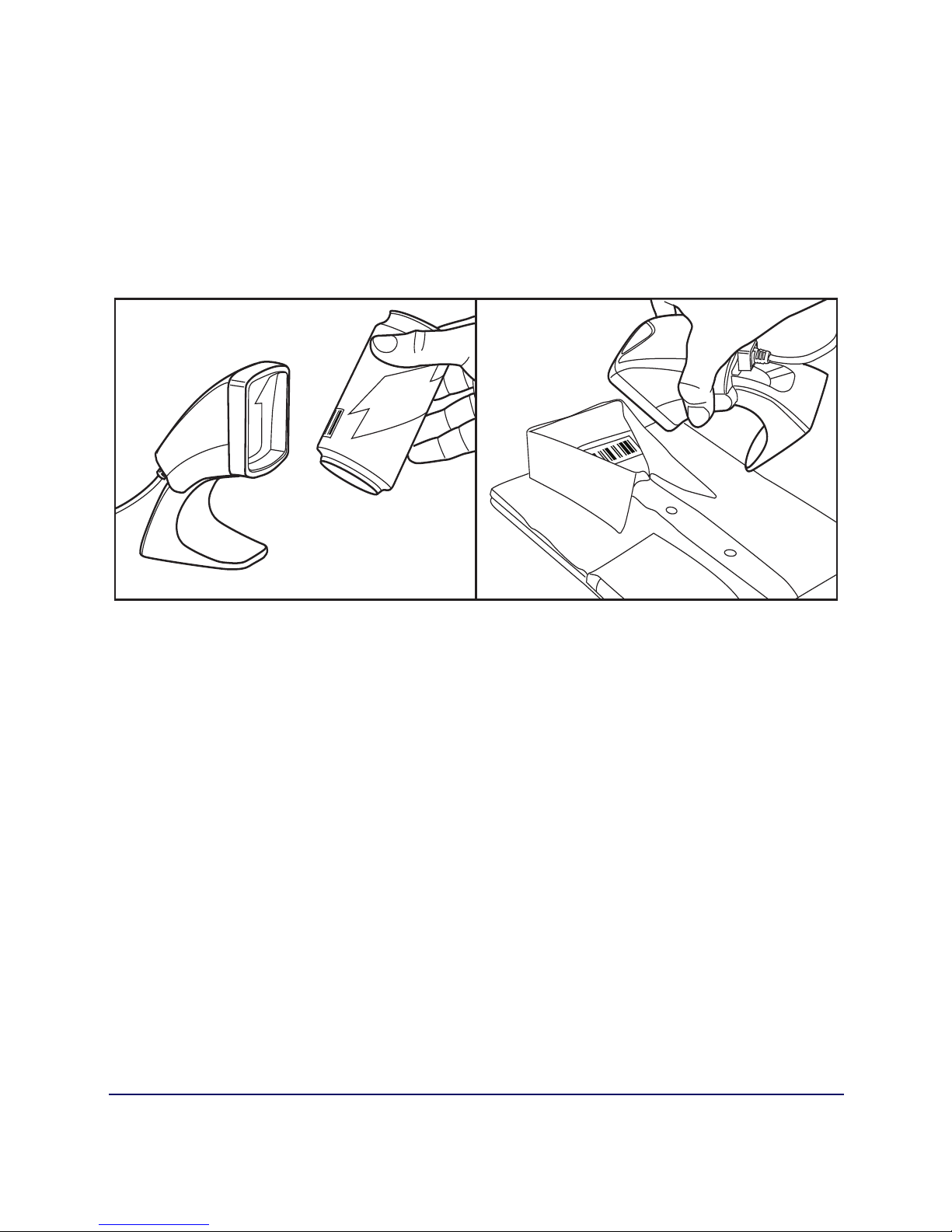

How to Scan

Items can be presented to the scanner while it is resting on the

counter, or the scanner can be lifted and aimed at the bar code.

4Magellan

TM 800i

Cell Phone Mode

Cell phone mode is when the scanner is enabled to read barcodes

on a cell phone display. To enable this feature, scan the START/

END bar code, then scan the ENABLE AUTO CELL PHONE MODE bar

code, then scan the START/END bar code a second time to exit

Programming Mode.

START/END

DISABLE AUTO CELL PHONE MODE

ENABLE AUTO CELL PHONE MODE

Quick Reference Guide 5

Troubleshooting

If the scanner is not operating properly, the following checks

should be performed:

1. If the scanner uses an external power supply and the

external power supply has failed, the scanner will not

operate. Exchange the power supply with a known good

power supply and retest operation.

2. Verify the interface cable is securely attached to the host.

Consult your technical support personnel or refer to your

host system manual to verify the proper connection for

the scanner.

3. Verify that the interface cable is securely attached to the

scanner.

4. Check that the bar codes are of sufficient quality to be

recognized by the scanner. Wrinkled, smudged, or torn

labels can cause the scanner to not read at all. Scan

known-good labels of an active symbology1to check the

scanner's read operation.

5. Ensure that the scanner's interface type is compatible

with the host terminal by consulting your POS system

manual and/or the Product Reference Guide.

If the scanner still does not function properly, contact your local

supplier or Datalogic Customer Support Services.

1. Reading of the various bar code symbologies can be independently

enabled or disabled in the scanner.

6Magellan

TM 800i

Warranty

Datalogic warrants to Customer that this product will be free from

defects in materials and workmanship for a period of 3 years from

product shipment.

Datalogic Scanning Limited Factory Warranty

Warranty Coverage

Datalogic Scanning (“Datalogic”) hardware products are warranted against

defects in material and workmanship under normal and proper use. The lia-

bility of Datalogic under this warranty is limited to furnishing the labor and

parts necessary to remedy any defect covered by this warranty and restore

the product to its normal operating condition. Repair or replacement of

product during the warranty does not extend the original warranty term.

Products are sold on the basis of specifications applicable at the time of

manufacture and Datalogic has no obligation to modify or update products

once sold.

If Datalogic determines that a product has defects in material or workman-

ship, Datalogic shall, at its sole option repair or replace the product without

additional charge for parts and labor, or credit or refund the defective prod-

ucts duly returned to Datalogic. To perform repairs, Datalogic may use new

or reconditioned parts, components, subassemblies or products that have

been tested as meeting applicable specifications for equivalent new material

and products. Customer will allow Datalogic to scrap all parts removed from

the repaired product. The warranty period shall extend from the date of

shipment from Datalogic for the duration published by Datalogic for the

product at the time of purchase (Warranty period). Datalogic warrants

repaired hardware devices against defects in workmanship and materials on

the repaired assembly for a 90 day period starting from the date of shipment

of the repaired product from Datalogic or until the expiration of the original

warranty period, whichever is longer. Datalogic does not guarantee, and it is

Quick Reference Guide 7

not responsible for, the maintenance of, damage to, or loss of configurations,

data, and applications on the repaired units and at its sole discretion can

return the units in the “factory default” configuration or with any software

or firmware update available at the time of the repair (other than the firm-

ware or software installed during the manufacture of the product). Customer

accepts responsibility to maintain a back up copy of its software and data.

Warranty Claims Process

In order to obtain service under the Factory Warranty, Customer must notify

Datalogic of the claimed defect before the expiration of the applicable War-

ranty period and obtain from Datalogic a return authorization number (RMA)

for return of the product to a designated Datalogic service center. If Data-

logic determines Customer’s claim is valid, Datalogic will repair or replace

product without additional charge for parts and labor. Customer shall be

responsible for packaging and shipping the product to the designated Data-

logic service center, with shipping charges prepaid. Datalogic shall pay for

the return of the product to Customer if the shipment is to a location within

the country in which the Datalogic service center is located. Customer shall

be responsible for paying all shipping charges, duties, taxes, and any other

charges for products returned to any other locations. Failure to follow the

applicable RMA policy, may result in a processing fee. Customer shall be

responsible for return shipment expenses for products which Datalogic, at

its sole discretion, determines are not defective or eligible for warranty

repair.

Warranty Exclusions

The Datalogic Factory Warranty shall not apply to:

(i) any product which has been damaged, modified, altered, repaired or

upgraded by other than Datalogic service personnel or its authorized rep-

resentatives;

8Magellan

TM 800i

(ii) any claimed defect, failure or damage which Datalogic determines was

caused by faulty operations, improper use, abuse, misuse, wear and tear,

negligence, improper storage or use of parts or accessories not approved

or supplied by Datalogic;

(iii) any claimed defect or damage caused by the use of product with any

other instrument, equipment or apparatus;

(iv) any claimed defect or damage caused by the failure to provide proper

maintenance, including but not limited to cleaning the upper window in

accordance with product manual;

(v) any defect or damage caused by natural or man-made disaster such as but

not limited to fire, water damage, floods, other natural disasters, vandal-

ism or abusive events that would cause internal and external component

damage or destruction of the whole unit, consumable items;

(vi) any damage or malfunctioning caused by non-restoring action as for

example firmware or software upgrades, software or hardware reconfigu-

rations etc.;

(vii) the replacement of upper window/cartridge due to scratching, stains or

other degradation and/or

(viii) any consumable or equivalent (e.g., cables, power supply, batteries, key-

pads, touch screen, triggers etc.).

No Assignment

Customer may not assign or otherwise transfer its rights or obligations

under this warranty except to a purchaser or transferee of product. No

attempted assignment or transfer in violation of this provision shall be valid

or binding upon Datalogic.

DATALOGIC'S LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,

EXPRESS OR IMPLIED, ORAL OR WRITTEN, STATUTORY OR OTHERWISE,

INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MER-

CHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NONINFRINGE-

MENT. DATALOGIC SHALL NOT BE LIABLE FOR ANY DAMAGES SUSTAINED

BY CUSTOMER ARISING FROM DELAYS IN THE REPLACEMENT OR REPAIR

Otros manuales para Magellan 800i

Tabla de contenidos

Otros manuales de Lector de código de barras de Datalogic

Datalogic

Datalogic DS6300 Manual de usuario

Datalogic

Datalogic PowerScan PM9500-RT Manual de usuario

Datalogic

Datalogic PowerScan PM8300-DK Manual de usuario

Datalogic

Datalogic Quickscan I Manual de usuario

Datalogic

Datalogic Touch 65 pro Manual de usuario

Datalogic

Datalogic PowerScan PD7100 Corded Manual de instalación y operación

Datalogic

Datalogic PowerScan PM9100 Series Manual de usuario

Datalogic

Datalogic Gryphon I GBT4100 Manual de usuario

Datalogic

Datalogic QuickScan QBT24 series Manual de instalación y operación

Datalogic

Datalogic QuickScan QD2430 Manual de usuario

Datalogic

Datalogic PowerScan D8330 Manual de usuario

Datalogic

Datalogic PowerScan PBT9501-AR Manual de usuario

Datalogic

Datalogic QuickScan i QD2100 Manual de instalación y operación

Datalogic

Datalogic Gryphon I GBT4400 Manual de usuario

Datalogic

Datalogic Gryphon Series Manual de instalación y operación

Datalogic

Datalogic PowerScan PD9531-AR Manual de usuario

Datalogic

Datalogic Matrix 210 Manual del propietario

Datalogic

Datalogic PowerScan PBT9501 Manual de usuario

Datalogic

Datalogic PowerScan PM9600 Series Manual de usuario

Datalogic

Datalogic PowerScan 9500 Series Manual de instalación y operación

Datalogic

Datalogic DSE0420 Guía de configuración rápida

Datalogic

Datalogic Gryphon I GM4100 guide Manual de usuario

Datalogic

Datalogic Gryphon I GM410X Manual de usuario

Datalogic

Datalogic DS8100 Manual de usuario

Manuales populares de Lector de código de barras de otras marcas

POSMicro

POSMicro Datalogic PowerScan D7100 Manual de usuario

Marson

Marson MT780 Guía de configuración rápida

NCR

NCR RealPOS Manual de usuario

Motorola

Motorola SE3300 Guía de configuración rápida

Element

Element P130BT Manual de usuario

Motorola

Motorola Symbol LS3008 Manual de instalación y operación

Meec tools

Meec tools OBD-II / VAG Manual de usuario

SICK

SICK CLP 100 Manual de usuario

Royal Tag SA

Royal Tag SA I-Read Manual de usuario

Welch Allyn

Welch Allyn IMAGETEAM 3800 Manual de usuario

Meteor

Meteor 8310 Manual de usuario

Denso

Denso BHT-500B Manual de usuario

Motorola

Motorola MP6000 Instrucciones de montaje

Newland

Newland NLS-HR15-BT Manual de usuario

ARTDEV

ARTDEV AS-1310 Manual de usuario

Aopos

Aopos AS290 Manual de usuario

ENS

ENS 367-5455 Manual de usuario

Atid

Atid AT188N Plus Manual de usuario
