Danfoss TP4 Instrucciones de funcionamiento

TP4 / TP5

Electronic Programmable Room Thermostat

User & Installation Instructions

Certification Mark

Installation Instructions 3-7

User Instructions 8-23

Instrucciones de instalación 24-28

Instrucciones del usuario 29-42

Ïäçãßåò åãêáôÜóôáóçò 43-47

Ïäçãßåò ÷ñÞóçò 48-62

Instrukcja instalacji 63-67

Instrukcja Użytkownika 68-81

Please Note:

This product should only be installed by a qualiﬁed

electrician or competent heating installer and should be

in accordance with the current edition of the IEEE wiring

regulations.

INDEX

Installation Instructions

Product Specication

Thermostat features TP4 TP5

Power supply 2 x AA/MN1500/LR alkaline cells

24 hour programming l

5/2 day programming l

Memory back-up 1 min for battery change

Switching action of output relay

1 x SPDT,Type 1B

Switch rating of relay contact 6(2)A, 10-264Vac

Temperature range 5-30°C

Dimensions, mm 98 wide, 81 high, 34 deep

Design standard EN60730-2-9

Rated impulse voltage 2.5Kv

Ball hardness test 75°C

Control pollution situation Degree 2

Temperature accuracy ±1°C

Time accuracy ±1 min.

Installation Instructions

Installation

o There must be clearances of at least 110mm around the unit.

o Fix at a height of approximately 1.5m from the ﬂoor, away from

draughts or heat sources such as radiators, open ﬁres or direct

sunlight.

110mm

minimum

from nearest

obstruction

110mm minimum from

nearest obstruction

60mm ﬁxing

centres

Installation Instructions

Wiring

oCable entry is from behind if ﬁtted to a single gang ﬂush box,

or from above, below or from the left if surface ﬁxed cable is

used.

Installation Instructions

TP4, TP5E, RT1, RT2 (3060 12/01)

Some existing thermostats wil

have a Neutral wire and/or

Earth wire connected. These are

not required by the TP4/5 and

must NOT be connected to any

TP4/5 terminals. Instead they

should be made electrically safe

and coiled in the recess at the

back of the TP4/5.

Wiring

Installation Instructions

What is a programmable room thermostat?

...an explanation for householders.

A programmable room thermostat is both a programmer and a room thermostat.

A programmer allows you to set‘On’and‘Off’time periods to suit your own lifestyle.

A room thermostat works by sensing the air temperature, switching on the heating

when the air temperature falls below the thermostat setting,and switching it off once

this set temperature has been reached.

So, a programmable room thermostat lets you choose what times you want the

heating to be on,and what temperature it should reach while it is on.It will allow you

to select different temperatures in your home at different times of the day (and days

of the week) to meet your particular needs.

Turning a programmable room thermostat to a higher setting will not make the

room heat up any faster. How quickly the room heats up depends on the design of

the heating system,for example,the size of boiler and radiators.

User Instructions

Neither does the setting affect how quickly the room cools down. Turning a

programmable room thermostat to a lower setting will result in the room being

controlled at a lower temperature,and saves energy.

The way to set and use your programmable room thermostat is to ﬁnd the lowest

temperature settings that you are comfortable with at the different times you have

chosen, and then leave it alone to do its job. The best way to do this is to set low

temperatures ﬁrst, say 18°C, and then turn them up by one degree each day until

you are comfortable with the temperatures.You won’t have to adjust the thermostat

further.Any adjustments above these settings will waste energy and cost you more

money.

If your heating system is a boiler with radiators, there will usually be only one

programmable room thermostat to control the whole house. But you can have

different temperatures in individual rooms by installing thermostatic radiator

valves (TRVs) on individual radiators. If you don’t have TRVs, you should choose

a temperature that is reasonable for the whole house. If you do have TRVs, you

can choose a slightly higher setting to make sure that even the coldest room is

comfortable,then prevent any overheating in other rooms by adjusting theTRVs.

The time on the programmer must be correct. Some types have to be adjusted

in spring and autumn at the changes between Greenwich Mean Time and British

SummerTime.

You may be able to temporarily adjust the heating programme, for example,

‘Override’,‘Advance’or‘Boost’.These are explained in the manufacturer’s instructions.

Programmable room thermostats need a free ﬂow of air to sense the temperature,

so they must not be covered by curtains or blocked by furniture.Nearby electric ﬁres,

televisions,wall or table lamps may prevent the thermostat from working properly.

User Instructions

Your programmable room thermostat

TP4 & TP5 room thermostats let you programme up to 6 times

and temperatures at which your heating will come on and go off

each day. With the TP5 you can programme one set of times and

temperatures for weekdays and another set for weekends. They

feature several user overrides including frost protection.

User Instructions

Otros manuales para TP4

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Termostato de Danfoss

Danfoss

Danfoss ECL Comfort 310, A376 Manual de usuario

Danfoss

Danfoss ECtemp Touch Manual de usuario

Danfoss

Danfoss TP7001 series Manual de usuario

Danfoss

Danfoss RET 230 HC-1 Manual de usuario

Danfoss

Danfoss TP4 Instrucciones de montaje

Danfoss

Danfoss ECL Comfort 310, A367 Manual de usuario

Danfoss

Danfoss RT 14E Manual de usuario

Danfoss

Danfoss ECL Comfort 310, A333 Manual de usuario

Danfoss

Danfoss CET B-RF Instrucciones de funcionamiento

Danfoss

Danfoss RT 14L Manual de usuario

Danfoss

Danfoss ECL Comfort 310, P318 Manual de usuario

Danfoss

Danfoss RT 270 Manual de usuario

Danfoss

Danfoss ECL Comfort 210 Manual de usuario

Danfoss

Danfoss living connect Manual de usuario

Danfoss

Danfoss RET2000 B Manual de usuario

Danfoss

Danfoss DEVI DEVIreg Touch Manual de usuario

Danfoss

Danfoss TPONE-RF Manual de usuario

Danfoss

Danfoss RT2-RF Manual de usuario

Danfoss

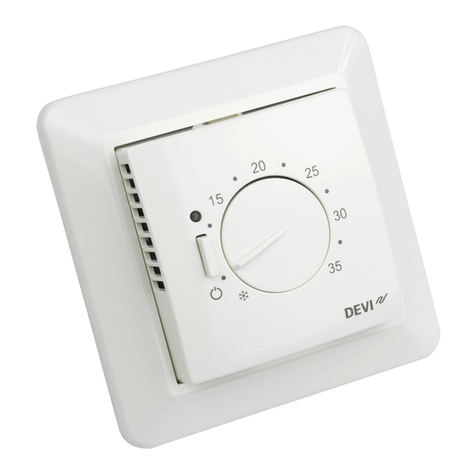

Danfoss DEVIreg 530 Manual de usuario
