Danfoss DHP-A Manual de usuario

VMBMF302

Installation instruction

Outdoor unit

DHP-A, DHP-AL

Contents

1 Installing the outdoor unit ...........................2

1.1 Check the delivery ..........................................2

1.2 Assembling the stand .......................................2

1.3 Preparing the outdoor unit ..................................2

1.4 Assembling the outdoor unit on the stand . . . . . . . . . . . . . . . . . . .3

1.5 Assembling the front cover ..................................3

1.6 Assembling the cover and cover plate .......................4

1.7 Assembling the defrost sensor...............................6

2VMBMF302

1 Installing the outdoor unit

It is essential that the outdoor unit is installed by two people.

1.1 Check the delivery

The outdoor unit is delivered as three items:

• the outdoor unit, on a wooden pallet

• a box containing the stand, adjustable feet and all the necessary screws

• aboxcontainingcovers

The following tools are required for assembly and installation:

• Wrench, or equivalent, 10 mm

• Wrench, or equivalent, 13 mm

• Screwdriver, or equivalent, torx TX25

• Cross head screwdriver

• Drill bit Ø 3 mm

• MillingcutterØ 6 mm, or equivalent

• Drill

Check that the following screws have been supplied:

• 8 x M6x10, hex screw

• 4 x M6x10, hex screw

• 5 x M6x15, torx TX25

• 2 x panel screws, crosshead

1.2 Assembling the stand

1. Screw the two horizontal struts together (1) using the two ends (2) as illustrated below. Use 8 x M6x10 screws. The bent

edges of the horizontal struts must be facing upwards and inwards.

Figure 1: Assembling the stand.

2. Screw the adjustable feet (3) into the holes under the ends.

1.3 Preparing the outdoor unit

While the outdoor section remains on the pallet it should be prepared for placing on the stand. Carry out the following:

3. There are three M6x20 screws on the lower edge of the outdoor unit. Unscrew them so that 2-3 mm of the thread

remains. Use a torx TX25 screwdriver, or equivalent.

4. Raise the outdoor unit. NOTE! Do not lift the side plates.

5. Remove the side plates. They are held in place by clamps and so are removed by pulling outwards.

6. Remove all four screwed lifting eyes. Use a 13 mm wrench, or equivalent.

Slit

Bent edge

VMBMF302

1.4 Assembling the outdoor unit on the stand

7. Lift the outdoor unit into the place on the stand.

Figure 2: Lift the outdoor unit onto the stand.

8. Screw the outdoor unit onto the stand. Use 4 x M6x20 screws. It may be necessary to push and pull the stand slightly in

order to get the screw holes to align.

9. Reinstall the side panels.

1.5 Assembling the front cover

⚠ Leave the transport protection on the corners of the front panel in place during installation to prevent scratches on the

outer section.

10. Hook the lower edge of the front cover onto at least one of the three screws in the bottom edge of the stand.

11. Secure the upper edge of the front panel temporarily in the centre hole. Use 1 x M6x15 torx TX25.

12. Align all the three screws in the lower edge.

13. Screw the three screws in the lower edge fully. Use a torx TX25 screwdriver, or equivalent.

4VMBMF302

14. Secure the upper edge of the front cover. Use 3 x M6x15 torx TX25.

Figure 3: Secure the front cover.

15. Remove the transport protection on the four corners of the front panel.

Figure 4: Transport protection.

1.6 Assembling the cover and cover plate

16. Hook the cover at the front edge on the front cover.

Figure 5: Hook the front cover into place.

VMBMF302

17. Secure the cover using a screw on each side. Use 2 x cross head screws.

If the cover does not align with the side cover plates it may be necessary to drill new Ø 3 mm holes:

•Mark for the new holes

•Lift off the cover

•Drill the holes

•Install and screw the cover into place

Figure 6: Screw the front cover into place.

18. Hook the cover onto the stand.

Figure 7: Hook the cover into place.

6VMBMF302

1.7 Assembling the defrost sensor

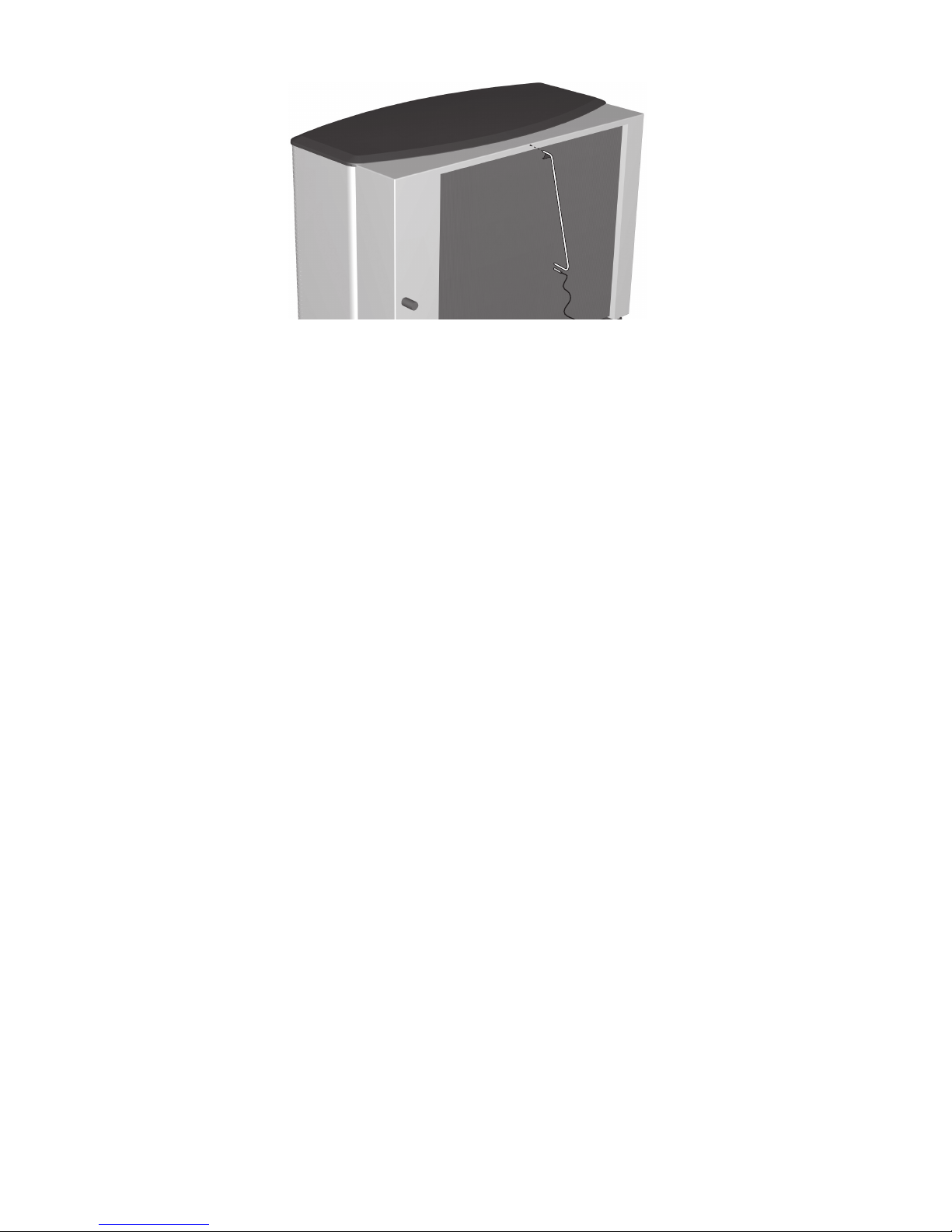

Figure 8: Hook the defroster sensor into place.

18. Slide the mounting for the defroster sensor into the hole on the reverse of the outdoor unit until it hooks into place on

the edge.

19. Secure the defroster sensor at the bottom of the mounting using a cable tie.

The outdoor unit is now mounted and can be adjusted on the site where it should be set up.
