Dallmeier DF51 0HD-DN/IR Series Guía

006768 | Rev. 1.0.2 | 2018-12-17

DF51(X)0HD-DN/IR

Commissioning

English

The reproducon, distribuon and ulizaon of this document as well as the communicaon

of its contents to others without express authorizaon is prohibited. Oenders will be held

liable for the payment of damages.

The manufacturer accepts no liability for damage to property or pecuniary damages arising

due to minor defects of the product or documentaon, e.g. print or spelling errors, and for

those not caused by intenon or gross negligence of the manufacturer.

Figures in this document may dier from the actual product.

We reserve the right to make technical modicaons.

All trademarks idened by ® are registered trademarks of Dallmeier electronic.

All trademarks idened by *) are trademarks or registered trademarks of the following owners:

Google and Google Chrome of Google Inc. headquartered in Mountain View, California, USA;

JavaScript of Oracle Corporaon (and/or its aliates) headquartered in Redwood Shores, California, USA;

Microso, Internet Explorer, Microso Edge and Windows of Microso Corporaon headquartered in Redmond,

Washington, USA;

Mozilla and Firefox of Mozilla Foundaon headquartered in Mountain View, California, USA;

Torx of Acument Intellectual Properes, LLC headquartered in Rockford, Illinois, USA.

Third-party trademarks are named for informaon purposes only.

Dallmeier electronic respects the intellectual property of third pares and always aempts to ensure the complete

idencaon of third-party trademarks and indicaon of the respecve holder of rights.

In case that protected rights are not indicated separately, this circumstance is no reason to assume that the respecve

trademark is unprotected.

This product includes soware developed by the OpenSSL Project for use in the OpenSSL Toolkit (hp://www.openssl.org)

and cryptographic soware wrien by Eric Young (eay@cryptso.com).

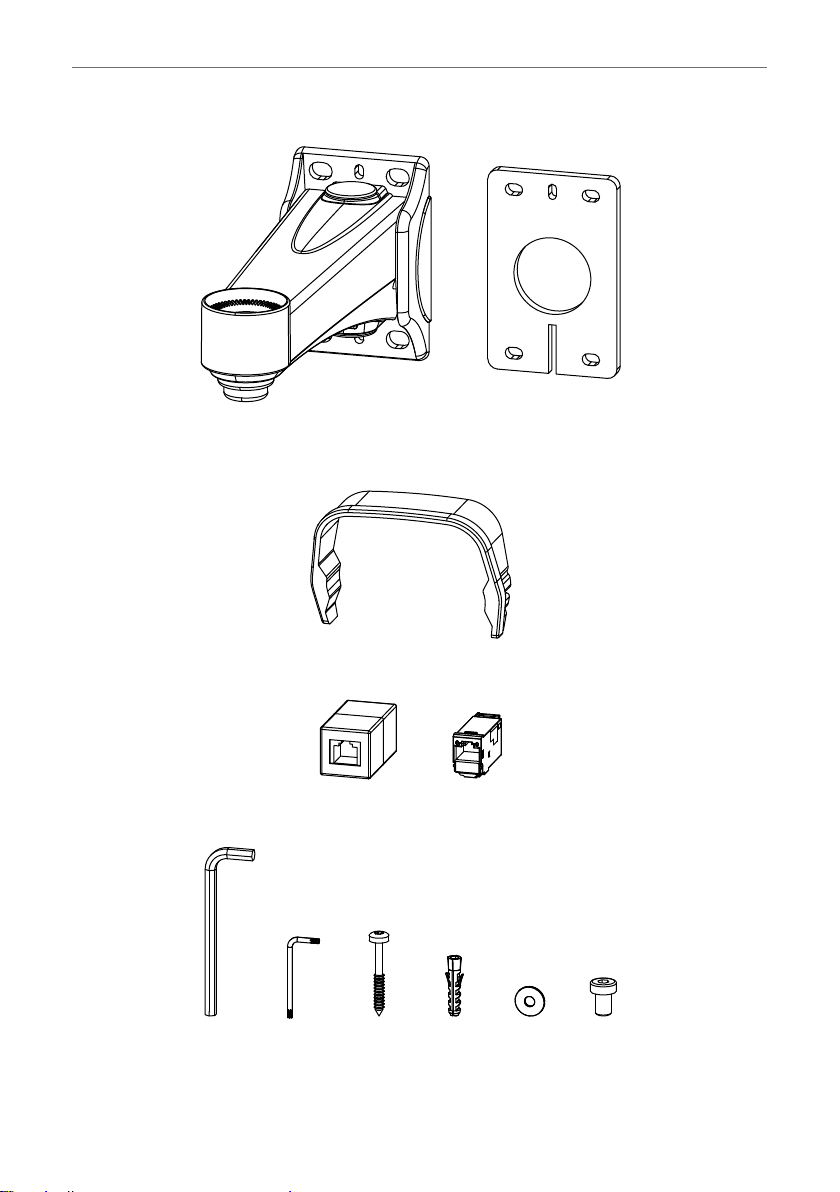

Commissioning DF51(X)0HD-DN/IR

1× 1×

1×

1× 1×

1× 4× 4× 4× 1×1×

Commissioning DF51(X)0HD-DN/IR

Contents

1 Validity 6

2 Documents 6

This Document 7

Other Applicable Documents 7

3 TypographicalConvenons 8

4 SafetyInstrucons 10

5 General Notes 13

Scope of Delivery 13

Transportaon and Packaging 14

Warranty 14

Appropriate Use 14

Operaon 15

Formaon of Condensaon – Fogging of the Front Glass 16

Approvals/Cercaons 18

6 Requirements 19

Ambient Condions 19

Power Supply 20

7 Maintenance and Cleaning 22

8 InstallaonandCommissioning 23

9 FrontViewofCamera 40

10 WireColorCodeforPre-assembledPatchCable 41

11 ConneconandLogin 42

System Requirements 42

Connecon 43

12 TechnicalProductSpecicaon 46

13 Dimensions 48

DF51(X)0HD-DN/IR Commissioning

1 Validity

This document applies to the following devices:

• DF5120HD-DN/IR

• DF5140HD-DN/IR

For reasons of simplicaon, the term “device” or “camera” is used in the

following.

Figures in this document may dier from the actual product.

2 Documents

The product documentaon for the device contains several documents

which are included in the scope of delivery in a printed form and/or on

a digital medium. Addional informaon, if available, is provided exclu-

sively on the website www.dallmeier.com.

Read the complete product documentaon for the device carefully and

thoroughly before using the device.

Always observe and follow the contained instrucons, notes and warnings

as well as the technical data in the currently valid product specicaon.

Keep all documents in legible condion and in a suitable locaon for

future reference.

Regularly check the website www.dallmeier.com for the latest product

documentaon updates.

Commissioning DF51(X)0HD-DN/IR

This Document

Commissioning

The document entled “Commissioning” (this document) contains

detailed informaon concerning the installaon, connecon and commis-

sioning of the device as well as safety instrucons and general notes.

The target audience of this document is trained system integrators (video

security/surveillance systems installaon contractors).

OtherApplicableDocuments

ProductSpecicaon

The product specicaon contains detailed technical data, features and

characteriscs of the device.

The target audience of the document is trained system integrators (video

security/surveillance systems installaon contractors).

Conguraon

The document entled “Conguraon” contains detailed informaon

concerning the conguraon of the device.

The target audience of the document is trained system integrators (video

security/surveillance systems installaon contractors).

DF51(X)0HD-DN/IR Commissioning

3 TypographicalConvenons

This document may contain various warning words and symbols that

indicate potenal sources of danger:

DANGER

DANGER indicates a hazardous situaon which, if not avoided, will

result in death or serious injury.

WARNING

WARNING indicates a hazardous situaon which, if not avoided, could

result in death or serious injury.

CAUTION

CAUTION indicates a hazardous situaon which, if not avoided, could

result in minor or moderate injury.

NOTICE

NOTICE addresses pracces not related to physical injury and indi-

cates measures to prevent device and/or property damage due to

improper installaon, assembly, wiring, operaon, conguraon or

maintenance of the device.

Commissioning DF51(X)0HD-DN/IR

For reasons of clarity and readability, various text formang elements

and types of emphasis are used in this documentaon:

Instrucons are indicated by arrows (➡).

➡Always carry out instrucons one aer the other in the sequence

described.

“Expressions” in quotaon marks usually refer to individual components

of the device (housing parts, mounng elements, connecons/interfaces,

etc.) or to control elements of the device’s web-based graphical user

interface (menu items, buons, etc.).

Paragraphs in italics provide informaon on basic principles, special

features and ecient procedures as well as general recommenda-

ons.

DF51(X)0HD-DN/IR Commissioning

4 SafetyInstrucons

Only use the device if it is in technically perfect condion, according to

the intended purpose, in a safety and hazard conscious manner and in

compliance with the follow ing safety instrucons:

• QualiedPersonnel

The assembly, installaon, connecon, commissioning and conguraon

of the device may only be carried out by qualied personnel.

This also applies to the maintenance, inspecon and repair of the device

in complying with the regulaons of the DIN VDE 0701-0702 series of

standards (VDE 0701-0702: “Inspecon aer repair, modicaon of

electrical appliances – Periodic inspecon on electrical appliances –

General requirements for electrical safety”).

• Regulaons

The use of video and audio security/surveillance systems is, in general,

strictly regulated.

Before using the device, inform yourself about the currently valid laws

and regulaons regarding data, worker and environmental protecon

and ensure compliance with them.

• System Components

Only use internal components that have been tested and approved by

Dallmeier.

Inappropriate internal components may cause malfuncons, damage

and data loss and may result in the loss of warranty.

• ModicaonstotheDevice

Do not make any modicaons to the hardware or soware of the device

that have not been tested and approved by Dallmeier.

Inappropriate modicaons may cause malfuncons, damage and data

loss and may result in the loss of warranty.
