This document will guide you through the basic

installation process for your new access point

DBA-2520P

Quick Installation Guide

Access Point

• OS X 10.8.5, Windows 7, Linux (Ubuntu 12) and

higher.

Hardware Overview

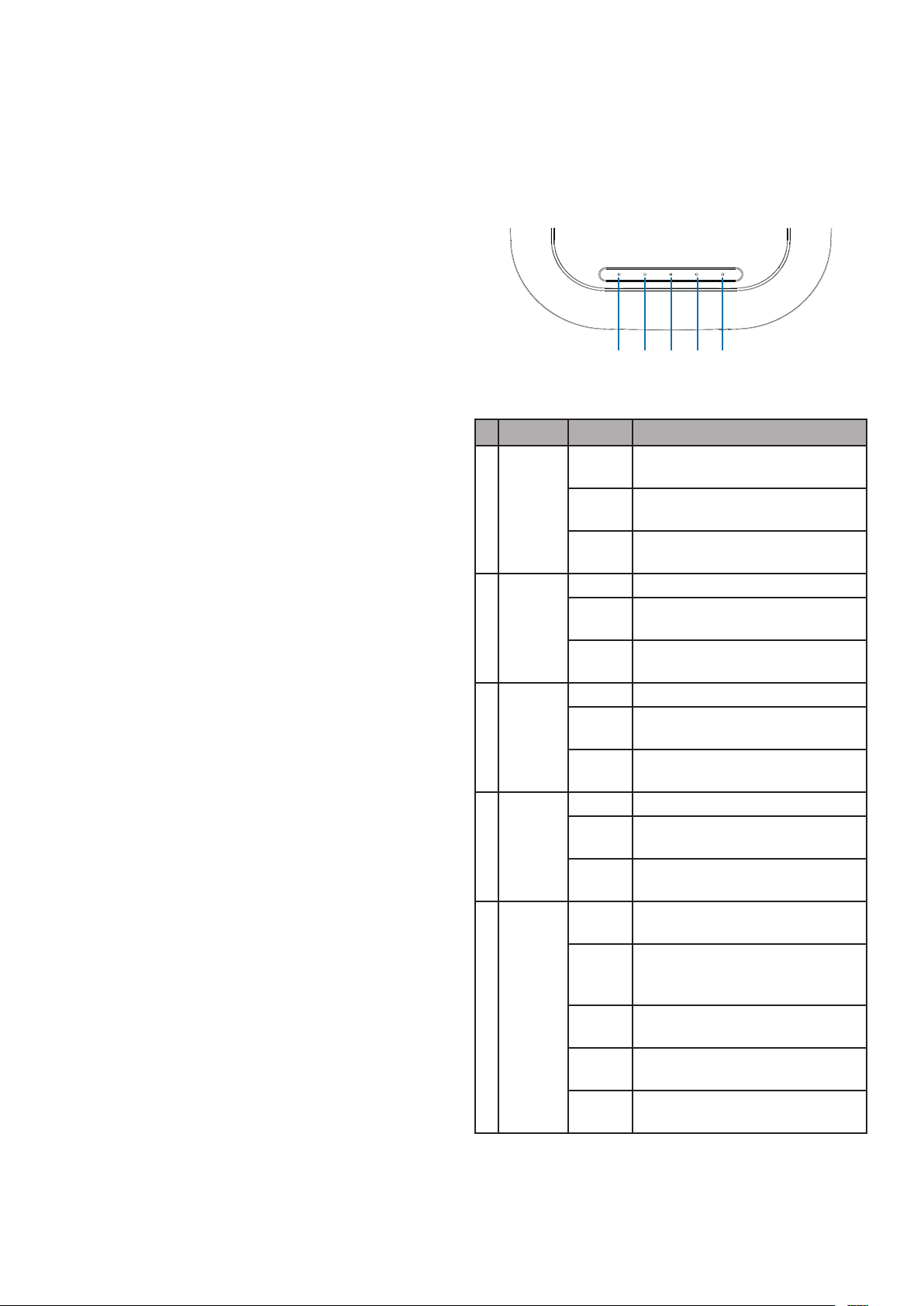

LED Indicators

1 2 3 4 5

PWR/Cloud

LAN2LAN15GH

2.4GH

Figure 1: Front Panel LED

# LED Status Description

1 2.4 GHz

O The 2.4 GHz wireless band is

disabled.

Solid

green

The 2.4 GHz wireless band is active.

Blinking

green

Data is being transmitted over the

2.4 GHz band.

2 5 GHz

O The 5 GHz wireless band is disabled.

Solid

green

The 5 GHz wireless band is active.

Blinking

green

Data is being transmitted over the

5 GHz band.

3LAN 1

(PoE)

O No link detected on the port.

Solid

green

An active link is detected on the

port.

Blinking

green

Data is being transmitted on the

port.

4 LAN 2

O No link detected on the port.

Solid

green

An active link is detected on the

port.

Blinking

green

Data is being transmitted on the

port.

5PWR/

Cloud

Solid

orange

The DBA-2520P is booting up.

Blinking

orange

The DBA-2520P is resetting to its

default settings or is upgrading its

rmware.

Blinking

green

The DBA-2520P is connecting to the

D-Link Nuclias cloud.

Solid

green

The DBA-2520P is in cloud mode.

Solid

red

The DBA-2520P is not working

properly in cloud mode.

Table 1: LED Description

Before You Begin

This installation guide provides instructions

for installing the DBA-2520P on your network.

Additional documentation is also available on the

D-Link support website.

• D-Link Nuclias Access Point Portal Manual: For

additional information and instructions on how

to congure the device using the D-Link Nuclias

cloud.

• DBA-2520P User Manual: For additional

information and instructions on how to congure

the device using the web user interface.

Package Contents

This DBA-2520P package should include the

following items:

• 1 x DBA-2520P

• 1 x Power adapter (optional)*

• 1 x Mounting kit

• 1 x Console cable

If any of the above items are damaged or missing,

please contact your local D-Link reseller.

*If the power adapter is not included, it can be

purchased separately. Please contact your local

D-Link reseller.

Setup Preparation

Please ensure that the following items are readily

available before continuing the installation process:

• An active D-Link Nuclias account.

• An active Internet connection to connect to the

D-Link Nuclias cloud.

• A valid device license. Contact your D-Link Nuclias

service provider for more information.

System Requirements

• A PC or laptop with a working Ethernet adapter

or wireless interface.

• Mozilla Firefox 52.0 or higher, Internet Explorer

11 or higher, Safari 10.1 or higher, Google

Chrome 59 or higher.

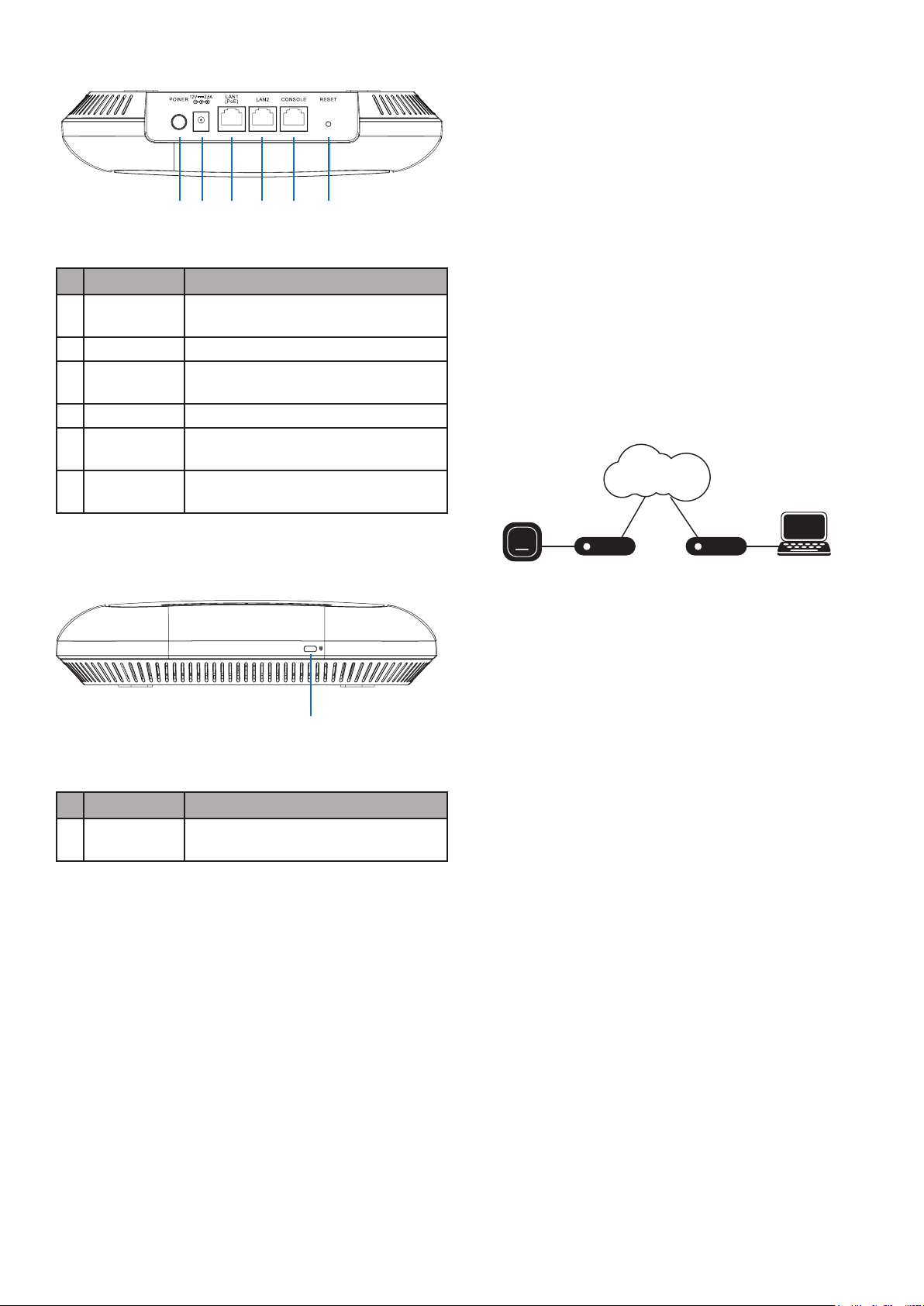

Interface Connectors

1 2 3 4 5 6

Figure 2: Rear Connectors

# Connector Description

1Power

Button

Used to power the device on and o.

2 Power Input Input for the power adapter.

3LAN Port

1 (PoE)

Gigabit RJ-45 port for data and Power

over Ethernet (PoE) power.

4 LAN Port 2 Gigabit RJ-45 port for data.

5 Console Port RJ-45 port to connect the RJ-45 console

cable for CLI management.

6Reset Button Used for rebooting or resetting the

device back to factory default settings.

Table 2: Interface Description

Figure 3: Side Connectors

# Connector Description

1Kensington

Lock Slot

Slot for inserting a Kensington security

lock.

Table 3: Interface Description

Powering the Access Point

The DBA-2520P can be powered using one of the

following two methods:

Using Power over Ethernet (PoE)

1. Use a standard Ethernet cable to connect LAN

port 1 on the DBA-2520P to a PoE power source

device such as a PoE switch or PoE injector.

(Optional) Using the power adapter

1. Connect the power connector of the adapter to

the power input on the DBA-2520P and plug the

adapter into a nearby power outlet.

Conguring the Access Point

Using D-Link Nuclias

Note:To use D-Link Nuclias, the DBA-2520P must be

connected to the Internet.

The DBA-2520P is designed to be managed through

the D-Link Nuclias cloud. Refer to the D-Link Nuclias

Access Point Portal Manual for detailed conguration

instructions.

Figure 4: Connecting through D-Link Nuclias

1. On an Internet-connected computer, open a web

browser and go to login.nuclias.com

2. Enter your D-Link Nuclias user name and

password and click Log in.

Manual Conguration

Note: D-Link recommends manually conguring the

device before mounting it.

If you are unable to connect to the D-Link Nuclias

cloud, you may need to manually configure the

DBA-2520P using its web user interface (UI).

Refer to the DBA-2520P User Manual for detailed

conguration instructions.

Use one of the following methods to access the web

user interface:

Connecting through Ethernet

Note: The management computer must be in the

same subnet as the DBA-2520P.

1. Use an Ethernet cable to connect the DBA-2520P

to the management computer or to the switch or

router the management computer is connected

to.

Switch or RouterSwitch or Router Management

DBA-2520P

D-Link Nuclias

2. Open a web browser and type in the default

host name of the DBA-2520P and press Enter.

The default host name is DBA-2520P-XXXX

where XXXX represents the last 4 characters

of the MAC address listed on the device label

located on the bottom of the device.

3. When prompted, enter the default login

credentials:

User name: admin

Password: admin

Connecting Wirelessly

1. Connect the management computer to the

default SSID of the DBA-2520P. The SSID will be

in the format DBA-2520P-XXXX where XXXX

represents the last 4 characters of the MAC

address listed on the device label located on the

bottom of the device.

2. Open a web browser and type in the default

host name of the DBA-2520P and press Enter.

The default host name is DBA-2520P-XXXX

where XXXX represents the last 4 characters

of the MAC address listed on the device label

located on the bottom of the device.

3. When prompted, enter the default login

credentials:

User name: admin

Password: admin

Mounting the Access Point

The DBA-2520P can be mounted on a wall or ceiling

for optimal coverage.

Mounting on a Solid Wall or Ceiling

Figure 5: Attaching the Lock Plate

1. Use the mounting plate to mark the location

where to drill the holes in the wall or ceiling.

2. Drill holes on the markings and place the

included anchors into the drilled holes.

3. Align and place the mounting plate on top of the

anchors and use the included screws to secure

the mounting plate to the surface.

4. Connect the Ethernet cable and power adapter

(optional) to the device.

5. Attach the DBA-2520P to the mounting plate by

placing it onto the plate and rotating clockwise

until the device locks into place.

Mounting on a Ceiling Crossbar

Figure 6: Attaching the Lock Plate

1. Clip the two included ceiling brackets onto the

ceiling crossbar. Make sure both brackets are

positioned in line with each other.

Ceiling bracket

Ceiling crossbar

Figure 7: Attaching the Ceiling Brackets

2. Use the included screws to secure the mounting

plate to the ceiling brackets.

3. Connect the Ethernet cable and power adapter

(optional) to the device.

4. Attach the DBA-2520P to the mounting plate by

placing it onto the plate and rotating clockwise

until the device locks into place.

Locking the DBA-2520P

Attach a Kensington physical security lock to the

Kensington slot on the side of the device to secure

it to an object.

Figure 8: Inserting a Physical Lock

Reboot/Reset the Access Point

If necessary, the DBA-2520P can be manually

rebooted or reset to factory default settings.

Rebooting the device

Press and hold down the reset button between

2 to 5 seconds then release to reboot the device.

Resetting the device

Press and hold down the reset button between

6 to 15 seconds then release to reset the device to

its factory default settings.

Press and hold down the reset button for

more than 15 seconds then release to reset the

device to its factory default settings and force the

device to load an alternate rmware.

Troubleshooting

The DBA-2520P receives its conguration settings

and is managed through the D-Link Nuclias cloud.

If you are experiencing problems connecting

to the D-Link Nuclias cloud, check your Internet

connection. If you still cannot connect to the service,

additional configuration on the device may be

required. Refer to the DBA-2520P User Manual for

detailed information on how to manually congure

the device.

Additional Information

For additional support, please refer to the user

manual, or visit your local D-Link support website.

Warning: The DBA-2520P is designed to receive PoE

power only from an 802.3at compliant source, or

from a D-Link-approved power adapter. Connecting

an access point to a Power over Ethernet (PoE)

device that is not approved by D-Link can damage

the equipment.

Warning: This product is to be connected only to

PoE networks without routing to the outside plant.

The equipment power cord must be connected to

a socket-outlet earthling connection.

Avertissement: Le DBA-2520P est conçu pour

recevoir de l’alimentation PoE uniquement à partir

d’une source compatible 802.3at ou d’un adaptateur

secteur approuvé par D-Link. La connexion d’un

point d’accès à un périphérique Power over Ethernet

(PoE) non approuvé par D-Link peut endommager

l’équipement.

Avertissement: Ce produit doit être connecté

uniquement aux réseaux PoE sans acheminement

vers l’installation externe. Le cordon d’alimentation

de l’équipement doit être branché sur une prise de

terre avec prise de courant.

Appendix - Statements

ErP Power Usage

This device is an Energy Related Product (ErP) that automatically switches to a power-saving Network

Standby mode within 1 minute of no packets being transmitted. It can also be turned o through a

power switch to save energy when it is not needed.

Network Standby: 6.41 watts

Switched O: 0.06 watts

Federal Communication Commission Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment o and on, the user is encouraged to try to correct the

interference by one of the following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is

connected.

- Consult the dealer or an experienced radio/TV technician for help.

Non-modications Statement:

Any changes or modications not expressly approved by the party responsible for compliance could

void the user’s authority to operate this equipment.

Caution:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference

received, including interference that may cause undesired operation.

This device and its antenna(s) must not be co-located or operating in conjunction with any other

antenna or transmitter except in accordance with FCC multi-transmitter product procedures. For product

available in the USA/Canada market, only channel 1~11 can be operated. Selection of other channels is

not possible.

Note

The country code selection is for non-USA models only and is not available to all USA models. Per FCC

regulations, all WiFi product marketed in the USA must be xed to USA operational channels only.

RF Frequency Requirements

This device is for indoor use only when using all channels in the 5.15 to 5.25 GHz frequency range. High

power radars are allocated as primary users of the 5.25 to 5.35 GHz and 5.65 to 5.85 GHz bands. These

radar stations can cause interference with and/or damage this device. This device will not operate on

channels which overlap the 5600-5650 MHz band.

It is restricted to indoor environments only.

IMPORTANT NOTICE:

FCC Radiation Exposure Statement

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 30cm between the radiator

and your body.

Innovation, Science and Economic Development Canada (ISED) Statement:

This Class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Innovation, Science and Economic Development Canada (ISED) Statement:

This device complies with ISED licence-exempt RSS standard(s). Operation is subject to the following two

conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired

operation of the device.

Le présent appareil est conforme aux CNR d’ISED applicables aux appareils radio exempts de licence.

L’exploitation est autorisée aux deux conditions suivantes :

(1) l’appareil ne doit pas produire de brouillage, et

(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage

est susceptible d’en compromettre le fonctionnement.

(i) the device for operation in the band 5150-5250 MHz is only for indoor use to reduce the potential for

harmful interference to co-channel mobile satellite systems;

(i) les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une

utilisation à l’intérieur an de réduire les risques de brouillage préjudiciable aux systèmes de satellites

mobiles utilisant les mêmes canaux;

Operations in the 5.25-5.35 GHz band are restricted to indoor usage only.

Les opérations dans la bande de 5.25-5.35 GHz sont limités à un usage intérieur seulement.

Radiation Exposure Statement

This equipment complies with ISED radiation exposure limits set forth for an uncontrolled environment.

This equipment should be installed and operated with minimum distance 0.34m between the radiator

and your body.

Déclaration d’exposition aux radiations

Cet équipement est conforme aux limites d’exposition aux rayonnements ISED établies pour un

environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 0.34m de

distance entre la source de rayonnement et votre corps.

Japan Voluntary Control Council for Interference Statement

この装置は、クラス B情報技術装置です。この装置は、家庭環境で使用することを目的としてい

ますが、この装置がラジオやテレビジョン受信機に近接して使用されると、受信障害を引き起こ

すことがあります。

取扱説明書に従って正しい取り扱いをして下さい。

VCCI-B

Japan Voluntary Control Council for Interference Statement

This is a Class B product based on the standard of the VCCI Council. If this is used near a radio or

television receiver in a domestic environment, it may cause radio interference. Install and use the

equipment according to the instruction manual.

電波法により5GHz帯は屋内使用に限ります。

Product and Warranty Information

To nd out more about D-Link products or marketing information, please visit the website

http://www.dlink.com.

The D-Link Limited Lifetime Warranty information is available at

http://warranty.dlink.com/

Ver. 1.01(WW)_90x130

2019/09/26

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de D-Link

D-Link

D-Link DAP-2330 v 1.0 Manual de usuario

D-Link

D-Link AirPremier N DAP-2360 Manual de usuario

D-Link

D-Link DWL-3200AP - AirPremier - Wireless Access... Manual de usuario

D-Link

D-Link AirPlus DWL-900AP Manual de usuario

D-Link

D-Link DAP-1155 Manual de usuario

D-Link

D-Link DAP-2660 Manual de usuario

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

D-Link

D-Link DWL-8220AP - AirPremier Wireless Switch Dualband Access... Manual de usuario

D-Link

D-Link DAP-3520 - AirPremier N Dual Band Exterior PoE Access... Manual de usuario

D-Link

D-Link DWL-3200AP - AirPremier - Wireless Access... Manual de usuario

D-Link

D-Link AirPro DWL-5000AP Manual de usuario

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

D-Link

D-Link AirPremier N DAP-3690 Manual de usuario

D-Link

D-Link AirPremier N DAP-2360 Manual de usuario

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

D-Link

D-Link DWL-8610AP Manual de usuario

D-Link

D-Link xtreme n duo dap-1522 Manual de usuario

D-Link

D-Link DWL-700AP - Air - Wireless Bridge Manual de usuario

D-Link

D-Link DWL-6600AP Manual de usuario

D-Link

D-Link DAP-3520 - AirPremier N Dual Band Exterior PoE Access... Manual de usuario

D-Link

D-Link Air Premier DAP-2695 Manual de usuario

D-Link

D-Link DWL-2100AP - AirPlus Xtreme G Manual de usuario

D-Link

D-Link DAP-1155 Manual de usuario

D-Link

D-Link DWL-700AP - Air - Wireless Bridge Manual de usuario

Manuales populares de Punto de acceso inalámbrico de otras marcas

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario

Draytek

Draytek VIGORAP 902 Manual de usuario

EnGenius

EnGenius EAP350 Manual de usuario
