D-Link DWR-966 Manual de usuario

DWR-966

4G Integrated Access Device

User Manual

Declaration of Conformity

We, D-Link Corp.,

Address: No.289, Sinhu 3rd Rd, Neihu District Taipei City 114 Taiwan

Declare under our own responsibility that the product:

Model: DWR-966

Intended use: 4G Integrated Access Device

This product is in conformity with the following standards and/or other

normative documents:

1. Health (Article 3.1(a) of the R&TTE Directive)

EN 62311: 2008, EN 50385:2002

2. Safety (Article 3.1(a) of the R&TTE Directive)

EN 60950-1:2006/A11:2009+A1:2010+A12:2011+A2:2013

3. Electromagnetic compatibility (Article 3.1 (b) of the R&TTE

Directive)

EN 301 489-1 V1.9.2, EN 301 489-7 V1.3.1, EN 301 489-17

V2.2.1, EN 301 489-24 V1.5.1

EN 55022:2010/ AC:2011 Class B, EN55024: 2010

EN 61000-3-2:2006/A1:2009/A2:2009, EN 61000-3-3:2008

4. Radio frequency spectrum usage (Article 3.2 of the R&TTE

Directive)

EN 301 511 V9.0.2, EN 301 908-1 V6.2.1

EN 300 328 V1.8.1, EN 301 893 V1.7.1

5. RoHS Directive (2011/65/EU)

EN 50581: 2012

We hereby declare that the above named product is in conformance to

all the essential requirements of the Directives:

R&TTE Directive (1999/5/EC), RoHS Directive (2011/65/EU)

The technical documentation relevant to the above equipment will be

held at:

D-Link Corp.

No.289, Sinhu 3rd Rd, Neihu District Taipei City 114 Taiwan

This booklet must contain a Section entitled "Precautions for the use of

devices". Two types of information have to be notified.

Firstly, these advices should be for the safety of people as users:

(i) no use of the mobile phone in airplanes, hospital, gas stations,

professional garages…

(ii) advise medical implants patient (heart, insuline….) that they shall

keep mobile phone 15cm away from the implant and, while calling,

keep the phone on the opposite side of the implant.

Secondly, the booklet shall advice the end-user in order to reduce the

level of exposure to radiations. For instance, but not exhaustively,

these advices should be for mobile phones:

(i) use the mobile phone in good reception conditions,

(ii) use a hand free kit,

(iii) advise pregnant women to hold the mobile phone far from hers

stomach,

(iv) advise child and adolescent to use a mobile phone far from genital

parts…

The maximum ambient temperature specified by manufacturer is

40 ˚C.

Please make sure the temperature for adapter will not be higher than

40 ˚C

The adapter shall be installed near the equipment and shall be easily

accessible.

CE RF Exposure Compliance

This device meets the EU requirements (1999/519/EC) and the

International Commission on Non-Ionizing Radiation Protection (ICNIRP)

on the limitation of exposure of the general public to electromagnetic

fields by way of health protection.

To comply with the RF exposure requirements, this equipment must be

operated in a minimum of 20 cm separation distance to the user.

TABLE OF CONTENTS

1. GETTING TO KNOW THE DWR-966 ...............................5

1.1 Introduction ............................................................................ 5

1.2 Package Contents.................................................................... 6

1.3 System Requirements ............................................................. 6

1.4 Hardware Overview - Front Panel & LEDs............................... 7

1.5 Hardware Overview - Rear Panel & LEDs................................ 8

1.6 Hardware Overview - Side Panel............................................. 9

2. INSTALLATION ............................................................10

3. USER CONFIGURATION INTERFACE .............................11

3.1 Accessing the User Configuration Interface.......................... 11

3.2 Interface Layout .................................................................... 12

3.3 Using the User Configuration Interface ................................ 13

3.3.1 Home....................................................................................................13

3.3.2 Internet ................................................................................................15

3.3.3 Wi-Fi .....................................................................................................22

3.3.4 LAN.......................................................................................................34

3.3.5 Advanced..............................................................................................38

3.3.6 System ..................................................................................................66

4. APPENDIX ..................................................................75

4.1 First Login to the User Interface............................................ 75

4.2 Connected-PC IP Address Configuration............................... 78

1. Getting to know the DWR-966

1.1 Introduction

The DWR-966 is a 4G Integrated Access Device (IAD) that integrates a

range of methods for connecting to the Internet, allowing users to

access 4G mobile network services via a single device. Once connected,

you can easily share your network utilizing wireless Wi-Fi and wired

Ethernet interfaces. The advanced 4G technology provides much better

performance than traditional 3G networks.

1.2 Package Contents

Thank you for purchasing the DWR-966. Before using the DWR-966,

please confirm that the packaging includes the following items and

accessories:

1.3 System Requirements

4G SIM card, with valid Internet service

A computer with a Windows®, Macintosh®, or Linux-based

operating system with an installed Ethernet adapter

Internet Explorer Version 8.0 or above for configuration usage

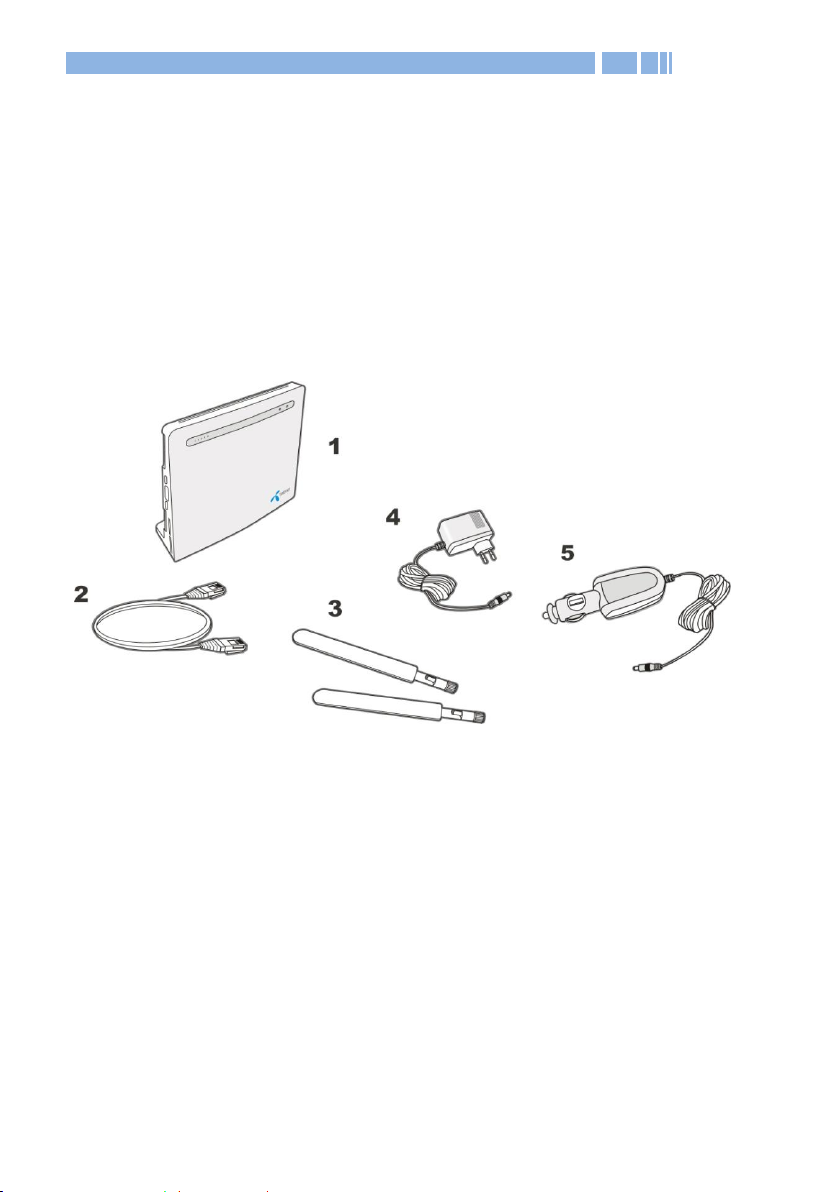

1. DWR-966 unit × 1

2. Ethernet cable × 1

3. Antenna × 2

4. Power adapter × 1

5. Cigarette lighter adapter × 1

1.4 Hardware Overview - Front Panel & LEDs

LED

Status

Description

Power

Off

System off

Green

System on

Red

System error

Internet

Off

Internet not connected

Green

Internet connected

WPS

Green

Successful WPS connection

Blinking Green

(flashes every 2 seconds)

On-going WPS connection process

Blinking Green

(flashes every second)

Invalid WPS connection process

Off

WPS is disabled.

Wi-Fi

2.4 GHz

Off

Wi-Fi 2.4 GHz is disabled.

Green

Wi-Fi 2.4 GHz is enabled.

Blinking Green

Data transmission

Wi-Fi

5 GHz

Off

Wi-Fi 5 GHz is disabled.

Green

Wi-Fi 5 GHz is enabled.

Blinking Green

Data transmission

Ext/Int

antenna

Off

Internal antenna is used.

Green

External antennas are used.

3G/2G

mode

Green

3G network connected

Blue

2G network connected

off

3G/2G network not connected

4G/4G+

mode

Green

4G/4G+ network connected

off

4G/4G+ network not connected

Signal

strength

indicators

Indicates the signal strength of the

connected mobile network

1.5 Hardware Overview - Rear Panel & LEDs

Item

Name

Description

Reset button

Press and hold for 0.5 seconds to restore

default settings.

Note: Restoring factory default settings

will erase all of your existing settings.

LAN ports

Connects to your local network devices

such as a PC or laptop

USB ports

Optional external device connections

Power switch

Turns device on

Power input port

Connects to the power adapter

LED

Status

Description

LAN

Green

Port connected

Blinking green

Data transmitting/receiving

Off

Port not connected

1.6 Hardware Overview - Side Panel

Item

Name

Description

WPS button

Quick wireless connection

with other WPS-supported

devices

SIM card slot

4G or 3G SIM-card

connection

Antenna switch

Press the button to switch

between using external

antennas or using the

internal antenna of the

product.
