DAP-2330 Install Guide 1

DAP-2330 Quick Install Guide

This installation guide provides basic instructions for installing the DAP-2330 Wireless

Gigabit PoE Access Point on your network. For additional information about how to use the

Access Point, please see the User Manual which is available on the CD included in this

package or from the D-Link support website.

System Requirements

Minimum System Requirements:

• CD-ROM Drive

• Router, switch, or computer with installed Ethernet adapter

• Internal Explore 11, Safari 7, Firefox 28, Google Chrome 33

1. Package Contents

DAP-2330 802.11n Gigabit PoE Access Point

Power Adapter

Mounting Brackets

Ethernet Cable

CD-ROM

Quick Install Guide

If any of the above items are missing, please contact your reseller.

Note: Using a power supply with a different voltage than the one included with the DAP-2330

will cause damage and void the warranty for this product.

2DAP-2330 Install Guide

Hardware Overview

LEDs

Connections

1Power/Status

Solid Red Indicates the access point has malfunctioned.

Blinking Red This LED will blink during boot-up.

Solid Green Indicates that the DAP-2330 is working properly.

Blinking Green This light will blink green during data transmission.

2Power Receptor Connect the supplied power adapter.

3LAN (PoE) Port Connect to a Power over Ethernet (PoE) switch or router via an Ethernet cable.

4Reset Button Press and hold for ve seconds to reset the access point to the factory default settings. Press and

hold for one second to reboot the access point.

DAP-2330 Install Guide 3

Hardware Setup

To power the access point, you can use one of the following 3 methods:

Method 1 - Use if you have a PoE switch or router.

Method 2 - Use if you do not have a PoE switch or router and do not have a

power outlet near the location of the access point.

Method 3 - Use if you do not have a PoE switch or router and have a power

outlet near the location of the access point.

DAP-2330

PoE Switch or Router

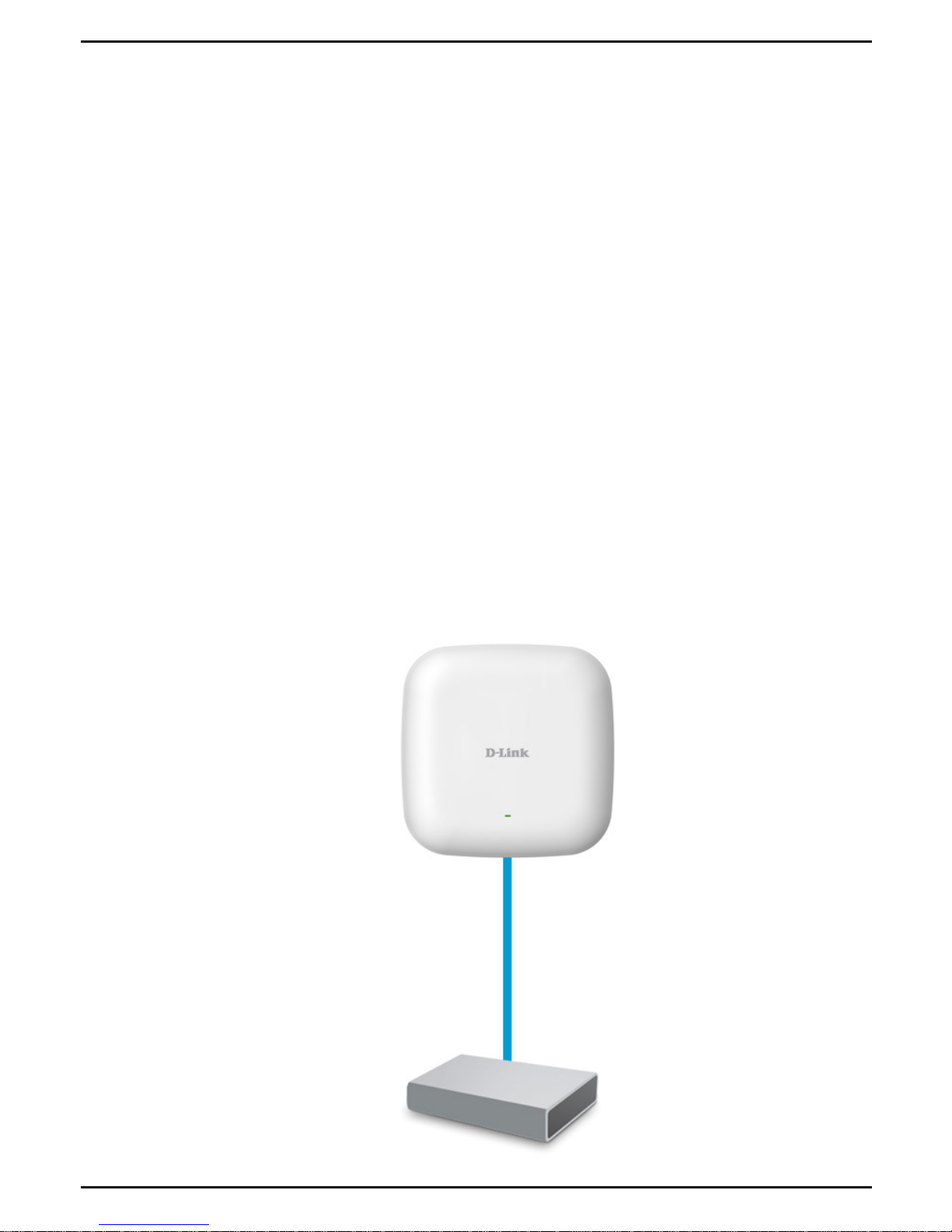

Method 1 - PoE with PoE Switch or Router

1. Connect one end of your Ethernet cable to the LAN (PoE) port on the access point.

2. Connect the other end into one port on a PoE switch or router.

Basic Installation

4DAP-2330 Install Guide

Method 2 - PoE without PoE Switch or Router

1. Connect one end of an Ethernet cable into the Data In port on the PoE base unit and the

other end into one port on your switch, router, or computer.

2. Connect one end of an Ethernet cable into the P+Data Out port on the PoE base unit and

the other end into the LAN (PoE) port on the Access Point.

3. Use the supplied power adapter. Connect the power adapter to the Power In receptor on

the PoE adapter.

4. Connect the power cable to the power adapter and then connect the other end into a

power outlet.

DAP-2330

Power Adapter

PoE Base Unit

DAP-2330 Install Guide 5

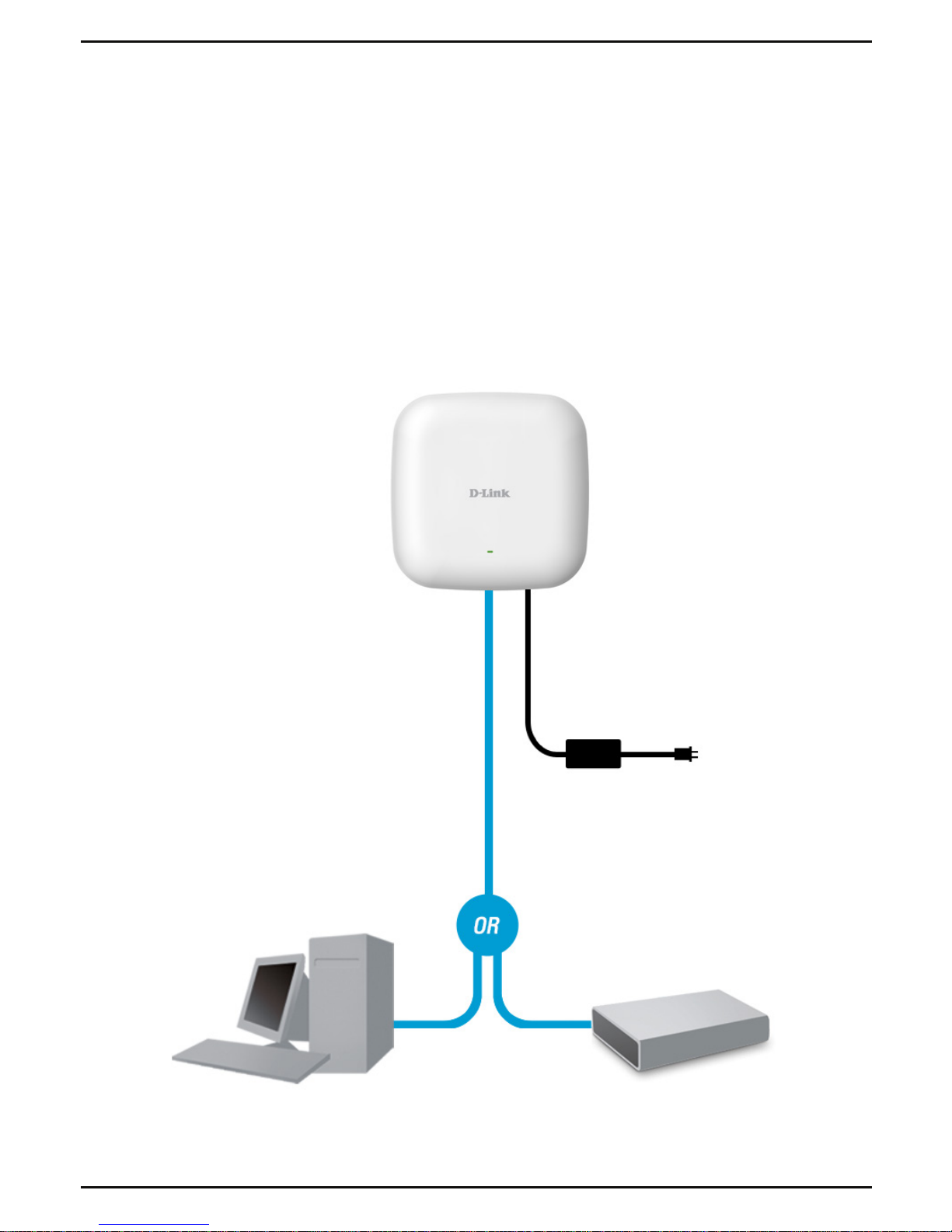

Method 3 - No PoE

1. Connect one end of your Ethernet cable into the LAN (PoE) port and then connect the

other end to a switch, router, or computer.

2. Use the supplied power adapter. Connect the power adapter to the Power receptor on the

Access Point.

3. Connect the power cable to the power adapter and then connect the other end into a

power outlet.

DAP-2330

Switch or Router

Power Adapter

6DAP-2330 Install Guide

2. Connect the access point and your computer to the same switch. Manage the

access point from the computer.

Enter 192.168.0.50 in the address field of your browser, which is the default IP

address of the access point.

Username: admin

Password: (Leave the password field blank)

Power on the access point

To power on the DAP-2330, you can use ONE of the following methods:

1. Connect the supplied power adapter, OR

2. Plug one end of your Ethernet cable into the LAN port of the DAP-2330, and the

other end into a port on a PoE switch.

Congure the access point

To set up and manage the DAP-2330, use one of the following methods:

1. Connect the access point and your computer directly via a straight-through

Ethernet cable. Manage the access point from the computer.

Ensure your computer is congured with a static IP address in 192.168.0.0/24

subnet.

Launch a web browser, type the default IP address of the access point

(http://192.168.0.50) and then press Enter.

Username: admin

Password: (Leave the password eld blank)

ComputerDAP-2330

3. Installation

DAP-2330 Install Guide 7

Solid wall or ceiling

Installation

1. Place the mounting bracket on a wall or

ceiling.

5. Plug the Ethernet cable into the

Ethernet LAN port on the access point.

6. Attach the Access Point to the backet

and slide it down to lock into place.

2. Use a pencil to mark the holes.

3. Drill holes in the marked points and

insert the plastic wall anchors.

4. Use the supplied screws to attach the

mounting bracket to the wall.

8DAP-2330 Install Guide

1. Clip two ceiling brackets onto the ceiling

panels. Make sure both brackets are in

line with each other.

2. Use the provided screws to attach the

mounting bracket to the ceiling bracket.

3. Plug the Ethernet cable into the

Ethernet port on the access point.

4. Attach the Access Point to the bracket

and slide it into place.

Ceiling bracket

Ceiling crossbar

Mounting with a ceiling bracket

Installation
