D-Link DAP-1160 Manual de usuario

QUICK

INSTALLATION

GUIDE

WIRELESS N150 BRIDGE/ACCESS POINT

DA P -116 0

КРАТКОЕ РУКОВОДСТВО ПО УСТАНОВКЕ

GUÍA DE INSTALACIÓN RÁPIDA

GUIA DE INSTALAÇÃO RÁPIDA

快速安裝指南

PETUNJUK PEMASANGAN CEPAT

CONTENTS OF

PACKAGING

CAT. 5 ETHERNET CABLE

POWER ADAPTER

12V / 0.5A

If any of these items are missing from your packaging, contact

your reseller.

WIRELESS N 150 BRIDGE/ACCESS POINT

DAP-1160

CONTENTS

DAP-1160

DAP-1160 1

ENGLISH

YOUR NETWORK SETUP

Modem

Router

Internet

DAP-1160

ENGLISH

PRODUCT

SETUP

EASY SETUP

CONNECT THE ETHERNET CABLE

Connect one end of the Ethernet cable to the LAN port on the

back panel of the DAP-1160, and the other end of this cable to

your computer’s Ethernet port. If your computer is connected to

an Ethernet network via an Ethernet switch, connect this end of

the cable to the switch’s port.

CONFIGURE THE DAP-1160

Open a web browser and go to http://dlinkap

(or http://192.168.0.50). Enter admin as the User name, and

leave the Password blank. Now you can use the Setup Wizard

to congure your DAP-1160.

CONNECT THE POWER ADAPTER

Check the AC voltage of your AC power outlet against the AC power

input of the power adapter. Connect the power adapter supplied with

the DAP-1160 to the power socket on the back of this device rst,

then plug it to your AC power outlet. Check to see that the Power

LED on the front panel of the DAP-1160 is turned ON.

WARNING! The DAP-1160’s power output is 12 volts DC, 0.5

Ampere. Use only the power adapter supplied with this DAP-1160 or

one with the same power specications. Using a power adapter with

a different voltage or plugging your DAP-1160 to a wrong AC voltage

outlet will damage this device and will void the warranty for this

product.

User Name xxxx

Password

DAP-1160

DAP-1160 3

ENGLISH

TROUBLESHOOTING

SETUP AND CONFIGURATION PROBLEMS

1. HOW DO I CONFIGURE MY DAP-1160 WIRELESS N 150 BRIDGE/ACCESS POINT

WITHOUT THE CD, OR CHECK MY WIRELESS NETWORK NAME (SSID) AND WIRLESS

ENCRYPTION KEY?

- Connect your PC to DAP-1160 using an Ethernet cable.

- Open a web browser and enter the address http://dlinkap

- The default username is admin. The default password is blank (leave this box empty).

- If you have changed the password and cannot remember it, you will need to reset the product

to set the password back to default.

2. HOW DO I RESET MY DAP-1160 WIRELESS N 150 BRIDGE/ACCESS POINT TO

FACTORY DEFAULT SETTINGS?

- Ensure the product is powered on.

- Press and hold the reset button on the rear of the device for 5 seconds.

Note: Resetting the product to the factory default will erase the current conguration settings.

To recongure your settings, log into the DAP-1160 as outlined in question 1, then run the

Setup Wizard.

3. HOW DO I ADD A NEW WIRELESS CLIENT OR PC IF I HAVE FORGOTTEN MY

WIRELESS NETWORK NAME (SSID) OR WIRELESS ENCRYPTION KEY?

- For every PC that needs to connect to the DAP-1160 wirelessly, you will need to ensure you

use the correct Wireless Network Name (SSID) and encryption key.

- Use the web based user interface (as described in question 1 above) to check or choose your

wireless settings.

- Make sure you write down these settings so that you can enter them into each wirelessly

connected PC. You will nd a dedicated area on the back of this document to write down this

important information for future use.

4. WHY CAN I NOT GET AN INTERNET CONNECTION?

- For Cable users, make sure that the Clone MAC address option is ticked during Wizard

installation (or enter the registered MAC) and that your ISP username and password is correct.

DAP-1160

ENGLISH

TECHNICAL SUPPORT

Australia:

Tel: 1300-766-868

24/7 Technical Support

Web: http://www.dlink.com.au

E-mail: [email protected]

India:

Tel: +91-832-2856000

Toll Free 1800-233-0000

Web: www.dlink.co.in

E-Mail: [email protected]

Singapore, Thailand, Indonesia,

Malaysia, Philippines, Vietnam:

Singapore - www.dlink.com.sg

Thailand - www.dlink.co.th

Indonesia - www.dlink.co.id

Malaysia - www.dlink.com.my

Philippines - www.dlink.com.ph

Vietnam - www.dlink.com.vn

Korea:

Tel : +82-2-2028-1810

Monday to Friday 9:00am to 6:00pm

Web : http://d-link.co.kr

E-mail : [email protected]

New Zealand:

Tel: 0800-900-900

24/7 Technical Support

Web: http://www.dlink.co.nz

E-mail: [email protected]

South Africa and Sub Sahara

Region:

Tel: +27 12 661 2025

08600 DLINK (for South Africa only)

Monday to Friday 8:30am to 9:00pm South

Africa Time

Web: http://www.d-link.co.za

E-mail: [email protected]

Saudi Arabia (KSA):

Tel: +966 01 217 0008

Fax: +966 01 217 0009

Saturday to Wednesday 9.30AM to 6.30PM

Thursdays 9.30AM to 2.00 PM

E-mail: [email protected]

D-Link Middle East - Dubai, U.A.E.

Plot No. S31102,

Jebel Ali Free Zone South,

P.O.Box 18224, Dubai, U.A.E.

Tel: +971-4-8809022

Fax: +971-4-8809066 / 8809069

Technical Support: +971-4-8809033

General Inquiries: [email protected]

Tech Support: [email protected]

Egypt

1, Makram Ebeid Street - City Lights Building

Nasrcity - Cairo, Egypt

Floor 6, ofce C2

Tel.: +2 02 26718375 - +2 02 26717280

Technical Support: +2 02 26738470

General Inquiries: [email protected]

Tech Support: [email protected]

Kingdom of Saudi Arabia

Ofce # 84 ,

Al Khaleej Building ( Mujamathu Al-Khaleej)

Opp. King Fahd Road, Olaya

Riyadh - Saudi Arabia

Tel: +966 1 217 0008

Technical Support:

+966 1 2170009 / +966 2 6522951

General Inquiries: [email protected]

Tech Support: [email protected]

Pakistan

Islamabad Ofce:

61-A, Jinnah Avenue, Blue Area,

Suite # 11, EBC, Saudi Pak Tower,

Islamabad - Pakistan

Tel.: +92-51-2800397, 2800398

Fax: +92-51-2800399

Karachi Ofce:

D-147/1, KDA Scheme # 1,

Opposite Mudassir Park, Karsaz Road,

Karachi – Pakistan

Phone: +92-21-34548158, 34326649

Fax: +92-21-4375727

Technical Support: +92-21-34548310, 34305069

General Inquiries: [email protected]

Tech Support: [email protected]

You can nd software updates and user documentation on the D-Link website.

Tech Support for customers in

TECHNICAL SUPPORT

Iran

Unit 5, 5th Floor, No. 20, 17th Alley , Bokharest

St. , Argentine Sq. ,

Tehran IRAN

Postal Code : 1513833817

Tel: +98-21-88880918,19

+98-21-88706653,54

General Inquiries: [email protected]

Tech Support: [email protected]

Morocco

M.I.T.C

Route de Nouaceur angle RS et CT 1029

Bureau N° 312 ET 337

Casablanca , Maroc

Phone : +212 663 72 73 24

Email: [email protected]

Lebanon RMA center

Dbayeh/Lebanon

PO Box:901589

Tel: +961 4 54 49 71 Ext:14

Fax: +961 4 54 49 71 Ext:12

Email: [email protected]

Bahrain

Technical Support: +973 1 3332904

Kuwait:

Technical Support: + 965 22453939 / +965

22453949

Türkiye Merkez İrtibat Ofisi

Ayazağa Maslak yolu

Erdebil Cevahir İş Merkezi No: 5/A Ayazağa /

Maslak İstanbul

Tel: +90 212 2895659

Ücretsiz Müşteri Destek Hattı: 0 800 211 00 65

Web:www.dlink.com.tr

Teknik Destek: [email protected]

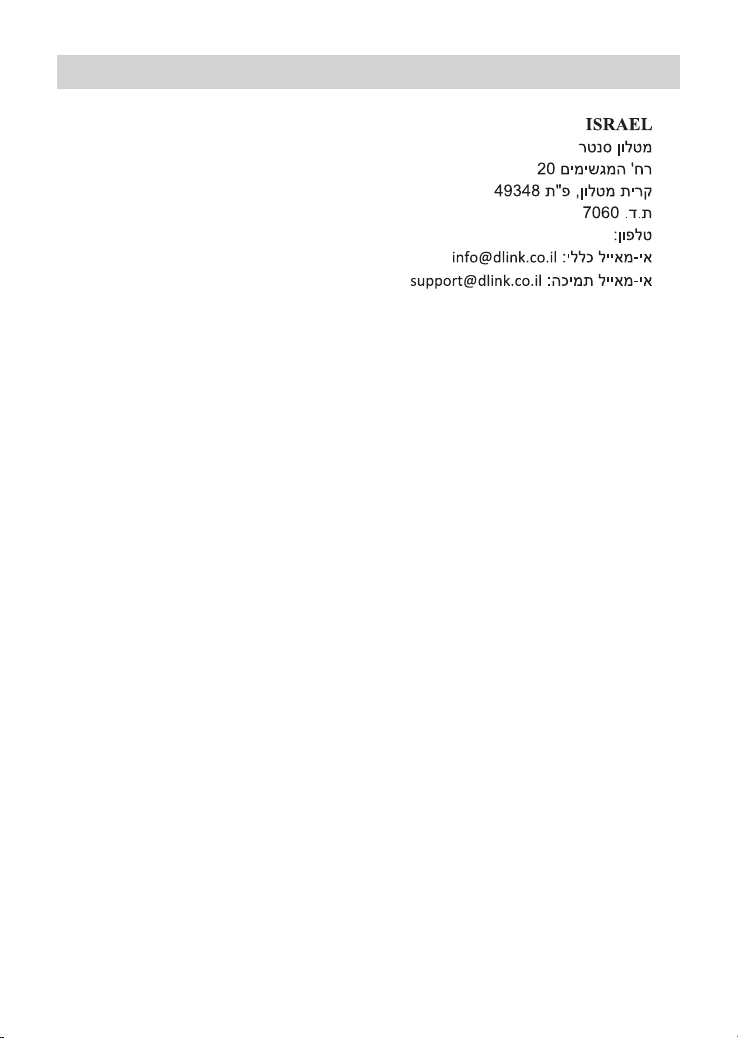

073-796-2797

КОМПЛЕКТ

ПОСТАВКИ

ETHERNET-КАБЕЛЬ 5 КАТЕГОРИИ

АДАПТЕР ПИТАНИЯ

12 В, 0,5 А

Если что-либо из перечисленного отсутствует, обратитесь к

поставщику.

БЕСПРОВОДНАЯ ТОЧКА ДОСТУПА/МОСТ

WIRELESS N150

DAP-1160

СОДЕРЖИМОЕ

DAP-1160

DAP-1160 7

PYCCКИЙ

НАСТРОЙКА СЕТИ

Модем

Маршрутизатор

Интернет

DAP-1160

PYCCКИЙ
