D-Link DAP-1160 Manual de usuario

WIRELESS G ACCESS POINT

Quick Installation Guide+

Руководство по быстрой установке+

Guía de Instalación Rápida+

Guia de Instalação Rápida+

快速安裝指南+

DAP-1160

WIRELESS

DAP-1160

Wireless G Access Point

Install Guide

System Requirements

Package Contents

Open the DAP-1160 package and check to see that you have all of the following

items inside:

• DAP-1160 Wireless G Access Point

• Detachable antenna

• Power adapter

• Cat. 5 Ethernet cable

• CD-ROM containing the User’s Manual

and this Quick Installation Guide

If any of the above item is missing or damaged, contact immediately the

reseller from whom you purchased this package.

The DAP-1160 Wireless G Access Point operates with computers equipped with

Windows®, Macintosh®, or Linux-based operating systems.

To congure this Wireless G Access Point, you need a computer with an Ethernet

interface and an Internet browser such as Microsoft Internet Explorer 6.0 or above,

Netscape Navigator 7.0 or above, or FireFox 1.5 or above.

Setting Up the DAP-1160

Step 1: Connect the Power Adapter.

Check the AC voltage of your AC power outlet against the AC power input of

the power adapter. Connect the power adapter supplied with the DAP-1160 to

the power socket on the back of this device rst, then plug it to your AC power

outlet. Check to see that the Power LED on the front panel of the DAP-1160 is

turned ON.

Ethernet LAN Ports

Can be connected to Ethernet ports

of computers, or to an Ethernet

switch or LAN port of a router.

Power Socket

Connect to a 5VDC 2A power

adapter.

WARNING! The DAP-1160’s power output is 5 volts DC, 2 Ampere. Use only

the power adapter supplied with this DAP-1160 or one with the same power

specications. Using a power adapter with a different voltage or plugging your

DAP-1160 to a wrong AC voltage outlet will damage this device and will void

the warranty for this product.

Step 2: Connect the Antenna and Ethernet Cable.

Connect the antenna to the antenna connector on the back of the DAP-1160.

Connect one end of the Ethernet cable to either one of the two LAN ports on the

back panel of the DAP-1160, and the other end of this cable to your computer’s

Ethernet port. If your computer is connected to an Ethernet network via an Ethernet

switch, connect this end of the cable the switch’s port.

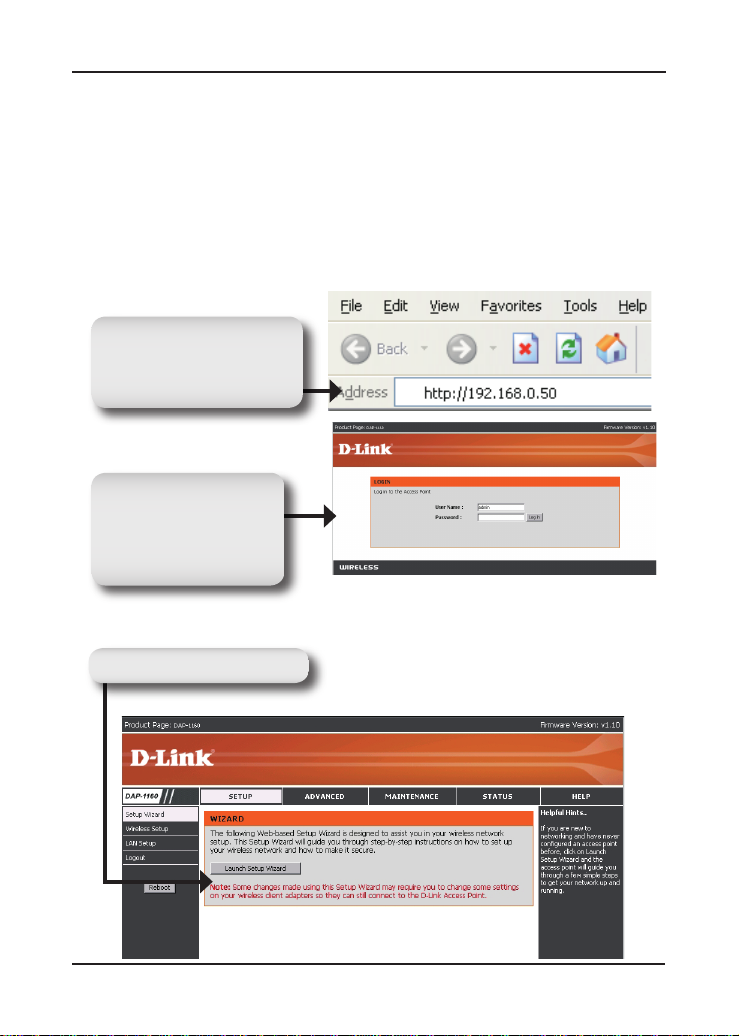

In the Address eld, type

in the default IP address

http://192.168.0.50

Type Return.

In the User Name field,

type in the default name

admin

Leave the Password

eld blank.

Once you have logged in, the following Setup screen will appear:

Click Launch Setup Wizard

Step 3: Begin Conguring your DAP-1160.

This configuration step presumes that you will use the DAP-1160’s default

factory setting of operation mode of AP (access point). This mode allows

computers and devices equipped 802.11g standard wireless LAN interfaces

to communicate with other wireless computers and devices through the

DAP-1160. In addition, the default factory setting provides no wireless security.

To set the DAP-1160 to another operation mode and to set its wireless security,

refer to its User’s Manual.

Run a web browser on your computer.

The following login screen will appear:

Click Next

The following Wizard screen will appear:

Customize your own password:

Click Next

For the Wireless Network Name (SSID), type in a name for your

network, which can be up to 32 alpha-numeric characters in length.

Note that these characters are upper and lower case-sensitive.

In the Channel eld, select a channel number. The default selection

is Auto, which means the DAP-1160 will automatically select the least

used available channel for your network.

Click Next

Select a level of security for your wireless network:

Click Next

• Best - WPA2 Authentication

• Better - WPA Authentication

• Good - WEP Encryption

• None - No Security

If you select Good (WEP) for security,the following screen will appear.

Select the key type, Hex (A-F, 0-9) or ASCII (all numbers and letters) and

the level of encryption (64-bit or 128-bit):

Click Next

If you select Good for security, the following screen will show your WEP

key. This key should be used by wireless to clients connect to the wireless

network:

Click Save

If you select Better or Best (WPA or WPA2) for security, the following screen

will appear. Enter a wireless security password, which can be between

8 and 63 characters in length:

Click Next

If you select Best for security, the following screen will show your

Pre-Shared Key. This key will be used by wireless clients to connect to

the wireless network:

Click Save

If you select Better for security, the following screen will show your

Pre-Shared Key. This key will be used by wireless clients to connect to

the wireless network:

Click Save

Step 4: Reboot the DAP-1160.

Click Save to save your conguration in the DAP-1160. Upon saving the

conguration, your DAP-1160 will automatically reboot itself and become ready

for access by computers equipped with 802.11g standard wireless interfaces.
