D-Link AirPro DWL-5000AP

5 GHz Wireless Access Point

Manual

Rev. 031502

Building Networks for People

Contents

Package Contents....................................................3

Introduction...............................................................4

Wireless Basics........................................................6

Getting Started........................................................10

Using the Configuration Utility................................15

Troubleshooting......................................................25

Networking Basics..................................................32

Technical Specifications..........................................62

Contacting Technical Support.................................64

Limited Warranty.....................................................65

Package Contents

Contents of Package:

• D-Link AirPro DWL-5000AP 5GHz Wireless Access Point

• Power Cable

• Power Supply – 5V DC, 2.5A

• Manual on CD

• Printed Quick Installation Guide

• Console Cable

Note: Using a power supply with a different voltage rating than the one included with

the DWL-5000AP will cause damage and void the warranty for this product.

If any of the above items are missing, please contact your reseller.

System Requirements:

• Computer with a Windows or Macintosh or Linux based operating

system with an installed Ethernet adapter.

• Internet Explorer or Netscape Navigator, version 4.0 or above, with

JavaScript enabled.

Introduction

The D-Link AirPro DWL-5000AP Wireless Access Point is an IEEE 802.11a

compatible, high performance, wireless access point that supports data

transfer speeds of up to 72 Mbps in Turbo Mode.

It is an ideal way to extend the reach and number of computers connected to

your wireless network. After completing the steps outlined in the Quick

Installation Guide (included in your package) you will have the ability to

share information and resources, such as files and printers, and take full

advantage of a “connected” environment for work or play! Please take a

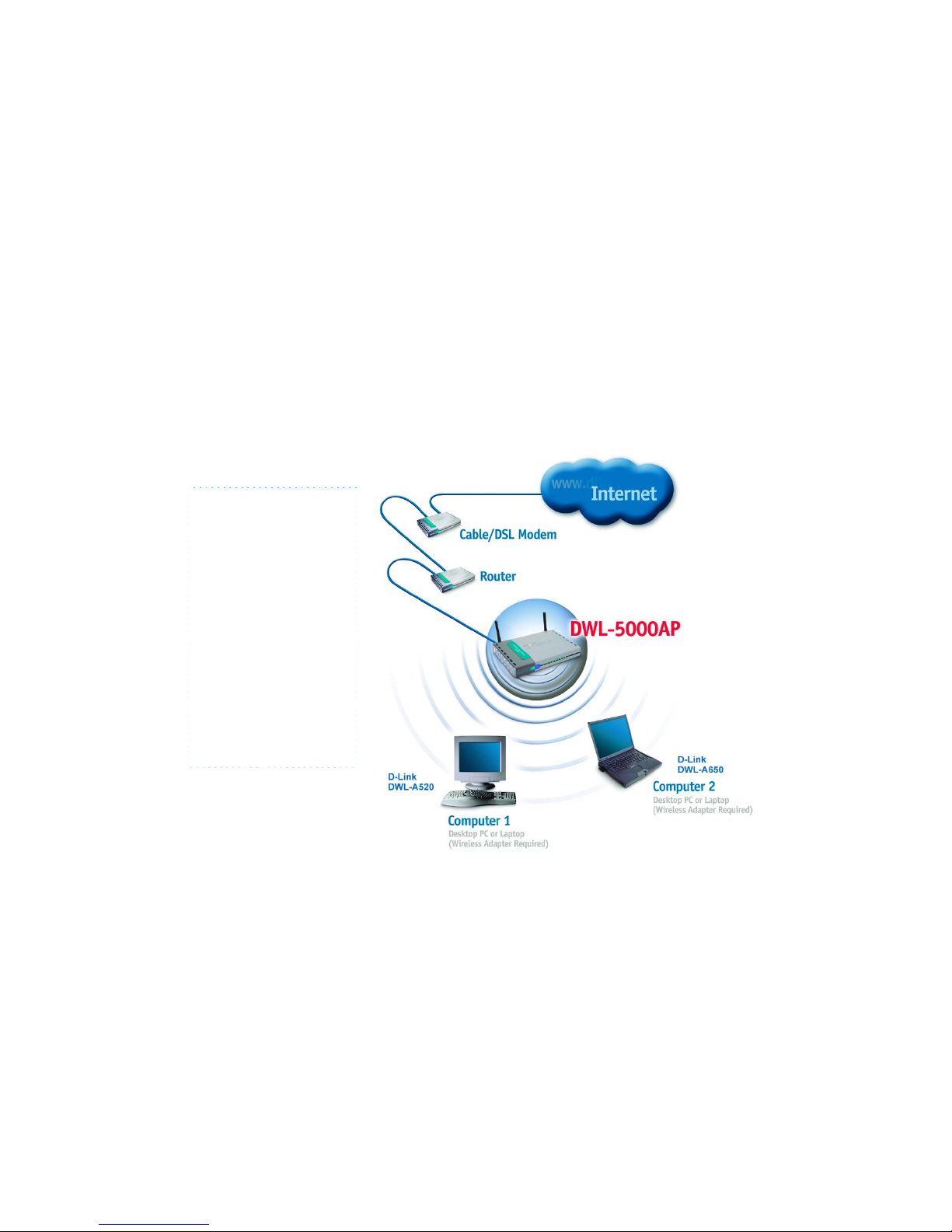

look at our Getting Started section in this manual. You will see several

options for setting up a network using the DWL-5000AP.

The DWL-5000AP is compatible with most popular operating systems,

including Macintosh, Linux and Windows, and can be integrated into a large

network. This Manual is designed to help you connect the Access Point and

the D-Link AirPro 802.11a Wireless Adapters into a network in Infrastructure

mode. The IEEE 802.11a standards compliance means that the DWL-

5000AP gives you the flexibility to connect to any 802.11a network.

This manual provides a quick introduction to wireless technology and its

application as it relates to networking. Take a moment to read through this

manual and get acquainted with wireless technology.

Connections

Console Port

Connect the Console Cable

to this port and to the Com

Port on the computer for one

method of Configuring the

DWL-5000AP. You can also

Configure theDWL-5000AP

wirelessly, or through an

Ethernet connection.

MDIX Ethernet Port

• Cross-over cable

is required when

connecting to a

router or switch

• Straight-through

cable to connect

to a computer

Reset button

Power inlet

Product Features

• Adheres to 802.11a standard in providing high data wireless transfer rates of up to

54 Mbps.* Capable of providing data rates of up to 72 Mbps in Turbo Mode.

• Web-based interface for Managing and Configuring

• Eight non-overlapping Channels available to users

• Operation in the 5.2GHz Unlicensed National Information Infrastructure (U-NII)

frequency band

• Orthogonal Frequency Division Multiplexing (OFDM) – a new technique for

transmitting high-speed data over a radio wave.

• Dynamic data rate scaling from 6, 9, 12, 18, 24, 36, 48, 54 and 72Mbps depending

upon reception quality.

• Maximum reliability, throughput and connectivity with automatic data rate switching.

• Supports Wired Equivalent Privacy (WEP) data encryption at 64/128/152-bit

encryption with dynamic key exchange for security.

• Two external antennas

*Maximum wireless signal rate based on IEEE Standard 802.11a specifications. Actual data

throughput will vary. Network conditions and environmental factors, including volume of

network traffic, building materials and construction, and network overhead lower actual data

throughput rate.

LEDS

LED stands for Light-Emitting Diode. The DWL-5000AP Wireless Access

Point has 4 LEDs as shown below:

LED LED Activity

Power Steady light indicates a connection

to a power source

10M Flashes steadily to indicate

connection; intermittent flashes

indicate activity at 10Mbps

100M Flashes steadily to indicate

connection; intermittent flashes

indicate activity at 100Mbps

11a Flashes steadily to indicate a

wireless connection

Wireless Basics

D-Link AirPro wireless products are based on industry standards to provide

easy-to-use and compatible high-speed wireless connectivity within your

home or business. Strictly adhering to IEEE 802.11a, the D-Link AirPro

wireless family of products will allow you to access the data you want, when

and where you want it. No longer will you be limited to one location or forced

to run new wiring through your home or office. You will be able to enjoy the

freedom that wireless networking delivers.

A wireless LAN (WLAN) is a cellular computer network that transmits and

receives data with radio signals instead of wires. Wireless LANs are used

increasingly in both home and office environments. Innovative ways to utilize

WLAN technology are helping people to work and communicate more

efficiently. Increased mobility and the absence of cabling and other fixed

infrastructure have proven to be beneficial for many users.

Wireless users can use the same network applications they use on an

Ethernet LAN. Wireless adapter cards used on laptop and desktop systems,

support the same protocols as Ethernet adapter cards. For most users, there

is no noticeable functional difference between a wired Ethernet desktop

computer and a wireless computer equipped with a wireless adapter other

than the added benefit of the ability to roam within the wireless-cell. Under

many circumstances, it may be desirable for mobile network devices to link

to a conventional Ethernet LAN in order to use servers, printers or an

Internet connection supplied through the wired LAN. A Wireless Access

Point (AP) is a device used to provide this link.

People use wireless LAN technology for many different purposes.

Mobility - Productivity increases when people have access to data in any

location within the operating range of the WLAN. Ad-hoc management

decisions based on real-time information can significantly improve worker

efficiency.

Low Implementation Costs - WLANs are easy to set up, manage, change

and relocate. Networks that frequently change, both physically and logically,

can benefit from WLANs ease of implementation. WLANs can operate in

locations where installation of wiring may be impractical. Furthermore, IEEE

standardization mandates interoperability of all WLAN devices that conform

to the 802.11a set of standards.

Installation Speed and Simplicity - Installing a wireless LAN system can

be fast and easy and can eliminate the need to pull cable through walls and

ceilings.

Wireless Basics (continued)

Installation Flexibility - Wireless technology allows the network to go where

wires cannot go.

Reduced Cost-of-Ownership - While the initial investment required for

wireless LAN hardware might be higher than the cost of wired LAN hardware,

overall installation expenses and life-cycle costs will be significantly lower.

Long-term cost benefits are greatest in dynamic environments requiring

frequent moves, adds, and changes.

Scalability - Wireless LAN systems can be configured in a variety of

topologies to meet the needs of specific applications and installations.

Configurations are easily changed and range from peer-to-peer networks

suitable for a small number of users to full infrastructure networks of

thousands of users that allow roaming over a broad area.

D-Link AirPro Wireless LAN products include:

 802.11a 5GHz Wireless Cardbus Adapters used with laptop

computers (DWL-A650)

 802.11a 5GHz Wireless PCI cards used with desktop computers

(DWL-A520)

 802.11a 5GHz Wireless Access Points (DWL-5000AP)

Standards - Based Technology

The IEEE 802.11a standard designates that devices operate at an optimal

data rate of 54 Megabits per second. This means you will be able to transfer

large files quickly or even watch a movie in MPEG format over your network

without noticeable delays. This technology works by transmitting high-speed

digital data over a radio wave utilizing OFDM (Orthogonal Frequency

Division Multiplexing) technology. OFDM works by splitting the radio signal

into multiple smaller sub-signals that are then transmitted simultaneously at

different frequencies to the receiver. OFDM reduces the amount of

crosstalk (interference) in signal transmissions. D-Link AirPro products will

automatically sense the best possible connection speed to ensure the

greatest speed and range possible with the technology.

Wireless Basics (continued)

Installation Considerations

Designed to go up to 900 feet (~300 meters), D-Link AirPro DWL-5000AP

lets you access your network with your laptop computer from virtually

anywhere you want. Keep in mind, however, that the number and thickness

of walls, ceilings or other objects that the wireless signals must pass thru

may limit range. Typical ranges vary depending on the types of materials

and background RF noise in your home or business. The key to maximizing

range is to follow these basic principles:

1. Keep the number of walls and ceilings between the Access Point and

your receiving device to a minimum - Each wall or ceiling can reduce

your D-Link AirPro Wireless product’s range from 3-90 feet (1-30 meters.)

For some businesses or for a large residential home deployment, it may

be beneficial to have more than one access point with overlapping

coverage.

2. Be aware of the direct line between Access Points and computers with

wireless adapters - A wall that is 1.5 feet thick (.5 meters), at a 45-

degree angle appears to be almost 3 feet (1 meter) thick. At a 2-degree

angle it looks over 42 feet (14 meters) thick! Try to make sure that the

Access Points and Adapters are positioned so that the signal will travel

straight through a wall or ceiling for better reception.

3. Building Materials make a difference - A solid metal door or aluminum

studs may have a negative effect on range. Try to position Access Points,

and computers with wireless adapters so that the signal passes through

drywall or open doorways and not other materials.

4. Make sure that the antenna is positioned for best reception by using the

software signal strength tools included with your product.

5. Keep your product away (at least 3-6 feet or 1-2 meters) from electrical

devices or appliances that generate extreme RF noise.

Wireless Basics (continued)

For the average residence, range should not be a problem. If you

experience low or no signal strength in areas of your home that you wish to

access, consider positioning the Access Point in a location directly between

the computers with wireless adapters that will be connected. Additional

Access Points can be connected to provide better coverage in rooms where

the signal does not appear as strong as desired.

Using radio frequency (RF) technology, WLANs (Wireless Local Area

Networks) transmit and receive data over the air, minimizing the need for

wired connections. Thus, WLANs combine data connectivity with user

mobility, and, through simplified configuration, enable movable LANs.

Getting Started

To begin, select the type of wireless network you will be building.

We will discuss the following types of networks in this section:

1. A Home Internet Network

with A Residential Gateway/Router

2. A Home Internet Network with Multiple IP Addresses

Please select, from the two types of networks described above, the type of

network that is appropriate for your needs. Please follow the instructions in

the corresponding section that follows.

1. A Home Internet Network with A Residential Gateway/Router

(Network administrators with Dynamic IPs can also follow these instructions.)

If you have two or more computers (laptops or desktops) and want to share

files, printers, and Internet access using a DHCP-capable Residential

Gateway/Router – or - if you want to connect to an Ethernet network that

uses Dynamic (DHCP) IP addresses, then follow the instructions on the next

page. When it is complete, your network may look similar to this:

DHCP stands for

Dynamic Host

Configuration

Protocol. It is a

rotocol for

assigning dynamic

IP addresses

“automatically.”

With a DHCP-

capable gateway,

there is no need to

manually assign

an IP address.

Otros manuales para AirPro DWL-5000AP

Tabla de contenidos

Otros manuales de Punto de acceso inalámbrico de D-Link

D-Link

D-Link DAP-2590 - AirPremier N Dual Band PoE Access... Manual de usuario

D-Link

D-Link DWL-1000AP Manual de usuario

D-Link

D-Link Air Premier DAP-2695 Manual de usuario

D-Link

D-Link DWL-2700AP - AirPremier Outdoor Wireless Access... Manual de usuario

D-Link

D-Link DWL-3260AP - AirPremier - Wireless Access... Manual de usuario

D-Link

D-Link AMPLIFI DAP-1525 Manual de usuario

D-Link

D-Link DAP-1150 Manual de usuario

D-Link

D-Link DWL-6600AP Manual de instalación

D-Link

D-Link AirPlus DWL-900AP Manual de usuario

D-Link

D-Link DWL-2700AP - AirPremier Outdoor Wireless Access... Manual de usuario

D-Link

D-Link AirPro DWL-6000AP Manual de usuario

D-Link

D-Link AirPremier N DAP-2690 Manual de usuario

D-Link

D-Link DWL-3140AP - Web Smart PoE Thin Access Point Manual de usuario

D-Link

D-Link AirPremier N DAP-2690 Manual de usuario

D-Link

D-Link AirPremier DWL-1700AP Manual de usuario

D-Link

D-Link DAP-1360 Manual de usuario

D-Link

D-Link DWL-2700AP - AirPremier Outdoor Wireless Access... Manual de usuario

D-Link

D-Link Rangebooster N 650 Access Point DAP-1353 Manual de usuario

D-Link

D-Link AirPremier N DAP-2690 Manual de usuario

D-Link

D-Link AirPremier N DAP-2360 Manual de usuario

D-Link

D-Link DAP-2610 Manual de usuario

D-Link

D-Link DWL-7130AP - xStack - Wireless Access Point Manual de usuario

D-Link

D-Link DAP-3410 Manual de usuario

D-Link

D-Link DWL-2200AP - AirPremier - Wireless Access... Manual de usuario

Manuales populares de Punto de acceso inalámbrico de otras marcas

Ubiquiti

Ubiquiti NanoStation NSM2 Manual de usuario

Cisco

Cisco Aironet 1550 Series Manual de usuario

Aruba

Aruba IAP-335 Manual de usuario

Advantek Networks

Advantek Networks AWN-AP-54MR Manual de usuario

IP-COM

IP-COM AP355 Manual de usuario

Buffalo

Buffalo AirStation WLA-L11G Manual de usuario

EnGenius

EnGenius EnStationACv2 Manual de usuario

xG Technology

xG Technology xMax CN1300 Manual de usuario

Widelink

Widelink ezWave WAP-1100 Series Manual de usuario

Edimax

Edimax CAP1200 Manual de usuario

Ubiquiti

Ubiquiti LBE-5AC-Gen2 Manual de usuario

Aruba

Aruba AP-203R Manual de usuario

LuXout Shades

LuXout Shades LUXSHADE MOTION Manual de usuario

CreatComm

CreatComm TB5F Manual de usuario

SineDigital

SineDigital MW-1500AP(H) Manual de usuario

TP-Link

TP-Link AP9650 V1 Manual de usuario

Draytek

Draytek VIGORAP 902 Manual de usuario

EnGenius

EnGenius EAP350 Manual de usuario
