D-Link KVM-222 Manual de usuario

USER MANUAL

KVM-222

VERSION 1.0

2D-Link KVM-222 User Manual

Table of Contents

Product Overview ........................................................ 4

Package Contents ................................................... 4

System Requirements ............................................. 4

Features ..................................................................5

KVM Installation ........................................................... 6

Hardware Installation ...............................................6

Hardware Overview ................................................. 7

Windows Installation ................................................8

MAC Installation ......................................................9

KVM Operation ........................................................... 10

Accessing the KVM - Windows .............................. 10

Accessing the KVM - MAC .................................... 11

Accessing the KVM - Linux .................................... 12

Troubleshooting ........................................................ 13

Troubleshooting .....................................................13

Appendix A - Technical Specications ................... 14

Technical Specications ........................................ 14

3D-Link KVM-222 User Manual

D-Link reserves the right to revise this publication and to make changes in the content hereof without obligation to

notify any person or organization of such revisions or changes.

Manual Revisions

Trademarks

D-Link and the D-Link logo are trademarks or registered trademarks of D-Link Corporation or its subsidiaries in

the United States or other countries. All other company or product names mentioned herein are trademarks or

registered trademarks of their respective companies.

permission from D-Link Systems, Inc.

Revision Date Description

1.0 May 17, 2010 KVM-222 Revision A1 with rmware version 1.00

Preface

4D-Link KVM-222 User Manual

Product OverviewProduct Overview

If any of the above items are missing, please contact your reseller.

KVM-222 Installation Guide CD-ROM

Package Contents

System Requirements

Windows 2000 / XP / Vista / 7

Linux

Mac OS (10.3 and higher)

5D-Link KVM-222 User Manual

Product Overview

Features

Access two PCs using a single console

Saves space and saves money

Select PCs by using Remote Control button or Hot key commands or AP

Support SVGA, VGA, XGA, WXGA, UXGA, WUXGA, QXGA and multi-sync

monitors (resolutions of up to 2048*1536)

Remote control

Audio support

6D-Link KVM-222 User Manual

KVM InstallationKVM Installation

Hardware Installation

Note:

This KVM Switch will not detect whether a computer is on or off if the “Power On”

function is set in the BIOS. If you switch to a computer that is turned off, nothing will be

displayed on the monitor.

Please follow the diagram below to connect the KVM switch to your workstation computers. Speakers are optional.

7D-Link KVM-222 User Manual

KVM Installation

Hardware Overview

AUDIO CONNECTOR

Connects to PC audio port

AUDIO PORT

Connects to speakers

VGA CONNECTOR

Connects to monitor cable

USB CONNECTOR

Connects to PC USB Port

USB PORTS

Connect to keyboard and mouse

REMOTE SWITCH

Toggles between PCs

8D-Link KVM-222 User Manual

KVM Installation

1. Please insert the installation CD-ROM into your

computers optical drive.

2. When the USB KVM setup Wizard appears, click Next.

3. Please follow the installation steps on the screen.

4. Click Finish to complete the installation and launch the

KVM software.

5. When the installation is completed, a green sphere

icon will appear in the taskbar area indicating the ready

status of the connected computer.

Task bar area:

Windows Installation

9D-Link KVM-222 User Manual

KVM Installation

1. Please insert the installation CD-ROM into your

computers optical drive and click USB KVM.pkg.dmg.

2. Please follow the installation steps on the screen.

3. Click Close to complete the installation and launch to

the KVM software.

4. When the installation is completed, a green sphere

icon will appear in the doc area indicating the ready

status of the connected computer.

Doc Area:

MAC Installation

10D-Link KVM-222 User Manual

KVM OperationKVM Operation

Software Settings

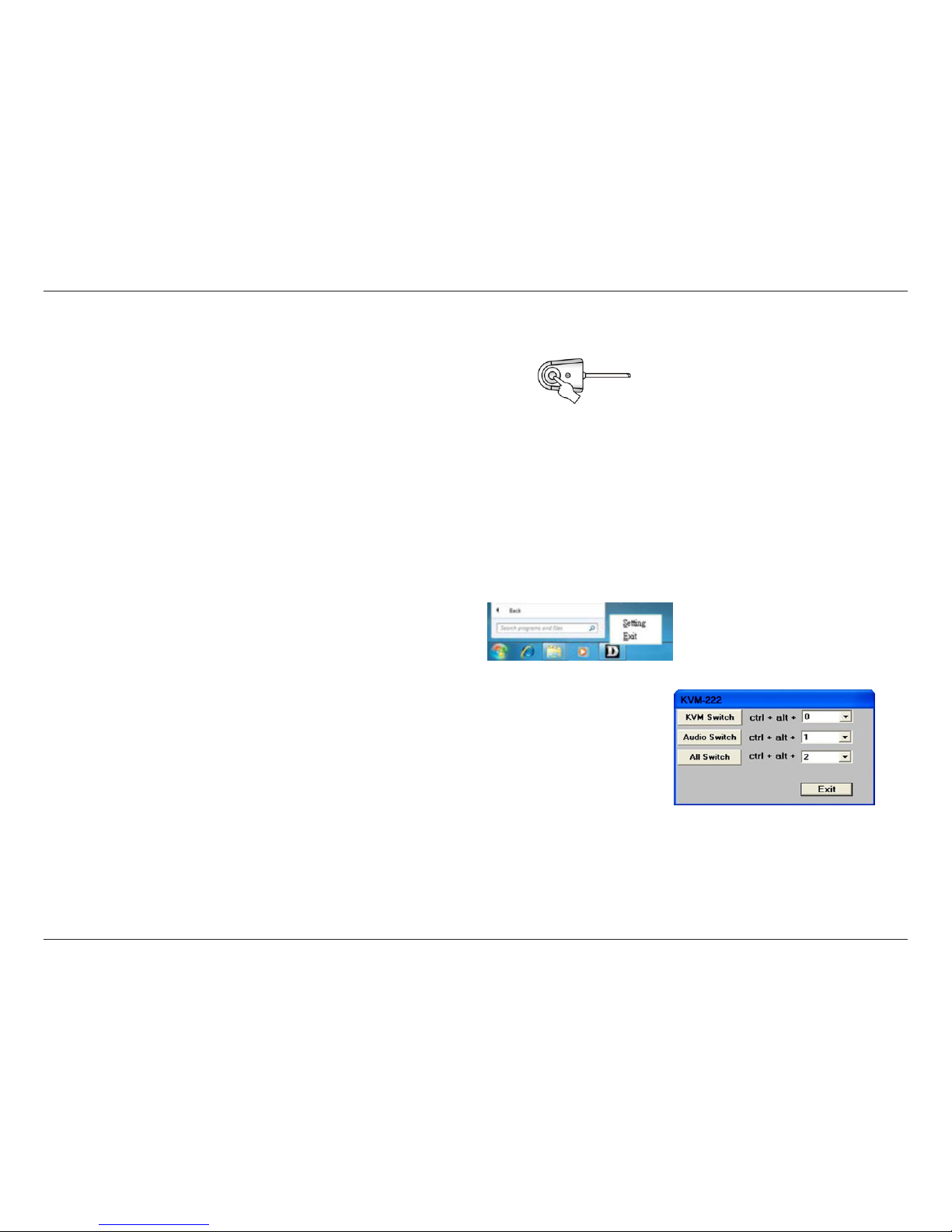

Right-click on the green taskbar icon and select Setting.

The following options are available:

a. KVM Switch: This hotkey will switch between PCs but maintain the audio feed

of the original computer.

b. Audio Switch: This hotkey will switch the audio of the other PC, but maintain

control of the original computer.

c. All Switch: This hotkey will switch between PCs, including audio.

You may choose a number for each hotkey. Please choose different numbers for

each setting.

Remote Control Switching

Push the remote control button to switch between computers.

The green and orange LEDs indicate the selected PC.

Hot key Switching

Press the Scroll Lock key two times to switch between PCs, including audio.

Press the Caps Lock key two times to switch between PCs but maintain the audio feed of the original computer.

Software Switching

a. Left-click on the taskbar icon to switch between PCs.

b. You may also use a specied keyboard hotkey to switch between PCs. See the instructions below.

Accessing the KVM - Windows
