D-Link DKVM-2/4 Manual de usuario

DKVM-2/4

2/4-Port Keyboard, Video,

and Mouse Switch

User’s Manual

Rev. 1.2

Contents

Introduction......................................................1

Product Features .............................................2

Package Contents ...........................................2

Hardware Installation .......................................3

Front Panel Layout....................................................3

Rear Panel Layout ....................................................3

Using the DKVM-2/4........................................9

“Select” button...........................................................9

Keyboard “Hot Key” commands ..............................10

Optional cable .........................................................11

Troubleshooting.............................................12

Keyboard.................................................................12

Mouse .....................................................................13

Video.......................................................................14

Specifications ................................................16

Introduction

Thank you for purchasing the DKVM-2/4 KVM Switch. This

product will ensure easy and accurate control over 2 or 4

PCs through a single console. The DKVM-2/4 is compatible

with mouse and keyboard with PS/2 type connectors. Older

style keyboards or mice can be used with PS/2 adapters in

the case that the device is PS/2 compatible. Most older style

serial keyboard and mice are not compatible with PS/2.

Advanced features like keyboard and mouse emulation for

error free boot-ups and support is also provided for the

Microsoft Intellimouse and Microsoft Intellimouse Explorer.

The DKVM-2/4 supports high resolutions. Resolutions up to

1920 x 1440 are supported with no deterioration of image

quality.

Switching between PCs can be accomplished in two ways:

through keyboard “Hot Key” commands or by using the

convenient front-panel “Select” push button controls.

Product Features

Allows a user to control 2/4 computers from one

console.

Works with DOS, Windows, OS/2, UNIX, Linux etc.

No drivers or other additional software required.

Keyboard and mouse emulation allows error-free

boot-up.

The status of the CAPS LOCK, SCROLL LOCK and

NUM LOCK keys is preserved for each of the

computers.

Uses inexpensive and commonly available cables.

Molded KVM cables are recommended. Model No.

DKVM-CB

Supports Monitor resolutions of up to 1920 x 1440.

Supports VGA, SVGA and Multisync monitors.

“Select” push-button or keyboard “Hot Key” control.

Comes with Auto-Scan mode for convenient

automatic switching.

Front panel status LEDs give a clear indication of the

active PC.



Audible feedback when switching between

computers.

Package Contents

In addition to this User’s Guide, please check that you have

the following contents of this package…

DKVM-2/4



Power Adapter

Hardware Installation

This section will explain how to connect the console and the

computers to the D-Link KVM switch unit. First the layout of

front and rear panel will be shown.

RONT

ANEL

AYOUT

EAR

ANEL

AYOUT

Before you start connecting your computers and console

devices to the DKVM-2/4, please make sure that everything

is powered off.

Note:

Please make sure the mouse you are planning to

use is a 2 Button or 3 Button mouse, and that it is

fully Microsoft Mouse compatible. If your mouse

driver is not Microsoft mouse driver compatible,

please do not uninstall your mouse driver or the

existing driver from the PC and then install the

Windows native mouse driver.

Please follow the steps below closely and in the order as

shown, otherwise, keyboard and/or mouse errors may

occur.

Step 1.

Place the DKVM-2/4 in a convenient location. Its

small size makes it easy to place on the desktop.

Do take the length of the cables in consideration

when placing the KVM switch unit.

Step 2.

We will now connect the console devices. Connect

your monitor to the DKVM-2/4. The 15-pin

connector coming from your monitor must be

inserted into the unit on the rear panel. Connect it

to the 15 pin HDDB connector labeled

=MONITOR=.

Step 3.

Connect your PS/2 keyboard and PS/2 mouse to

the front panel of the DKVM-2/4. The connections

should be made to the two 6-pin Mini DIN

connectors labeled =CONSOLE= as shown below.

Step 4.

Now the PC connections will be made with the

monitor (VGA) connections. Connect a VGA cable

(15-pin HDDB Male / Male) with the Male side to

both the PC and to the connector labeled VGA on

the rear panel of the DKVM-2/4 unit. Repeat this

for all PCs.

Step 5.

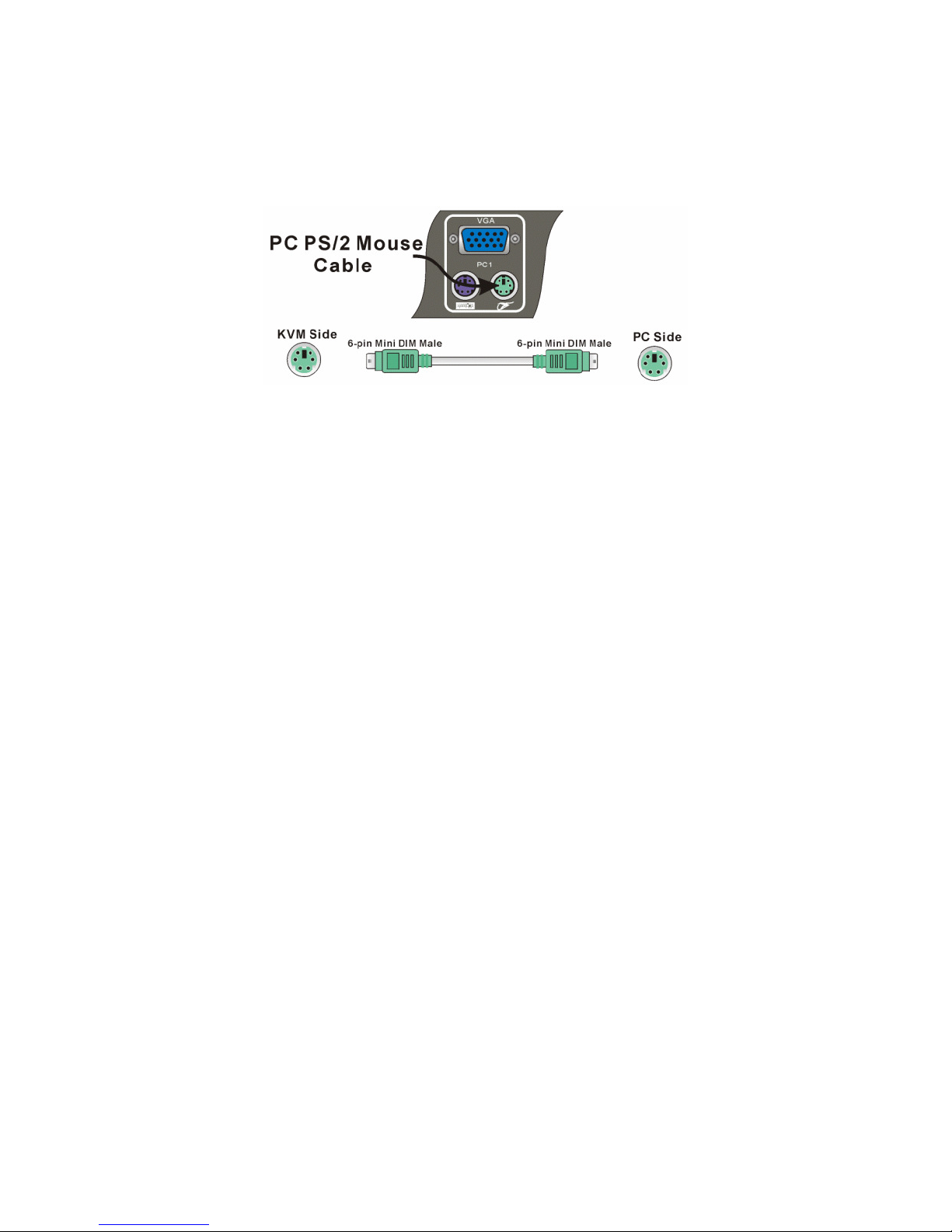

Now connect the PS/2 mouse cables from your

computers to the DKVM-2/4 unit. Connect a mouse

cable (6-pin Mini DIN Male / Male) to the PC and to

the connector with the mouse symbol on the rear

panel of the DKVM-2/4 unit. Repeat this for all

PCs.

Step 6.

To finish the hardware installation, connect the

PS/2 keyboard cables from your computers to the

DKVM-2/4 unit. Connect a keyboard cable (6-pin

Mini DIN Male / Male) to the PC and to the

connector with the keyboard symbol on the rear

panel of the DKVM-2/4 unit. Repeat this for all

PCs.

Step 7.

Now make sure to verify all cables. In particular,

keyboard and mouse cables should be checked

because they are easily switched and they use the

same type of connector.

Step 8.

Attach the power supply to the DKVM-2/4 unit and

plug it into a power outlet. You will see the LED for

Port 1 light up, and you will hear a beep. Switch on

your monitor.

Step 9.

Now power up all computers simultaneously. The

first computer that is connected to port PC1 will be

shown on the monitor. You may check to see if the

mouse and keyboard work after the system has

booted up. If this is OK, use the “Select” button to

choose the next computer and verify the

functionality in the same way. If you find errors, re-

check all cables for proper connections before

going to the troubleshooting section of this manual.

Note

Please do not switch the PC port (i.e. Do not

press the push button of KVM switch or run hot

key) while the computers are under their boot-up

process.

Normally, during boot-up process, each PC will

communicate with the keyboard and mouse. If

you switch PC ports on the KVM at this moment,

it will cause communication errors or initialization

failures between PC and keyboard or mouse.
