D-Link DES-1105 - Desktop Switch Manual de usuario

2D-Link DES-1105 User Manual

Table of Contents

Product Overview ........................................................3

Package Contents ...................................................3

Setup .......................................................................3

Introduction ..............................................................4

Features ...................................................................6

Hardware Overview .................................................8

Front Panel (LEDs) ............................................ 8

Rear Panel (Connections) ..................................9

Installation ..................................................................10

Connecting the Switch ...........................................10

PC to DES-1105 .............................................. 10

Hub/Switch to DES-1105 ................................. 10

DES-1105 to Other Devices .............................10

Port Speed & Duplex Mode .............................11

Mounting the Switch on the Wall ............................ 12

Mounting on a cement wall .............................. 12

Mounting on a wood wall ................................. 12

Troubleshooting .........................................................13

Networking Basics .................................................... 14

Check your IP address ..........................................14

Statically Assign an IP address ............................. 15

Technical Speciﬁcations ...........................................16

DES-1105 Speciﬁcations .......................................16

RJ-45 Pin Speciﬁcations ........................................17

Contacting Technical Support ..................................18

Warranty .....................................................................19

Registration ................................................................ 24

Table of Contents

3D-Link DES-1105 User Manual

Section 1 - Product Overview

• D-Link DES-1105 5-port Switch

• Manual and Warranty on CD

• Four (4) Rubber Feet

• Wall Mount Kit

• Power Adapter

Setup

The setup of the DES-1105 can be performed using the following steps:

• The power outlet should be within 1.82 meters (6 feet) of the Switch.

• Visually inspect the DC power jack and make sure that it is fully secured to the power adapter.

• Do not cover the ventilation holes on the sides of the Switch, and make sure there is adequate ventilation

around it.

• Do not place heavy objects on the switch.

Product Overview

Package Contents

4D-Link DES-1105 User Manual

Section 1 - Product Overview

Introduction

Fast Ethernet Technology

The growing importance of LANs and the increasing complexity of desktop computing applications are fueling the need

for high performance networks. 100BASE-TX (Fast Ethernet) provides a cost-effective and high-performance solution for

small workgroups, SMBs (Small to Medium Businesses), and any network supporting bandwidth-intensive applications.

Fast Ethernet technology operates at 10 times the speed of traditional Ethernet, offering maximum performance and

enhanced capability for existing Ethernet-based networks.

100Mbps Fast Ethernet is a standard speciﬁed by the IEEE 802.3 LAN committee. It is an extension of the 10Mbps

Ethernet standard with the ability to transmit and receive data at 100Mbps, while maintaining the CSMA/CD Ethernet

protocol. Since the 100Mbps Fast Ethernet is compatible with all other 10Mbps Ethernet environments, it provides

a straightforward upgrade and takes advantage of the existing investment in hardware, software, and personnel

training.

Switching Technology

Switching is a cost-effective way of increasing the total network capacity available to users on a LAN. If an Ethernet

network begins to display symptoms of congestion, low throughput, slow response times, and high rates of collision,

installing a switch to a network can preserve much or all of the existing network’s cabling and workstation interface card

infrastructure, while still greatly enhancing the throughput for users. A switch is a viable solution even if demanding

applications, such as multimedia production and video conferencing, are on the horizon. The most promising techniques,

as well as the best return on investment, could well consist of installing the right mixture of Ethernet switches.

A switch increases capacity and decreases network loading by dividing a local area network into different LAN

segments. Dividing a LAN into multiple segments is one of the most common ways of increasing available bandwidth.

If segmented correctly, most network trafﬁc will remain within a single segment, enjoying the full-line speed bandwidth

of that segment.

5D-Link DES-1105 User Manual

Section 1 - Product Overview

Switches provide full-line speed and dedicated bandwidth for all connections. This is in contrast to hubs, which use the

traditional shared networking topology, where the connected nodes contend for the same network bandwidth. When

two switching nodes are communicating, they are connected with a dedicated channel between them, so there is no

contention for network bandwidth with other nodes. As a result, the switch reduces considerably, the likelihood of trafﬁc

congestion.

For Ethernet networks, a switch is an effective way of eliminating the problem of chaining hubs beyond the “two-repeater

limit.” A switch can be used to split parts of the network into different collision domains, making it possible to expand

your Ethernet network beyond the 205-meter network diameter limit for 100BASE-TX networks. Switches supporting

both 10Mbps Ethernet and 100Mbps Fast Ethernet are also ideal for bridging between existing 10Mbps networks and

newer 100Mbps networks.

Switching LAN technology is a marked improvement over the previous generation of network hubs and bridges, which

were characterized by higher latencies. Routers have also been used to segment local area networks, but the cost of

a router, the setup and maintenance required, make routers relatively impractical. Today switches are an ideal solution

to most kinds of local area network congestion problems.

6D-Link DES-1105 User Manual

Section 1 - Product Overview

Features

• The DES-1105 is a high performance switch designed speciﬁcally for environments where trafﬁc on the

network and the number of users increase continuously.

• The DES-1105, with its small, compact size, was speciﬁcally designed for small to mid-sized workgroups.

The DES-1105 can be installed where space is limited; moreover, it provides immediate access to a

rapidly growing network through a wide range of user-reliable functions.

• The DES-1105 is ideal for deployment with multiple high-speed servers for 10Mbps or 100Mbps shared-

bandwidth workgroups. With the highest bandwidth at 200Mbps (100Mbps full-duplex mode), any port

can provide workstations with a congestion-free data pipe for simultaneous access to the server.

• The DES-1105 is scalable, allowing two or more DES-1105 switches to be cascaded together. Since all

ports support 200Mbps, any one of its ﬁve ports may be used to cascade to an additional switch to open

a Full-Duplex Fast Ethernet pipe.

• The DES-1105 is the perfect choice for a department or ofﬁce planning to upgrade to Fast Ethernet.

The DES-1105 can accommodate 10Mbps or 100Mbps devices, providing a ﬂexible solution for existing

(10Mbps) Ethernet workgroups.

• The DES-1105 combines dynamic memory allocation with store-and-forward switching to ensure that the

buffer is effectively allocated for each port; and it controls the data ﬂow between the transmit and receive

nodes to guarantee against possible packet loss.

• The DES-1105 is an unmanaged 10/100Mbps Fast Ethernet switch that offers solutions for the accelerating

bandwidth needs of small Ethernet workgroups.

7D-Link DES-1105 User Manual

Section 1 - Product Overview

Other key features include:

• Store-and-forward switching scheme capability. As the result of complete frame checking and error frame

ﬁltering, this scheme prevents error packages from transmitting among segments.

• Auto-MDI/MDI-X function supports automatic MDI/MDI-X crossover detection, giving true ‘plug and play’

capability—Crossover or Straight-Through CAT5 cables can be plugged into any port.

• Nway Auto-negotiation for any port. This allows for auto-sensing of speed (10/100Mbps), providing an

automatic and ﬂexible solution for the network.

• Flow control for any port. This minimizes dropped packets by sending out collision signals when the port’s

receiving buffer is full.

• Data ﬁltering rate eliminates all error packets, runts, etc., per port at wire-speed for 100Mbps operation

and 10Mbps operation.

8D-Link DES-1105 User Manual

Section 1 - Product Overview

Hardware Overview

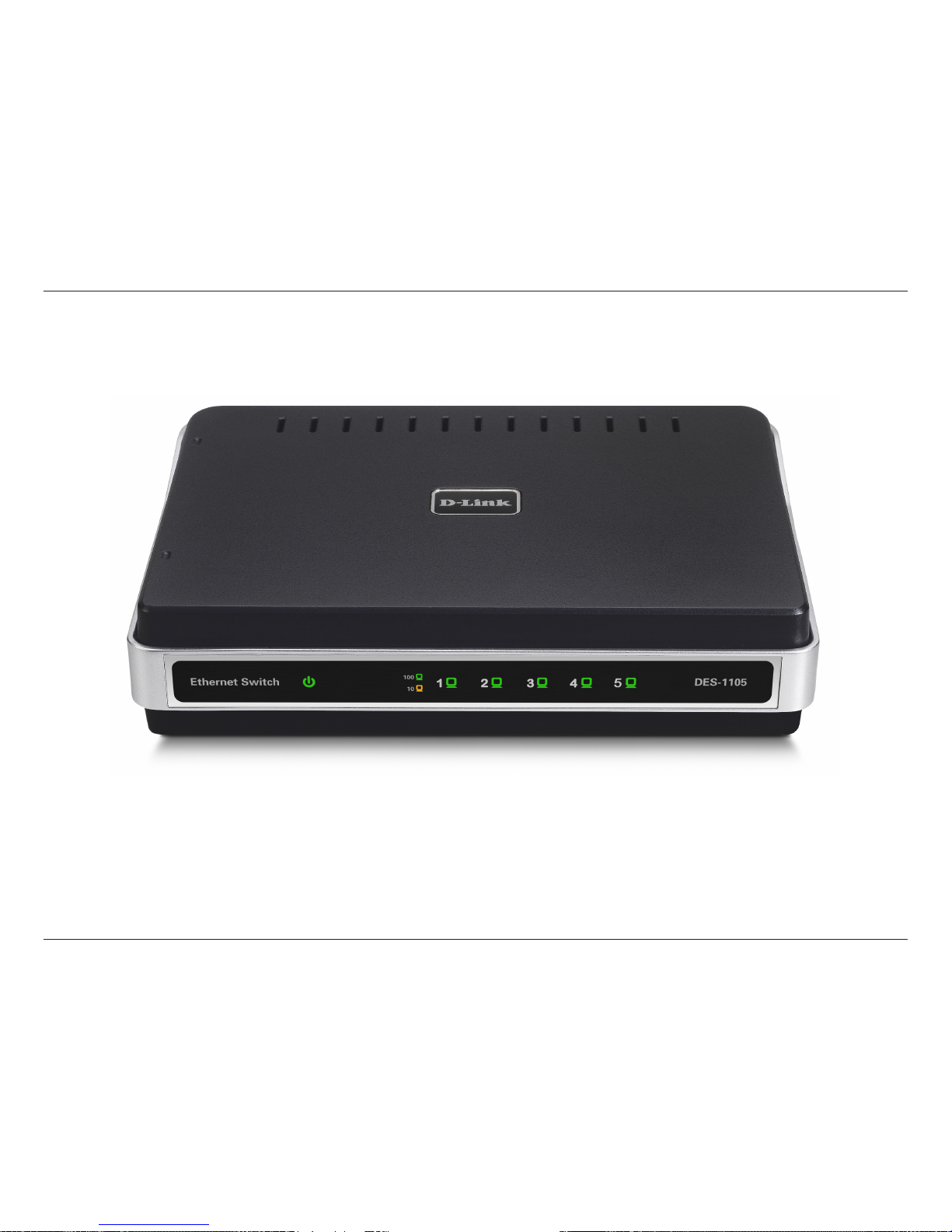

Front Panel (LEDs)

Power:

This green indicator light is on when the DES-1105 is receiving power; otherwise, it is off.

Link/Activity (1-5):

This LED indicator light is green when the port is connected to a 100Mbps Fast Ethernet station. The green indicator

blinks as Ethernet data is transmitted or received. The indicator light is amber when the port is connected to a 10Mbps

Ethernet station, or other network device. The amber indicator blinks as Ethernet data is transmitted or received.

9D-Link DES-1105 User Manual

Section 1 - Product Overview

Rear Panel (Connections)

Auto MDI/MDI-X Ports:

All ports support automatic MDI/MDI-X crossover detection. The AutoMDI/MDI-X function makes it simple to connect

to the switch—just plug either a Crossover or Straight-Through CAT5 cable into any port.

DC Power Jack:

Power is supplied through an external DC power adapter. Check the technical speciﬁcation section for information

about the DC power input voltage.

Since the DES-1105 does not require a power button, plugging its power adapter into a power outlet will immediately

power it on.

10D-Link DES-1105 User Manual

Section 2 - Installation

Installation

This section will explain how to connect Ethernet devices to your new D-Link switch and how to mount the switch.

Connecting the Switch

PC to DES-1105

A computer can be connected to the DES-1105 via a two-pair Category 3, 4, 5 UTP/STP Straight-Through or Crossover

cable. A computer equipped with a RJ-45 10/100Mbps port can be connected to any of the ﬁve DES-1105 ports.

The LED indicators for the PC connection depend on the capability of the computer’s Ethernet card. If the LED indicators

are not lit after making a proper connection, check the computer’s Ethernet card, the cable, and the DES-1105’s

conditions and connections.

Hub/Switch to DES-1105

A hub (10 or 100BASE-TX) can be connected to the DES-1105 via a two-pair Category 3, 4, or 5 UTP/STP Straight-

Through or Crossover cable. For 100Mbps operation a Category 5 cable must be used. The connection is accomplished

from any port of the hub to any port of the DES-1105.

DES-1105 to Other Devices

The DES-1105 can be connected to another switch or other devices (routers, bridges, etc.) via a two-pair Category

3, 4, 5 UTP/STP Straight-Through or Crossover cable. A Category 5 (or higher) cable must be used for 100Mbps

operation. The connection can be accomplished from any (MDI-X) port on the DES-1105 to any of the 10Mbps or

100Mbps (MDI-X) ports on another switch or other devices.
