D-Link DCH-G020X Manual de usuario

DCH-G02; D-Link Corporation

Manual Page 1 10/16/2014

DCH-G020;

6PDUW Home Hub

User’s Manual

Version 01.0

Oct. 15th, 2014

DCH-G020;D-Link Corporation

Manual Page 2 10/16/2014

1. PRODUCT DESCRIPTION

The DCH-G020 is a Connected Home Z-Wave Gateway used to control a

variety of Z-wave home sensors for the application of home automation.

It is able to talk to variety of Z-Wave sensors and communicate with other D-

Link connected Home devices.

2. APPEARANCE

Front Panel

lLED: Status indicator

Rear Panel

lUSB port (Type A): reserved for future support .

lLAN port x2

lWireless button: device pair/ un-pair

DCH-G020;D-Link Corporation

Manual Page 3 10/16/2014

lPower jack: 5V/2A

Bottom Panel

lReset button

3. APPLICATIONS

4. INSTALLATION & CONFIGURATION

Step 1 Make sure your mobile device connected to the same network as DCH-*020;

Step 2 Follow the Quick Install Card to scan the QR code to download the App. Step

3 Install App and run it.

Step 4 Register an account for mydlink home service and login the App.

DCH-G020;D-Link Corporation

Manual Page 4 10/16/2014

Step 5 Add a new device and select Gateway DCH-G020;.

A. Select Add new device to add a new device.

B. Scan device QR code or skip the QR code to manual select the device.

DCH-G020;D-Link Corporation

Manual Page 5 10/16/2014

Step 6 Follow the instructions to setup the DCH-G020;

DCH-G020;D-Link Corporation

Manual Page 6 10/16/2014

Step 7 Find the DCH-G020;and click to select it.

Step 8 Enter the Pin Code of your DCH-G020;.

DCH-G020;D-Link Corporation

Manual Page 7 10/16/2014

Step 9 Give a name of your DCH-G020;.

Step 10 See a DCH-G020;on the device list, then you can continue to add Z-wave

sensors or other D-Link Connected Home devices.

DCH-G020;D-Link Corporation

Manual Page 8 10/16/2014

Click the device to see more information of the device.

Make a Policy for Devices

DCH-G020;D-Link Corporation

Manual Page 9 10/16/2014

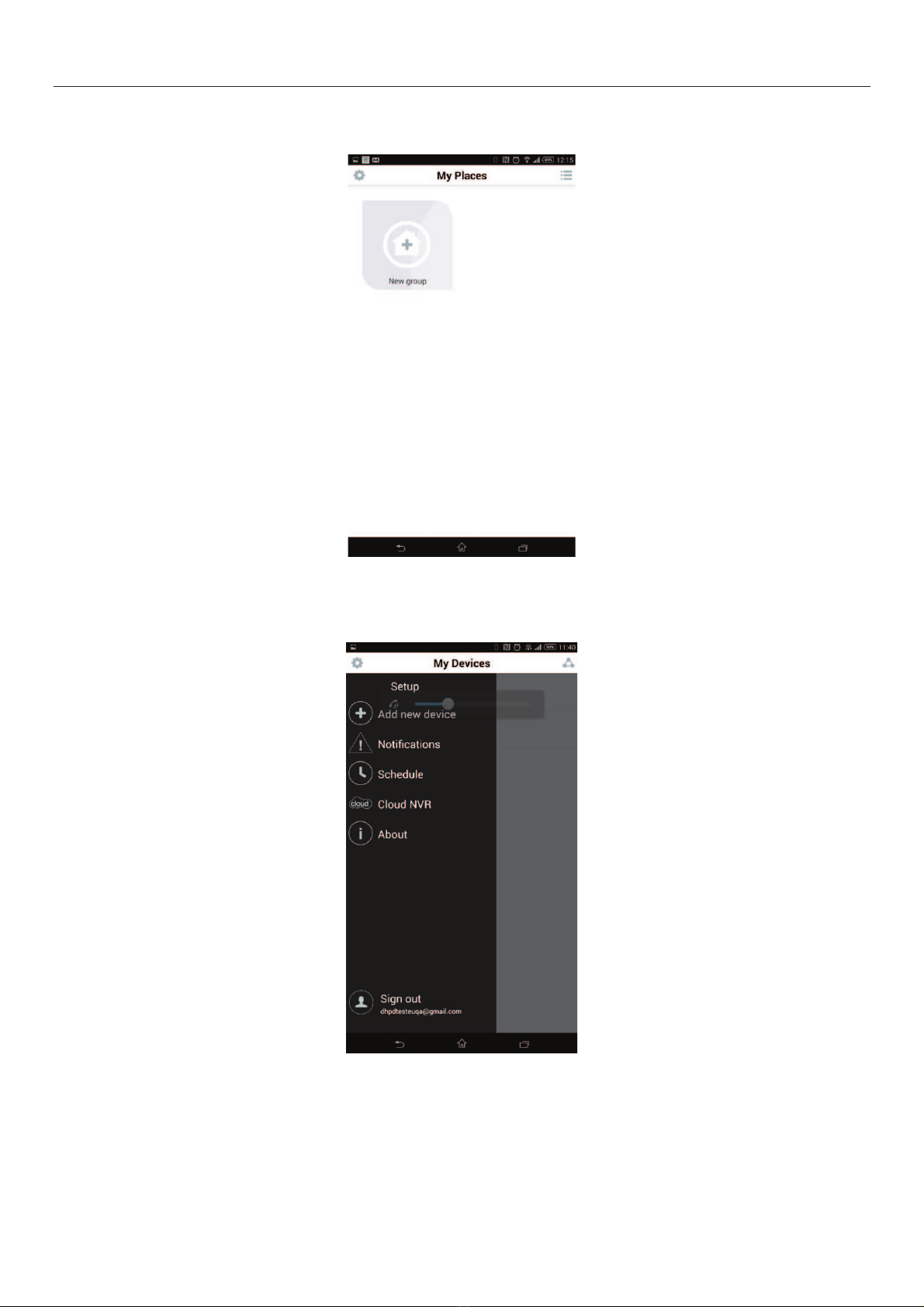

Make a Group for Devices

You can click the Notification to see the triggered information, click Schedule to

configure the device working schedule, and click Sign out to log out the device.

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the

following two conditions: (1) This device may not cause harmful interference,

and (2) this device must accept any interference received, including

interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one of the

following measures:

- Reorient or relocate the receiving antenna.

- Increase the separation between the equipment and receiver.

- Connect the equipment into an outlet on a circuit different from that

to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

FCC Caution: Any changes or modifications not expressly approved by the

party responsible for compliance could void the user's authority to operate

this equipment.

This transmitter must not be co-located or operating in conjunction with any

other antenna or transmitter.

Radiation Exposure Statement:

This equipment complies with FCC radiation exposure limits set forth for an

uncontrolled environment. This equipment should be installed and operated

with minimum distance 20cm between the radiator & your body.
