D-Link DCS-6315 Manual de usuario

This document will guide you through the

basic installation process for your new D-Link

Network Camera.

DCS-6315

Documentation also available on CD

and via the D-Link Website

Quick Installation Guide

HD Outdoor Fixed Dome Camera with Color Night Vision

Quick Installation Guide

Installationsanleitung

Guide d’installation

Guía de instalación

Guida di Installazione

Краткое руководство по установке

Guia de Instalação Rápida

快速安裝指南

Petunjuk Pemasangan Cepat

D-Link DCS-6315 Quick Install Guide 1

ENGLISH

DCS-6315 Quick Install Guide

This installation guide provides basic instructions for installing the DCS-6315 Network

Camera on your network. For additional information about how to use the camera,

please see the User’s Manual which is available on the CD included in this package or

from the D-Link support website.

Installation Steps

1. Verify the package contents against the list below.

2. Hardware Overview

3. Micro SD Card Installation

4. Hardware Installation

5. Conguration with Wizard

6. Adjusting the lens 3-axis angel

1. Package Contents

DCS-6315 Network Camera

Manual and Software on CD-ROM

Quick Install Guide

Power Adapter

Security Wrench

CAT-5 Ethernet Cable

Screws and wall socket

Weather Shield

4Pin Terminal Block

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certied technicians so as to conform to all

local codes and prevent voiding your warranty.

D-Link DCS-6315 Quick Install Guide

ENGLISH

2. Hardware Overview

3. Micro SD Card Installation

Power Connector

Connects to 12 V DC power

Ethernet Jack

RJ-45 connector for Ethernet

whichcan also be used to power

the camera using Power over

Ethernet (PoE)

Reset Button

Resets camera to factory

default settings

Audio In

Connects to a microphone

DI/DO Wiring, 12V DC output

I/O connectors for external

devices

Audio Out

Connects to speakers

Install the microSD Card

Push the microSD card into the camera with the gold

contacts oriented towards the base of the camera. To eject

the microSD card, push it into the slot.

Disassemble the Camera

Open the camera enclosure by loosening

the three screws. Lift the dome off the base

of the camera.

Note: This camera currently supports SDXC cards up to 64GB and in FAT32 format only.

D-Link DCS-6315 Quick Install Guide 3

ENGLISH

4. Standard Mounting Instructions

Mounting Installation

Please see the User Manual for detailed instructions regarding installation and mounting

of the camera using a mounting bracket.

Style 1 - Concealed Cable Installation

Height: 25.6 mm (1.0 inches)

Diameter: 122 mm (4.8 inches)

Weight: 135 g (0.3 lbs)

Figure 2.2Figure 2.1

Weather Shield

Weather shield

screw

Note: When the weather shield is attached, the camera video may show reections when the

IR LEDs are on and the camera is at a high angle. If you experience this, it is recommended

that you lower the angle of the camera or turn off the IR LEDs.

D-Link DCS-6315 Quick Install Guide

ENGLISH

Style 2 - Exposed Cable Installation

Height: 25.6 mm (1.0 inches)

Diameter: 122 mm (4.8 inches)

Weight: 135 g (0.3 lbs)

Figure 2.3 Figure 2.4

Figure 2.5

D-Link DCS-6315 Quick Install Guide 5

ENGLISH

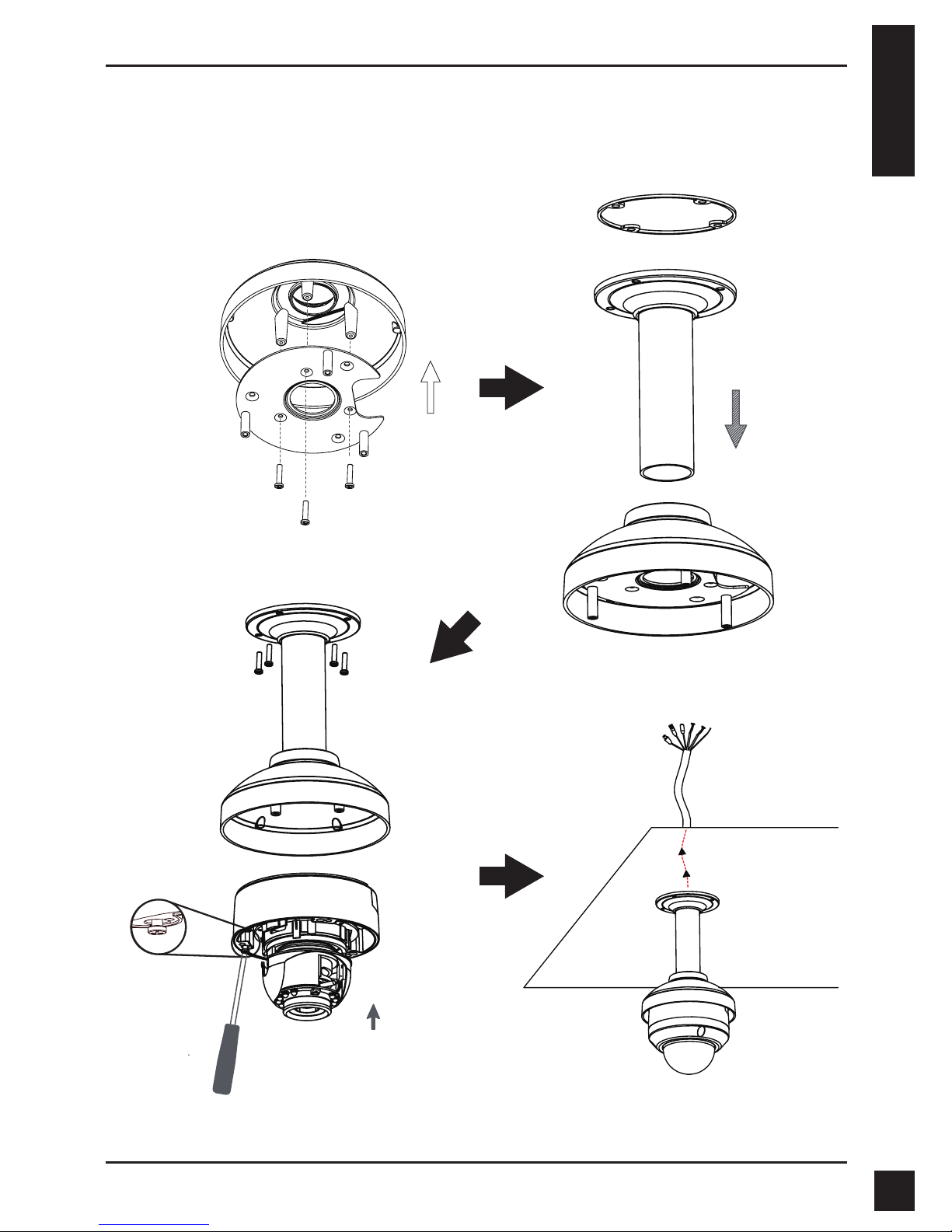

Pendant Mount (DCS-34-2)

Height: 201 mm (7.9 inches)

Diameter: 150 mm (5.9 inches)

Weight: 665 g (1.45 lbs)

Figure 3.4

Pendant

Bracket

Cap

Rubber

Seal

Figure 3.2

Figure 3.3

Figure 3.1

Bracket

Cap

Mounting

Plate

D-Link DCS-6315 Quick Install Guide

ENGLISH

Bent Mount (DCS-34-3)

Height: 253 mm (9.96 inches)

Diameter: 150 mm (5.9 inches)

Weight: 770 g (1.7 lbs)

Bracket Cap

Bent

Bracket

Figure 4.2

Figure 4.4Figure 4.3

Figure 4.1

Bracket

Cap

Mounting

Plate

Dome

Camera

Bent

Bracket

D-Link DCS-6315 Quick Install Guide 7

ENGLISH

Note: To prevent the camera’s wire

connectors from being damaged by water

or other elements:

1. When connecting the camera, the

unsheathed part of the wire connectors

must either be sealed or enclosed in a

junction box.

2. The unsheathed part of the wire

connectors should be positioned at a

downward-facing angle when they extend

out of the rear of the camera, not upward.

The unsheathed part of the wire

connectors must either be sealed or

enclosed in a junction box.

Connection with a PoE Switch

If you are using a PoE switch, connect the IP camera to the switch via an Ethernet

cable, which will provide transmission of both power and data over a single cable.

General Connection Using 12 V DC Power Adapter

1. Connect the network camera to a switch via an Ethernet cable.

2. Connect the supplied power cable from the camera to a power outlet.

D-Link DCS-6315 Quick Install Guide

ENGLISH

5. Conguration with Wizard

Click Setup Wizard to begin the installation.

Insert the DCS-6315 CD into your computer's CD-ROM drive to begin the installation. If

the Autorun function on your computer is disabled, or if the D-Link Launcher fails to start

automatically, click Start > Run. Type D:\autorun.exe, where D: represents the drive

letter of your CD-ROM drive.

After clicking Setup Wizard, the following window will open.

Click Next to continue.

Click Yes to accept the License Agreement.

Click Finish to complete the installation.

To start the installation process, click Next.

Note: The installation may take several minutes to

nish.
