D-Link DCS-4802E Quick Installation Guide 1

ENGLISH

Quick Installation Guide

This installation guide provides basic instructions for installing the DCS-4802E on your

network. For additional information about how to use the camera, please see the User

Manual, which is available on the CD included in this package, or you can download it

from the D-Link support website.

Package Contents

DCS-4802E Vigilance Full HD Outdoor PoE Mini Dome Camera

Cable Waterproong Connector

Rubber Power Connector Plug

Mounting Kit

Manual and Software on CD-ROM

Quick Installation Guide

If any of the above items are missing, please contact your reseller.

Safety Notice:

Installation and servicing should be done by certied technicians so as to conform to all

local codes and prevent voiding your warranty.

D-Link DCS-4802E Quick Installation Guide

ENGLISH

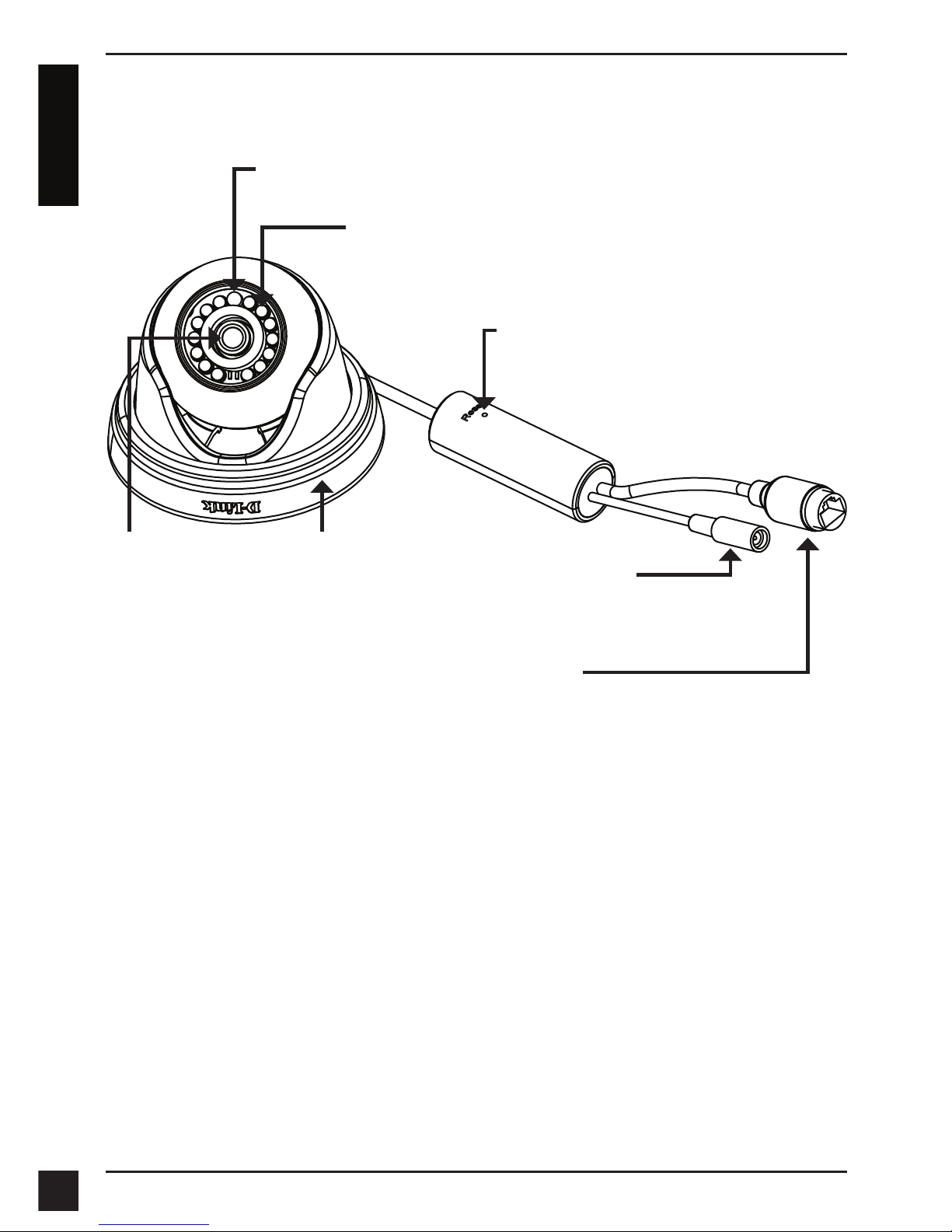

Hardware Overview

IR LEDs

Provide illumination for

low-light environments

Light Sensor

Detects lighting conditions

Reset Button

Resets camera back to the

factory default settings

Ethernet Jack

RJ-45 connector for Ethernet which can also be used to

power the camera using Power over Ethernet (PoE)

Power Connector

Connects to an optional 12 V / 1.5 A

power adapter (not included)

Camera Lens Camera Base Cover

D-Link DCS-4802E Quick Installation Guide 3

ENGLISH

Connecting the Camera

You can power the DCS-4802E two different ways: Power over Ethernet (PoE) or with a

power adapter.

Powering the camera using PoE (Class 2):

Connect an Ethernet cable to the Ethernet jack on the camera. Connect the other

end of the cable to your PoE switch or PoE injector.

Powering the camera with a power adapter

(not included):

Connect a 12 V, 1.5 A power adapter to the power connector.

Connect an Ethernet cable to the Ethernet jack on the camera. Connect the other

end of the cable to your network.

D-Link DCS-4802E Quick Installation Guide

ENGLISH

Conguring the Camera

Insert the DCS-4802E CD into your computer's CD-ROM drive to begin the installation.

If the Autorun function on your computer is disabled, or if the D-Link Launcher fails to

start automatically, click the Start button and type D:\autorun.exe (where D: represents

the drive letter of your CD-ROM drive) and press Enter.

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu (Start > D-Link >

Setup Wizard SE).

The Setup Wizard will appear and display the MAC

address and IP address of your camera(s). If you have a

DHCP server on your network, a valid IP Address will be

displayed. If your network does not use a DHCP server,

the network camera's default static IP 192.168.0.20 will be

displayed.

Select your camera, then click the Wizard button to

continue.

Click Setup Wizard and follow the instructions to install

the Setup Wizard.

Enter the Admin ID and password. When logging in for

the rst time, the default Admin ID is admin with the

password left blank.

Click the checkboxes if you wish to change the admin ID

and password for the camera, and enter the new ID and

password you wish to use.

Click Next to continue.

Select DHCP if your camera obtains an IP address

automatically from a DHCP server such as a router.

Select Static IP if you want to manually enter the IP

settings for the camera.

Click Next to continue.

D-Link DCS-4802E Quick Installation Guide 5

ENGLISH

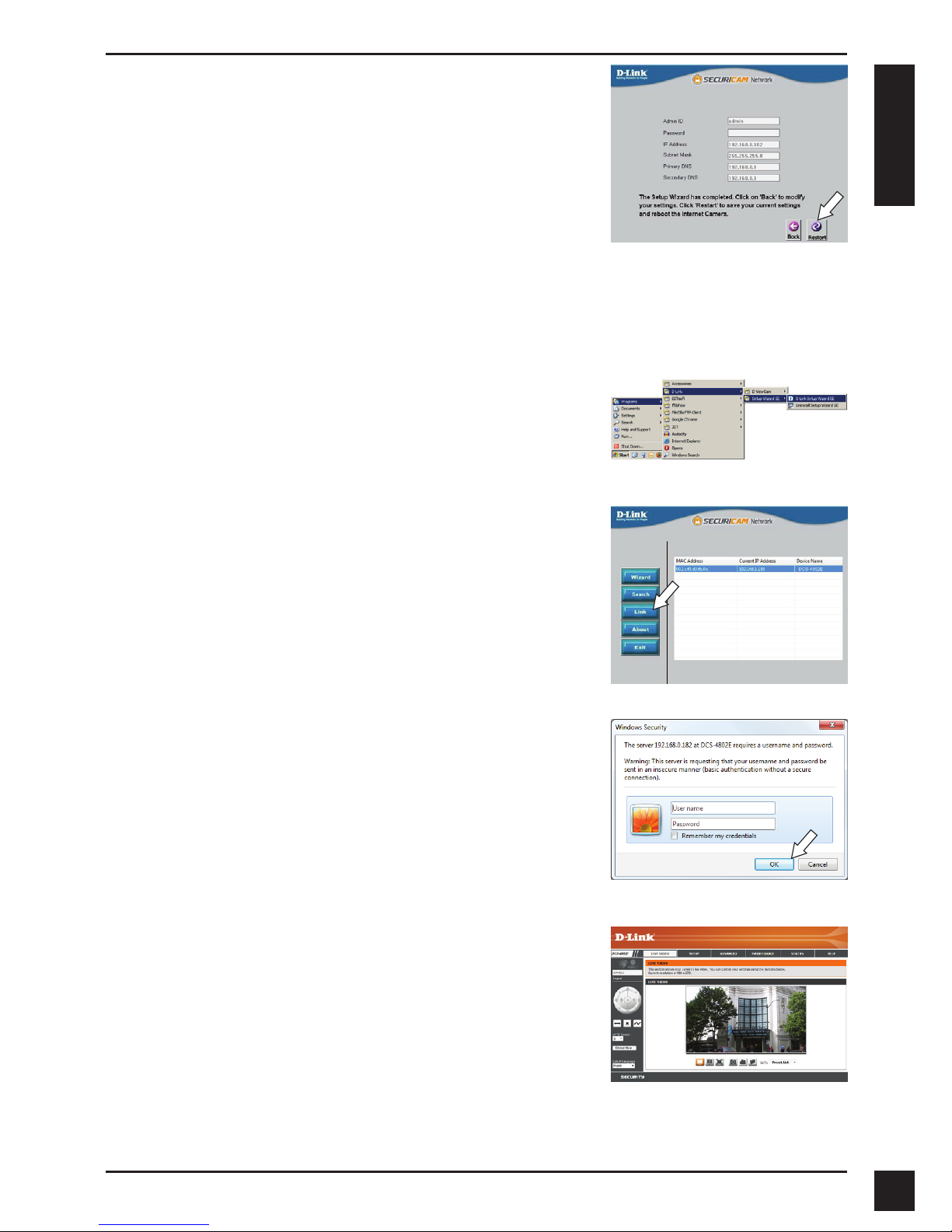

Viewing Your Camera via Web Browser

Click on the D-Link Setup Wizard SE icon that was

created in your Windows Start menu (Start > D-Link >

Setup Wizard SE).

Select the camera and click Link to access the web

conguration.

The Setup Wizard will automatically open your web

browser to the IP address of the camera.

This section displays your camera’s live video. You can

select your video prole and view or operate the camera.

For additional information about web conguration, please

refer to the user manual included on the CD-ROM or the

D-Link website.

Enter your username (default is admin) and your

password (default is blank). Click OK to continue.

Take a moment to conrm your settings and click Restart.

D-Link DCS-4802E Quick Installation Guide

ENGLISH

Mounting Instructions

It is highly recommended that you congure and test your camera before mounting it.

Place the mounting sticker where you want to position the

camera.

Use a 6 mm drill bit to make the required holes

approximately 25 mm deep, then insert the wall anchors

into the holes.

If you are running the camera cables through the wall

or ceiling, drill a hole in the center and pull the cables

through the hole. If not, then guide the camera cables

through the cable channel on the base after mounting to

the wall or ceiling.

Use the screws provided to mount the camera to the wall

or ceiling.

Attach the camera base cover by lining up the cable

channel with the mark on the camera base, then turn the

camera base cover clockwise until it clicks.

D-Link DCS-4802E Quick Installation Guide 7

ENGLISH

To waterproof your camera installation, follow the instructions below. Round Ethernet

cable, a crimping tool, and RJ-45 plugs are required for this procedure.

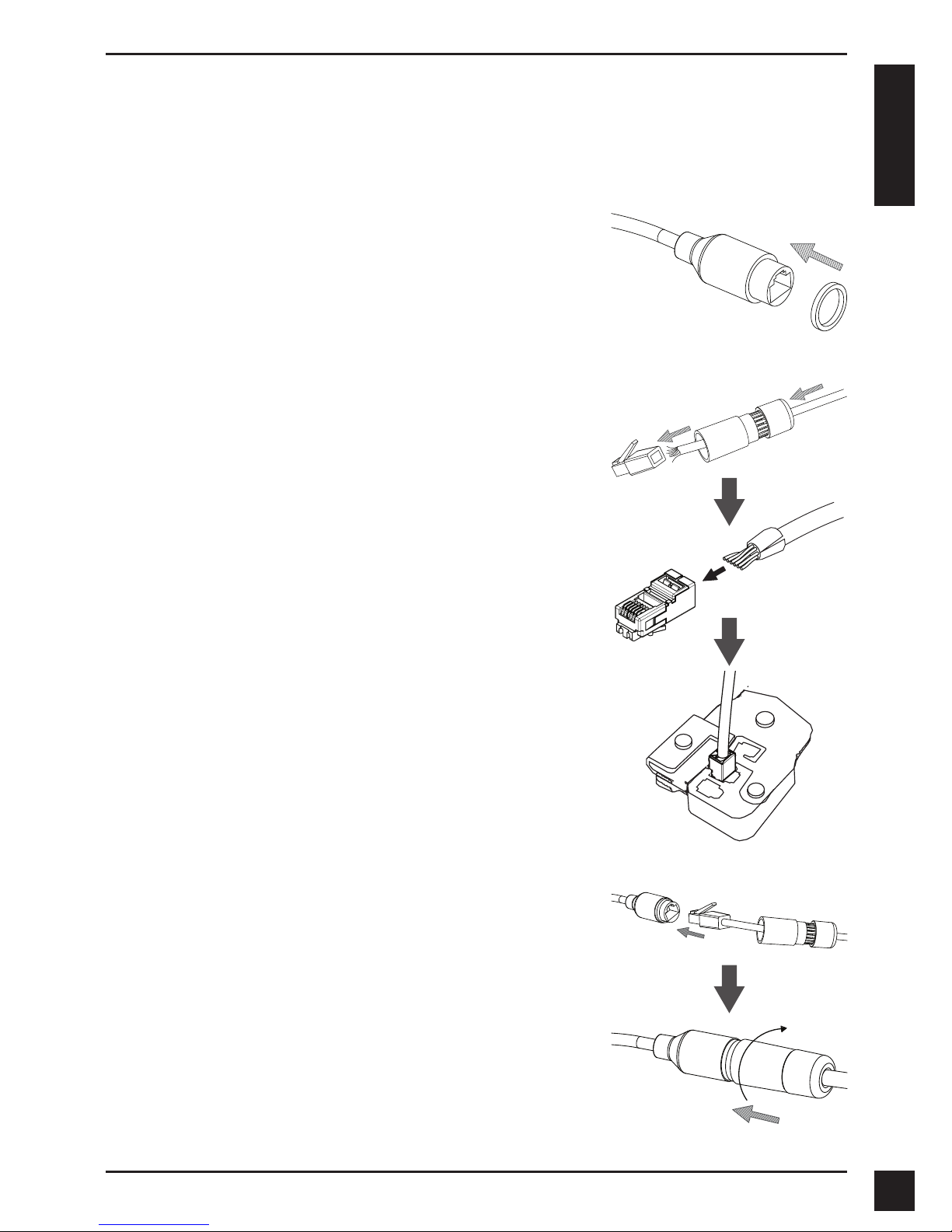

Waterproong Your Installation

Place the washer around the base of the Ethernet

connector as shown.

Connect the RJ-45 plug into the Ethernet connector, then

screw the waterproof connector to the Ethernet connector

by turning it about a half-turn clockwise.

Thread bare Ethernet cable through the waterproof

connector as shown, then crimp an RJ-45 plug onto the

cable.

D-Link DCS-4802E Quick Installation Guide

ENGLISH

If you are using PoE to power your camera, attach

the included rubber power connector plug to the power

connector.

If you are using a power adapter (not included) to

power your camera, wind waterproof tape around the

connection in an overlapping manner to cover it.

Additional Information

Additional help and product information is available online at http://www.dlink.com.

Warranty Information

Please visit http://warranty.dlink.com/ for warranty information for your region.

Turn the back part of the waterproof connector clockwise

until there is a tight seal around the Ethernet cable.
