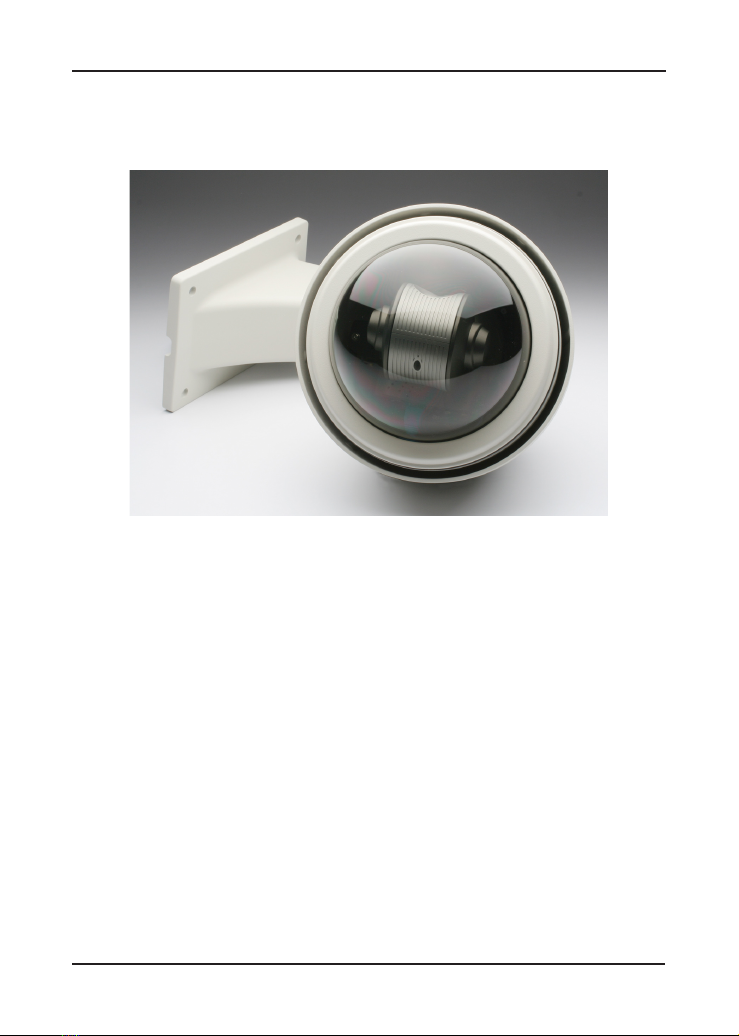

D-Link DCS-70 Manual de usuario

2D-Link DCS-70 Quick Install Guide

System Requirements

Package Contents

1. Housing

2. Cover

3. Wall mount bracket

4. Power Supply

5. DC to DC Cable

6. Cross iron plate

7. Hardware (screws, washers, allen wrench)

1

2

3

4

5

76

3 D-Link DCS-70 Quick Install Guide

Hardware Installation

Installation

Step 2

Push the power supply and Ethernet cable through the center of the

housing. Then, insert the power plug into the power socket labeled

DC12V IN and attach one end of the DC to DC cable into the power

socket labeled DC12V OUT.

Step 1

Pull the Ethernet and power cable through the wall mount bracket.

4D-Link DCS-70 Quick Install Guide

Software Installation

Step 3

Screw the camera base to the cross iron plate.

Step 4

Plug in the power and Ethernet cables to the camera, and then attach

both screws to the sides of the cross iron plate.

5 D-Link DCS-70 Quick Install Guide

Network Deployment

Step 5

Screw the cover on to the housing.

6D-Link DCS-70 Quick Install Guide

Notes

Notes

7 D-Link DCS-70 Quick Install Guide

Notes

Notes

8D-Link DCS-70 Quick Install Guide

Technical Support

D-Link’s website contains the latest user documentation and

software updates for D-Link products.

U.S. and Canadian customers can contact D-Link Technical

Support through our website or by phone.

United States

Telephone

(877) 354-6555

World Wide Web

http://support.dlink.com

Canada

Telephone

(877) 354-6560

World Wide Web

http://support.dlink.com

Version 1.0

August 11, 2008

Copyright ©2008 D-Link Corporation/D-Link Systems, Inc. All rights reserved. D-Link and the D-Link logo are registered

trademarks of D-Link Corporation or its subsidiaries in the United States and other countries. Other trademarks are the property

of their respective owners. Actual data throughput will vary. Network conditions and environmental factors, including volume

of network trafﬁc, building materials and construction, and network overhead lower actual data throughput rate. Product

speciﬁcations, size and shape are subject to change without notice, and actual product appearance may differ from that depicted

on the packaging. Visit www.dlink.com for more details.
