D-Link DVG-6008S Manual de usuario

their respective holders. Software and specifications subject to change without notice. DVG-6008S FXO

VoIP Router

Before You Begin

You must have at least the following:

‧ A subscription with bundled service provider included in this package

‧ AComputer with a CD-ROM drive and an Ethernet port running a Windows

‧ Ethernet based broadband modem

Check Your Package Contents

These are the items included with your purchase:

If any of the below items are missing, please contact your reseller.

This product can be set up using Internet

Explorer or Netscape Navigator, 6.x or

above, with Javascript enabled DVG-6008S

FXO

VoIP Rout

DVG-6008S FXO VoIP Router

Phone Cord

CAT5 Ethernet Cable

CD-ROM

12V DC Power Adapter

Using a power supply

with a different voltage rating

will damage this product and

void the warranty

Front Panel

Power LED Indicates the unit is powered on.

Run

The Run LED will flash when performing a self-

test/booting up and light solid green if the self-test or

bootup fails.

Alarm

The Alarm LED will light solid red if the self-test or

bootup fails. The Alarm will flash red when the system is

registering with the service provider or register fails.

WAN LED

When a connection is established the 10 or 100 LED will

light up solid. The LED will blink to indicate activity. If the

10 or 100 LED does not light up when a cable is

connected, verify the cable connections and make sure

your devices are powered on.

LAN LEDs

When a connection is established the 10 or 100 LED will

light up solid on the appropriate port. The LEDs will blink

to indicate activity. If the 10 or 100 LED does not light up

when a cable is connected, verify the cable connections

and make sure your devices are powered on.

Line LEDs

Light on means the line is in use (off-hook), and vice

versa.

Hardware Overview

Rear Panel

Line Ports

Connect to your original telephone line on the wall jack

with RJ-11 cable.

LAN Port

Connect to your Ethernet enabled computers using

Ethernet cabling.

WAN Port

Connects to your broadband modem using an Ethernet

cable.

Reset

This is used to reset the unit to the factory default

settings.

DC 12V

The power adapter attaches here.

Using a power supply with a different voltage rating will

damage this product.

Connecting the DVG-6008S directly

to a Modem and Computer

If your computer connects directly to a DSL or Cable modem and does

not connect to a router, follow the steps below to install your DVG-6008S.

For any other configuration, please refer to the user manual located on

the CD-ROM. After the steps are completed, your setup should look

similar to the diagram below.

a. Turn off your Computer.

b. Disconnect the power to your Cable/DSL Modem (Unplug or turn off

the power switch).

c. Unplug the existing Ethernet cable that is connected to your

Cable/DSL Modem’s LAN or Ethernet

port. Leave the other end of this cable

attached to your PC.

d. Plug the Ethernet cable connector that

you just removed from the modem into

one of the four LAN ports on the back of

the DVG-6008S. The other end remains

attached to the PC.

zIf your ISP registers your computer’s MAC address, see the section labeled MAC

Cloning for Connections in the user manual on the CD-ROM.

zPPPoE Users, please continue to the next page for additional configuration steps.

e. Attach one end of the Ethernet Cable provided in this package to the

LAN or Ethernet Port on the Cable/DSL Modem.

f. Attach the other end of the provided

Ethernet Cable to the WAN Port of the

DVG-6008S.

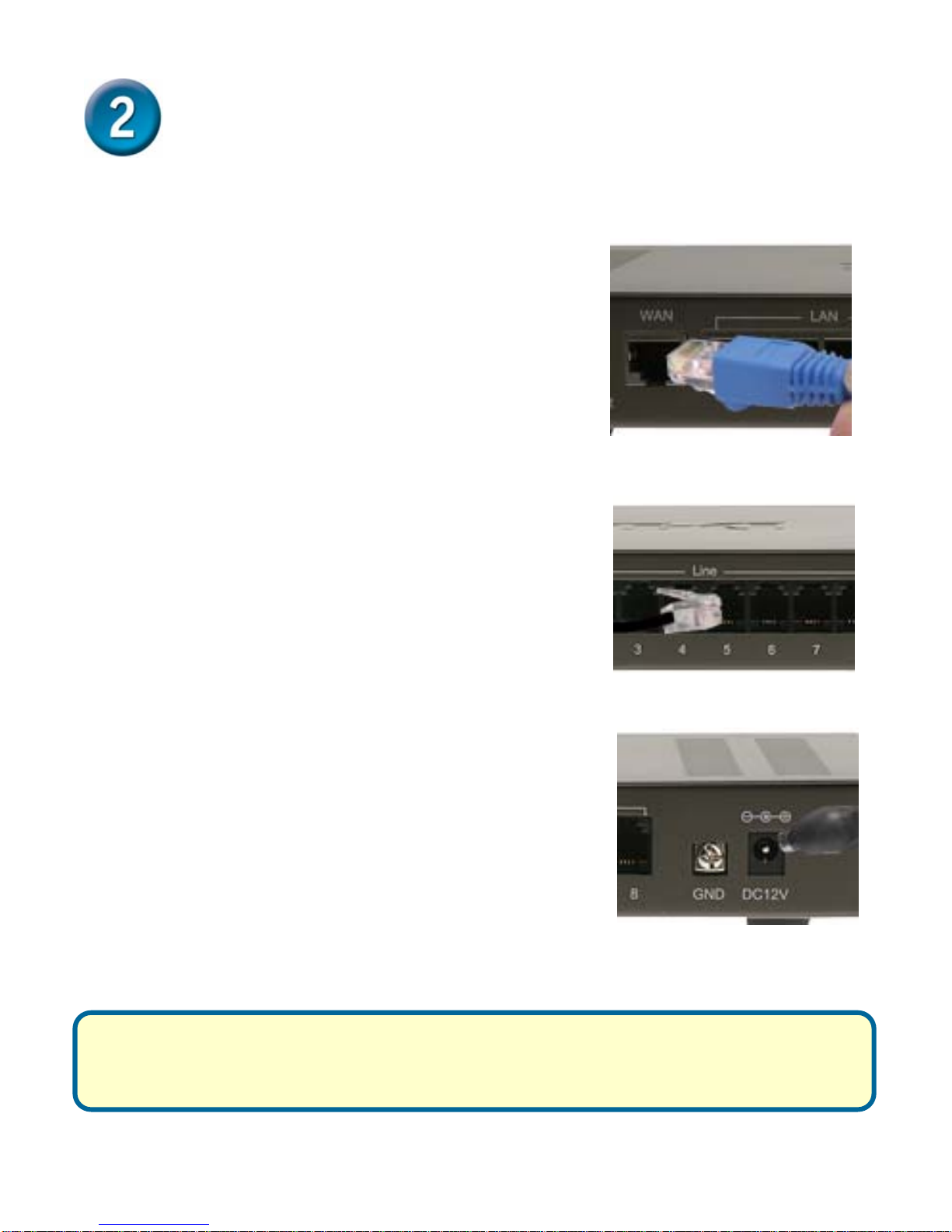

g. Attach one end of the provided phone cable to your original

telephone line on the wall jack.

h. Attach the other end of the phone cable to

the line port on the rear panel of the DVG-

6008S.

i. Reconnect the power to the Cable/DSL Modem (Plug in or turn on

the power switch).

j. Connect the Power Adapter to the Power

Connecter on the DVG-6008S.

k. Connect the other end of the Power

Adapter to an available electrical outlet

(Wall Socket or Surge Protector).

l. Restart your PC.

Hardware configuration is complete! If your VoIP service is already activated, you

can make phone calls now.

Connecting the DVG-6008S directly to

a Modem and Computer

(

continued

)

PPPoE Configuration

Some Internet Service providers use PPPoE as their method of

connecting clients. If you have a PPPoE connection, you must follow the

steps below to complete the configuration of your hardware. If you are

unsure of your connection type or do not know your username and

password, please check with your Internet Service Provider.

Open your Web browser and

type http://192.168.8.254 into

the URL address box. Press

the Enter or Return Key

Click OK to enter Web Site.

Click Network Settings.

Click PPPoE.

Enter PPPoE Account, Password

and Confirm Password.

PPPoE Configuration (continued)

Click Accept at the bottom of

this page.

Click System Operation at left

menu.

Select Save Settings and

Restart.

Click Accept.

Once the unit reboots you will see

the message. Check to see if the

status LED light goes from

blinking green to solid green on

the front panel of the DVG-6008S.

The information found on the

Device Information page is

necessary for VoIP service

registration
