D-Link DSL-2640B Manual de usuario

Before You Begin

Make sure you have all the necessary information and equipment on hand before beginning the

installation.

Check Your Package Contents

If any of the items above are missing, please contact your reseller.

DSL-2640B Wireless ADSL Router

Ethernet Cable (Cat 5 UTP)

Telephone cable

Power Adapter

Using a power supply

with a different voltage rating will

damage and void the warranty

for this product.

This product can be set up

using any current web

browser, i.e., Internet Explorer

6x or Netscape Navigator 7x.

DSL-2640B

Wireless ADSL Router

Connecting the Router to Your Computer

A. First, connect the power adapter to the receptor at the back panel of the

DSL-2640B and then plug the other end of the power adapter to a wall outlet or

power strip. The Power LED will turn on to indicate proper operation.

B. Insert one end of the cable into any Ethernet port on the back panel of the

DSL-2640B and the other end of the cable to an Ethernet Adapter or available Ethernet

port on your computer.

C. Insert one end of the telephone cable into the ADSL port on the back panel. Connect

the other end of the cable to the telephone wall outlet or low pass filter device that is

connected to the telephone wall outlet.

Ethernet Ports

Connect to Ethernet cable Power Switch

DSL Port

Connect to

ADSL line

Power Input

Connect to power

adapter

Configuring the Router

To use your Web browser to access the web pages used to set up the Router, your computer

must be configured to “Obtain an IP address automatically,”that is, you must change the IP

network settings of your computer so that it is a DHCP Client. If you are using Windows XP

and do not know how to change your network settings, skip ahead to Appendix A and read the

instructions provided. You may also read the User Manual for instructions on changing IP

settings for computers running Windows operating systems.

The logon pop-up screen will appear.

Open your Web browser and type

“http://192.168.1.1” into the URL

address box. Then press the Enter or

Return key.

Type “admin” for the

User Name and

“admin” in the

Password field.

Click OK.

Configuring the Router (continued)

After logging in to the DSL router, if no PVC is configured previously and no default settings

exist, the Quick Setup webpage appears, which contains some basic configuration that is

needed by VPI/VCI.

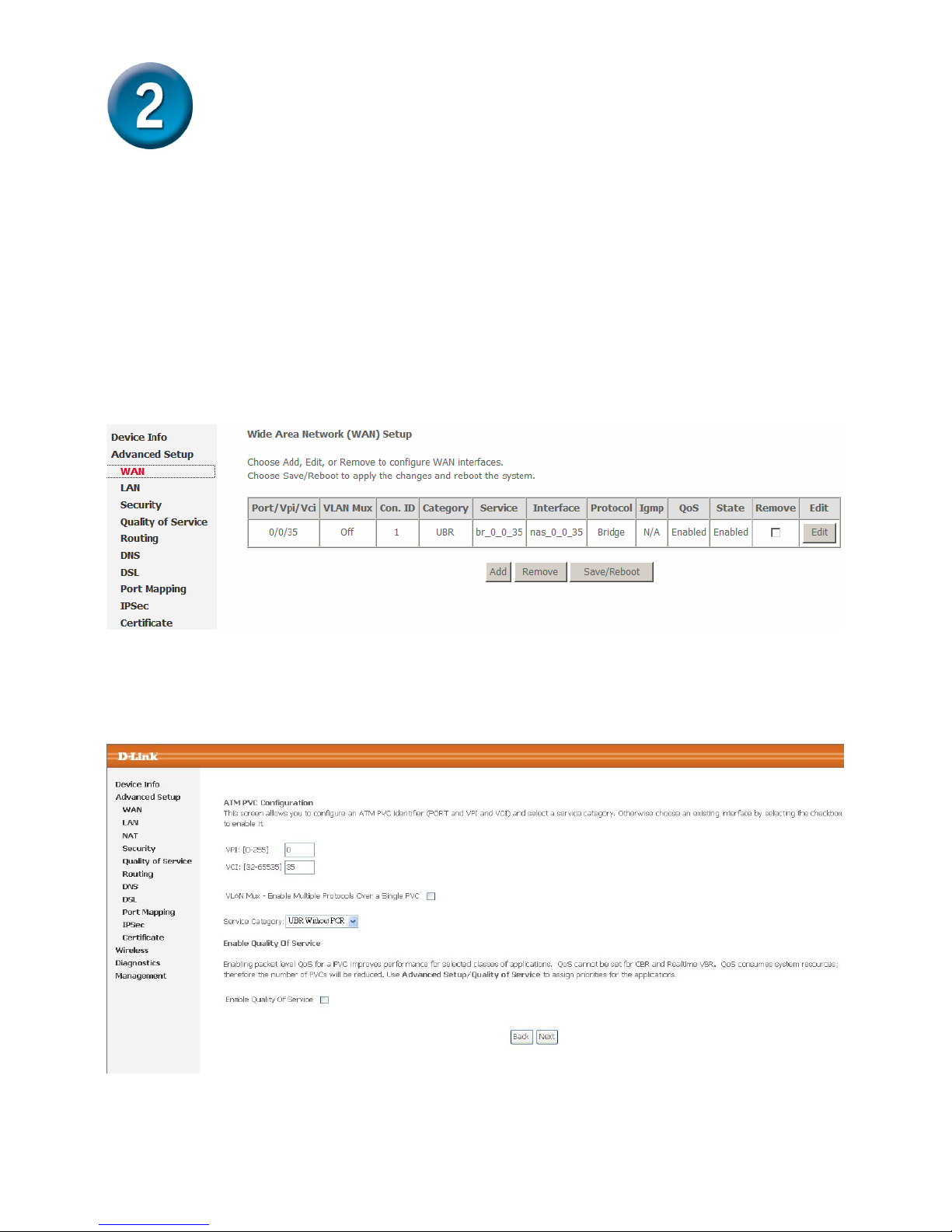

WAN Configuration

Choose Advanced Setup > WAN, and the following page appears, so you can modify and

configure the WAN interface.

Note: After a PVC is deleted or modified, the system must be rebooted. Otherwise, the

modification does not take effect.

Click Add, Edit, or Remove to configure WAN interface.

Click Save/Reboot to save the modification, and reboot the modem to make the

Configuring the Router (continued)

Wireless LAN Configuration

You can enable or disable the wireless LAN interface, hide the network from active scans,

set the wireless network name (also known as SSID) and restrict the channel set based on

country requirements.

Enter the SSID for the

Wireless LAN

The channel will adjust

according to nations to adapt

to each nation's

frequency provision.

Click

Save/Apply

Following is a description of the different options:

Enable Wireless: If you want to make wireless be available, you have to check this

box first. Otherwise, the Hide Access Point SSID, Country, Enable Wireless Guest

Network, and Guest SSID box will not be displayed.

Hide Access Point: Check this box if you want to hide any access point for your

router, so a station cannot obtain the SSID through passive scanning.

Click Save/Apply to save the basic wireless options and make the modification effect.

Configuring the Router (continued)

Wireless Security Configuration

DSL-2640B is equipped with 802.1X and WPA/WPA2 (Wi-Fi Protected Access), the latest

security standard. It also supports the legacy security standard, WEP (Wired Equivalent

Privacy). By default, wireless security is disabled and authentication is open. Before enabling

the security, consider your network size, complexity, and existing authentication infrastructure

and then determine which solution applies to it.

Select SSID: Select the wireless LAN of SSID to configure security features.

No Encryption: Please refer to the manual for details of configuration

Network Authentication: Select the authentication mode for the selected wireless LAN of SSID to be

open. Please refer to the manual for more derails of description.

WEP Encryption: Disable WEP Encryption.

The data is not encrypted when it is transferred from the device to the client station. This is

the default option.

Click Save/Apply to save the wireless security options and make the modification effect.

Select the wireless

LAN of SSID to

configure security

features

Configuring the Router (continued)

Setup Completed

All the settings for the ADSL connection are now completed. Click the Save/Reboot button to

save the new settings and restart the Router. It will take about two minutes to restart the Router.

Appendix

For additional settings or information, refer to the Advanced,Tools,or Status tabs on the Web

Management interface; or to the manual located on the CD-ROM.

Configuring IP Settings in Windows XP

Use the following steps to configure a computer running Windows XP to be a DHCP client.

1. From the Start menu on your desktop, go to Control Panel.

2. In the Control Panel window, click Network and Internet Connections.

Click Network and

Internet Connections.

From the Start menu, go to

Control Panel.

3. In the Network and Internet Connections window, click Network Connections.

4. In the Network Connections window, right-click on Local Area Connection, then click

Properties.

Right-click on the Local Area

Connection icon and select the

Properties option from the

pull-down menu.

Click Network

Connections.

5. In the General tab of the Local Area Connection Properties window, highlight Internet

Protocol (TCP/IP) under “This connection uses the following items:” by clicking on it

once. Click on the Properties button.

6. Select “Obtain an IP address automatically” by clicking once in the circle. Click the OK

button.

Your computer is now ready to use the Router’s DHCP server.

Click Properties.

Select Obtain an IP address

automatically in the Internet

Protocol (TCP/IP) Properties window
