D-Link DVG-5402G Manual de usuario

Quick Installation Guide

DVG-5402G/GF

Wireless AC1200 MU-MIMO Dual Band

Gigabi Rou er wi h Fiber WAN Por ,

3G/LTE Suppor , 2 FXS Por s, and USB Por

DVG-5402G/GF Quick Installation Guide

BEFORE YOU BEGI

Delivery Package

•Router DVG-5402G/GF

•Power adapter DC 12V/1.5A

•Ethernet cab e

•RJ-11 te ephone cab e

•“Quick Installation Guide” (brochure).

If any of the items are missing, p ease contact your rese er.

The “User Manual” and “Quick Installation Guide” documents are avai ab e

on D-Link website (see www.d ink.ru).

!Using a power supply with a different voltage rating than the one

included will cause damage and void the warranty for this product.

DVG-5402G/GF Quick Installation Guide

Default Settings

IP address of device 192.168.8.254

Username (login) admin

Password admin

ame of wireless network

(SSID)

2.4GHz DVG-5402G

5GHz DVG-5402G-5G

etwork key (PSK password)

see WPS PIN on the barcode

abe on the bottom pane of

the device

Router DVG-5402G/GF with defau t settings cannot connect to the

Internet. To get started, p ease set your own password for access to the

web-based interface and change the WLAN name (SSID); then, if

needed, configure other settings recommended by your ISP.

DVG-5402G/GF Quick Installation Guide

System Requirements and Equipment

•An Android or iPhone mobi e device (smartphone or tab et) or a

computer with any operating system that supports a web browser.

•A PC web browser to access the web-based interface:

◦App e Safari 8 and ater

◦Goog e Chrome 48 and ater

◦Microsoft Internet Exp orer 10 and ater

◦Microsoft Edge 20.10240 and ater

◦Mozi a Firefox 44 and ater

◦Opera 35 and ater.

•A NIC (Ethernet or Wi-Fi adapter) to connect to the router.

•An 802.11a, b, g, n, or ac Wi-Fi adapter to create a wire ess network.

•An SFP transceiver to connect to a fiber optic ine.

•Ana og phone.

•A USB modem (when it is necessary to connect to the Internet via mobi e

operators' networks).1

Your USB modem shou d be equipped with an active SIM card of your

operator.

Some operators require subscribers to activate their USB modems prior

to using them. P ease, refer to connection guide ines provided by your

operator when conc uding the agreement or p aced on its website.

For some mode s of USB modems, it is required to disab e the PIN

code check on the SIM card prior to connecting the USB modem to the

router.

1 Contact your operator to get information on the service coverage and fees.

DVG-5402G/GF Quick Installation Guide

CO ECTI G TO PC

PC with Ethernet Adapter

1. Connect an Ethernet cab e between any of LAN ports ocated on the back

pane of the router and the Ethernet port of your PC.

2. To connect the device to a fiber optic line: connect your SFP transceiver

to the SFP port, then connect the fiber optic cab e to the SFP transceiver.

3. To connect via USB modem: connect your USB modem to the USB port2

ocated on the back pane of the router.

!In some cases you wi need to reboot the router after connection of the

USB modem.

4. To connect the device to an Ethernet line: p ease connect the router to

the ISP's Ethernet ine on y after setting the WAN port and creating the

Internet connection (see the Initial Configuration izard section, page

21).

5. Connect a phone cab e between an FXS port of the router and the phone.

6. Connect the power cord to the power connector port on the back pane of

the router, then p ug the power adapter into an e ectrica out et or power

strip.

7. Turn on the router by pressing the ON/OFF button on its back pane .

Then make sure that your PC is configured to obtain an IP address

automatica y (as DHCP c ient).

2 It is recommended to use a USB extension cab e to connect a USB modem to the

router.

DVG-5402G/GF Quick Installation Guide

Obtaining P Address Automatically

(OS Windows 7)

1. C ick the Start button and proceed to the Control Panel window.

2. Se ect the etwork and Sharing Center section. (If the Contro Pane

has the category view (the Category va ue is se ected from the View by

drop-down ist in the top right corner of the window), choose the View

network status and tasks ine under the etwork and Internet

section.)

3. In the menu ocated on the eft part of the window, se ect the Change

adapter settings ine.

4. In the opened window, right-c ick the re evant Local Area Connection

icon and se ect the Properties ine in the menu disp ayed.

5. In the Local Area Connection Properties window, on the

etworking tab, se ect the Internet Protocol Version 4 (TCP/IPv4)

ine. C ick the Properties button.

DVG-5402G/GF Quick Installation Guide

6. Make sure that the Obtain an IP address automatically and Obtain

D S server address automatically choices of the radio buttons are

se ected. C ick the OK button.

7. C ick the OK button in the connection properties window.

DVG-5402G/GF Quick Installation Guide

Obtaining P Address Automatically

(OS Windows 10)

1. C ick the Start button and proceed to the Settings window.

2. Se ect the etwork & Internet section.

3. In the Change your network settings section, se ect the Change

adapter options ine.

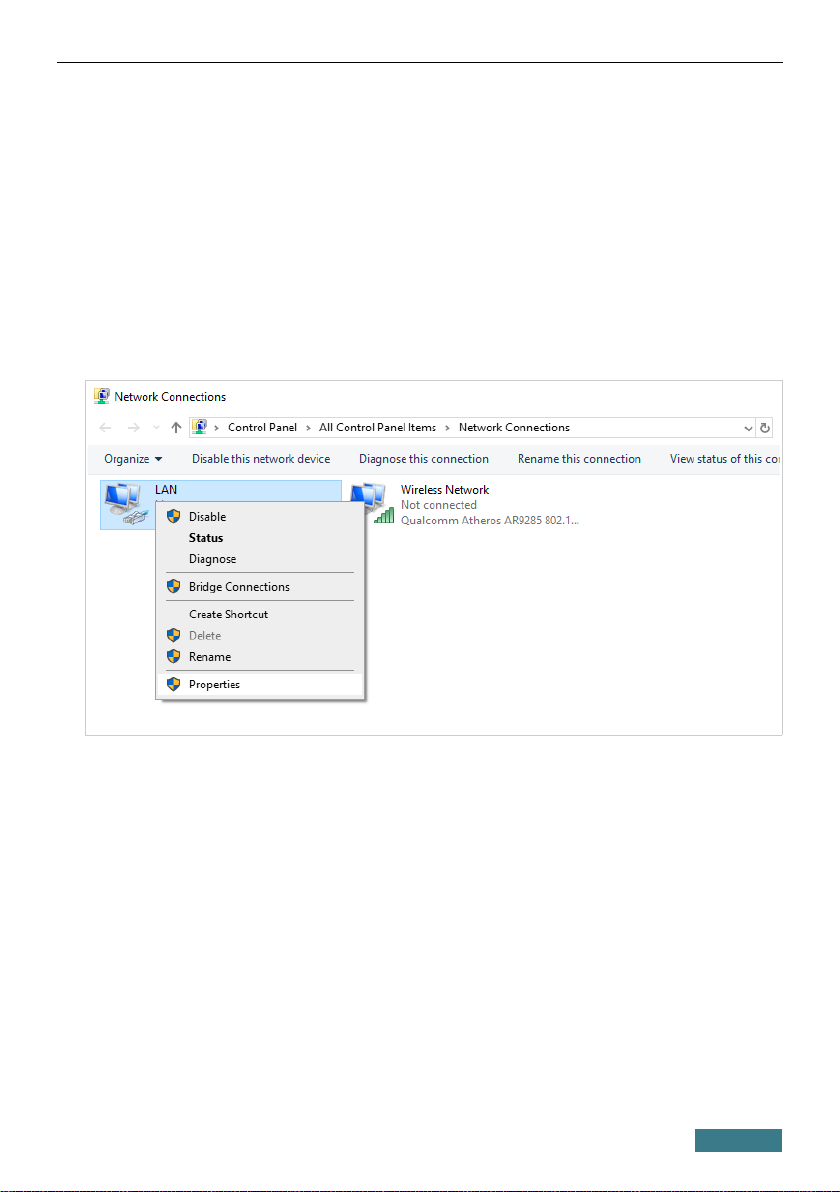

4. In the opened window, right-c ick the re evant Local Area Connection

icon and se ect the Properties ine in the menu disp ayed.

5. In the Local Area Connection Properties window, on the

etworking tab, se ect the Internet Protocol Version 4 (TCP/IPv4)

ine. C ick the Properties button.

DVG-5402G/GF Quick Installation Guide

6. Make sure that the Obtain an IP address automatically and Obtain

D S server address automatically choices of the radio buttons are

se ected. C ick the OK button.

7. C ick the Close button in the connection properties window.

DVG-5402G/GF Quick Installation Guide

PC with Wi-Fi Adapter

1. To connect the device to a fiber optic line: connect your SFP transceiver

to the SFP port, then connect the fiber optic cab e to the SFP transceiver.

2. To connect via USB modem: connect your USB modem to the USB port3

ocated on the back pane of the router.

!In some cases you wi need to reboot the router after connection of the

USB modem.

3. To connect the device to an Ethernet line: p ease connect the router to

the ISP's Ethernet ine on y after setting the WAN port and creating the

Internet connection (see the Initial Configuration izard section, page

21).

4. Connect a phone cab e between an FXS port of the router and the phone.

5. Connect the power cord to the power connector port on the back pane of

the router, then p ug the power adapter into an e ectrica out et or power

strip.

6. Turn on the router by pressing the ON/OFF button on its back pane .

7. Make sure that the Wi-Fi adapter of your PC is on. As a ru e, modern

notebooks with bui t-in wire ess NICs are equipped with a button or

switch that turns on/off the wire ess adapter (refer to your PC

documents). If your PC is equipped with a p uggab e wire ess NIC, insta

the software provided with your Wi-Fi adapter.

Then make sure that your Wi-Fi adapter is configured to obtain an IP address

automatica y (as DHCP c ient).

3 It is recommended to use a USB extension cab e to connect a USB modem to the

router.
