D-Link DSL-514 Manual de usuario

1. If you purchased this Router to share your high-speed Internet connection with other

computers, you must have either an Ethernet-based Cable or a DSL Router with an

established Internet account from an Internet Service Provider (ISP).

2. It’s best to use the same computer that is connected to your router for configuring the DSL-

514 ADSL Router. The DSL-514 acts as a DHCP server and will assign all the necessary IP

address information on your network. See at the Quick Installation Guide or the Manual on the

CD-ROM for setting each network adapter to automatically obtain an IP address.

Check Your Package Contents

These are the items included with your DSL-514 purchase:

If any of the above items are missing, please contact your reseller.

holders. Software and specifications subject to change without notice. DSL-514.ADSL Router

This product can be set up using any

current web browser, i.e., Internet

Explorer 6.x, Netscape Navigator 7.x. DSL-514

ADSL Route

Before Your Begin

Using a power

supply with a

different voltage rating

will damage and void

the warranty for this

product.

• DSL-514 ADSL Router

• CD-ROM (containing Manual and Warranty)

• Ethernet Cable

• 9V AC, 1A Power Adapter

•ADSL Cable (standard telephone cable)

Connecting The DSL-514 ADSL

Router To Your Network

A. First, connect the power adapter to the receptor at the back panel of

the DSL-514 and then plug the other end of the power adapter to a

wall outlet or power strip. The Power LED will turn ON to indicate

proper operation.

B. Insert one end of an Ethernet cable to the LAN port on the back panel

of the DSL-514. The LAN LED light will illuminate to indicate proper

connection.

C. Use the twisted-pair ADSL cable (standard telephone cable) included

with the Router to connect it to the telephone wall socket. Plug one

end of the cable into the ADSL port on the rear panel of the Router

and insert the other end into the wall socket.

D. Use standard telephone cable with standard RJ-11 connectors

included with the Router to connect it to telephone or other telephone

device.

Reset Button

Pressing this button

restores the router to

its original factory

default settings.

A.Receptor for

Power Adapter

B.LAN Port

These are the connections for

Ethernet cables to your Ethernet-

enabled computers.

C.This is the

connection for

ADSL Cable

to DSL

Provider.

D. This is the

connection for

Phone Cable

to Telephone.

Connecting Additional Computers To

The DSL-514 ADSL Router

Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-

equipped computers to the DSL-514 LAN ports on the back panel of the

DSL-514.

When you have completed the steps in this Quick Installation Guide,

your connected network should look similar to this:

Configure IP Settings

For Microsoft Windows XP

To connect to the network, make sure the network adapter in your

computer is configured properly. Here’s how to configure the network

adapter to obtain an IP address automatically for the DSL-514 ADSL

Router.

Go to Start > select

Setting > click the

Control Panel >

Double-click on the

Network

Connections icon

Double-Click on the

Network Connections

Right-click the Local

Area Connection

icon, and then select

Properties.

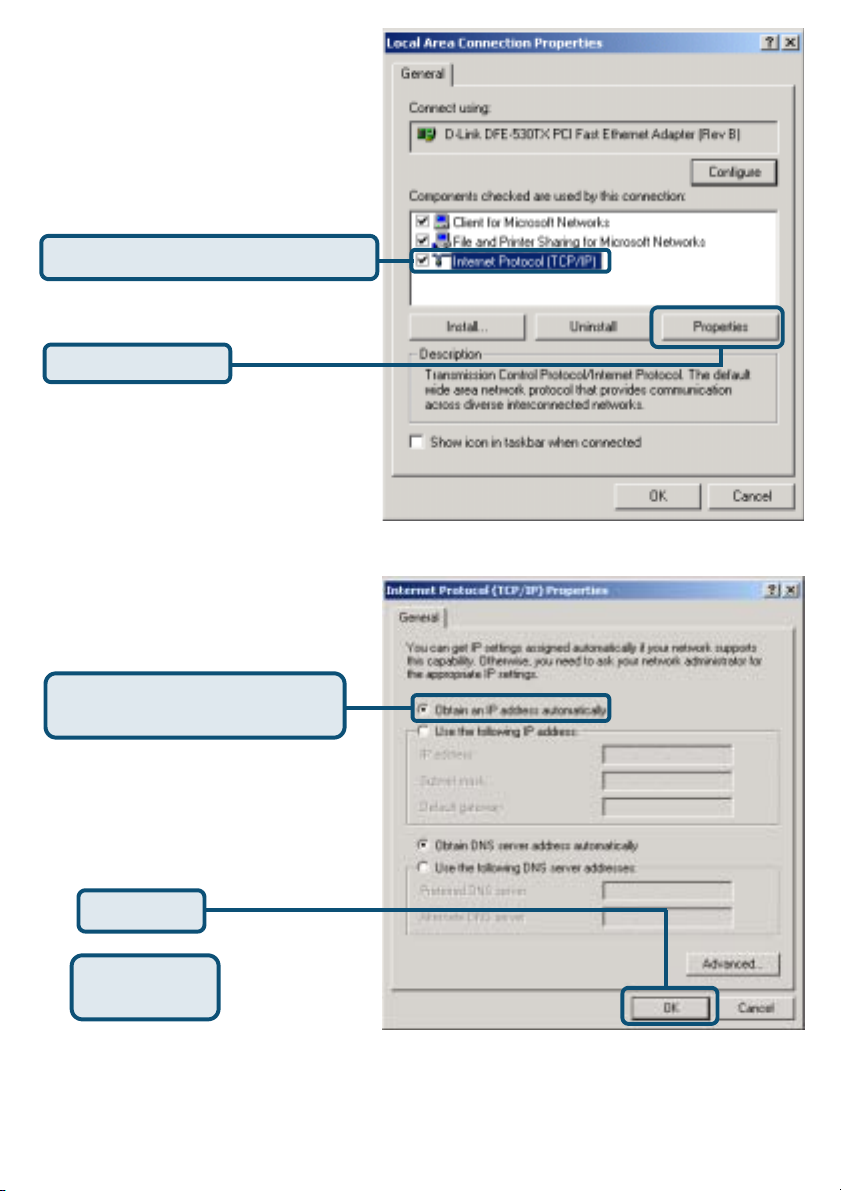

Select Properties

Click Internet Protocol (TCP/IP)

Select Obtain an IP address

automatically

Click Properties

Click OK

The dialog box displays with a

list of currently installed network

items.

Select you can get IP settings

assigned automatically.

For Microsoft Windows 2000

Go to Start > select

Setting > click the

Control Panel >

Double-click on the

Network Connection

and Dial-Up

Connections icon

Double-Click on the

Network Connection and

Dial-Up Connections

Select Properties

Right-click the Local

Area Connection

icon, and then select

Properties.

Click Internet Protocol (TCP/IP)

Click Properties

Select Obtain an IP address

automatically

Restart your

computer

Click OK

The dialog box displays with a

list of currently installed network

items.

Select you can get IP settings

assigned automatically.

For Microsoft Windows ME

Go to Start > select

Setting > click the

Control Panel >

Double-click on the

Network icon

Double-Click on

the Network

Select the listing associated with

your network card or adapter

Click Properties

The Network dialog box

displays with a list of currently

installed network components.

Select Obtain an IP address

automatically

Click OK

Restart your

computer

Select you can get IP settings

assigned automatically.

For Microsoft Windows 98SE

Go to Start > select

Setting > click the

Control Panel >

Double-click on the

Network icon

Double-Click on

the Network

Select the listing associated with

your network card or adapter

Click Properties

The Network dialog box

displays with a list of currently

installed network components.
